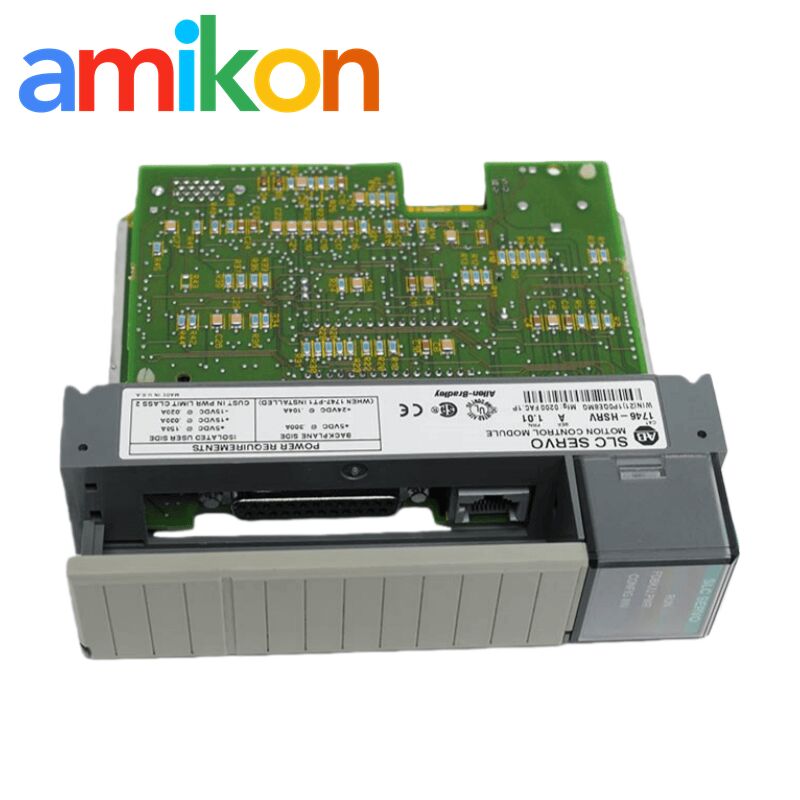

Allen Bradley 1746-HSRV Servo Control Module with 32-bit Absolute Position Control Single Slot
Allen Bradley 1746-HSRV Servo Control Module with 32-bit Absolute Position Control Single Slot
32-bit absolute position control Servo Control Module
Single Slot SLC 500 Module
12 input/output words 1746-HSRV
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1746-HSRV
Contact Us
Request A Quote
Product Details
Country Of Origin:
USA
Estimated Shipping Size:
12.7x5.1x15.2cm
Weight:
0.4 Kg
Slot Width:
Single Slot
Installation Slot:
As Close As Possible To The Processor
Storage Temperature:
-40°C To +85°C (-40°F To +185°F)
Operating Temperature:
0...+60 °C (+32...+140 °F)
Relative Humidity:
5 To 95% Without Condensation
Highlight:
32-bit absolute position control Servo Control Module
,Single Slot SLC 500 Module
,12 input/output words 1746-HSRV
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Allen Bradley 1746-OBP16 16 Channel 24 VDC Output Module with Integrated Fuse Protection
Get Best Price
Video
Allen Bradley 1746-OB32 32 Point 24V DC Sourcing Configuration Digital Output Module
Get Best Price
Video
Allen Bradley 1756-DMD30 Drive Module and Fiber Optic Interface in Single-Slot Design
Get Best Price
Video
Allen Bradley 1747-ACN15 ControlNet I/O Adapter Module with High-Speed Data Transfer
Get Best Price
CONTACT US
Contact Now
Product Description
The Allen-Bradley 1746-HSRV is an SLC 500 Servo Control Module designed to control absolute position using a 32-bit register. It supports a wide range of command modes, including Absolute moves, Incremental moves, Speed moves, Monitor moves, Hold moves, Unhold moves, Blend moves, Emergency stop operations, Homing operations, Preset operations, Clear faults, and Alternate home moves.
The module is a single-slot device compatible with SLC 500 processors, specifically the SLC 5/03, SLC 5/04, and SLC 5/05, allowing precise control of servo motors in various industrial applications. Up to twelve 1746-HSRV modules can be installed in a single rack, enabling the control of multiple servo motors simultaneously.
Technical Specifications
As a Class 3 module, the 1746-HSRV provides up to 12 input words and 12 output words. In configuration mode, the module utilizes M files for accessing parameters and defining operational behavior. For optimal performance, Allen-Bradley recommends installing the module in Slot 0 or the lowest-numbered slot in an SLC 500 rack, positioning it as close to the processor as possible.
The module's backplane current consumption is 0.300 Amperes at 5 Volts DC and 0.104 Amperes at 24 Volts DC, ensuring efficient integration into the control system.
System Integration
For connection to a servo motor system, the 1746-HSRV is ideally paired with the 1746-HT termination panel. The module is connected to this panel using a 1746-HC cable, facilitating reliable communication and control of the servo motors. This combination provides a streamlined, professional solution for precise motion control within SLC 500-based automation systems.
Module Operation
The SLC Servo Module provides 32-bit absolute position control and performs an origin search (homing) to reset the absolute position to the home reference when requested by the processor. Homing is triggered upon detecting one of the following signals:
- Encoder marker
- Limit switch
- Limit switch and marker
The module operates in two primary modes:
- Configuration Mode - for parameter setup and system configuration
- Command Mode - for executing motion commands
In both modes, the module continuously reports status to the SLC processor, ensuring accurate monitoring and control of servo operations.
Detailed Specifications
| Specification | Details |
|---|---|
| Class | 3 |
| Number of Input Words | 12 |
| Number of Output Words | 12 |
| Selection for Configuration | OTHER (with 10114 as the number specified) |
| Configuration Mode | Uses M files |
| Recommended I/O Slot in SLC Rack | Slot 1 or the lowest numbered I/O slot for SLC applications using the module interrupt option¹² |
| Number of HSRVs in one rack | 12 (with proper power supply) |
Notes: There must not be other modules that generate module interrupts. Also, the STI and FAULT routines execute at a higher priority than the module interrupt routine that is linked to the SLC Servo Module interrupt. The SLC Servo Module does not function in a remote I/O rack.
Compatibility
- SLC 5/03 FRN 5.0 (and above) processors
- RSLogix 500, AI500, or APS (version 5.0 or higher) software
Trusted Industrial Automation Partner
For over 20 years, we've been the go-to source for global industrial automation. We specialize in getting high-quality mechanical and control parts to where they are needed, exactly when they are needed.
- Massive Stock = Short Lead Times
- Right Price = Huge Discounts currently available
Ordering Information
Shipping: Immediate dispatch via DHL, UPS, FedEx, or TNT. We don't make you wait.
Payment: Standard 100% T/T for in-stock items. Simple and secure.
Warranty: Buy with confidence—all new parts come with a 12-Month Warranty.
Support: We are online 24/7. Time zones don't matter to us.
Ready to order?
Related Products
Video
Video
Send your inquiry directly to us
