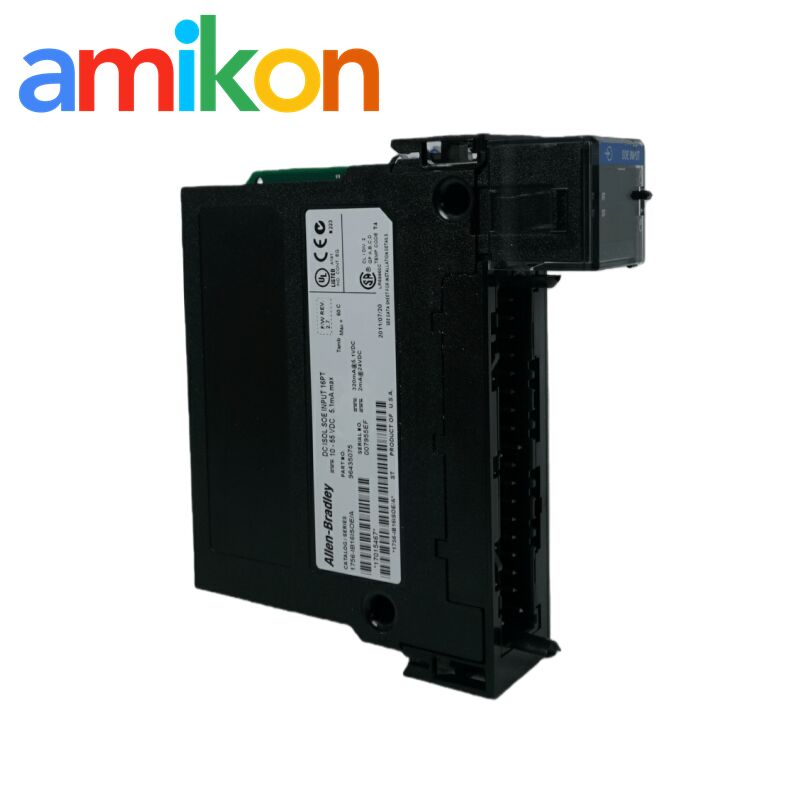

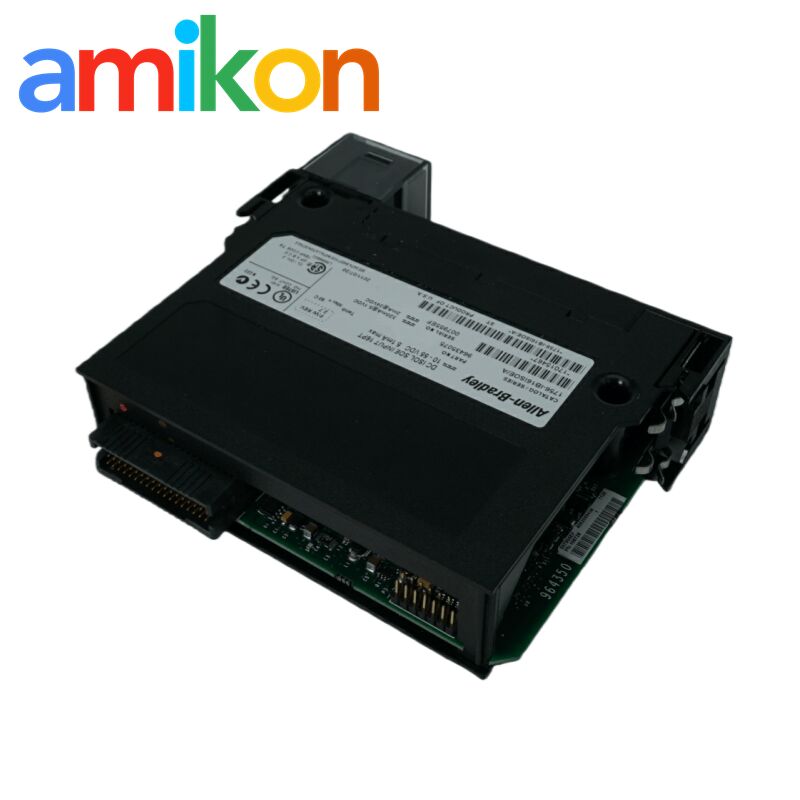

Allen Bradley 1756-IB16ISOE ControlLogix Digital I/O Module with 16 Individually Isolated Inputs
Allen Bradley 1756-IB16ISOE ControlLogix Digital I/O Module with 16 Individually Isolated Inputs
16 Individually Isolated Inputs ControlLogix Digital I/O Module
24-48 Volts DC Sink-Source 1756-IB16ISOE Module
100µs Timestamp Accuracy Allen Bradley I/O Module
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1756-IB16ISOE
Contact Us
Request A Quote
Product Details
Input Voltage:
24-48 Volts DC Sink-Source
Operating Voltage Range:
10-55 Volts DC
Input Delay Time:
50 Microseconds Plus Selected Filter Time
Minimum Operating Current:
5.5 Milliamperes At 55 Volts DC
Maximum Operating Current:
2 Milliamperes At 10 Volts DC
Backplane Power:
1.5W
Maximum Input Impedance:
10.8kΩ @ 55V Dc
Timestamp Accuracy:
100µs
Highlight:
16 Individually Isolated Inputs ControlLogix Digital I/O Module
,24-48 Volts DC Sink-Source 1756-IB16ISOE Module
,100µs Timestamp Accuracy Allen Bradley I/O Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
Allen Bradley 1756-IB16ISOE ControlLogix Digital I/O Module
Technical Specifications
| Attribute | Technical Specification / Value |
|---|---|
| Number of Inputs | 16 (Individually isolated) |
| Module Location | 1756 ControlLogix Chassis |
| Backplane Current | 295mA @ 5.1V DC & 2mA @ 24V DC |
| Backplane Power | 1.5W |
| Maximum Power Dissipation (Module) | 5.5W @ 60°C (140°F) |
| Thermal Dissipation | 17.22 BTU/hr. |
| On-State Voltage Range | 10-55V DC |
| Nominal Input Voltage | 24V DC / 48V DC |
| On-State Current (Minimum) | 2.0mA @ 9V DC |
| On-State Current (Nominal) | 4.5mA @ 24-31V DC |
| On-State Current (Maximum) | 5.1mA @ 48-55V DC |
| Maximum Off-State Current | 1.5mA |
| Maximum Off-State Voltage | 5V DC |
| Maximum Input Impedance | 10.8kΩ @ 55V DC |
