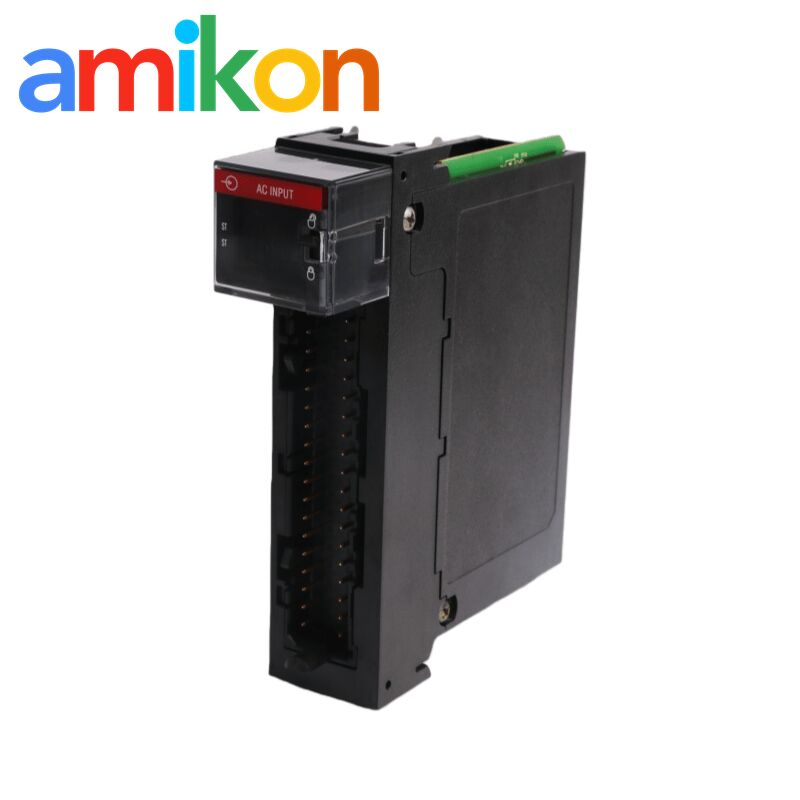

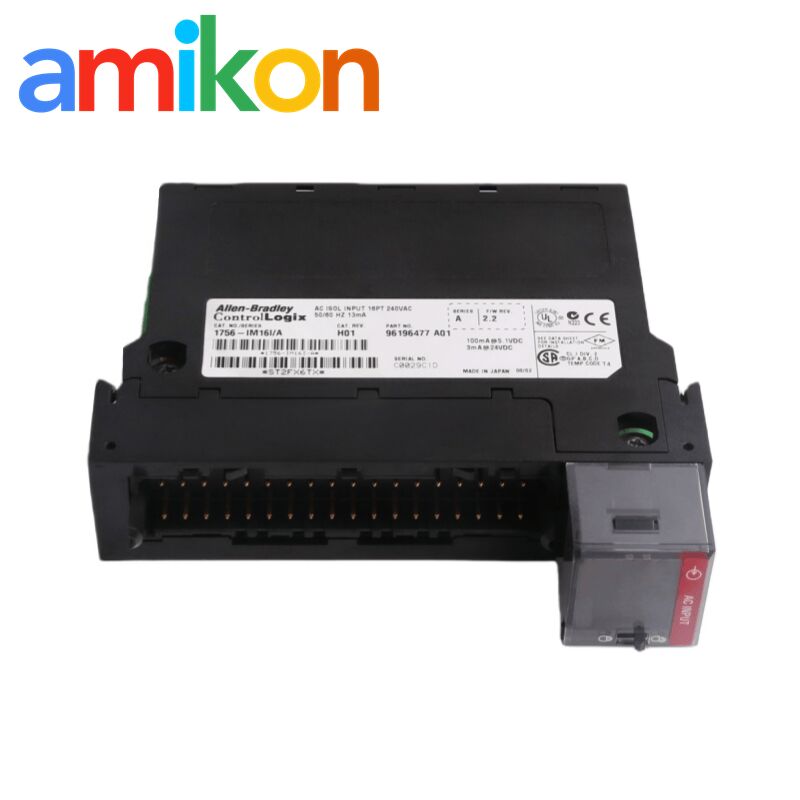

Allen Bradley 1756-IM16I ControlLogix 16 Point D/I Module with 16 Individually Isolated Inputs
Allen Bradley 1756-IM16I ControlLogix 16 Point D/I Module with 16 Individually Isolated Inputs
16 Individually Isolated Inputs ControlLogix 16 Point D/I Module
240V AC Input Voltage Allen Bradley 1756-IM16I
0.58W Backplane Power Digital Input Module
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1756-IM16I
Contact Us
Request A Quote
Product Details
Input Voltage:
240 Volts AC
Operating Voltage Range:
159-265 Volts AC
Weight:
0.26 Kg
Country Of Origin:
USA
Description:
ControlLogix 16 Point D/I Module
Brand:
Allen Bradley
Total Backplane Power:
0.58 W
Slot Width:
1
Highlight:
16 Individually Isolated Inputs ControlLogix 16 Point D/I Module
,240V AC Input Voltage Allen Bradley 1756-IM16I
,0.58W Backplane Power Digital Input Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Allen Bradley 1756-L63S Safety Processor with 8 MB User Memory 128K Digital I/O
Get Best Price
Video
Allen Bradley 80026-096-01-R Power Supply with 24V DC Output 9.6A Continuous Current
Get Best Price
Video
Allen Bradley 80190-240-02-R PowerFlex Control Board with 12–48V DC Input Voltage
Get Best Price
CONTACT US
Contact Now
Product Description
Allen Bradley 1756-IM16I ControlLogix 16 Point Digital Input Module
Technical Specifications
| Category | Attribute | Technical Data / Value |
|---|---|---|
| Input Channels | Total Inputs | 16 Individually Isolated |
| Voltage Category | 240V AC (50/60 Hz) | |
| Voltage Parameters | Nominal Input Voltage | 240V AC |
| Current & Impedance | ||
| Current & Impedance | On-State Current (Min/Max) | 5 mA @ 159V AC (Min) / 13 mA @ 265V AC (Max) |
| Current & Impedance | Off-State Current (Max) | 2.5 mA |
| Current & Impedance | Inrush Current (Max) | 250 mA |
| Current & Impedance | Input Impedance (Max) | 20.38 kΩ @ 265V AC, 60 Hz |
| Performance & Timing | Cyclic Update Time | 200 µs to 750 ms |
| Time Stamp Accuracy | ±200 µs | |
| Change of State (COS) | Software configurable | |
| Backplane & Power | Current Draw @ 5.1V DC | 100 mA |
| Current Draw @ 24V DC | 3 mA | |
| Total Backplane Power | 0.58 W | |
| Power Dissipation (Max) | 5.8 W @ 60 °C (140 °F) | |
| Backplane & Power | Thermal Dissipation | 19.78 BTU/hr |
