GE IC694PWR321 Power Supply Module with 85-264V AC for Three Independent Output Channels
GE IC694PWR321 Power Supply Module with 85-264V AC for Three Independent Output Channels
85-264V AC Input Power Supply Module
100-300V DC Input PLC Power Supply
Three Independent Output Channels GE RX3i Power Supply
Place of Origin:
USA
Brand Name:
General Electric
Model Number:
IC694PWR321
Contact Us
Request A Quote
Product Details
Product Type:
Power Supply Module
Current Rating:
2 Amps
Load-Sharing Redundancy:
Not Supported
Estimated Shipping Size:
13x6.8x13.1cm
Weight:
0.52 Kg
AC Input Voltage:
85 To 264 Volts AC
DC Input Voltage:
100 To 300 Volts DC
Country Of Origin:
USA
Highlight:
85-264V AC Input Power Supply Module
,100-300V DC Input PLC Power Supply
,Three Independent Output Channels GE RX3i Power Supply
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
GE URRHH Power Supply Module with 24 Vdc Output 35 W Rated Power and Wide Operating Temperature
Get Best Price
Video
GE IC220MDL643 Discrete Input Module with 16 Inputs Optimized for DIN-rail Real Estate
Get Best Price
Video
GE IS220PRTDH1A Resistance Temperature Device with 1mA Excitation Current 250V AC/DC Isolation
Get Best Price
Video
GE IS200VAICH1DAB Analog Input Board with ±0.05% Accuracy for Mark VIe Controller
Get Best Price
CONTACT US
Contact Now
Product Description

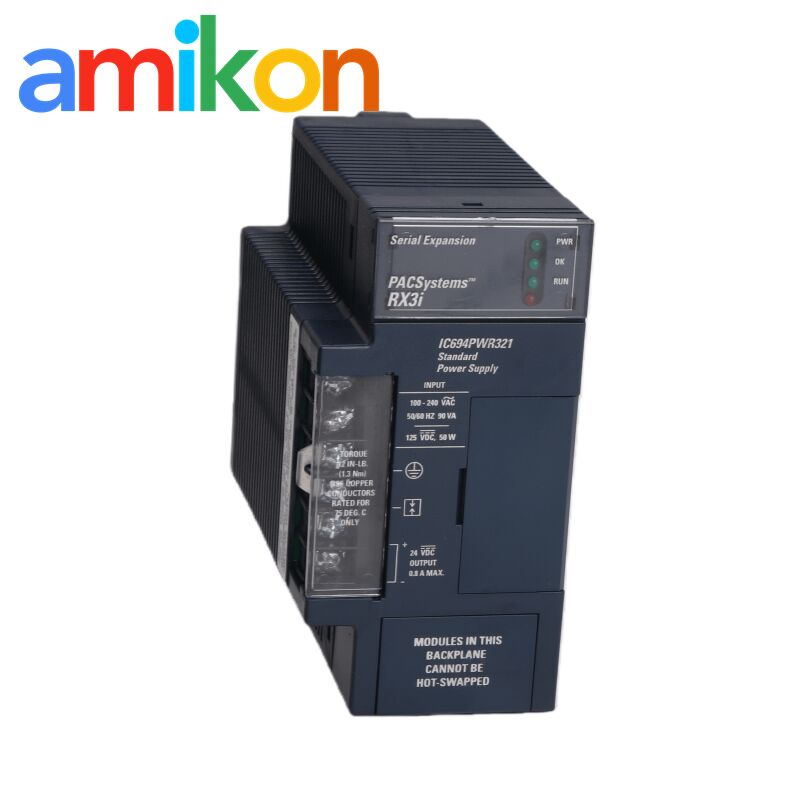

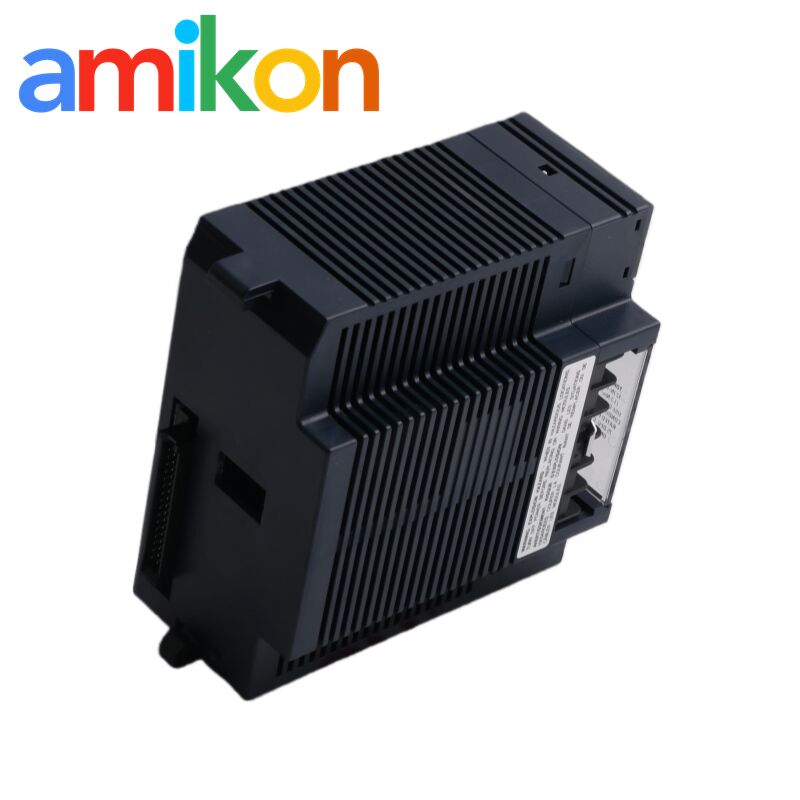

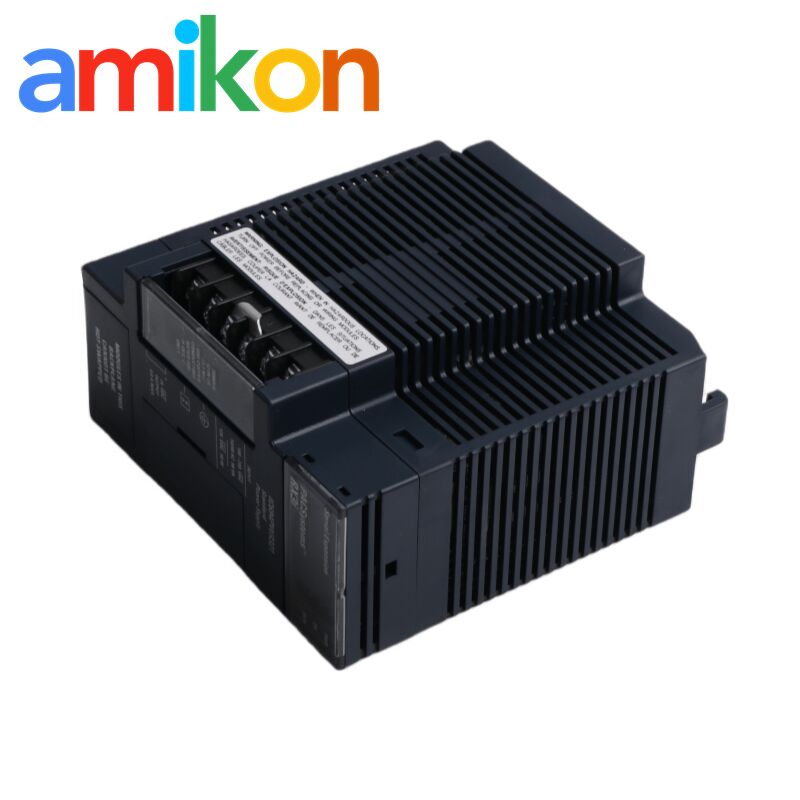

GE IC694PWR321 Power Supply Module
The GE Fanuc IC694PWR321 is an expansion power supply module developed for the RX3i PacSystem PLC platform. It is fully compatible with all GE RX3i CPUs and can be used in any RX3i system requiring an additional or dedicated power source. The module is designed for serial expansion and installs directly into the RX3i backplane, occupying the leftmost slot of the rack as required by system architecture.
Output Voltage Distribution
This RX3i power supply provides three independent output channels, allowing it to support multiple system functions:
- 5 VDC Output - Supplies logic power to the RX3i backplane and installed modules
- 24 VDC Relay Output - Powers relay circuits on output relay modules
- 24 VDC Isolated Output - Supplies field power for 24 VDC-rated input devices
This output configuration allows separation between logic power and field device power, reducing noise and improving system stability in industrial applications.
LED Status Indicators
The module includes three front-panel LEDs for quick system diagnostics:
- PWR (Green) - ON when the power supply has a valid input source and is operating correctly
- OK (Green) - ON when the PLC system is functioning normally
- RUN (Green) - ON when the PLC is in Run mode
If the PWR LED is off, it indicates either a power supply fault or the absence of input power.
