Product Description
AMIKON · GE TURBINE CONTROL

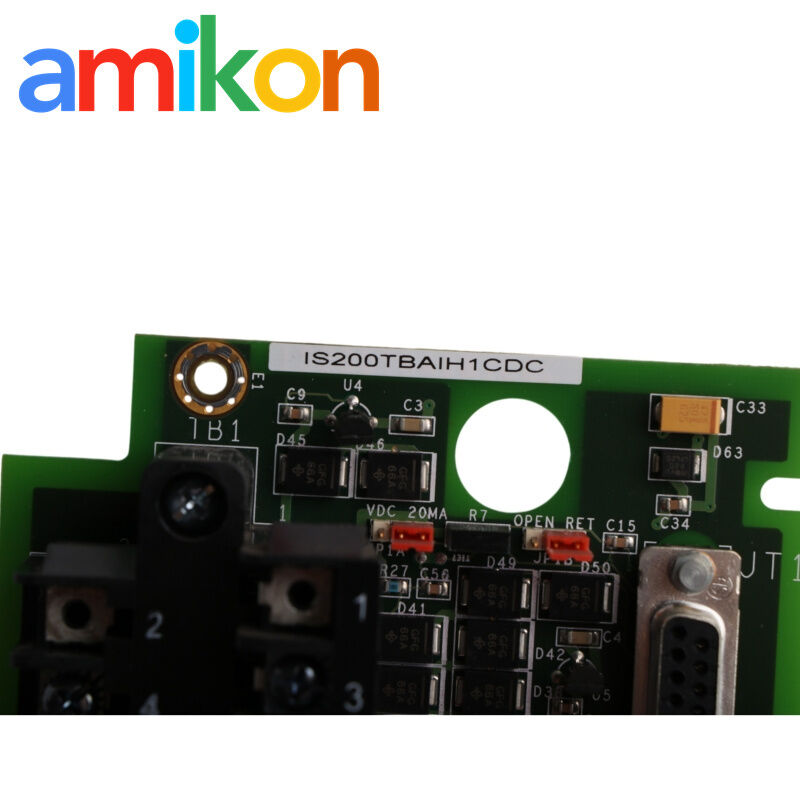

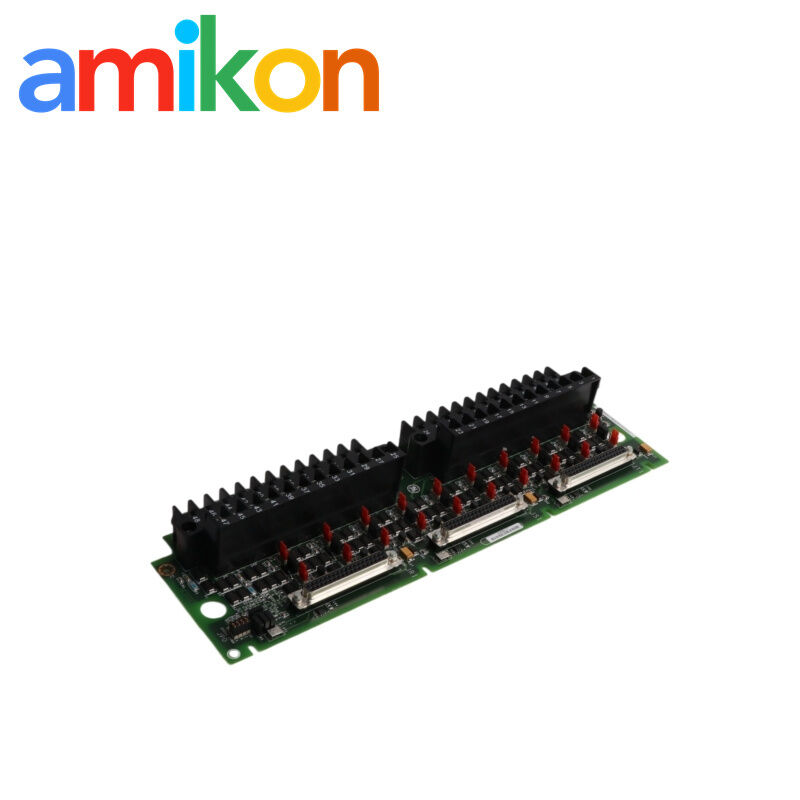

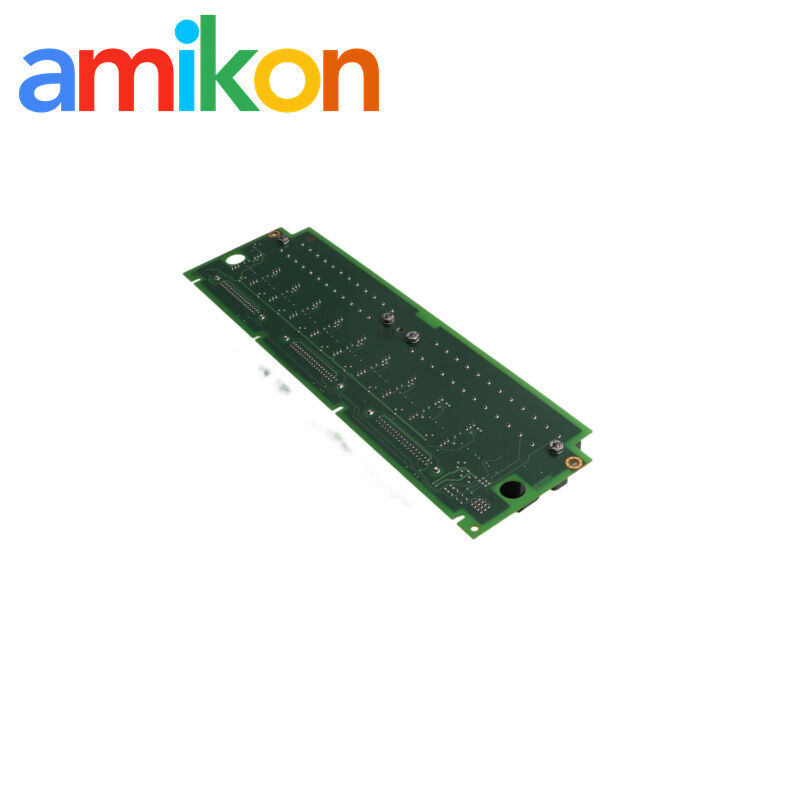

GE IS200TBAIH1CDC Analog I/O Terminal Board
IS200TBAIH1CDC is a TBAI analog input/output terminal board for documented GE turbine-control I/O arrangements, providing field signal termination and connection to associated analog I/O processing hardware.
01 · Key Features
GE TBAI · ANALOG I/OAnalog inputs Ten documented analog input channels for transmitter and voltage/current input arrangements.
Analog outputs Two output circuits, including a 4–20 mA circuit and a configurable current-output circuit.
I/O interface Three DC-37 pin connections provide the board-side interface to the associated I/O processing hardware.
Signal protection Input and output circuitry includes provisions for surge and high-frequency noise suppression.
Redundancy The documented architecture supports single-path simplex operation and three-path TMR operation.
Field wiring Two terminal blocks provide the direct connection points for the board's analog field circuits.
02 · Core Specifications
ANALOG SIGNAL CHARACTERISTICS| Part Number | IS200TBAIH1CDC |
|---|---|
| Board Type | TBAI Analog Input/Output Terminal Board |
| Analog I/O Capacity | 12 channels total: 10 analog inputs + 2 analog outputs |
| Transmitter Input Span | 1–5 V dc across the documented precision input resistor |
| Typical Input Resistance | 250 Ω |
Show 5 more specifications
| 24 V dc Transmitter Supply | 24 V dc output; documented rating up to 21 mA per channel |
|---|---|
| Maximum Two-Way Lead Resistance | 15 Ω |
| 4–20 mA Output Burden | Up to 800 Ω with the associated PAIC configuration |
| 0–200 mA Output Burden | 50 Ω |
| Output Configuration | One output circuit supports 4–20 mA; the configurable output supports 4–20 mA or 0–200 mA operation. |
03 · Physical & Environmental
BOARD CONSTRUCTION| Operating Temperature | −30 to 65 °C / −22 to 149 °F |
|---|---|
| Board Dimensions | Approximately 10.16 cm wide × 33.02 cm high |
| Technology | Surface mount |
| Terminal Blocks | 2 field-wiring terminal blocks |
| Terminals per Block | 24 |
| System Connection | 3 × DC-37 pin connectors |
04 · Configuration Details
JUMPERS · MONITORING · IDENTIFICATION| Input Selection | Jumper configuration selects current or voltage input arrangements for the documented channels. |
|---|---|
| Return Selection | Jumper positions determine whether the return is connected to common or left open. |
| Input Range Selection | J9A/J10A provide the documented 1 mA or 20 mA selection for the applicable input channels. |
Show 3 more configuration details
| Output Range Selection | J0 selects the configurable output between the documented 20 mA and 200 mA ranges. |
|---|---|
| Output Monitoring | The terminal-board circuit provides a voltage drop across a series resistor for output-current indication. |
| Board Identification | The connector identification device contains terminal-board identification information including serial number, board type, revision and connector location. |
05 · Application
FIELD SIGNAL CONNECTIONTypical application
Used within GE turbine-control I/O arrangements where analog field signals are terminated and routed toward the associated analog I/O processing hardware.
Replacement relevance
The exact board reference becomes important when an analog I/O path, terminal-board assembly, or related control channel requires inspection or replacement.
06 · Wiring & Redundancy
SIMPLEX / TMR| Field Wiring | Input and output wires connect directly to the two I/O terminal blocks on the board. |
|---|---|
| Terminal Capacity | Each terminal block has 24 terminals and the documented installation information specifies wiring up to #12 AWG. |
| Shield Connection | A shield-terminal attachment point is provided adjacent to each terminal block. |
| Simplex | Uses a single TBAI I/O connection. |
| TMR | Uses all three TBAI I/O connections; input signals are distributed to the R, S and T control paths. |
Match the complete board reference, document the existing jumper positions and field wiring, and confirm the required system configuration before replacing the board. Follow the applicable GE system documentation for the installation procedure.
