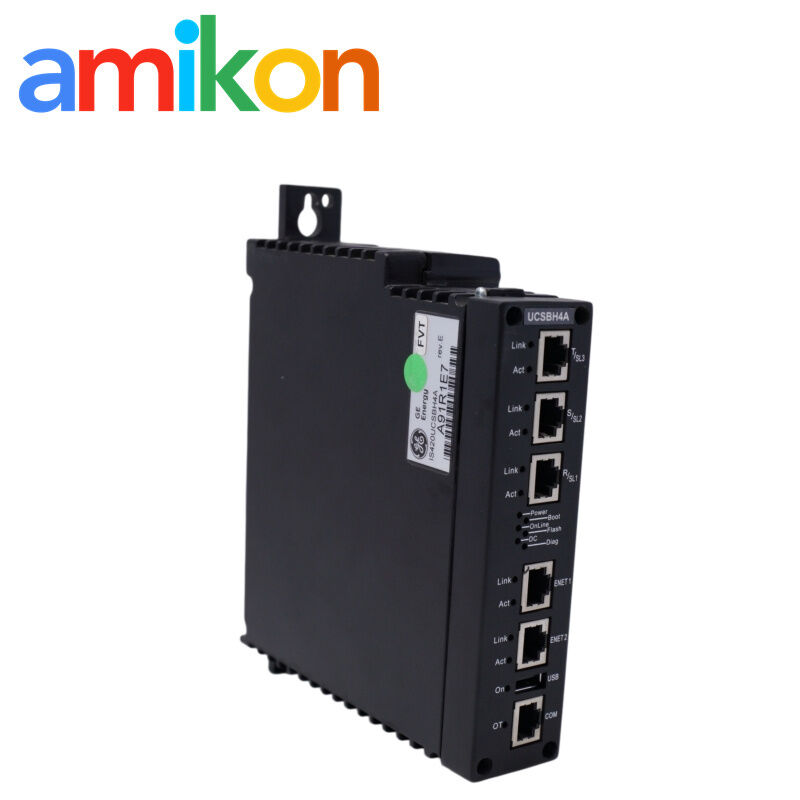

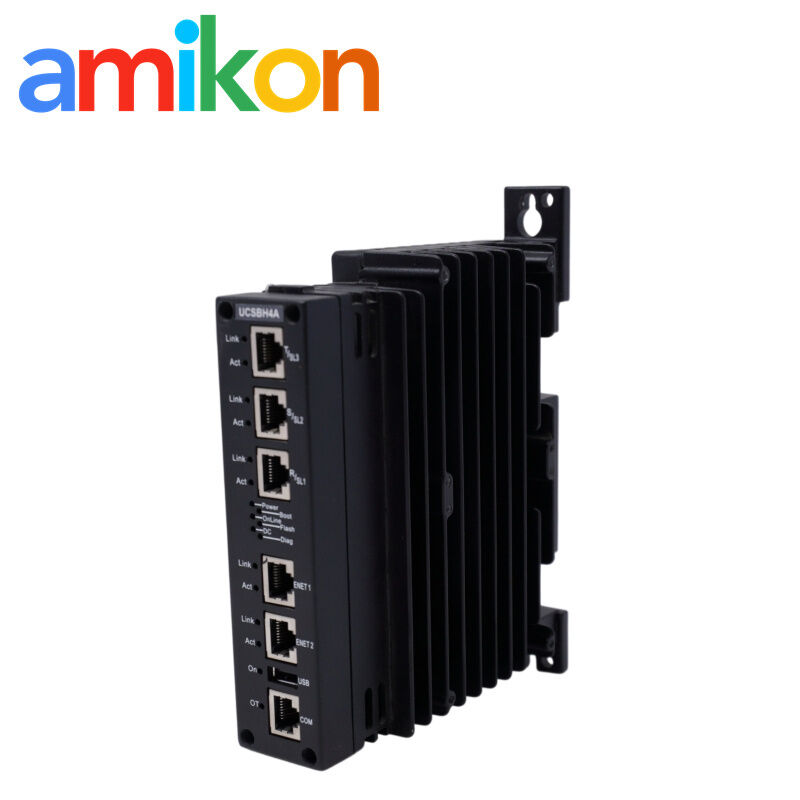

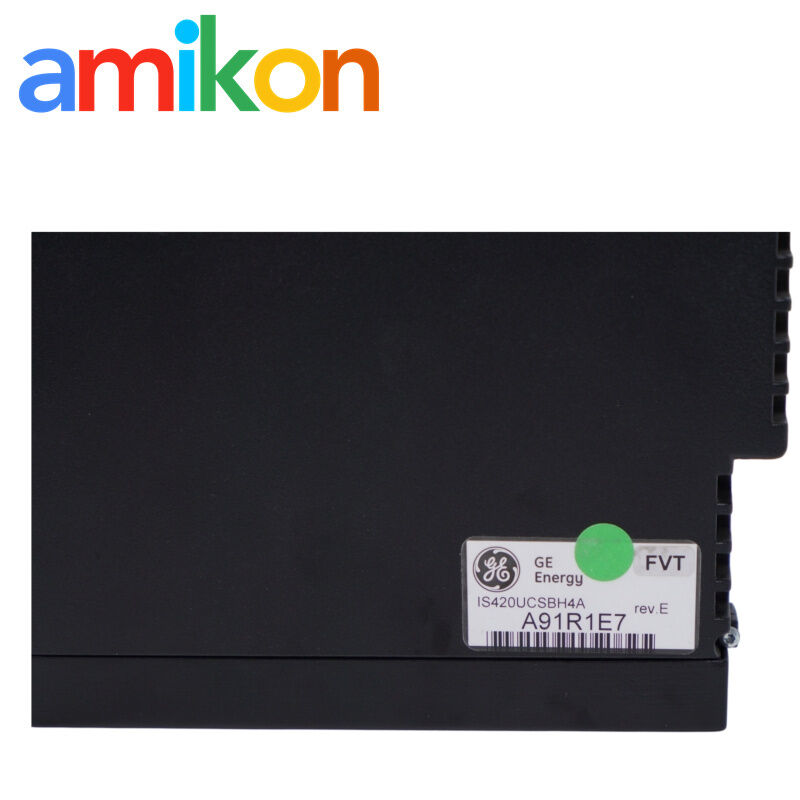

GE IS420UCSBH4A Mark VIe UCSB Controller Industrial Control Module
GE IS420UCSBH4A
GE Mark VIe Controller
IS420UCSBH4A Controller
Place of Origin:
USA
Brand Name:
General Electric
GE IS420UCSBH4A
,GE Mark VIe Controller
,IS420UCSBH4A Controller
GE IS420UCSBH4A Controller
A GE Mark VIe controller for industrial control applications, including compatible turbine-control systems.
GE Mark VIe Control Platform
Mark VIe is a modular industrial control platform that combines controllers, Ethernet communications, distributed I/O and control software. The IS420UCSBH4A is identified for use as a Mark VIe, EX2100e or LS2100e controller.
System functions and redundancy depend on the overall control-system configuration.
Application & Failure Scenarios
This controller may be sourced during maintenance involving controller alarms, loss of control-system communication, or suspected hardware faults in an existing Mark VIe, EX2100e or LS2100e installation.
Technical Specifications
| Product Type | UCSB Controller |
|---|---|
| Supported System Context | Mark VIe, EX2100e or LS2100e controller applications |
| Microprocessor | Intel EP80579 |
| Processor Clock Speed | 1066 MHz |
| Operating System | QNX Neutrino real-time operating system |
| System Memory | 256 MB DDR2 SDRAM with ECC |
| Flash Storage | 2 GB NAND flash |
| Power Supply | 28 V DC nominal |
| Current Rating | Up to 1.1 A |
| Primary Ethernet Interface | ENET1, 10/100 Mbps Ethernet, RJ-45 |
| Secondary Ethernet Interface | ENET2, 10/100 Mbps Ethernet, RJ-45 |
| I/O Network Interface | Three IONet Ethernet ports, 10/100 Mbps, RJ-45 |
| Communication Functions | Ethernet-based controller, I/O and control-network communications |
| Cooling | Fanless design |
Additional Technical Details
| Programming Environment | ControlST |
|---|---|
| Control Logic | Control-block programming, including analog and discrete blocks; Boolean logic can be represented in relay ladder diagram format. |
| Data Types | Boolean, 16-bit and 32-bit signed/unsigned integers, 32-bit floating point and 64-bit long floating point. |
| ENET1 Communication | TCP/IP communications with engineering tools and HMI alarm systems; Ethernet Global Data (EGD) for application-variable communication. |
| ENET2 Communication | Supports Ethernet-based communication options such as Modbus, OPC UA or CDH, depending on system configuration. |
| IONet Function | Ethernet communication between controllers and distributed I/O modules. |
| Non-volatile Program Variables | ControlST V07.05 and later: 3067 program variables, 338 forces and 128 totalizers. ControlST V07.04 and earlier: 3067 program variables, 338 forces and 64 totalizers. |
For an IS420UCSBH4A pdf/manual/datasheet search, the model number is the key identifier for matching technical information to this controller.
A shared product family does not establish interchangeability. Confirm the installed part number, hardware identification and system-specific replacement requirements before installation or commissioning.
Delivery & Warranty
Inspection and any agreed functional checks depend on the supplied condition. Packaging is selected to protect the item during shipment.
Warranty scope follows the agreed order terms. Report suspected DOA items promptly; returns require coordination and authorization from AMIKON.
Parts sourcing, with practical support
We support industrial maintenance enquiries with part identification, sourcing coordination and order follow-up. Send your requirement to our team for review.
Frequently Asked Questions
1. What processor does the IS420UCSBH4A use?
It uses an Intel EP80579 microprocessor with a clock speed of 1066 MHz.
2. What is the GE Mark VIe system used for?
Mark VIe is a modular industrial control platform used in applications such as power-generation and turbine control.
3. Can the IS420UCSBH4A replace another Mark VIe controller?
Not automatically. Confirm the exact model, hardware identification, system configuration and applicable replacement requirements.
4. Which communication interfaces are available on this controller?
It has two Ethernet interfaces, ENET1 and ENET2, plus three IONet Ethernet ports for controller and I/O network communications.
5. What information should I send for a quotation?
Provide the part number, quantity, destination, required date and machine/system model. Send the enquiry to sales@amikon.cn.
