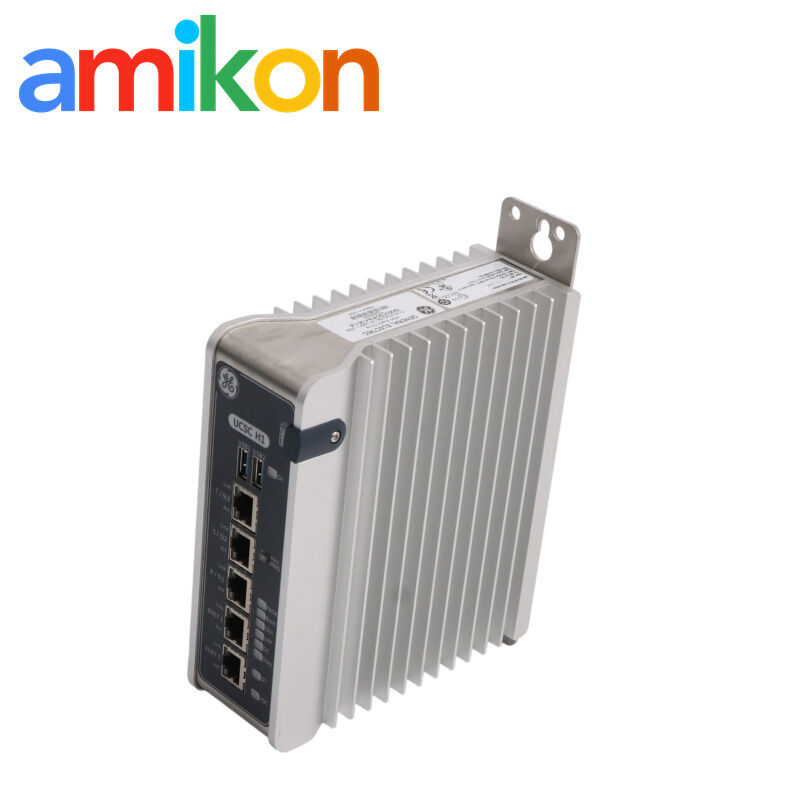

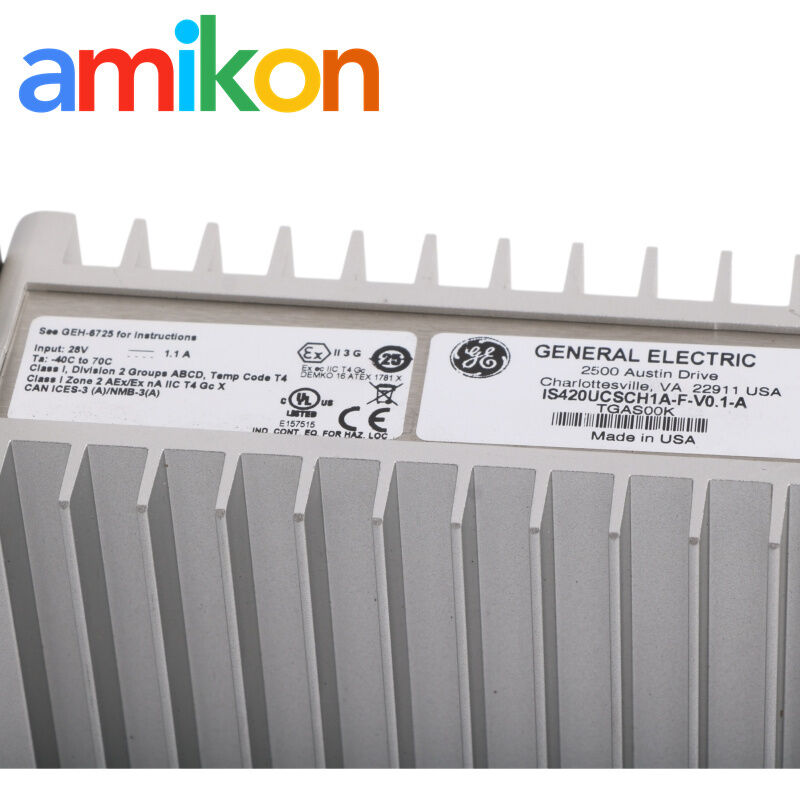

IS420UCSCH1A GE Vernova Mark VIe Controller
Application-specific controller for turbine and balance-of-plant control installations, with embedded PROFINET gateway functionality for supported PROFINET I/O devices.
Controller architecture
The IS420UCSCH1A is a standalone, quad-core controller using QNX Neutrino real-time operating-system technology. Its application-specific software runs control logic for supported Mark VIe installations.
The controller operates as a single module, uses convection cooling and requires no battery, fan or hardware jumper settings. Its flash memory supports software updates appropriate to the installed application.
Technical Specifications
| Controller Platform | Mark VIe UCSCH1x |
| Processor | Quad-core AMD G-Series, 1.2 GHz |
| Memory | 4 GB DDR3-1333 SDRAM |
| Control Software | ControlST; the UCSCH1x family is available from ControlST V07.01. The required release depends on the installed application. |
| Programming | Control blocks with analog and discrete blocks; Boolean logic represented in relay ladder diagram format. |
| Data Types | Boolean; 16-bit signed and unsigned integers; 32-bit signed and unsigned integers; 32-bit and 64-bit floating-point values. |
| Dimensions (H × D × W) | 168 × 150 × 55 mm (6.61 × 5.90 × 2.17 in) |
| Dimensions with Mounting | 204 × 152 × 55 mm (8.03 × 5.99 × 2.17 in) |
| Weight | 1,327 g (46.8 oz) |
| Cooling | Convection; installation airflow clearances must be maintained. |
| Operating Temperature | −40 to +70 °C, measured 25 mm from the controller. Mounting and airflow conditions affect the permitted operating envelope. |
| Storage Temperature | −40 to +85 °C |
Additional Specifications, Interfaces, Power Connection & Installation Requirements
Additional specifications
| Humidity | 95% non-condensing |
| Input Power | 18–30 V DC; nominal 18 W, maximum 30.8 W. |
| Input Protection | Non-replaceable 4 A, 125 V DC-rated fuse; reverse-polarity protection provided. |
| Reliability Reference | MTBF at 30 °C: 414,248 hours for the IS420UCSCH1 controller family specification. |
Communication interfaces
| IONet | Three Ethernet interfaces for communication with Mark controls I/O packs and controllers. UCSCH1A supports the IONet arrangements used by Simplex, Dual and TMR controller configurations. |
| Embedded PROFINET Gateway | The UCSCH1A provides embedded PROFINET gateway functionality for supported PROFINET I/O devices, including RSTi-EP Slice I/O. |
| UDH / LAN | Ethernet interface used for communication with the ToolboxST application. |
| Other interfaces | Additional Ethernet, USB, serial and display interfaces are described for the UCSC family. Confirm the individual connector labels and intended use on the installed hardware before connecting equipment. |
DC power connector
| Connector | 3-pin Phoenix Contact MC 1,5/3-STF-3,81, part number 1827716. |
| Pin 1 | Ground |
| Pin 2 | Negative (−) |
| Pin 3 | Positive (+) |
| Wire Size | 28–16 AWG |
| Screw Torque | 0.23 N·m (2 in-lb) |
The controller case is bonded to the power-supply negative. Reversed input polarity is protected against damage, but the controller will not power up.

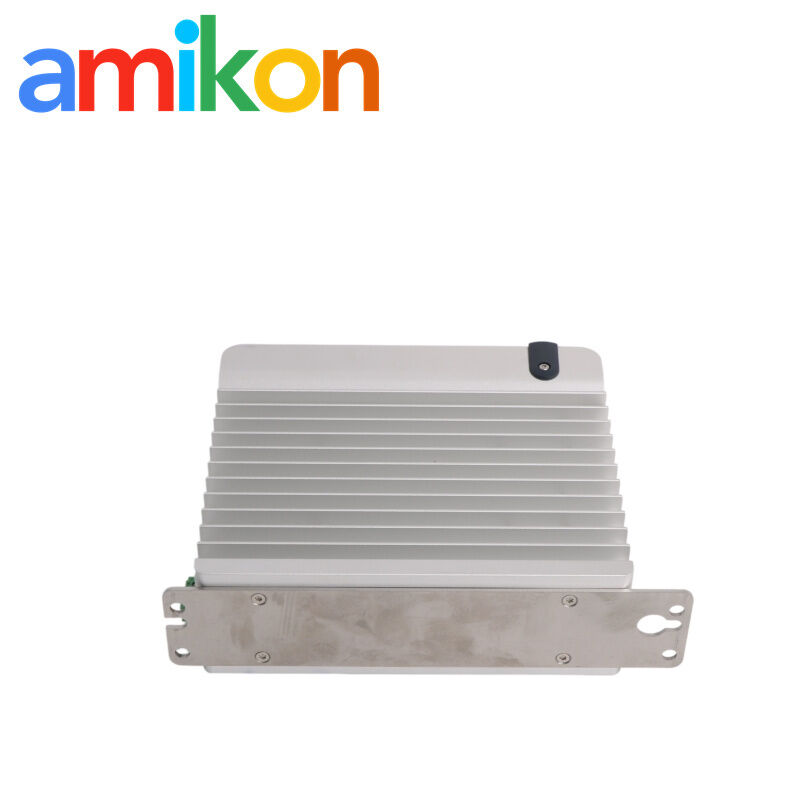

Mounting and thermal clearance
| Mounting Position | Mount vertically using the two mounting screws on the mounting base. |
| Airflow | Keep the cooling fins unobstructed. |
| Clearance Above / Below | Minimum 100 mm (3.94 in). |
| Side-by-Side Controllers | Minimum 50 mm (1.97 in) spacing between parallel-mounted UCSC controllers to achieve the full temperature rating. |
| Temperature Reference Point | Operating-temperature limits are specified at 25 mm from any point on the controller. |
Application & Failure Scenarios
Turbine and plant control
Used for application-specific logic in supported wind-turbine, gas-turbine, steam-turbine and combined-cycle power-generation control systems.
PROFINET I/O communication
Relevant when troubleshooting a UCSCH1A-based installation involving supported PROFINET I/O devices. Check gateway configuration, network connections and controller diagnostics before replacing hardware.
Controller outage or restart
A controller fault can interrupt its assigned control function and delay equipment recovery. Review alarms, power input, airflow and network status to distinguish a controller failure from an external system issue.
Supply & Service
Testing: Inspection and testing scope is confirmed for the specific unit before order commitment.
Packaging: Packaging condition and requested product condition are confirmed before dispatch.
Returns, DOA & Warranty: Obtain written confirmation of return eligibility, DOA notification requirements, warranty duration and coverage in the quotation or order terms.
Contact AMIKON
Request a Quote
Part Number: IS420UCSCH1A | Quantity: Required quantity
Destination: City and country | Required Date: Target delivery date
Machine/System Model: Installed machine, Mark VIe system and controller configuration
Frequently Asked Questions
1. Which PROFINET function does the UCSCH1A support?
It provides embedded PROFINET gateway functionality for supported PROFINET I/O devices, including RSTi-EP Slice I/O.
2. What DC supply does this controller require?
The specified input range is 18–30 V DC, with 18 W nominal and 30.8 W maximum input power.
3. What mounting clearance is required?
Mount vertically with unobstructed cooling fins, at least 100 mm above and below, and 50 mm between parallel-mounted UCSC controllers for the full temperature rating.
4. Which controller redundancy arrangements are supported?
The UCSCH1x family supports Simplex, Dual and TMR configurations. The applicable arrangement must match the installed application and system design.
5. What should be checked before ordering a replacement?
Confirm the full part number, hardware revision, installed ControlST release, controller configuration and required network functionality.
