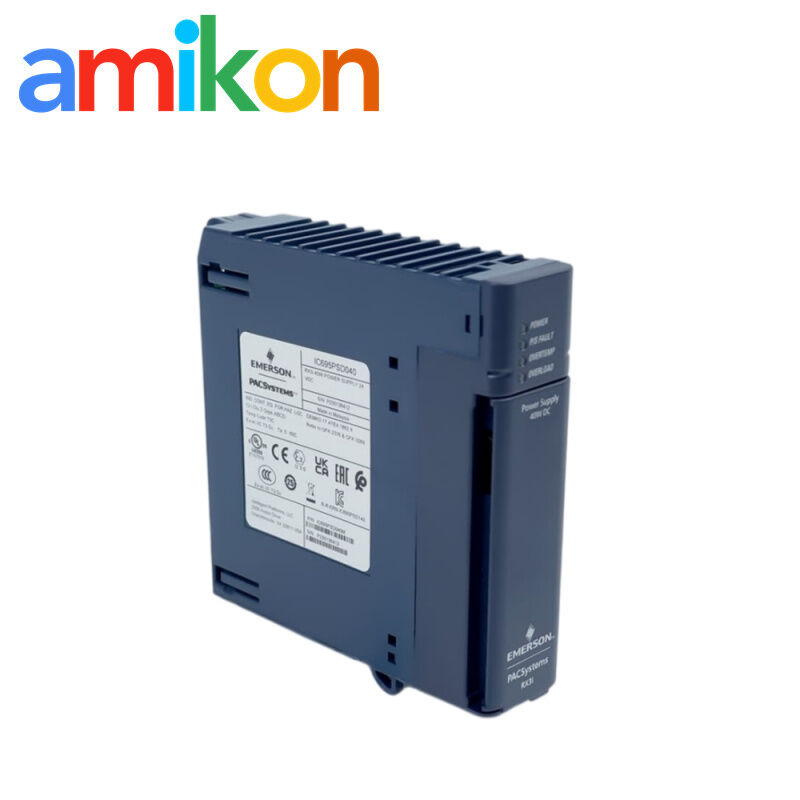

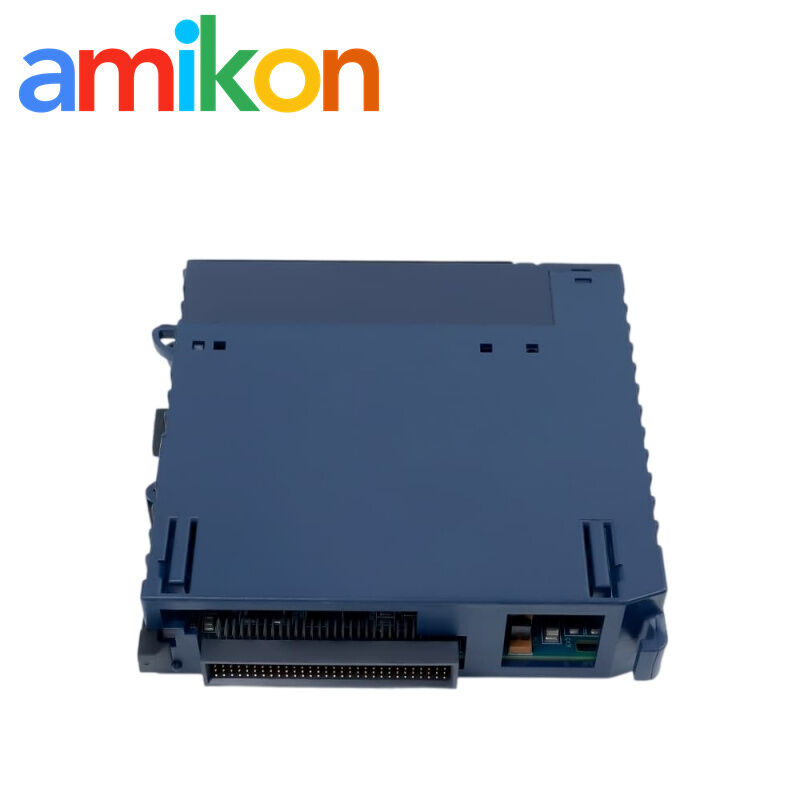

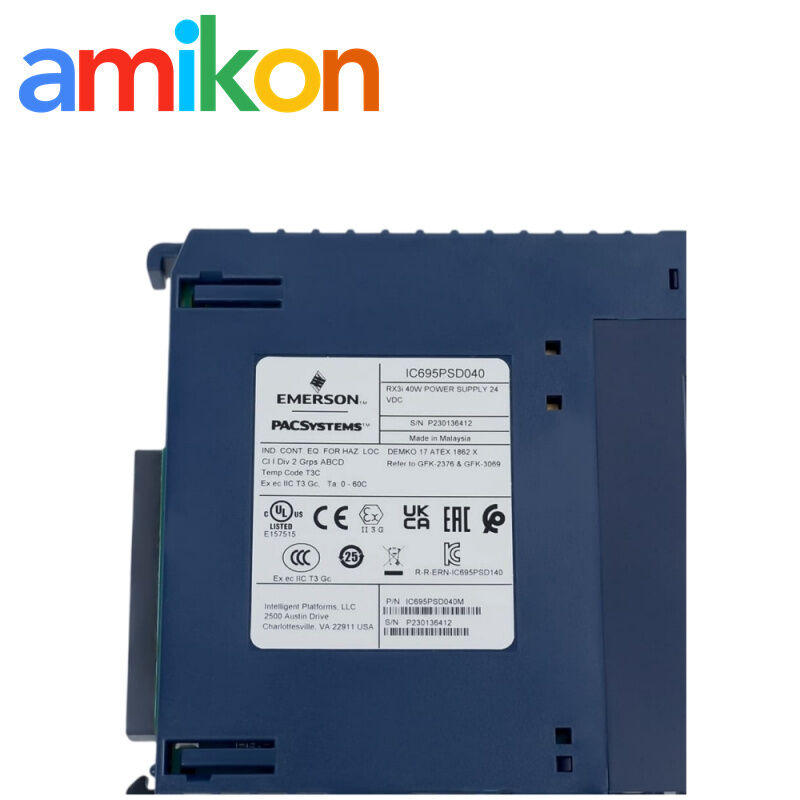

IC695PSD040 GE PACSystems RX3i 24 VDC 40 W Universal Backplane Power Supply
GE PACSystems RX3i 24VDC power supply
RX3i universal backplane power supply
40W GE Mark VIe power module
Place of Origin:
USA
Brand Name:
General Electric
GE PACSystems RX3i 24VDC power supply
,RX3i universal backplane power supply
,40W GE Mark VIe power module
Designed for PACSystems RX3i Universal Backplanes with IC695-series modules.
Application & Failure Scenarios
Where It Fits
IC695PSD040 is used in PACSystems RX3i control systems where an RX3i Universal Backplane requires a 24 VDC power supply.
When Customers Search for It
Typical search triggers include loss of backplane power, a P/S Fault indication, Overload or Overtemperature indication, or the need to replace an existing IC695PSD040 during control-system maintenance. A failed or unavailable power supply can interrupt PLC and I/O operation and increase machine or process downtime.
Technical Specifications SPECIFICATIONS
| Part Number | IC695PSD040 | ||||||||
| Product Family | PACSystems RX3i | ||||||||
| Product Type | Universal Backplane Power Supply | ||||||||
| Nominal Input Voltage | 24 VDC | ||||||||
| Operating Input Voltage | 18 to 30 VDC | ||||||||
| Total Load Capacity | 40 W, all loads | ||||||||
| Input-to-Backplane Isolation | None | ||||||||
| Backplane Compatibility | PACSystems RX3i Universal Backplane, IC695 Series | ||||||||
| Slot Occupancy | 1 slot | ||||||||
| Wiring | 14 AWG to 22 AWG, 1 wire per terminal | ||||||||
| LED Indications | Power, P/S Fault, Overload, Overtemperature | ||||||||
Environmental & Redundancy Specifications
|
|||||||||
Replacement Check
Delivery & Warranty
AMIKON checks the supplied part before dispatch, uses suitable industrial packaging, and provides shipment information for order follow-up. DOA cases and return requests are handled against the order condition and supporting evidence. Warranty coverage applies to the supplied item under AMIKON's stated order terms; contact the sales team promptly if an issue is found after receipt.
RFQ Information
Please provide Part Number, Quantity, Destination, Required Date, and Machine/System Model.
FAQ
1. What system is the IC695PSD040 designed for?
2. What input voltage does the IC695PSD040 use?
3. How much load can the IC695PSD040 support?
4. What diagnostic indicators are available?
5. Can the IC695PSD040 be used in a redundant or load-sharing power arrangement?
