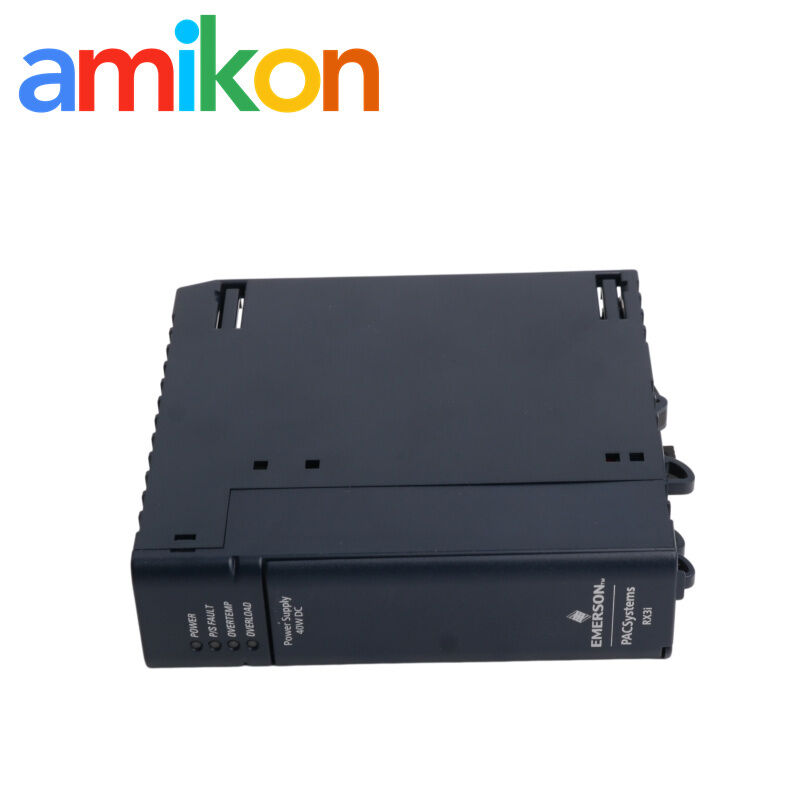

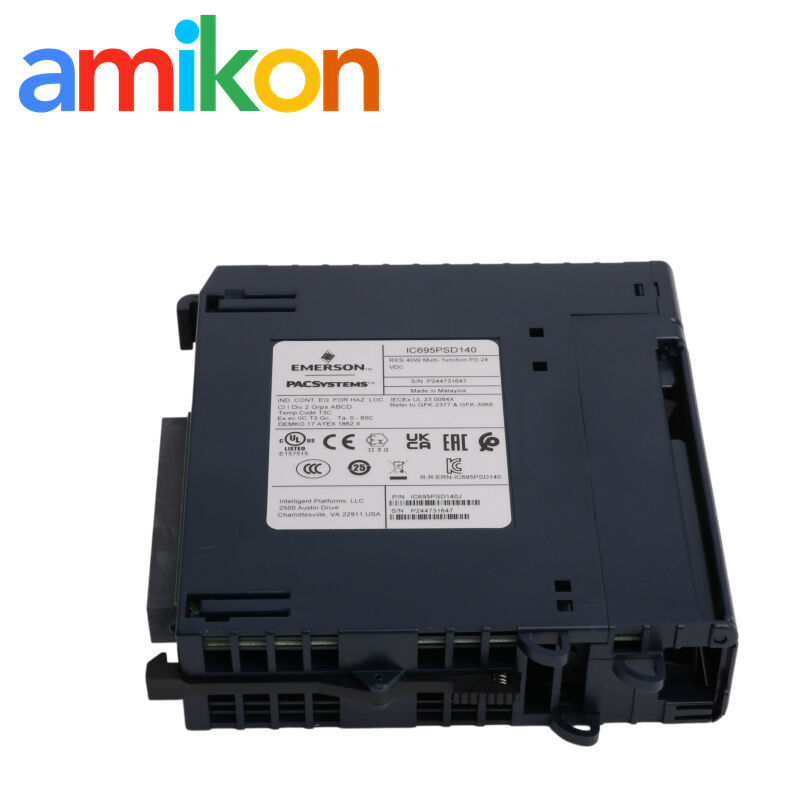

IC695PSD140
RX3i 24 VDC Multi-Purpose Power Supply
IC695PSD140 is a 40 W power supply for PACSystems RX3i Universal Backplanes in the IC695 series. Emerson specifies a nominal 24 VDC input and an operating input range of 18 to 30 VDC. The module supports load-sharing and redundancy applications and occupies one backplane slot.
Technical Specifications
| Product Type | PACSystems RX3i Universal Backplane 40 W Multi-Purpose Power Supply |
| Compatibility | PACSystems RX3i Universal Backplane, IC695 series |
| Backplane Occupancy | 1 slot |
| Input Voltage | 24 VDC nominal; operates from 18 to 30 VDC |
| Load Capacity | 40 W total, all loads |
| Input-to-Backplane Isolation | None |
| Wiring | 14 AWG to 22 AWG; 1 wire per terminal |
| LED Indications | Power, P/S Fault, Overload, Overtemperature |
| Load Sharing & Redundancy | Supported |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | −40 to +85 °C |
| Humidity | 5 to 95%, non-condensing |

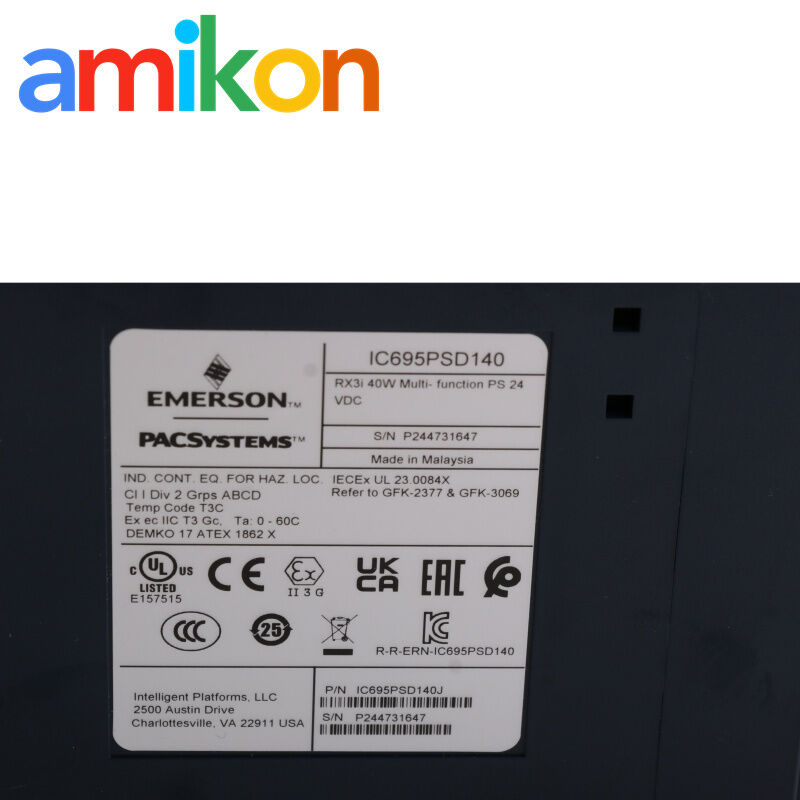

| Agency Approvals* | UL, CE, ATEX, CCC, KC, Marine (ABS, BV, DNVGL) |
Power for PACSystems RX3i Universal Backplanes
IC695PSD140 is used in PACSystems RX3i Universal Backplane power architecture. Its specified multi-purpose design allows it to be used where load-sharing or redundant power-supply arrangements are required.
Maintenance teams may search for this power-supply module when an RX3i installation reports a power-supply fault, overload or overtemperature condition, or when a failed power-supply module interrupts operation of the affected backplane. An unresolved power-supply problem can increase equipment downtime and delay automation-system recovery.
Diagnostic Indicators
Installation & Wiring
For field wiring, Emerson specifies 14 AWG to 22 AWG conductors with one wire per terminal. Installation and service should follow the applicable manufacturer documentation for the specific RX3i configuration.
Platform: PACSystems RX3i
Each unit is checked before shipment and packed for industrial delivery. DOA cases are handled after receipt verification. Warranty covers confirmed product defects under normal use; damage caused by incorrect installation, wiring, misuse or external conditions is outside the standard warranty scope. Replacement or return arrangements are confirmed case by case.
RFQ Information
Please include:
FAQ
What is the IC695PSD140 used for?
It is a 40 W multi-purpose power supply for PACSystems RX3i Universal Backplanes in the IC695 series, with a nominal 24 VDC input.
What input voltage does IC695PSD140 require?
Emerson specifies 24 VDC nominal input, with an operating input range of 18 to 30 VDC.
Does IC695PSD140 support redundant power-supply applications?
Yes. The manufacturer identifies the module as suitable for load-sharing and redundancy applications.
What do the LEDs on IC695PSD140 indicate?
The specified LED indications are Power, P/S Fault, Overload and Overtemperature.
How should I verify a replacement IC695PSD140?
Confirm the exact part number IC695PSD140 and verify the RX3i Universal Backplane application, input requirements and required power capacity before ordering.
