IC693CPU374-KZ GE Fanuc Series 90-30 PLC CPU Module
GE Fanuc Series 90-30 PLC CPU
IC693CPU374-KZ PLC module
GE Mark VIe Controller module
Place of Origin:
USA
Brand Name:
General Electric
GE Fanuc Series 90-30 PLC CPU
,IC693CPU374-KZ PLC module
,GE Mark VIe Controller module

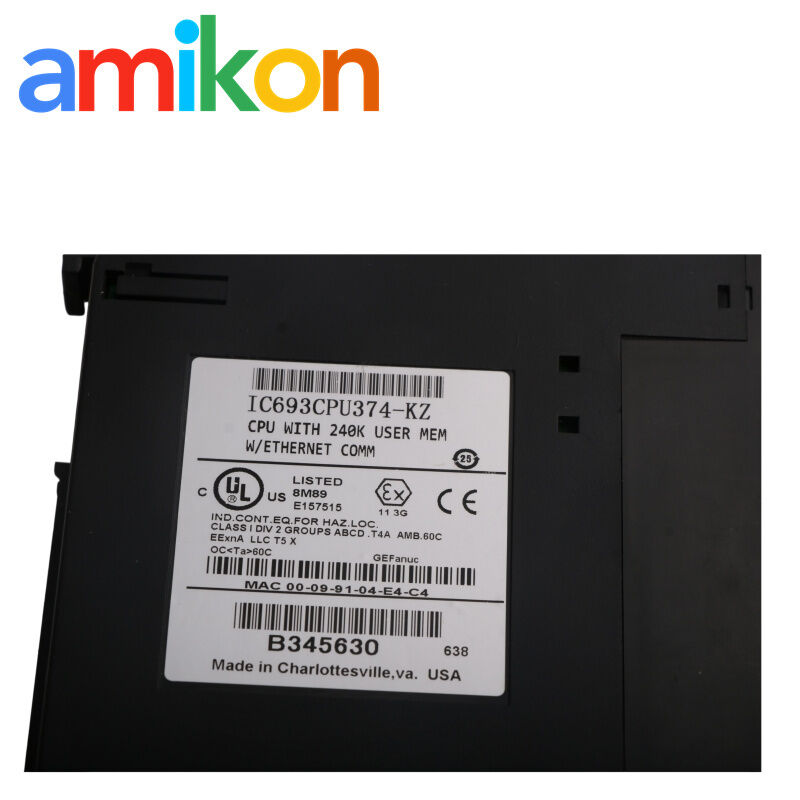

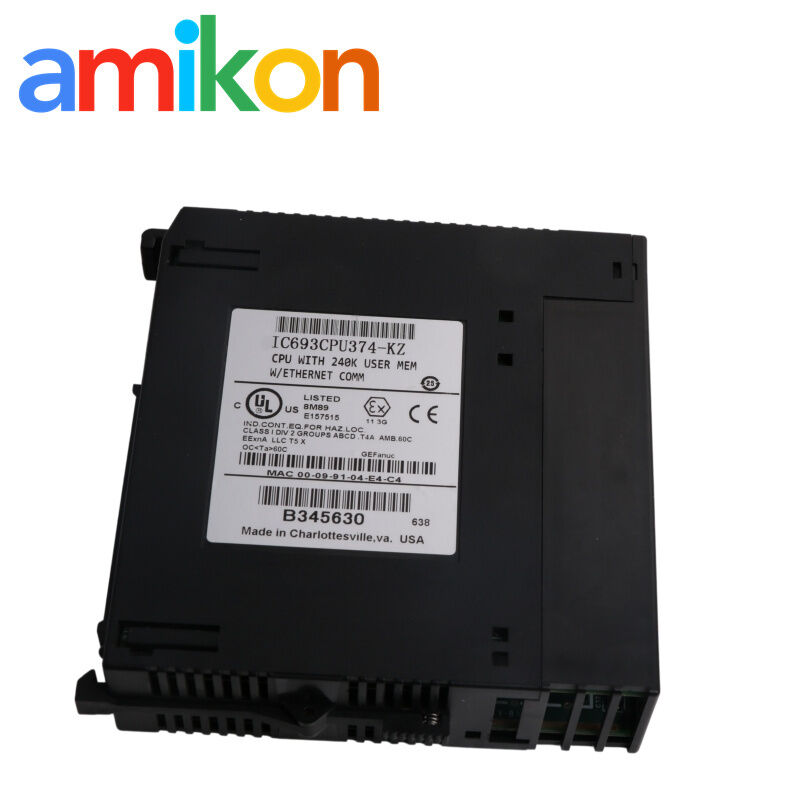

IC693CPU374-KZ CPU Module
Series 90-30 CPU module with embedded 10/100Base-T/TX Ethernet connectivity.
The IC693CPU374 is a single-slot Series 90-30 CPU module with integrated Ethernet, 133 MHz processing and 240 KB of user memory.
For replacement, check the complete installed catalog number, hardware revision and existing PLC configuration before ordering.
Technical Specifications
Show Additional CPU374 Specifications
- Battery-backed clock: supported.
- Internal battery backup specification: 1.2 months with no power; external battery specification is documented separately.
- Total baseplates per system: 8, consisting of the CPU baseplate plus 7 expansion and/or remote baseplates.
- Interrupt support: periodic subroutine feature.
- Communications and programmable coprocessor compatibility: supported.
- Override: supported.
- Floating-point math: hardware floating-point math.
- Built-in serial ports on CPU374: none; RS-485 communication is provided through the power supply.
- Power-supply serial protocols: SNP and SNPX.
- Hand-held programmer: not supported.
- Program store devices: PLC Program Download Device (PPDD) and EZ Program Store Device.
System Role
The CPU374 is installed in a Series 90-30 PLC baseplate and combines controller processing with an embedded Ethernet interface.
Its Ethernet interface provides the documented network communication path, while the power supply provides the specified SNP/SNPX serial connection.
Communication

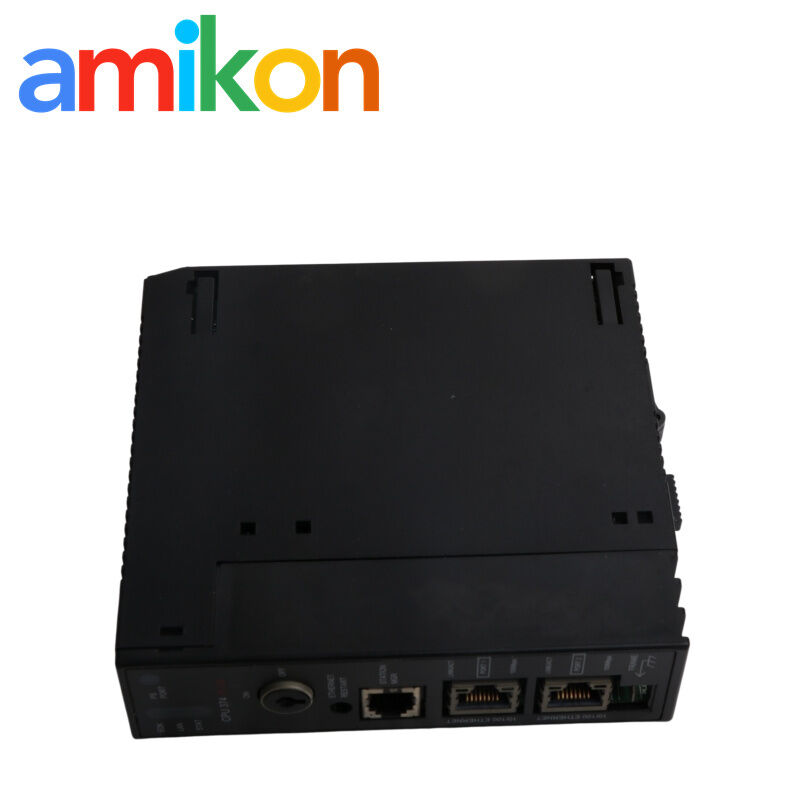

The integrated Ethernet interface supports SRTP and Ethernet Global Data (EGD). Two RJ-45 ports provide 10/100Base-T/TX connectivity with auto-sensing.
Installation & Configuration
Configuration & Diagnostic Reference
- The CPU374 Ethernet interface is configured as part of the Series 90-30 PLC hardware configuration.
- The documented configuration process includes Ethernet parameters and CPU-related settings.
- The module provides EOK, LAN and STAT status indicators for Ethernet-related operating and exception information.
- The Ethernet Restart pushbutton and Station Manager interface are provided for Ethernet interface management.
- Network commissioning documentation includes an optional ping test for checking Ethernet communication.
Application Context
The documented application context is the Series 90-30 PLC control system, where the CPU performs PLC control processing and the integrated Ethernet interface provides the specified Ethernet functions.
It can therefore appear in legacy Series 90-30 control cabinets where the installed CPU requires replacement within the existing control architecture.
Replacement Demand
Replacement searches may arise when the installed CPU does not execute the control program correctly, communication through the configured Ethernet interface is unavailable, status indicators show an abnormal condition, or PLC maintenance requires a replacement CPU.
The actual effect of CPU loss depends on the machine's control architecture and configured fail-safe behavior.
AMIKON Supply & Support
Industrial automation parts · Inspection · Global delivery
Delivery & Warranty
Checked before shipment.
Secure industrial packaging.
12-month product warranty.
Typical stocked-part delivery: 3–5 days.
FAQ
Does the CPU374 have built-in Ethernet?
How much user memory does the CPU374 provide?
Can I replace another CPU374 revision with IC693CPU374-KZ without checking the system?
What should I provide when requesting an IC693CPU374-KZ quote?
