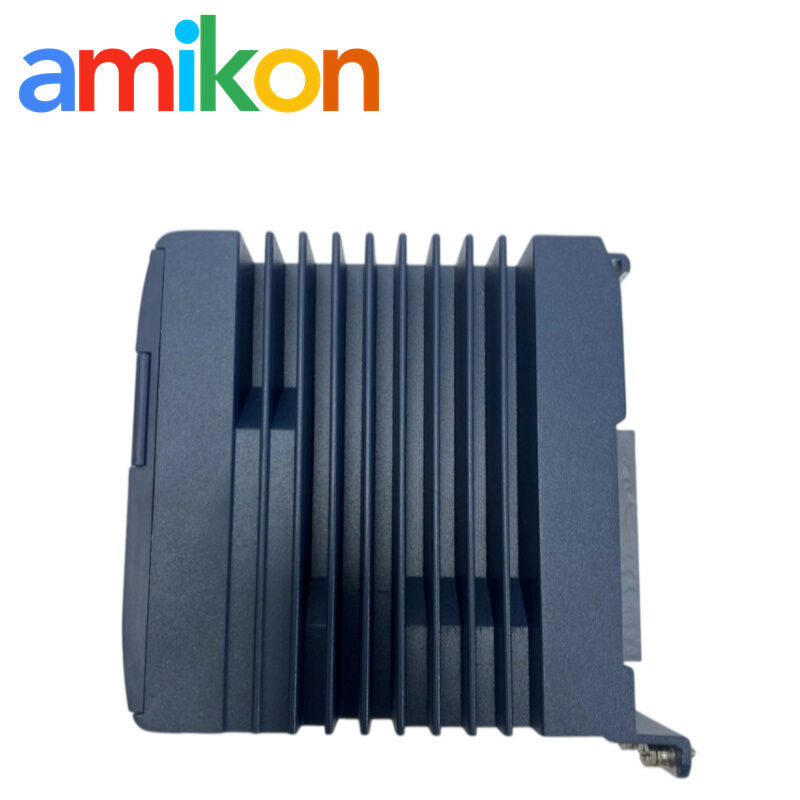

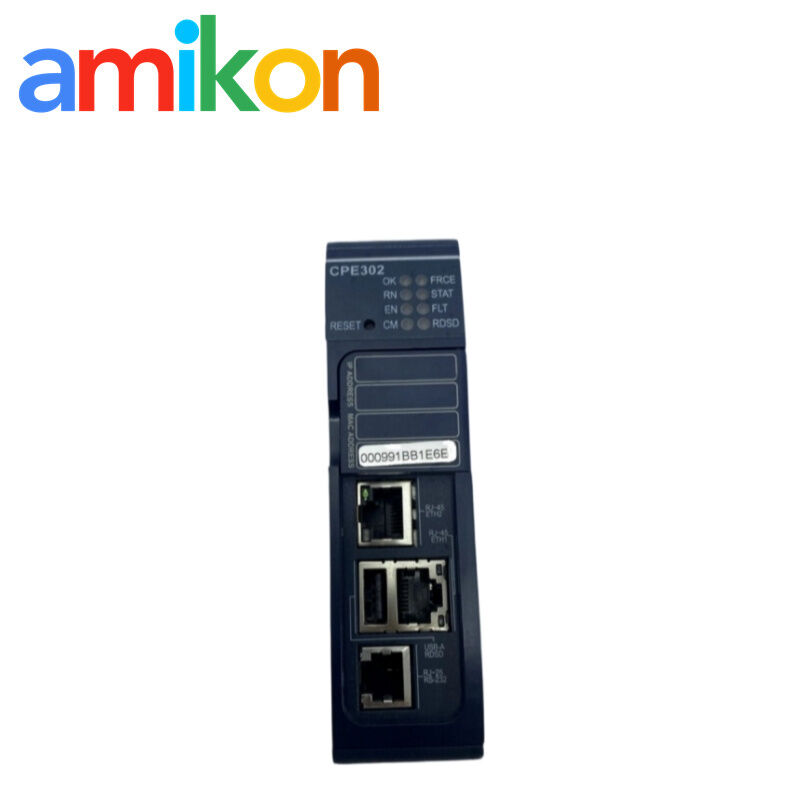

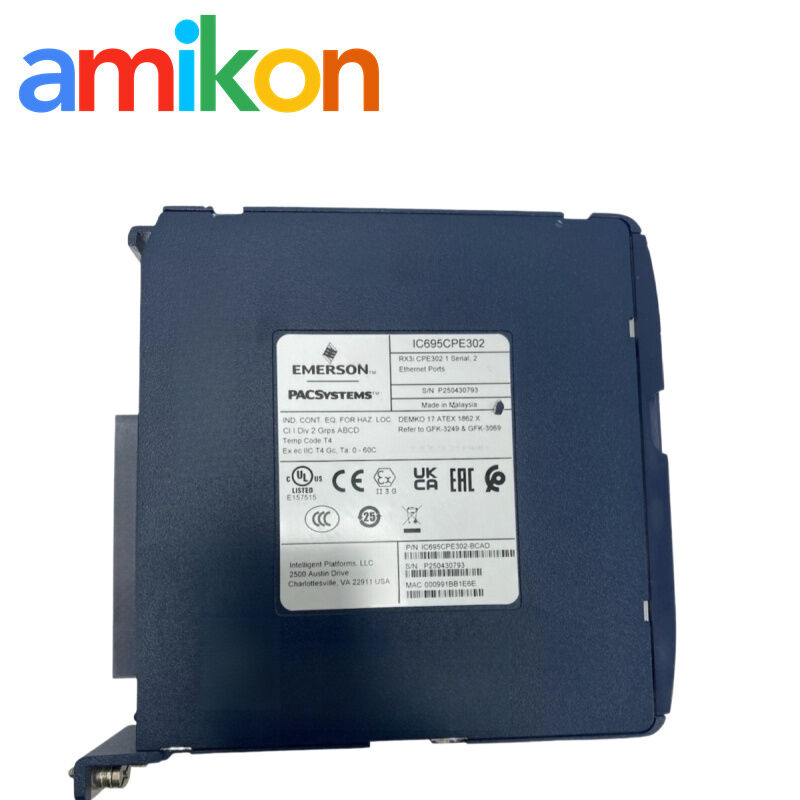

Emerson IC695CPE302-BBAB RX3i Controller
PACSystems RX3i CPU for real-time control of machines, processes and material-handling systems.
Product Overview 01
IC695CPE302-BBAB is an RX3i CPE302-Bxxx CPU for real-time control. It communicates with programmers or HMI/SCADA through Ethernet or serial connectivity and communicates with I/O and Intelligent Option modules through the RX3i backplane.
Real-time machine and process control
Ethernet, serial and RX3i backplane communication
Energy Pack support for battery-less memory retention
Technical Specifications 02
Core Specifications
Interfaces & Communication
Supported Communication Protocols
Environmental & Approvals
Compatibility & Replacement 03
Required Backplane
CPE302-Bxxx requires the applicable RX3i backplane hardware revisions specified by Emerson, including the documented CHS007-AA, CHS012-CA and CHS016-CA revision levels.
Bxxx → Axxx
Emerson documents CPE302/305/310-Bxxx as drop-in replacements for the corresponding CPE302/305/310-Axxx controllers.
Application & Fault Scenarios 04
Typical System
RX3i machine, process and material-handling control systems.
Common Search Scenario
CPU failure, loss of controller operation, or an unavailable installed CPE302.
A failed CPU can interrupt the configured automation control function; the resulting shutdown impact depends on the machine or process architecture.
Installation & Configuration 05
Install the CPU within the applicable RX3i backplane configuration. PAC Machine Edition is used for programming and configuration. For RS-232 operation, Emerson specifies cable IC693CBL316.
Documentation 06
For IC695CPE302-BBAB PDF/manual/datasheet requests, provide the exact catalog number so the applicable CPE302-Bxxx documentation and hardware information can be matched correctly.
FAQ 07
How much memory is available on the CPE302-BBAB?
What Ethernet capabilities should I expect from this CPU?
Can the Bxxx version replace an Axxx version?
What should be checked before installing a replacement CPU?
What information should I send for an RFQ?
Supply & Contact 08
AMIKON Delivery & Warranty
Part number and visible condition can be checked before shipment, with industrial packaging prepared for delivery.
Warranty: 12 months. DOA cases should be reported promptly with order details and supporting evidence for review. Warranty coverage follows the agreed sales terms.
Miya Zheng · AMIKON
Stock, testing, delivery and part-number verification.
