GE IC694MDL940 16 Point Relay Output Discrete Output Module with 2 Amps Pilot Duty

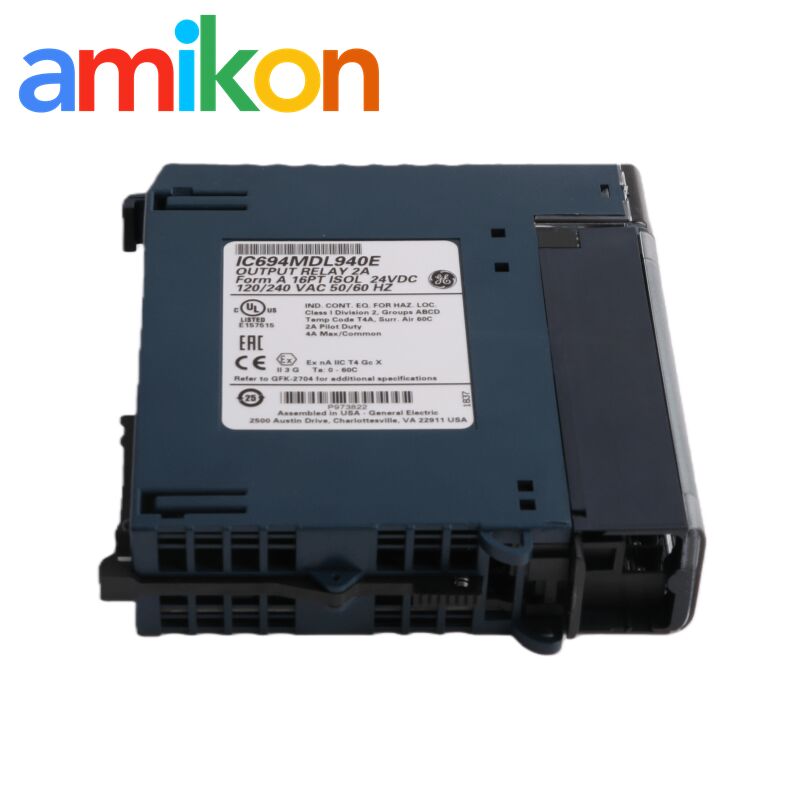

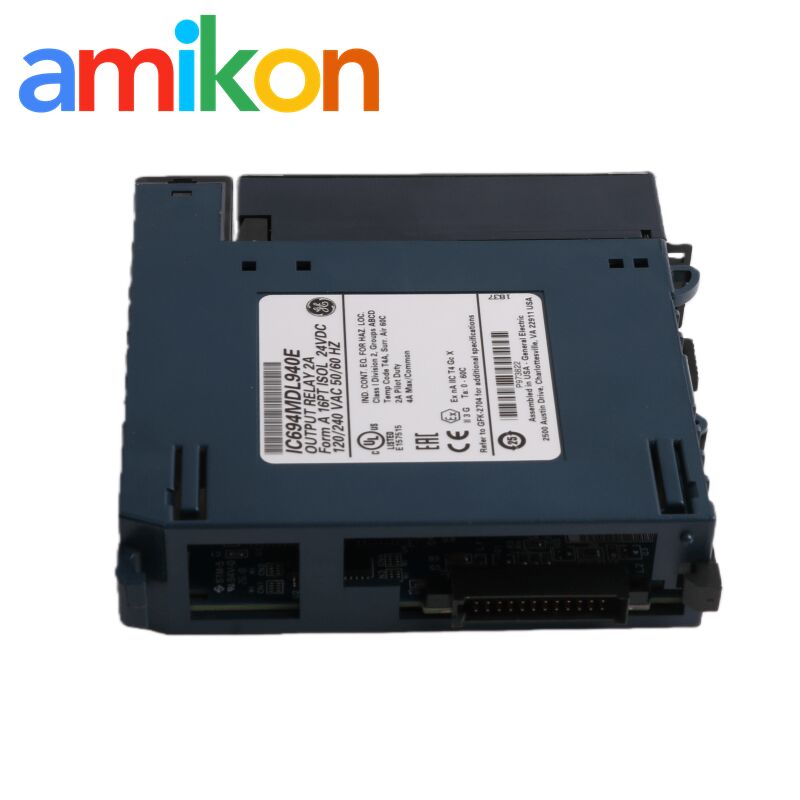

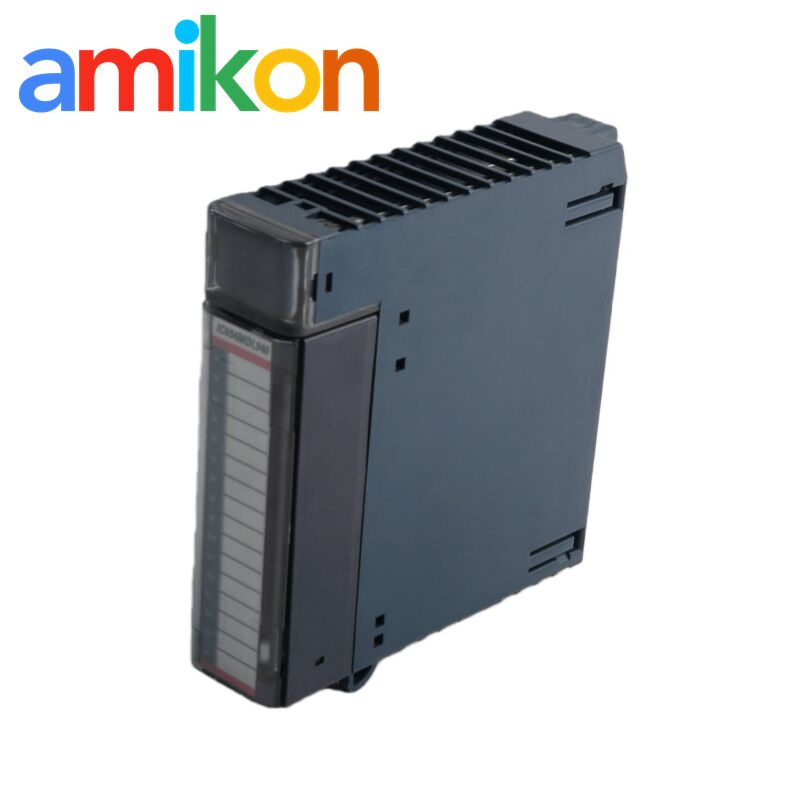

GE IC694MDL940 16 Point Relay Output Discrete Output Module with 2 Amps Pilot Duty
16 Point Relay Output Discrete Output Module
2 Amps Pilot Duty Relay Output Module
15 Milliseconds Response Time GE IC694MDL940
Place of Origin:
USA
Brand Name:
General Electric
Model Number:
IC694MDL940
Contact Us
Request A Quote
Product Details
No. Of Channels:
Eight (8)
Operating Voltage:
5.0 To 30 Volts DC Or 5.0 To 250 Volts AC
No. Of Groups:
Four (4)
Switching Current:
2.0 Amps
Rated Voltage:
24 VDC; 120/240 VAC
Inrush Rating:
5.0 Amps
Max. Response Time:
15 Milliseconds
LED Indicators:
32 Individually-Numbered LEDs
Highlight:
16 Point Relay Output Discrete Output Module
,2 Amps Pilot Duty Relay Output Module
,15 Milliseconds Response Time GE IC694MDL940
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
GE IC694MDL940 16 Point Relay Output Discrete Output Module with 2 Amps Pilot Duty
Get Best Price
CONTACT US
Contact Now
Product Description
The IC694MDL940 is a sixteen-point relay output module with single-slot width that occupies one slot of the backplane. This module features four groups of outputs with four relay outputs per group. All relay contacts are Normally Open (Form A) contacts. Sixteen status LED indicators represent individual channels, where an energized LED indicates an energized output.
Each output contact is rated for a maximum load of 2 Amperes pilot duty. Each output group is designed for a maximum current of 4 Amperes. The module has a 10 mA minimum load and a 5 Amp maximum inrush current. Response time for signal transitions is 15 ms maximum. Power consumption is 7 mA at 5VDC bus voltage and 135 mA from the relay 24V bus on the backplane, based on all output channels being energized.
Isolation ratings are 250 VAC continuous and 1500 VAC for 1 minute from field to backplane and frame to ground. Channel-to-channel isolation is also 250 VAC continuous and 1500 VAC for 1 minute. The IC694MDL940 does not include an internally installed fuse for channel protection. Users should install external fuses to protect the module.
Product Specifications
| Product Model | IC694MDL940 |
| Product Parameters | Discrete output module |
| Country of Origin | USA |
| Place of Shipment | Xiamen, China |
| Estimated Shipping Size | 3.5x13.2x13.5cm |
| Manufacturer | General Electric |
| Number of Groups | 4 Groups of 4 Outputs Each |
| LED Indicators | 32 Individually-Numbered LEDs |
| Maximum Load | 2 Amps pilot duty per output; 4 Amps maximum per common |
| Operating Voltage | 5.0 to 30 Volts DC or 5.0 to 250 Volts AC |
