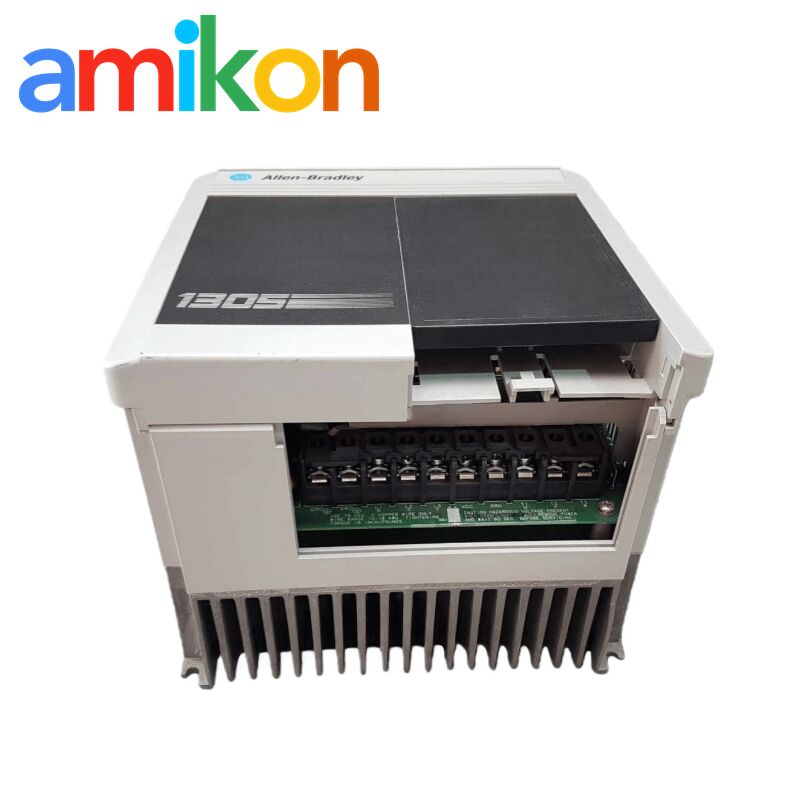

Allen Bradley 1305-BA09A-HA2 3-Phase Input 5 HP Variable Speed Drive with IP 30 Enclosure
Allen Bradley 1305-BA09A-HA2 3-Phase Input 5 HP Variable Speed Drive with IP 30 Enclosure
3-Phase Input Variable Speed Drive
5 HP AC Drive
IP 30 Enclosure VFD
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1305-BA09A-HA2
Contact Us
Request A Quote
Product Details
Input Phase:
3-Phase
Input Voltage:
380–460 VAC
Input Frequency:
50 / 60 Hz
Rated Power Output:
4 KW (5 HP)
Rated Output Current:
9 A
Series:
1305 AC Drive Series
MOQ:
1 Piece
Packaging:
Original New Packaging
Highlight:
3-Phase Input Variable Speed Drive
,5 HP AC Drive
,IP 30 Enclosure VFD
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Allen Bradley 1746-OBP16 16 Channel 24 VDC Output Module with Integrated Fuse Protection
Get Best Price
Video
Allen Bradley 1746-OB32 32 Point 24V DC Sourcing Configuration Digital Output Module
Get Best Price
Video
Allen Bradley 1756-DMD30 Drive Module and Fiber Optic Interface in Single-Slot Design
Get Best Price
Video
Allen Bradley 1747-ACN15 ControlNet I/O Adapter Module with High-Speed Data Transfer
Get Best Price
CONTACT US
Contact Now
Product Description
Allen Bradley 1305-BA09A-HA2 Variable Speed Drive
The Allen-Bradley 1305-BA09A-HA2 adjustable frequency AC drive delivers exceptional speed control with outstanding torque performance across its entire operating range. This variable frequency drive (VFD), also known as a Variable Speed Drive (VSD) or Adjustable Speed Drive (ASD), enables precise control of AC induction motors beyond basic ON/OFF, FORWARD/REVERSE, JOG, LOCAL/REMOTE, and AUTO/MANUAL functions.
With this Allen-Bradley AC drive, motor control is achieved through discrete speed settings ranging from 0Hz to 100Hz. The speed command requires an appropriate Start signal to become effective, while the Start command requires a frequency reference to operate. These drives significantly enhance motor starting and stopping capabilities while improving overall system performance.
Technical Specifications
| Product Model | 1305-BA09A-HA2 |
| Product Type | Variable Speed Drive |
| Input Voltage | 3-phase 380 to 460 Volts AC |
| Power Rating | 5.0 Horsepower (4.0 kilowatts) |
| Output Current | 9.0 Amps at 380V AC, 8.4 Amps at 415V AC, 7.6 Amps at 460V AC |
| Enclosure Rating | IP 30 (NEMA Type 1) |
| Dimensions | 210mm (W) x 195mm (H) x 179mm (D) |
| Weight | 4.2 kg (9.2 lbs) |
| Maximum Operating Temperature | 50°C (122°F) |
| Maximum AC Input Fuse | 20 Amps |
| Country of Origin | USA |
| Manufacturer | Allen-Bradley |
Mounting Requirements
The 1305-BA09A-HA2 drive must be mounted on a metallic surface with minimum 2 inches of clearance on all sides to ensure proper air circulation and cooling.
Human Interface Module
This drive includes a Human Interface Module (HIM) with digital up/down keys for local operation. Configuration and operational instructions can be entered directly through this component. For remote operation, optional accessories are available to mount the HIM on enclosure doors or panels.
Cabling Recommendations
While unshielded motor cables are generally acceptable, shielded cables are recommended when sensitive circuits or devices are installed near the driven machinery. The motor cable ground conductor must be connected directly to the drive ground (GRD) terminal and solidly connected to the motor case ground.
Immunity Protection
The 1305 drive is designed with robust immunity against externally generated interference. DC energized contactor coils should be suppressed with diodes to prevent electrical transients. Additional surge suppression is advisable in areas prone to lightning strikes.
Emission Control
Proper arrangement of power and ground connections is critical to avoid interference with nearby sensitive equipment. Motor cables carrying switched voltages should be routed away from sensitive devices.
Noise Reduction Measures
- Shielded or armored cable recommended for radiated emission control
- Common mode chokes suggested at drive output to reduce common mode noise
- RFI filters effectively reduce conducted RFI emissions in supply lines
- Program the lowest possible PWM frequency when combined with sensitive devices
