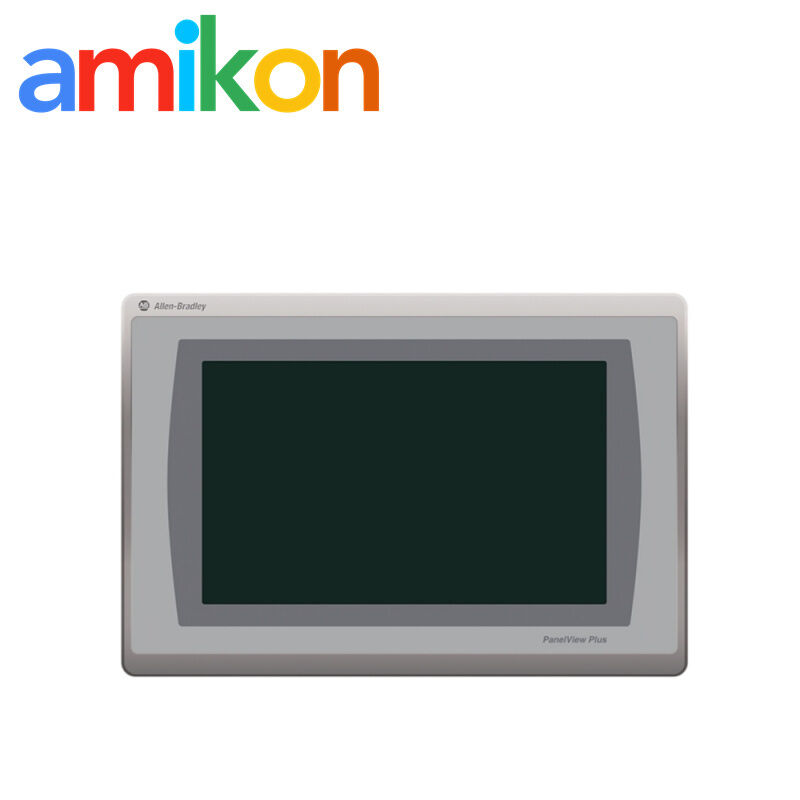

Allen-Bradley 2711P-T6C22D8S PanelView Plus 7 Standard Terminal
Allen-Bradley PanelView Plus 7 terminal
PanelView Plus 7 Standard Terminal
2711P-T6C22D8S industrial terminal
Place of Origin:
USA
Brand Name:
Allen Bradley
Allen-Bradley PanelView Plus 7 terminal
,PanelView Plus 7 Standard Terminal
,2711P-T6C22D8S industrial terminal
Allen-Bradley 2711P-T6C22D8S PanelView Plus 7 Standard Terminal
5.7-inch color touch terminal with dual Ethernet ports, 24V DC power and Windows CE for operator interface applications on EtherNet/IP networks.
Technical Specifications ⌄
| Operator input | Touch |
| Display type | Color TFT LCD |
| Display size | 5.7 in. diagonal |
| Viewing area | 115 × 86 mm |
| Resolution | 640 × 480 VGA, 18-bit color graphics |
| Aspect ratio | 4:3 |
| Brightness, typical | 300 nits |
| Backlight | 50,000 h minimum to half-brightness at 40 °C; not replaceable |
| Touch screen | Analog resistive; 1 million presses; 100 g operating force |
▣ Memory & Ports ⌄
| System memory | 512 MB RAM and 512 MB storage |
| User storage | 80 MB nonvolatile storage for applications |
| SD card | One SD card slot for application files |
| USB host | One USB 2.0 high-speed Type-A host port |
| USB device | One high-speed USB 1.0 Type-B device port |
| Ethernet | Two 10/100Base-T, Auto MDI/MDI-X ports |
| Network topology | Star, linear, or DLR |
⚡ Software & Power ⌄
| Operating system | Windows CE |
| HMI software | FactoryTalk View Studio for Machine Edition 8.0 or later |
| ViewPoint | FactoryTalk ViewPoint 2.6 or later |
| Input voltage | 24V DC nominal, 18…30V DC |
| Power consumption | 35 W maximum; 1.46 A at 24V DC |
| DC power supply | Nonisolated DC power supply |
◫ Mechanical & Environment ⌄
| Weight | Approx. 0.70 kg (1.53 lb) |
| Dimensions H × W × D | 152 × 176 × 56.5 mm |
| Panel cutout H × W | 123 × 156 mm |
| Mounted depth | 50.14 mm |
| Operating temperature | 0…55 °C |
| Nonoperating temperature | −25…+70 °C |
| Relative humidity | 5…95%, without condensation |
| Enclosure rating | NEMA / UL Type 12, 13, 4X indoor use; IP54 or IP66 as classified by UL |
✓ Certifications & Identification ⌄
| Catalog number | 2711P-T6C22D8S |
| UPC | 885630920429 |
| Lifecycle | Active |
| Country of origin | Japan |
| Certifications listed | IECEx, UL Listed, China CCC, ODVA, CE, UL Listed Hazardous, KC, RCM, ATEX, INMETRO |
| Documentation | 2711P-TD008 Technical Data; 2711P-UM007 User Manual |
Operator interface for EtherNet/IP control systems
The PanelView Plus 7 Standard terminals are operator interface devices used to monitor and control devices attached to ControlLogix 5570 and CompactLogix 5370 controllers on an EtherNet/IP network. The terminal provides animated graphic and text displays for viewing machine or process operating states and touch-screen interaction with the control system.
Installation Reference
The 5.7-inch touch terminal requires a panel cutout of approximately 123 × 156 mm. Overall dimensions are approximately 152 × 176 × 56.5 mm, with a mounted depth of approximately 50.14 mm. Rockwell Automation directs installers to the PanelView Plus 7 Standard Terminals User Manual for proper mounting clamp installation.
Fault & Service Search Scenarios
- Terminal does not start normally or remains without expected status indication.
- Insufficient DC power or incorrect power wiring is suspected.
- Red Fault / ERR indication points to a firmware, configuration, hardware, or display fault.
- The HMI terminal needs to be restored, firmware reloaded, or the terminal replaced after a fatal hardware fault.
Because the terminal is the operator interface to the machine or process, an unavailable HMI can remove the normal operator view and control point for the connected system, creating a potential maintenance or production-stop risk.
Delivery & Warranty
AMIKON can arrange inspection/testing where applicable and protective export packaging before shipment. A one-year warranty applies under the quotation terms; DOA cases are handled through the after-sales process with photos and relevant test details, while returns or exchanges are processed according to the agreed order terms.
RFQ Information
For a faster quotation, please send Part Number, Quantity, Destination, Required Date, and Machine/System Model.
FAQ
What is the display size of the 2711P-T6C22D8S?
How many Ethernet ports does the 2711P-T6C22D8S have?
What power supply does this terminal require?
What should be checked if the terminal does not start?
Which documentation is associated with this model?
