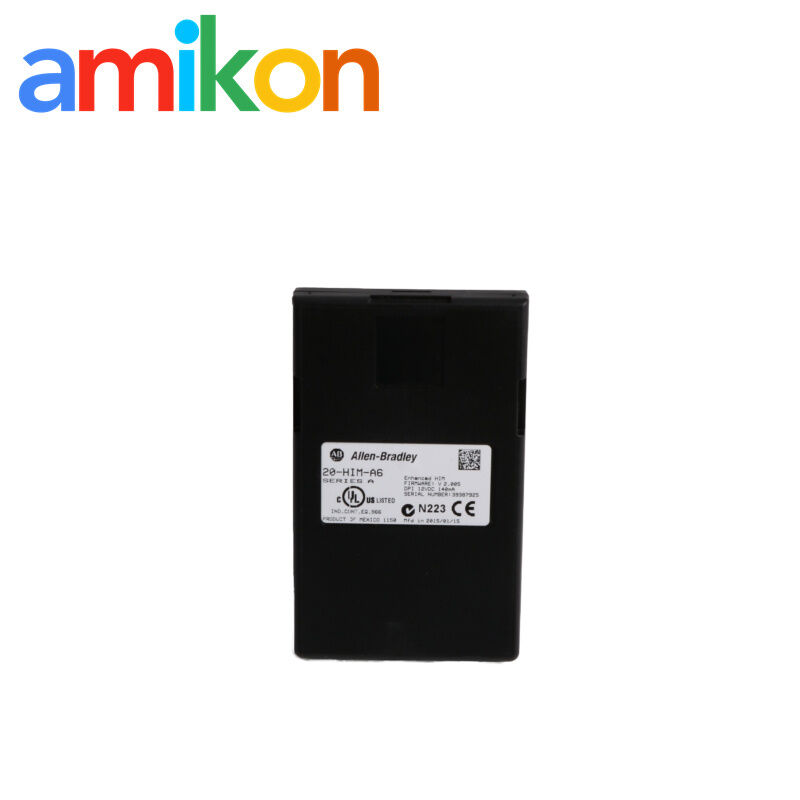

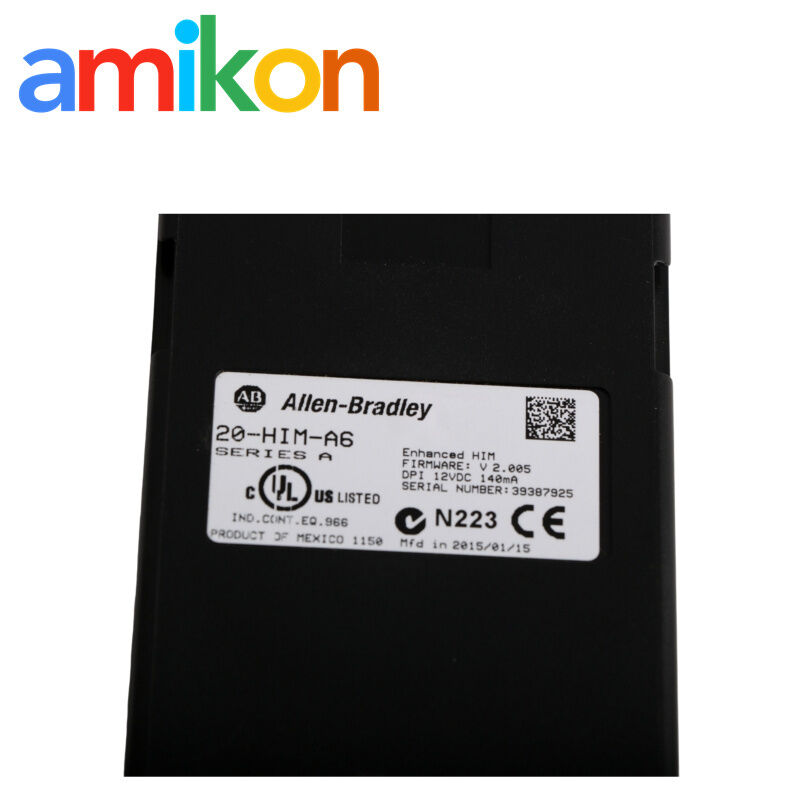

20-HIM-A6 Human Interface Module

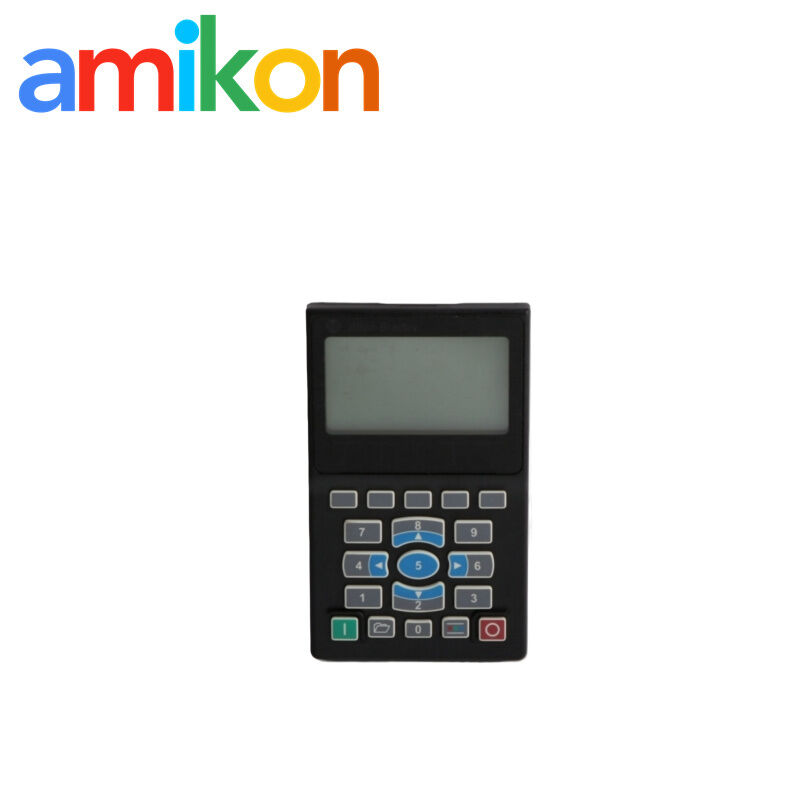

Enhanced LCD Human Interface Module with full numeric keypad for PowerFlex 7-Class and 750-Series drive interfaces. The 20-HIM-A6 supports local and handheld operation through the Drive Peripheral Interface (DPI).
Technical Specifications
Core Specifications
| Manufacturer | Allen-Bradley / Rockwell Automation |
|---|---|
| Catalog Number | 20-HIM-A6 |
| Product Type | Enhanced PowerFlex Human Interface Module |
| Description | Enhanced, LCD, full numeric keypad, handheld/local |
| Enclosure Type | NEMA Type 1 |
| Communication Protocol | Drive Peripheral Interface (DPI™) |
| Data Rates | 125 Kbps or 500 Kbps |
| Power Consumption | 140 mA at 12V DC supplied by the host drive |
Mechanical & Environmental
| Height | 116.0 mm (4.57 in.) |
|---|---|
| Width | 70.0 mm (2.75 in.) |
| Depth | 16.0 mm (0.63 in.) |
| Weight | 91 g (3.2 oz.) |
| Operating Temperature | 0…50 °C (32…122 °F) |
| Storage Temperature | -40…85 °C (-40…185 °F) |
| Relative Humidity | 5…95%, non-condensing |
| Operating Vibration | 2.5 g at 5 Hz…2 kHz |
| Non-Operating Vibration | 5 g at 5 Hz…2 kHz |
| Operating Shock | 30 g peak acceleration, 11 (±1) ms pulse width |
| Non-Operating Shock | 50 g peak acceleration, 11 (±1) ms pulse width |
| UV Rating | Not UV rated |
| Atmosphere | Do not install where the ambient atmosphere contains volatile or corrosive gas, vapors or dust. |
Regulatory Compliance
| UL | UL508C |
|---|---|
| c-UL | CAN / CSA C22.2 No. 14-M91 |
| CE | EN50178 and EN61800-3 |
| C-Tick | EN61800-3 |
| EMC Category | Category C2 according to IEC 61800-3; supplementary mitigation may be required in a domestic environment where radio interference occurs. |
Drive Compatibility
Rockwell Automation documentation lists the 20-HIM-A6 with PowerFlex 7-Class and 750-Series drive platforms, including the following drive families:
- PowerFlex 70
- PowerFlex 700
- PowerFlex 700H
- PowerFlex 700S
- PowerFlex 700L
- PowerFlex 753
- PowerFlex 755
Installation & Connection
Drive-Mounted Installation
The 20-HIM-A6 is normally installed in the HIM bezel on the front of the drive. On PowerFlex 750-Series IP20, NEMA/UL Open Type drives, the HIM is inserted into the top of the bezel and slid downward onto the mating connector.
For PowerFlex 750-Series IP54, NEMA/UL Type 12 drives, the manual specifies a recommended tightening torque of 0.68 N·m (6.0 lb·in) for the applicable cover fasteners.
Handheld / Port 2 Connection
For temporary handheld operation, the 20-HIM-A6 can connect to drive Port 2 using a 20-HIM-H10 cable. The manual identifies the cable length as 1 m (3.28 ft.).
A 20-HIM-B1 remote-mount HIM bezel can also be used when the HIM needs to be located away from the drive.
Operation & Configuration
Monitoring and Parameter Access
| Status Screen | Displays drive/device status information and provides access to the main HIM functions. |
|---|---|
| Process Screen | Displays drive monitoring parameters; multi-line and single-line views can be selected. |
| Parameter Access | Parameters can be accessed by parameter number or through the alternate linear-list method. |
| Parameter Editing | Editable parameters can be changed using the numeric keys and soft keys, then saved with the ENTER soft key. |
| Dynamic Soft Keys | Soft-key functions and labels change according to the active screen or data-entry mode. |
| Monitoring Items | Drive monitoring items can be customized for display on the process screen. |
Diagnostics & Fault Handling
| Fault Display | The fault display can show the fault code, fault description and elapsed time from fault detection. |
|---|---|
| Fault / Alarm Queue | Faults and alarms can be viewed from the diagnostic functions, with entries listed from most recent to least recent. |
| Peripheral Diagnostics | Diagnostic items for connected peripherals, including the HIM, can be accessed for troubleshooting communication problems. |
| Events | Connected peripheral event queues can be viewed and cleared through the diagnostic functions. |
| Firmware Revision | Drive and peripheral firmware revisions can be viewed through the diagnostic functions. |
CopyCat Function
HIM CopyCat functions allow configuration files to be created and managed through the HIM. The documented functions include copying from a device to the HIM, copying from the HIM to a device, deleting CopyCat files and renaming CopyCat files.
