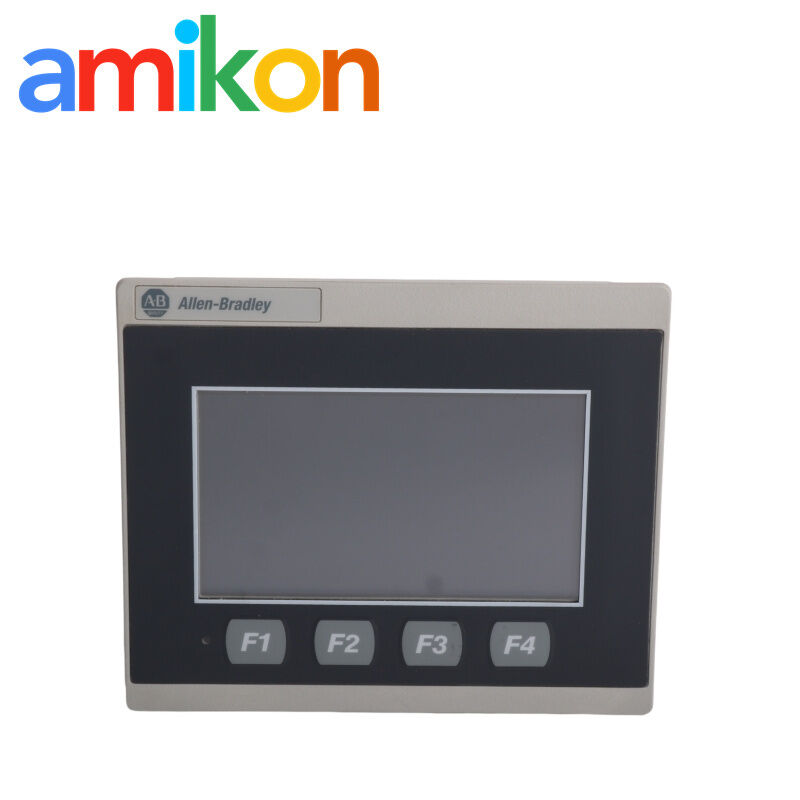

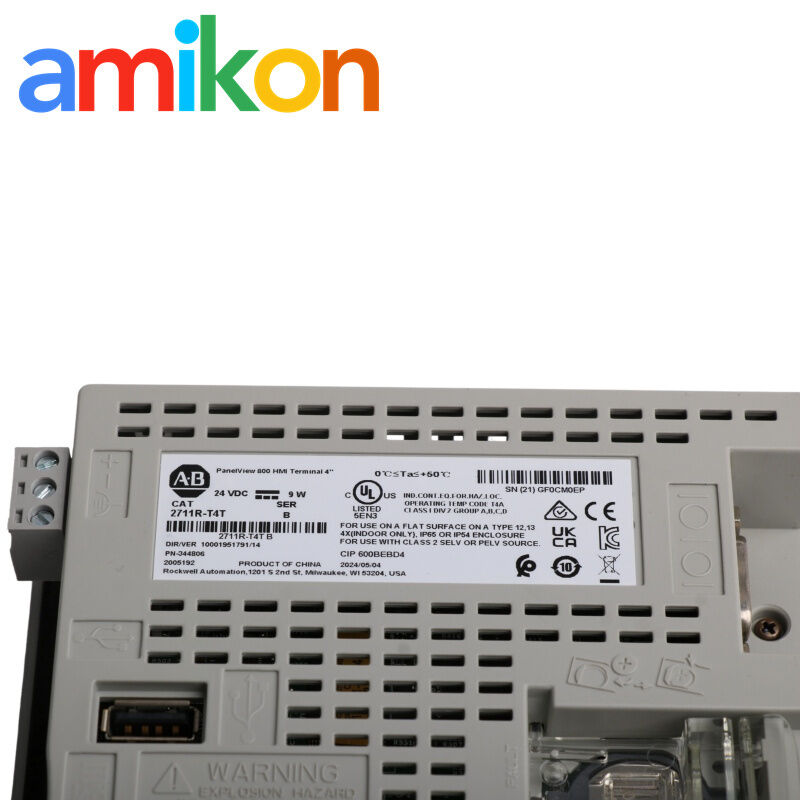

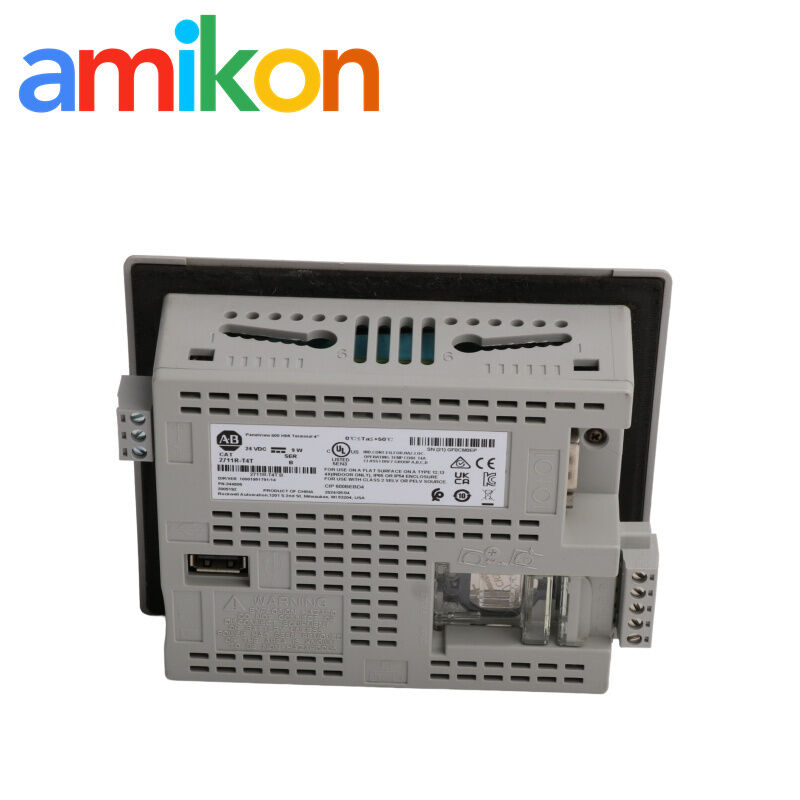

Allen-Bradley 2711R-T4T PanelView 800 HMI Terminal
Allen-Bradley PanelView 800 HMI Terminal
2711R-T4T HMI touchscreen display
PanelView 800 industrial control terminal
Place of Origin:
USA
Brand Name:
Allen Bradley
Contact Us
Request A Quote
Product Details
Highlight:
Allen-Bradley PanelView 800 HMI Terminal
,2711R-T4T HMI touchscreen display
,PanelView 800 industrial control terminal
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
In Stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
ALLEN-BRADLEY · PANELVIEW 800
Allen-Bradley 2711R-T4T PanelView 800 HMI Terminal
PanelView 800 operator terminal for machine interface applications, with analog touch input and function keys.
Catalog Number
2711R-T4T
PanelView 800
01 · Technical Data
Technical Specifications
− Core and electrical specifications
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Catalog Number | 2711R-T4T |
| Product Family | PanelView 800 |
| Display | Color transmissive TFT active matrix LCD, widescreen format |
| Display Size | 4 in. |
| Display Area | 95 × 53.9 mm (3.74 × 2.12 in.) |
| Resolution | 480 × 272 pixels, WQVGA |
| Backlight | LED; minimum lifespan 40,000 hours |
| Colors | 65K colors |
| Operator Input | Analog touch and function keys |
+ Additional technical specifications
| Processor | 800 MHz CPU |
| Memory | 256 MB Flash Memory; 256 MB DDR SDRAM |
| Operating System | WINCE 6.0 |
| Software | Connected Components Workbench, release 8.0 and later |
| Power Supply | 24V DC nominal; input range 18…32V DC |
| Maximum Power Consumption | 9 W; 0.39 A @ 24V DC |
| Serial Communication | Separate isolated RS-232 and RS-422/RS-485 connectors |
| Ethernet | 1 × 10/100 Mbps Ethernet port |
| USB Host | USB 2.0 |
| MicroSD | Yes; industrial-grade microSD recommended; up to 32 GB, FAT16/FAT32 |
| Real-Time Clock | Battery-backed; minimum battery lifespan 5 years at 25 °C |
| Recipe Capacity | 50 recipe files |
| Preferred Controllers | Micro800, MicroLogix |
| Dimensions H × W × D | 116 × 138 × 43 mm (4.6 × 5.4 × 1.7 in.) |
| Panel Cutout H × W | 99 × 119 mm (3.9 × 4.7 in.) |
| Approx. Weight | 0.333 kg (0.73 lb) |
| Front Bezel Protection | IP65; NEMA 4X, 12, 13 |
Source: Rockwell Automation Publication 2711R-TD001B-EN-P, PanelView 800 Terminals Technical Data; 2711R-IN001E-EN-P, PanelView 800 HMI Terminals Installation Instructions.
02 · Integration
Installation, Wiring & Communication
− Installation, wiring and configuration
Panel mounting
The installation uses the specified panel cutout and terminal mounting arrangement described in the PanelView 800 installation instructions.
Power & grounding
Power connection, grounding and wiring practices are covered in the PanelView 800 installation instructions.
Controller connectivity
Ethernet and isolated serial interfaces provide the documented communication connections for PanelView 800 controller systems.
Configuration
Connected Components Workbench release 8.0 or later is specified for PanelView 800 terminals, with documentation covering Ethernet and serial connection configuration.
03 · Compatibility
Compatibility
+ Original compatibility
PanelView 800 system
Micro800 and MicroLogix are identified as preferred controller families for PanelView 800 terminals.
04 · Field Use
Applications & Troubleshooting Context
− Field applications and troubleshooting context
Typical applications
PanelView 800 terminals are listed for machine applications including:
- Adhesive labelers
- Air handling units
- Material handling machines
- Stretch wrap machines
Troubleshooting context
Installation and user documentation addresses power-up conditions, startup LED indications, communication problems and battery replacement.
05 · Environment
Environmental & Protection Data
+ Environmental limits and protection
Operating
0…50 °C
Non-operating
−25…70 °C
Humidity
5…95% RH
Noncondensing
Front Protection
IP65
NEMA 4X, 12, 13
+ 06 · Documentation 2711R-T4T Manual & Technical Reference
For installation, wiring, troubleshooting and system preparation, the 2711R-T4T manual and PanelView 800 technical documentation provide the relevant installation, connection, environmental and configuration information.
+ 07 · Supply Delivery & Warranty
Testing
Inspection and functional testing where applicable before shipment.
Packaging
Protective export packaging for industrial transport.
Warranty
One-year warranty under the quotation and supply terms.
DOA / Returns
Report DOA condition promptly with photos and available test details for after-sales processing.
− 08 · Talk to AMIKON Need the right 2711R-T4T?
Send us the part number and the machine details you have. We will keep the conversation focused on the actual hardware you need.
AMIKON Industrial Automation
Contact: Miya Zheng
RFQ
Please include Part Number, Quantity, Destination, Required Date, and Machine/System Model with your inquiry.
09 · Buyer FAQ
2711R-T4T Frequently Asked Questions
What resolution does the Allen-Bradley 2711R-T4T have?
The 2711R-T4T uses a 4-inch color TFT display with 480 × 272 pixel WQVGA resolution.
Is the 2711R-T4T compatible with Micro800 and MicroLogix controllers?
Rockwell Automation identifies Micro800 and MicroLogix as the preferred controller families for PanelView 800 terminals.
What power supply does the PanelView 800 2711R-T4T require?
The terminal uses 24V DC nominal power and accepts an input range of 18…32V DC. Maximum power consumption is specified as 9 W.
What communication ports are available on the 2711R-T4T?
The terminal provides one 10/100 Mbps Ethernet port plus separate isolated RS-232 and RS-422/RS-485 connectors. It also includes a USB 2.0 host and microSD slot.
What is the panel cutout size for 2711R-T4T replacement?
The specified panel cutout is approximately 99 × 119 mm, with the terminal measuring approximately 116 × 138 × 43 mm overall.
