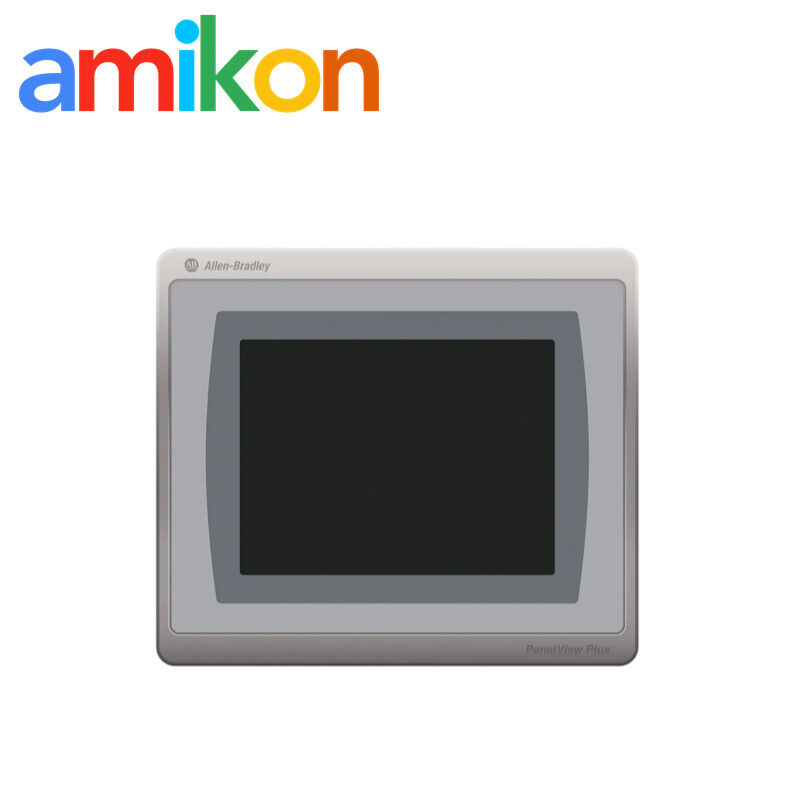

Allen-Bradley 2711P-T6C21D8S
PanelView Plus 7 Standard 6-in. Touch Terminal
Product Reference
The 2711P-T6C21D8S is a PanelView Plus 7 Standard terminal with a 5.7-in. color TFT LCD, touch input, 640 × 480 VGA resolution, one 10/100Base-T Ethernet port and 24V DC nominal power input.
For technical reference, see the 2711P-T6C21D8S datasheet.
Technical Specifications
Core specificationsDisplay & Operator Interface
| Operator input | Touch |
|---|---|
| Display type | Color TFT LCD |
| Display size | 5.7 in. diagonal |
| Viewing area | 115 × 86 mm |
| Resolution | 640 × 480 VGA |
| Color graphics | 18-bit color graphics |
| Aspect ratio | 4:3 |
| Typical brightness | 300 nits |
| Touch technology | Analog resistive |
| Touch actuation rating | 1 million presses |
| Operating force | 100 grams |
| Backlight | 50,000 h minimum at 40 °C to half-brightness; not replaceable |
Memory, Storage & Ports
| RAM | 512 MB |
|---|---|
| Storage | 512 MB |
| Application storage | 80 MB nonvolatile storage |
| SD card slot | 1 slot for storing application files |
| USB host | 1 × USB 2.0 high-speed host port, Type A |
| USB device | 1 × high-speed device port, Type B |
| Ethernet | 1 × 10/100Base-T, Auto MDI/MDI-X, IEEE 1588 support |
Operating System, Software & Application Limits
| Operating system | Windows CE |
|---|---|
| Built-in functions | FTP, VNC client/server, ActiveX controls, PDF reader and third-party device support |
| Engineering software | FactoryTalk View Studio for Machine Edition version 8.0 or later |
| FactoryTalk ViewPoint | Version 2.6 or later |
| Maximum screen count | 100 |
| Maximum alarm messages | 500 |
| Maximum controllers | 1 |
Power & Mechanical
| Input voltage | 24V DC nominal, 18...30V DC |
|---|---|
| Power supply type | Nonisolated DC power supply |
| Maximum power consumption | 35 W max. / 1.46 A at 24V DC |
| Approx. dimensions H × W × D | 152 × 176 × 56.5 mm |
| Approx. weight | 0.70 kg |
| Panel cutout H × W | 123 × 156 mm |
Environmental Specifications
| Operating temperature | 0...55 °C |
|---|---|
| Nonoperating temperature | -25...+70 °C |
| Relative humidity | 5...95% without condensation |
| Operating altitude | 2000 m |
| Operating vibration | 0.012 pk-pk, 10...57 Hz; 2 g peak at 57...500 Hz |
| Operating shock | 15 g at 11 ms |
| Nonoperating shock | 30 g at 11 ms |
| Enclosure ratings | NEMA and UL Type 12, 13, 4X for indoor use; also rated IP54 or IP66 as classified by UL |
Configuration & Network
Application Configuration
FactoryTalk View Studio for Machine Edition is the specified engineering environment. The terminal supports up to 100 screens, 500 alarm messages and one controller.
Ethernet Connection
The 21-series catalog configuration uses one 10/100Base-T Ethernet port with Auto MDI/MDI-X and IEEE 1588 support.
Installation Data
- Panel cutout: 123 × 156 mm.
- Overall terminal dimensions: approximately 152 × 176 × 56.5 mm.
- Power input: 24V DC nominal, with an 18...30V DC operating range.
- The specified enclosure ratings include indoor-use NEMA / UL Type 12, 13 and 4X, plus IP54 or IP66 as classified by UL.
Historical Migration Reference
Rockwell Automation migration documentation lists 2711P-T6C21D8S as a primary replacement option for specified PanelView Plus 6 600 terminals, with a 123 × 156 mm panel cutout, 640 × 480 display resolution and one Ethernet port.
FAQ
What type of display does the 2711P-T6C21D8S use?
It uses a 5.7-in. color TFT LCD with 640 × 480 VGA resolution and a 4:3 aspect ratio.
Is the 2711P-T6C21D8S a touch-screen terminal?
Yes. The operator input is an analog resistive touch screen with a 1-million-press actuation rating.
What Ethernet interface is provided?
This 21-series configuration provides one 10/100Base-T Auto MDI/MDI-X Ethernet port with IEEE 1588 support.
What power supply does the 2711P-T6C21D8S require?
The terminal uses a nonisolated 24V DC nominal input and accepts 18...30V DC.
How much application storage is available?
The terminal has 512 MB RAM, 512 MB storage and 80 MB of nonvolatile storage for applications.
