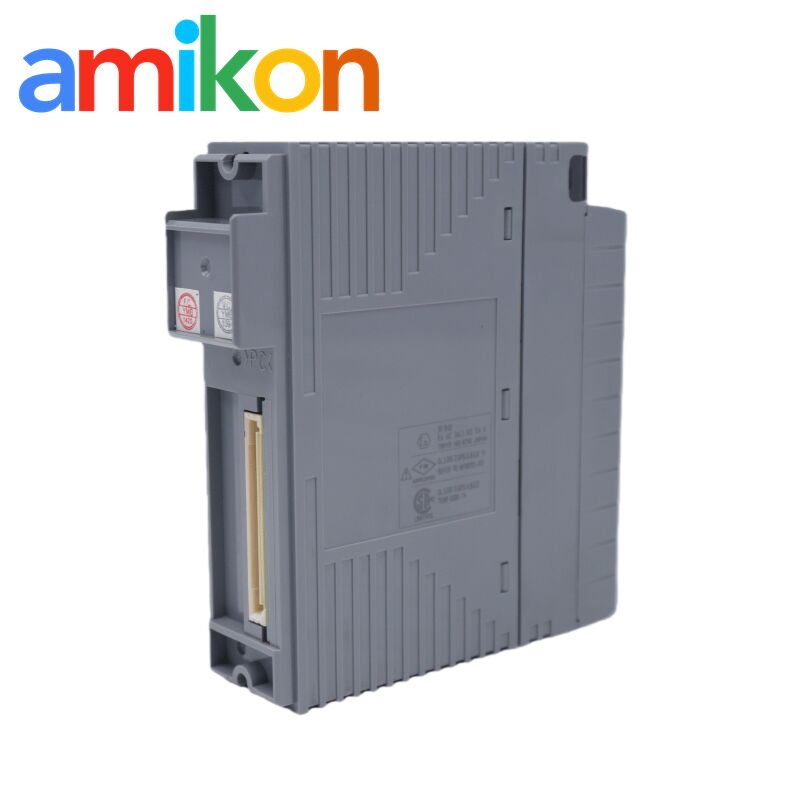

Yokogawa ADV551-P00 S2 Digital Output Module with 24VDC Digital Output 32 Channels
24VDC Digital Output Yokogawa Module
32 Output Channels Digital Output Module
1-Year Warranty ADV551-P00 S2
Place of Origin:
JAPAN
Brand Name:
Yokogawa
Model Number:
ADV551-P00 S2
24VDC Digital Output Yokogawa Module
,32 Output Channels Digital Output Module
,1-Year Warranty ADV551-P00 S2
Video
Yokogawa ADV169-P00 S1 Digital I/O Module with 64-channel input, 8 ms response time
The Yokogawa ADV551-P00 S2 is a reliable and high-performance digital output module designed for advanced industrial automation systems. This module provides stable and accurate output control, seamlessly integrating into Yokogawa control platforms for various industrial applications requiring durable and precise signal output.
Engineered with a compact and lightweight structure, the ADV551-P00 S2 ensures easy installation and dependable functionality in harsh operating environments. Its 24VDC digital output capability makes it suitable for controlling various field devices while maintaining the consistent performance and long-term reliability Yokogawa is known for.
Manufactured in Japan and shipped globally from Xiamen, China, this module is ideal for users seeking genuine replacement units to maintain operational continuity in Yokogawa control systems.
| Model | ADV551 | ADV561 |
|---|---|---|
| Number of output channels | 32 | 64 |
| Rated applied voltage | 24 V DC | 24 V DC |
| External power supply rating | 24 V DC, 50 mA | 24 V DC, 100 mA |
| External power supply voltage range | 20.4 to 26.4 V DC | 20.4 to 26.4 V DC |
| Output ON voltage maximum value | 2 V DC | 2 V DC |
| Leak current maximum value when output OFF | 0.1 mA | 0.1 mA |
| Output format | Current sink | Current sink |
| Maximum load current (*1) | 100 mA/channel, 26.4 V | 100 mA/channel, 26.4 V |
| Withstanding voltage | Between output signal and system: 2 kV AC, For 1 minute. Between commons: 500 V AC, For 1 minute, common minus (-) side every 16-channel (*2) | Between output signal and system: 2 kV AC, For 1 minute. Between commons: 500 V AC, For 1 minute, common minus (-) side every 16-channel (*2) |
| Functions (Status output) | ON/OFF status output function | ON/OFF status output function |
| Functions (Pulse width output) | One-shot pulse width output function | One-shot pulse width output function |
| Functions (Time-proportioning output) | Time-proportioning ON/OFF | Time-proportioning ON/OFF |
| Output response time | 3 ms or less (for status output), 10 ms or less (for mixed status and pulse outputs) | 3 ms or less (for status output), 10 ms or less (for mixed status and pulse outputs) |
| Pulse width | 8 ms to 7200 s | 8 ms to 7200 s |
| Pulse width resolution | 8 ms, but ON/OFF delay of maximum 1 ms is added | 8 ms, but ON/OFF delay of maximum 1 ms is added |
| Maximum current consumption | 700 mA (5 V DC), 60 mA (external power supply) | 700 mA (5 V DC), 120 mA (external power supply) |
| Weight | Approx. 0.20 kg | Approx. 0.30 kg |
| External connection | Pressure clamp terminal, Dedicated cable (AKB331), MIL connector cable | Dedicated cable (AKB337), MIL connector cable |
