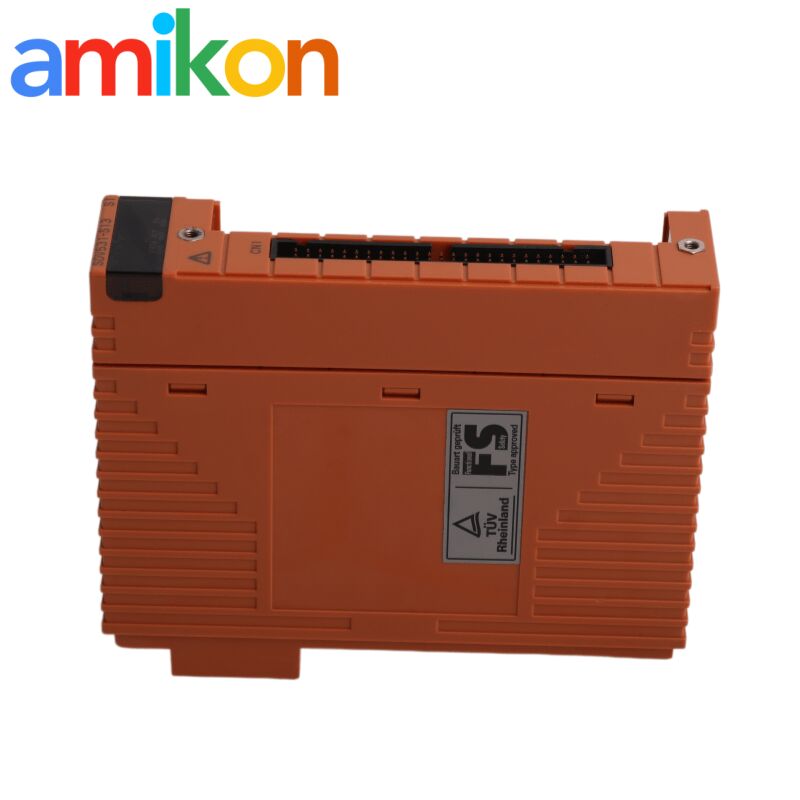

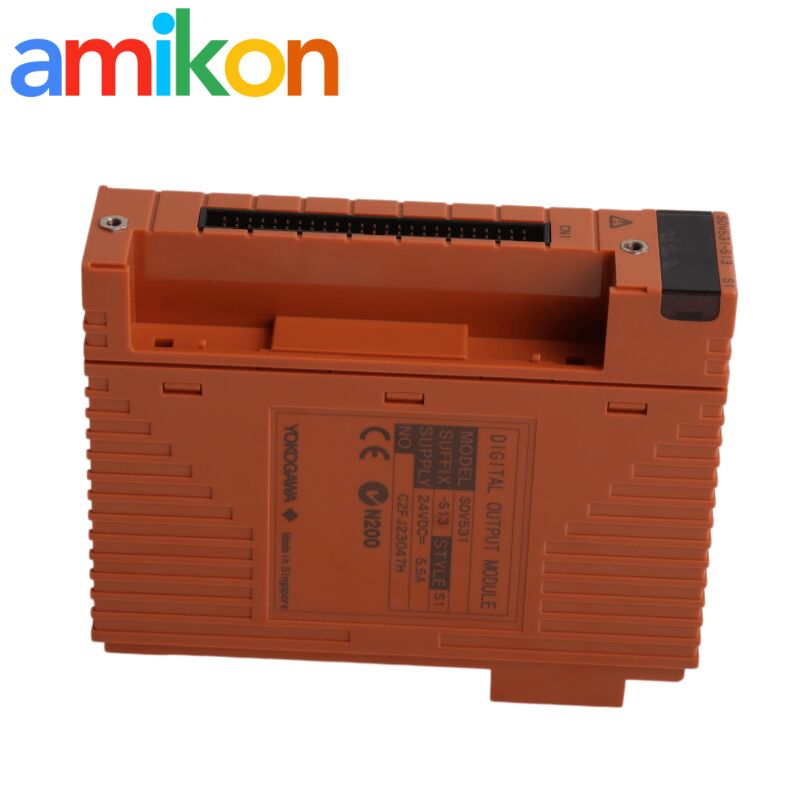

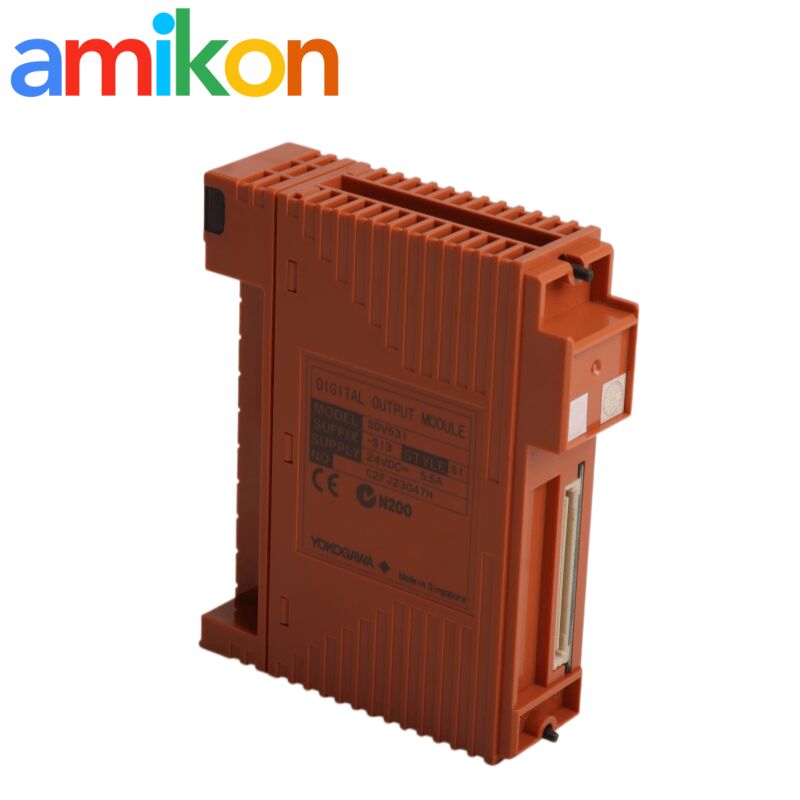

Yokogawa SDV531-S13 S1 8-channel 24 V DC Individually Isolated Digital Output Module
Yokogawa SDV531-S13 S1 8-channel 24 V DC Individually Isolated Digital Output Module
8-channel Yokogawa Output Module
24 V DC Digital Output Module
Individually isolated SDV531-S13 S1 Module
Place of Origin:
JAPAN
Brand Name:
Yokogawa
Model Number:
SDV531-S13 S1
Contact Us
Request A Quote
Product Details
Number Of Outputs:
8-channel
Brand:
Yokogawa
Weight:
0.3 Kg
Estimated Shipping Size:
20x11x7.6cm
Output Voltage Drop:
1 V Maximum
MOQ:
1 Piece
Output Response Time:
30 Ms Maximum
Load Resistance Range:
40 To 685 Ω
Highlight:
8-channel Yokogawa Output Module
,24 V DC Digital Output Module
,Individually isolated SDV531-S13 S1 Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Yokogawa SDV531-S13 S1 Output Module
Key Engineering Features
- Channel Isolation: All 8 outputs are individually isolated to prevent cross-talk in dense I/O setups, ideal for process plants with mixed signal types
- Current Source Output: Maintains controlled current delivery for improved stability when driving loads with varying resistance
- Low Voltage Drop: ≤1V drop ensures more usable voltage reaches the load, critical for long cable runs and tight margins
- Defined OFF-State Leakage: Maximum 1.6 mA leakage minimizes unintended activation risks with sensitive field devices
- Predictable Response Time: ≤30 ms response keeps output actions aligned with control logic timing without noticeable lag
Technical Specifications
| Model | SDV531-S13 S1 |
| Type | Digital Output Module |
| Channels | 8 (individually isolated) |
| Output Signal | 24 V DC (current source type) |
| Voltage Drop | ≤ 1 V |
| External Supply | 24 V DC, ≥ 5 A |
| Leakage (OFF state) | max. 1.6 mA |
| Min. Load Current | 35 mA |
| Load Range | 40 - 685 Ω |
| Response Time | ≤ 30 ms |
| Origin | Japan |
| Shipping Point | Xiamen, China |
| Size / Weight | 20 × 11 × 7.6 cm / 0.3 kg |
System Integration
This module installs between the controller and field actuators, converting control logic into physical output signals that drive solenoid valves, relays, contactors, indicator lamps, and alarm devices. Individual channel isolation minimizes signal interference between loops in multi-point control cabinets.
Typical Applications
- DCS / PLC output expansion
- Process industries (oil & gas, chemical, power)
- Batch control systems
- Equipment start/stop signal distribution
- Alarm and annunciation panels
