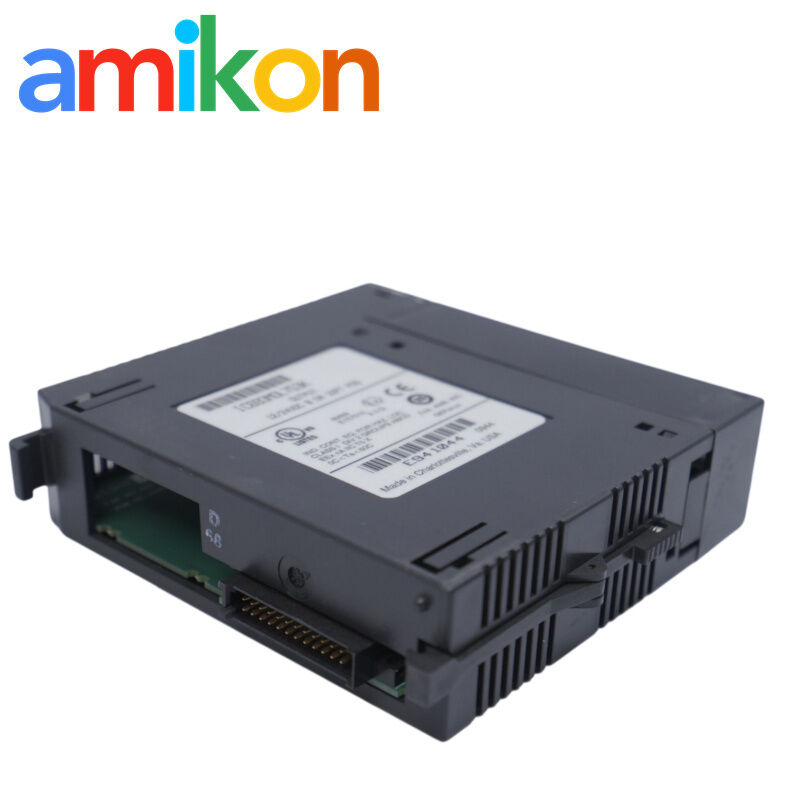

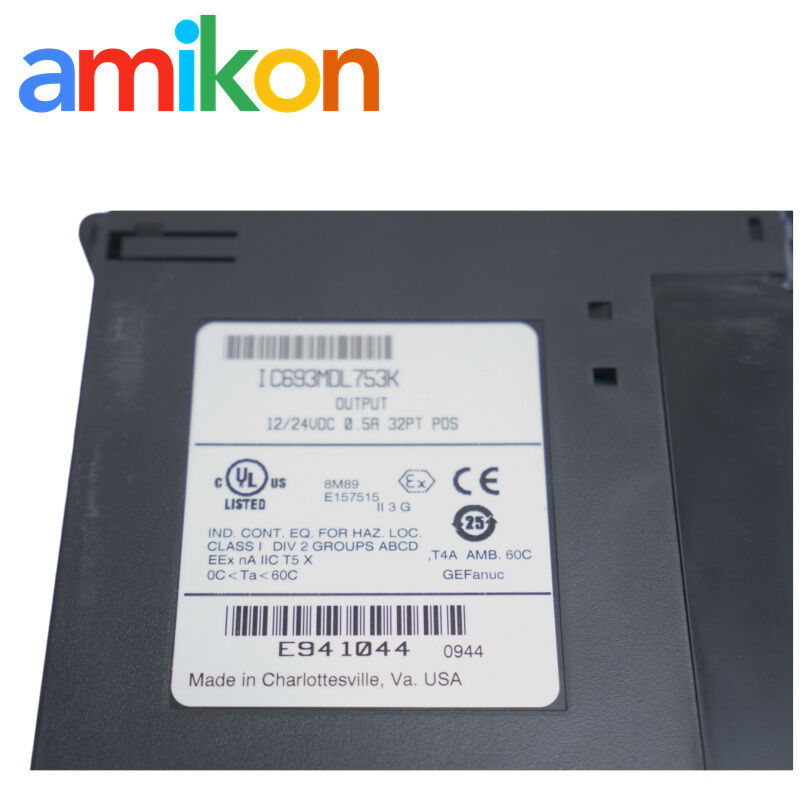

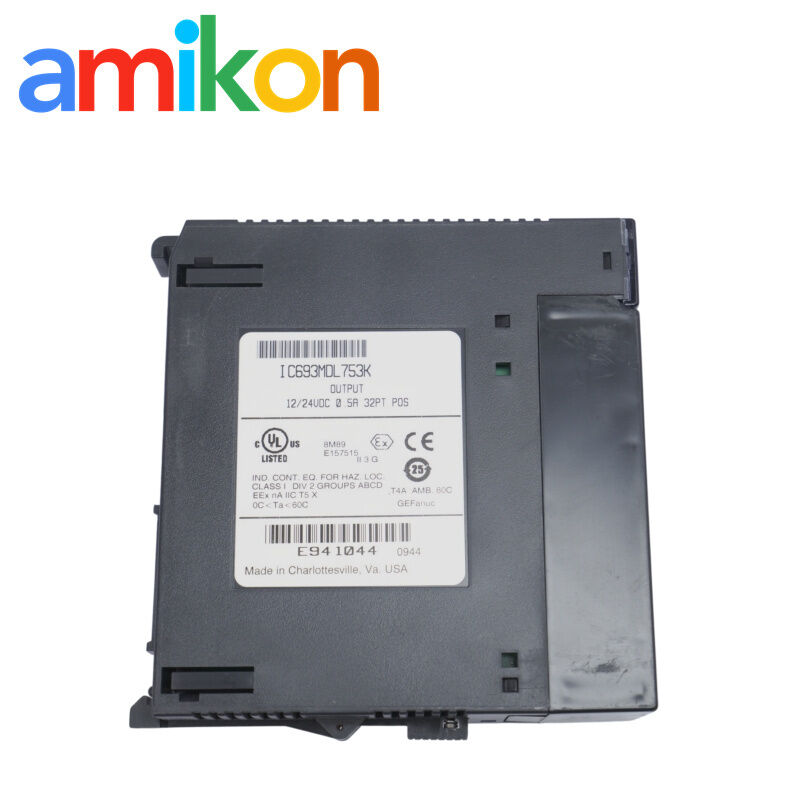

IC693MDL753 12/24 VDC Positive Logic Output Module for GE Fanuc Series 90-30
IC693MDL753
GE Fanuc Series 90-30
12/24 VDC Output Module
Place of Origin:
USA
Brand Name:
General Electric
IC693MDL753
,GE Fanuc Series 90-30
,12/24 VDC Output Module
IC693MDL753
12/24 VDC Positive Logic Output Module
A discrete output component for GE Fanuc Series 90-30 PLC applications, with grouped output circuits, individual status indication and front-mounted field wiring connectors.
Designed for Discrete Output Control
The module organizes its output circuits into four groups, with separate common connections for each group. Field devices require an appropriate external supply. Individual LEDs make it possible to inspect output-point ON/OFF status during routine operation and troubleshooting.
Core Technical Parameters
|
32
Output Points
|
12/24 VDC
Output Voltage
|
0.5 A
Max. per Point
|
4 × 8
Isolated Groups
|
|
|
|||
|
PLC PLATFORM
GE Fanuc Series 90-30
|
OUTPUT LOGIC
Positive Logic · Sourcing
|
||
Technical Reference
Secondary specifications are grouped by purpose for quicker scanning.
Electrical & Output Details
| Catalog number | IC693MDL753 |
| Module category | Discrete DC output |
| Output data allocation | 32 bits of discrete %Q data |
| Status indication | Individual ON/OFF LEDs |
| Special fault/alarm diagnostics | No special fault or alarm diagnostics reported |
Connectors & Installation
| Field connectors | Two male 24-pin connectors, Fujitsu FCN-365P024-AU |
| I/O slot installation | Any I/O slot in a 5-slot or 10-slot Series 90-30 baseplate |
| Group arrangement | Four isolated groups of eight outputs, each with its own common |
| CPU stopped behavior | All 32 outputs are forced OFF |
Wiring, Configuration & Operation
The output circuits are divided into groups A, B, C and D, each containing eight points and its own common. The right-hand front connector serves groups A and B; the left-hand connector serves groups C and D.
Field wiring can use mating connector cables with stripped and tinned conductors, or a terminal-block quick-connect arrangement. Cable and terminal-block selection must match the actual installation and connector requirements.
Configure the module as a 32-point discrete output module and map the required points in the PLC program. The field supply, load current and wiring must remain within the applicable electrical ratings.
Application & Failure Scenarios
This module is used in Series 90-30 control systems where the PLC must switch discrete DC field loads. A maintenance search may be triggered by an output point that fails to respond, an unexpected OFF condition, or suspected damage to an output channel.
| Output does not switch | Check the PLC command, point status LED, external field supply, connector and load wiring before replacing the module. |
| All outputs are OFF | Check CPU operating state and the control sequence. The module forces all outputs OFF when the CPU is stopped. |
| Production interruption | An unresolved output fault can stop actuators or other controlled loads and interrupt a production sequence. Verify the failure cause before changing hardware. |
Supply & Warranty
| Testing | Inspection and functional-test arrangements are confirmed for the specific unit quoted. |
| Packaging | Protective shipping packaging; condition and packaging details are confirmed with the offer. |
| Returns / DOA | Report damage or a suspected dead-on-arrival unit promptly with order details and evidence. Return authorization and eligibility are subject to confirmation. |
| Warranty | Duration, scope and exclusions follow the warranty terms confirmed in the quotation. |
Request a Quotation
Please include the following details so the team can review your request.
| Part Number | Quantity |
| Destination | Required Date |
| Machine/System Model | |
Frequently Asked Questions
1. How many output points are available?
There are 32 discrete outputs, arranged in four groups of eight.
2. What is the maximum current per output?
The specified maximum is 0.5 A per point.
3. What happens when the CPU stops?
All 32 outputs are forced OFF.
4. Does the module provide output fault diagnostics?
No special fault or alarm diagnostics are reported. Individual LEDs indicate the ON/OFF state of output points.
5. Where can I find the IC693MDL753 PDF/manual or datasheet?
Contact AMIKON for assistance with available product documentation. The Series 90-30 PLC I/O Module Specifications, publication GFK-0898F, contains the IC693MDL753 technical section.
