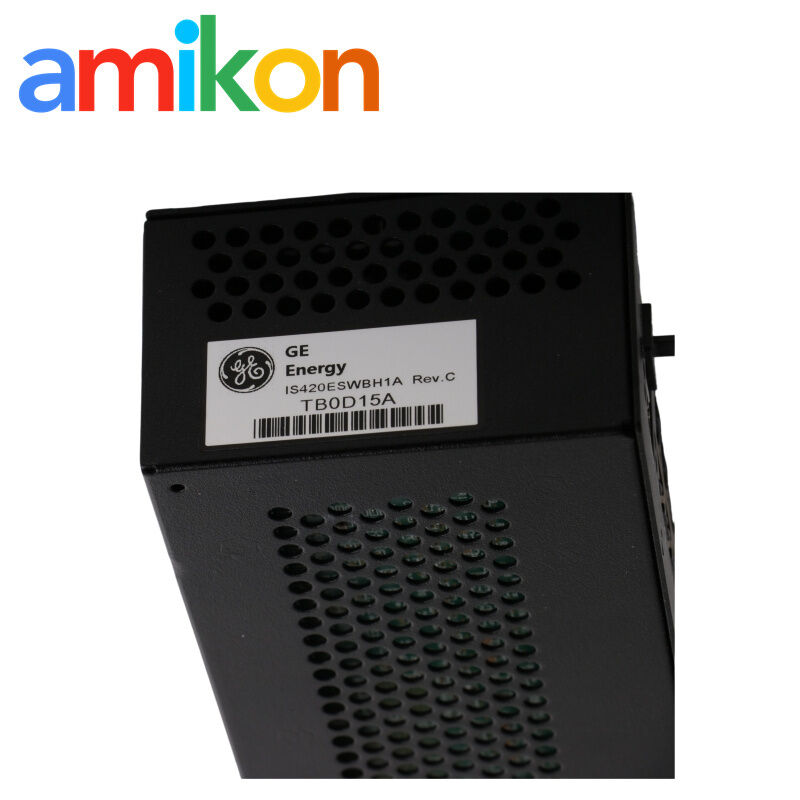

IS420ESWBH1A GE Mark VIe IONet Switch
GE Mark VIe IONet Switch
IS420ESWBH1A IONet Switch
Mark VIe Controller IONet Switch
Place of Origin:
USA
Brand Name:
General Electric
GE Mark VIe IONet Switch
,IS420ESWBH1A IONet Switch
,Mark VIe Controller IONet Switch

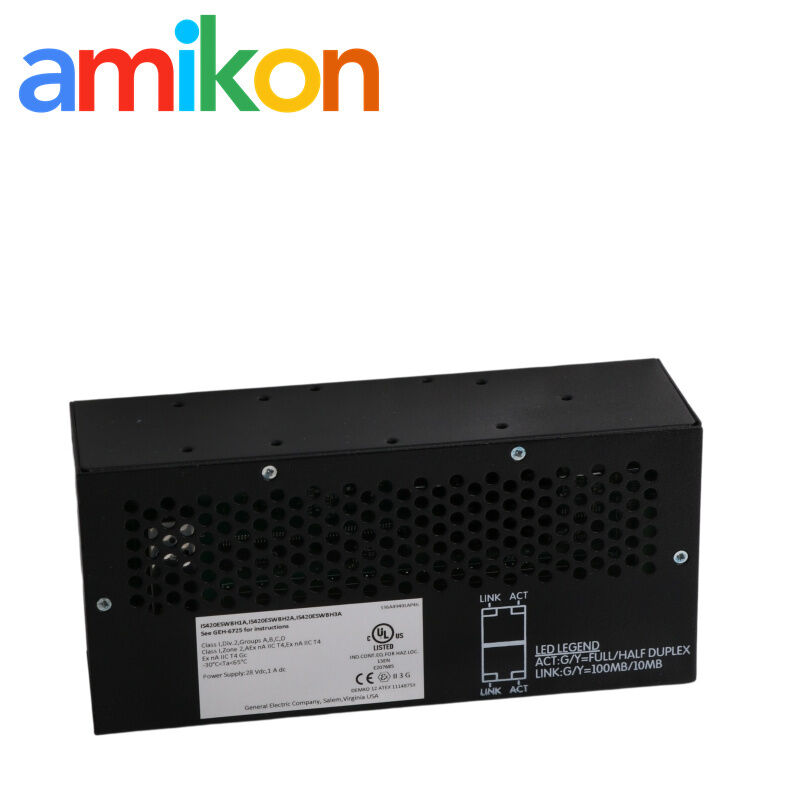

Mark VIe IONet Switch
Industrial Ethernet and fiber-optic connectivity hardware for GE Mark VIe control system network infrastructure.
Product Overview
This switch is used within GE Mark VIe industrial control network infrastructure. Its interface arrangement combines copper Ethernet connectivity with a multimode fiber connection.
For replacement sourcing, check the installed network layout, connected equipment and the required hardware configuration before placing an order.
Technical Specifications
| Part Number | IS420ESWBH1A |
|---|---|
| Product Name | Mark VIe IONet Switch |

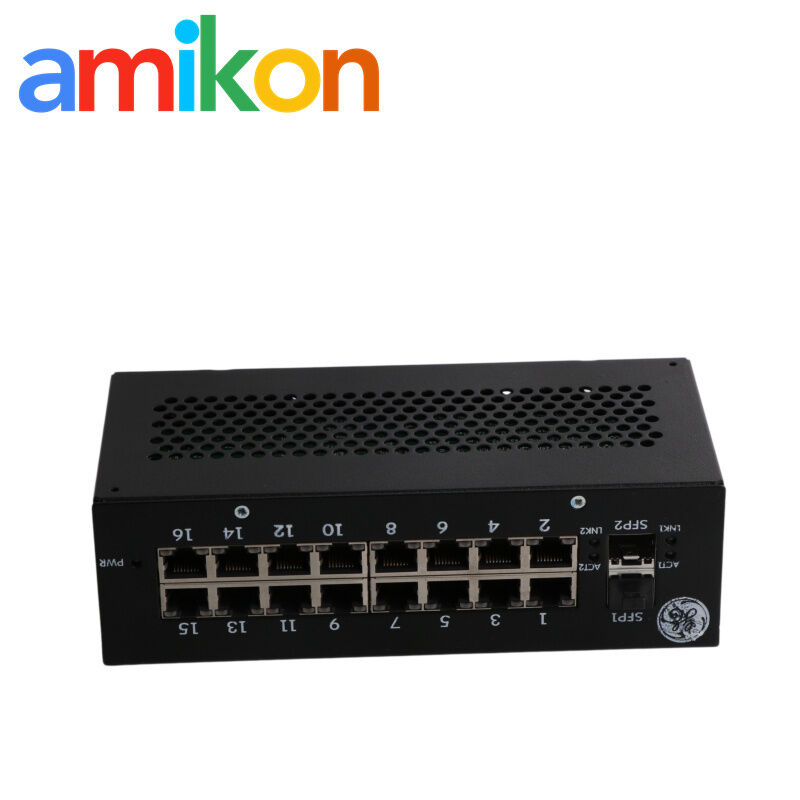

| Copper Ethernet Ports | 16 × 10/100Base-TX, RJ-45 |
| Fiber-Optic Port | 1 × 100Base-FX multimode fiber, LC-type connection |
| Copper Cable | Category 5e UTP with RJ-45 (8P8C) connectors |
| Power Requirements | 24 / 28 V DC, 1 A maximum |
|---|---|
| Power Inputs | TB1 and TB2 provide two independent power inputs with diode-OR redundancy |
| Power Connectors | Two Phoenix Contact MC 1.5/S-STF-3.81 connectors, included in the documented configuration |
| Dimensions (H × W × D) | 18.8 × 8.6 × 5.6 cm (7.40 × 3.40 × 2.20 in) |
| Mounting | DIN rail; mounting clip purchased separately |
| Cooling | Convection cooled |
Environmental & Compliance Data
| Operating Temperature | −40 to +70 °C (−40 to +158 °F) |
|---|---|
| Storage Temperature | −40 to +85 °C (−40 to +185 °F) |
| G3 Compliance | Yes |
| Hazardous Locations | Listed in the manufacturer's Mark VIeS system documentation for Class I, Division 2 / Class 2, Zone 2 / ATEX applications. Confirm the applicable equipment and installation requirements for the intended site. |
Installation & Replacement Checklist
Before installation: Review the approved system documentation and the site's maintenance and isolation procedures.
Network checks: Confirm the required port allocation, cable condition, fiber interface and the connected network equipment.
Power checks: Verify the site supply, terminal identification and wiring against the manufacturer's installation instructions before energizing the unit.
Mechanical checks: Confirm the mounting hardware and available installation space before fitting the replacement.
Commissioning: Follow the site's approved process to check network communication and the status of affected control-system components.
Application & Failure Scenarios
Application
Industrial control network infrastructure in GE Mark VIe environments where the installed design calls for copper Ethernet connections and a fiber link.
Common Sourcing Triggers
Loss of network communication, suspected switch failure, damaged network cabling or a planned maintenance replacement may prompt a search for this part. These symptoms require system-level troubleshooting and do not by themselves confirm a defective switch.
Downtime Considerations
A network interruption can affect communication between connected control-system components. Review the network topology and the operational impact before replacement to help manage outage duration.
AMIKON Industrial Supply
Industrial Parts Sourcing, Kept Practical.
AMIKON assists industrial maintenance and procurement teams with parts sourcing, order coordination and shipment communication.
Delivery & Warranty
| Testing | Inspection and applicable functional testing are subject to the quoted condition and agreed test scope. |
| Packaging | Protective industrial packaging appropriate to the shipment and handling requirements. |
| DOA / Returns | Report transit damage or suspected dead-on-arrival issues promptly with order details, photographs and available test evidence. Return authorization and eligibility are subject to the agreed sales terms. |
| Warranty | Warranty duration and coverage are confirmed in the quotation or order confirmation. Coverage is subject to the agreed terms and does not automatically include damage caused by improper installation, misuse or unauthorized modification. |
Request a Quote
Please include the following details so our team can review your request:
Part Number: Enter required part number
Quantity: Required quantity | Destination: City and country
Required Date: Expected delivery date
Machine/System Model: Installed equipment or system model
Send your inquiry to sales@amikon.cn.
Frequently Asked Questions
1. How many copper Ethernet ports are provided?
There are 16 10/100Base-TX copper Ethernet ports with RJ-45 connectors.
2. What type of fiber interface is specified?
One 100Base-FX multimode fiber port with an LC-type connection.
3. What power arrangement should be checked?
The documented design has two independent DC power inputs with diode-OR redundancy. Confirm supply and wiring requirements in the applicable installation documentation.
4. What information is needed to confirm a replacement?
Provide the full part number, installed system model, network interface requirements and relevant installation details.
5. How can I request technical documentation?
Email sales@amikon.cn with the part number and your requested document type.
