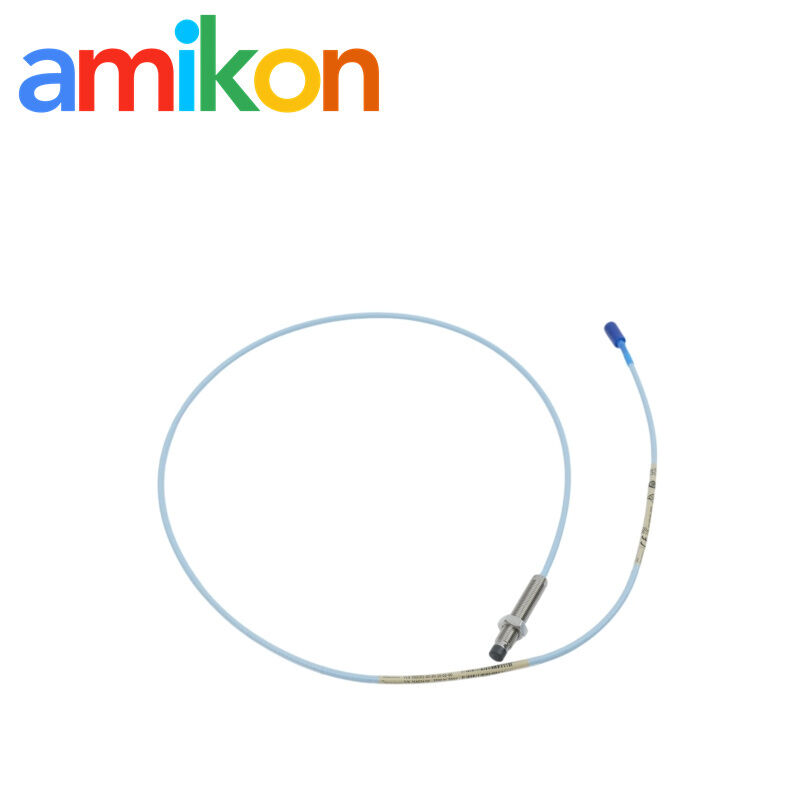

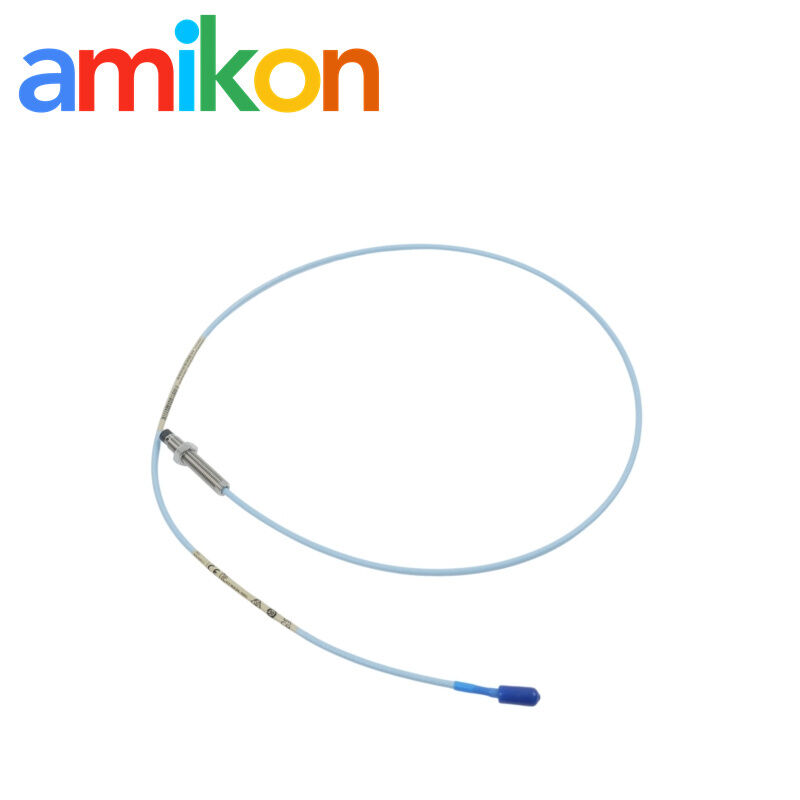

330101-00-20-10-02-00 3300 XL 8 mm Proximity Probe
A non-contacting eddy-current probe for machinery position and vibration measurement within a compatible Bently Nevada 3300 XL 8 mm proximity transducer system.
Product Overview
The 330101-00-20-10-02-00 is a 3300 XL 8 mm proximity probe. It senses the distance between the probe tip and a conductive target without physical contact. In a complete transducer system, the measured gap can be used to monitor shaft position and dynamic vibration.
Application & Failure Scenarios
In compatible machinery monitoring systems, proximity probes measure shaft position and vibration. The complete system may also support Keyphasor reference or speed measurements when configured for those functions.
- Replacement need: physical damage to the probe, cable or connector, or a suspected probe-related signal fault.
- Unreliable readings: unexpected vibration or shaft-position indications may require inspection of the probe, connection, target conditions and the rest of the measurement chain.
- Downtime risk: an unavailable or unreliable monitoring channel can reduce visibility into machine condition and delay maintenance decisions. Actual consequences depend on the monitored equipment and protection arrangement.
Technical Specifications
| Manufacturer | Bently Nevada |

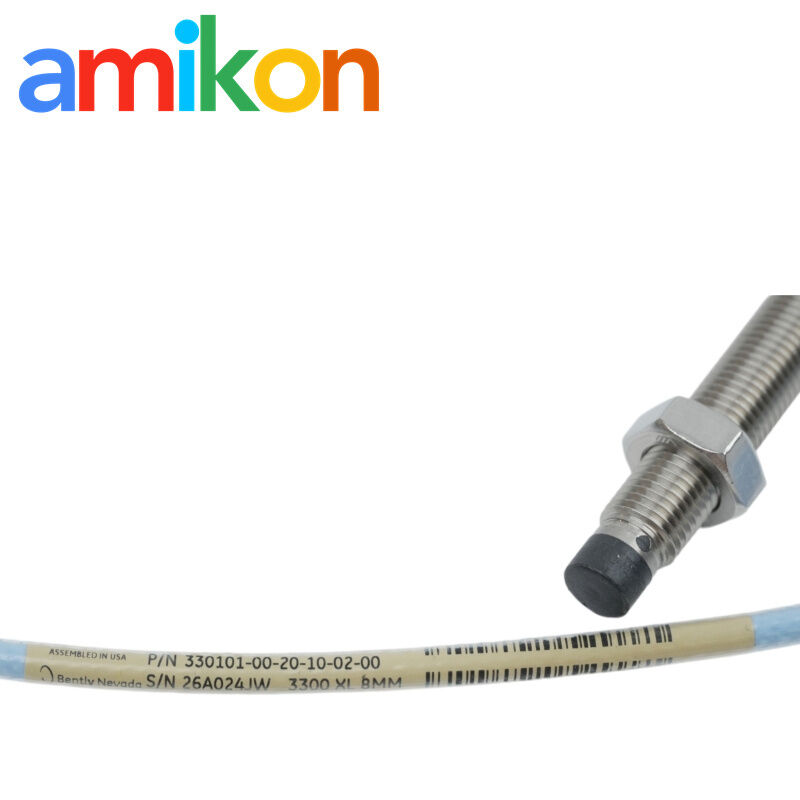

| Exact part number | 330101-00-20-10-02-00 |
| Product type | 3300 XL 8 mm Proximity Probe |
| Probe thread | 3/8-24 UNF |
| Unthreaded length option | 00 — 0.0 in |
| Overall case length option | 20 — 2.0 in |
| Total probe length option | 10 — 1.0 m (3.3 ft) |
| Connector and cable option | 02 — Miniature coaxial ClickLoc connector, standard cable |
| Armor | Without armor |
| Agency approval option | 00 — Not required |
| Sensing principle | Eddy-current proximity measurement |
| Measurement role | Non-contacting measurement of conductive-target position; dynamic measurements are supported by the complete transducer system |
Additional 3300 XL 8 mm system performance data
These are system-level reference specifications, not standalone probe-only ratings. They depend on the matched components and published test conditions.
| Linear range | 2 mm (80 mils); approximately 0.25–2.3 mm (10–90 mils) from the target |
| Incremental scale factor | 7.87 V/mm (200 mV/mil) for standard 1 m or 5 m systems, subject to the documented system conditions |
| Frequency response | 0–10 kHz, +0/−3 dB, under the published system specification |
| Minimum flat target diameter | 15.2 mm (0.6 in) |
| Minimum shaft diameter | 50.8 mm (2 in) |
| Recommended minimum shaft diameter | 76.2 mm (3 in) |
| Recommended radial vibration gap | Approximately 1.27 mm (50 mils), corresponding to −9 Vdc in the documented system |
System performance depends on the Proximitor sensor, cable length, target material, gap setting, temperature and other published test conditions. Confirm the complete installed measurement loop before applying these values.
System Matching & Replacement Checks
The 3300 XL 8 mm measurement system uses a probe, an extension cable where required, and a compatible Proximitor sensor.
- Match the full ordering code, including cable length, connector and approval option.
- Confirm the required total electrical length against the installed monitoring system before selecting the extension cable and Proximitor sensor.
- Inspect the probe tip, cable and ClickLoc connection if the existing channel has an abnormal reading.
- Check the installation gap and target material against the applicable system documentation before commissioning.
Do not assume that mixing XL and non-XL 3300-series components preserves full 3300 XL performance. Consult the manufacturer's documentation for the specific combination.
Delivery & Warranty
AMIKON confirms availability, supplied condition, inspection arrangements, packaging and applicable warranty terms with the quotation. Report DOA or transit damage promptly with order details and supporting photos. Returns require prior approval; warranty coverage follows the terms confirmed for the supplied item.
Please provide Part Number, Quantity, Destination, Required Date, and Machine/System Model so the requested configuration and delivery requirements can be reviewed.
Industrial Supply Contact
Frequently Asked Questions
1. What should I check before replacing this probe?
Match the complete part number, thread, case length, cable length and connector. Confirm compatibility with the installed Proximitor sensor and total electrical length.
2. Does this configuration include an armored cable?
No. The specified configuration is without armor.
3. Can the probe connect directly to a monitoring system?
The probe is a sensing component. A compatible Proximitor sensor and any required extension cable are needed to complete the measurement chain.
4. What could cause an abnormal vibration or position reading?
Possible causes include probe or cable damage, a poor connection, incorrect gap, target conditions or another fault in the measurement chain. Check the complete channel before replacing components.
5. What information should I send for a quotation?
Provide the complete part number, quantity, destination, required date and machine/system model.
