Bently Nevada 330730-080-00-00 Extension Cable 8.0m | 3300 XL 11mm
Bently Nevada 330730-080-00-00 Extension Cable 8.0m | 3300 XL 11mm
Bently Nevada 330730 Extension Cable
3300 XL 11mm Extension Cable
8.0m Bently Nevada Extension Cable
Brand Name:
Bently Nevada
Contact Us
Request A Quote
Product Details
Highlight:
Bently Nevada 330730 Extension Cable
,3300 XL 11mm Extension Cable
,8.0m Bently Nevada Extension Cable
Payment & Shipping Terms
Minimum Order Quantity
1
Delivery Time
2-3 work days
Payment Terms
T/T
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
AMIKON Industrial Supply / Cable & Connection

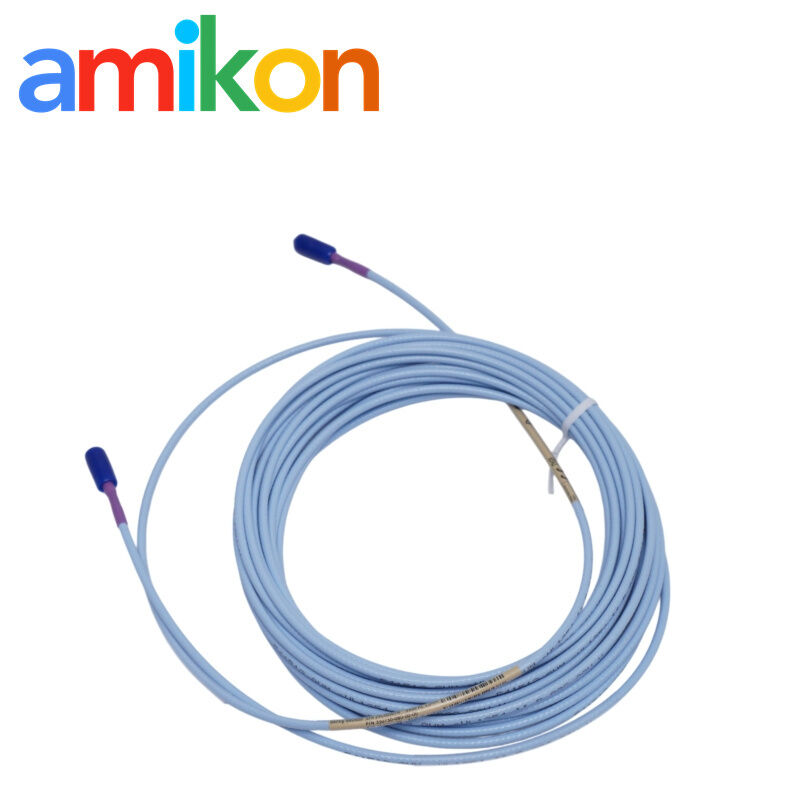

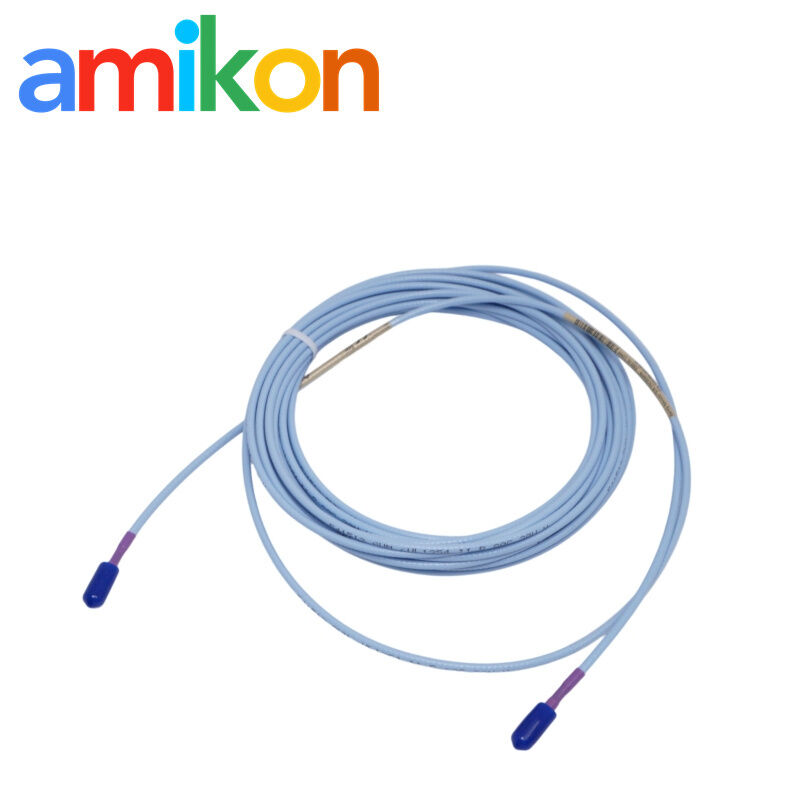

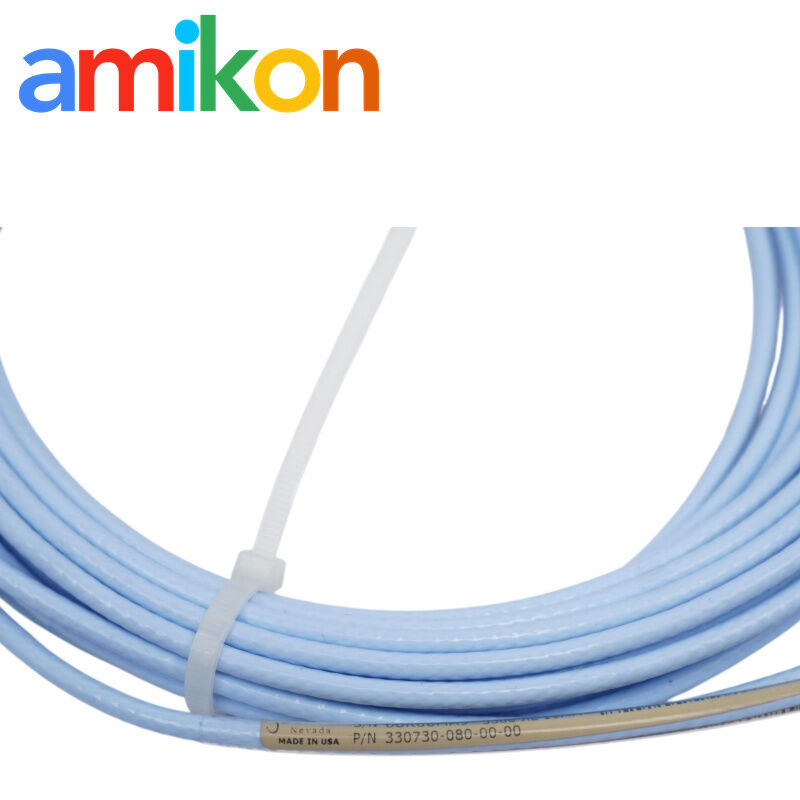

Bently Nevada 330730-080-00-00
Extension cable · 3300 XL 11 mm series
8.0 m
Nominal cable length · 26.2 ft
This cable is a replaceable part of a non-contact machinery measurement signal path. AMIKON supports industrial parts sourcing by checking the requested part number, order quantity, availability and delivery destination.
Technical Specifications
Cable impedance
75 Ω
Triaxial cable construction
Typical capacitance
69.9 pF/m
21.3 pF/ft
| Insulation material | FEP (fluoroethylene propylene) |
|---|---|
| Connector material | Gold-plated brass |
| Minimum bend radius | 25.4 mm (1.0 in), with or without stainless-steel armor |
| Extension cable weight | Approximately 45 g/m (0.5 oz/ft), unarmored cable |
The electrical characteristics of the complete measurement system depend on the probe, extension cable and Proximitor Sensor used together. Confirm the installed connector arrangement when sourcing a replacement.
Additional electrical and environmental specifications
| Extension cable length | 8.0 m (26.2 ft) |
|---|---|
| Center-conductor DC resistance | 2.0 ± 0.5 Ω for an 8.0 m extension cable |
| Coaxial-conductor DC resistance | 0.6 ± 0.2 Ω for an 8.0 m extension cable |
| Operating and storage temperature | −52°C to +177°C (−62°F to +351°F) for the extension cable |
| Connector-to-connector tightening | Finger-tight recommended; maximum torque 0.565 N·m (5 in·lb) |
| Optional armor construction | Flexible AISI 302 stainless steel with FEP outer jacket, where an armored cable option is specified |
Temperature limits apply to the extension cable itself; other components in the measurement system have their own environmental limits.
Connection and installation considerations
| Cable routing | Avoid crushing, sharp bends, abrasion and unnecessary pulling force during installation. |
|---|---|
| Bend allowance | Maintain a bend radius of at least 25.4 mm (1.0 in) along the cable route. |
| Connector handling | Keep mating interfaces clean and protected. Tighten the connection by hand and do not exceed the specified maximum connector torque. |
| Environmental protection | Protect connector interfaces against moisture and contamination appropriate to the installation environment. |
| Signal troubleshooting | Inspect cable condition and connector seating when investigating intermittent readings. Assess the probe, Proximitor Sensor and monitor channel as part of the same signal path. |
| Replacement matching | Match the cable part number and connector arrangement to the installed system; do not assume that cables from different proximity-system families are interchangeable. |
Application & Failure Scenarios
System application
Machinery condition monitoring
Used within a compatible 3300 XL 11 mm proximity transducer installation for non-contact measurements on rotating machinery.
- Shaft vibration monitoring
- Shaft and axial position measurement
- Differential expansion monitoring arrangements
- Speed and phase-reference signal applications
Replacement triggers
Signal-path inspection
- Damaged, crushed or abraded cable
- Contaminated or damaged connector interfaces
- Intermittent readings where a cable fault is suspected
- Replacement during maintenance or restoration work
A compromised signal path can reduce confidence in machinery condition data and delay fault assessment.
Delivery & Warranty
Before dispatch: Part number and order details are checked; items are inspected against the order and packed for transport.
Warranty: Coverage and duration are confirmed in the quotation or order.
Returns / DOA: Report incorrect, damaged or non-operational items promptly with order details and supporting photos. Return authorization and remedies are handled under the agreed sales terms.
RFQ Information
Include the following details to help process your inquiry.
Part Number Quantity Destination Required Date Machine/System Model
Contact AMIKON
Industrial Parts Sourcing
Miya Zheng
AMIKON Industrial Supply
Email for quotation
sales@amikon.cnDirect contact
WhatsApp +86 180 2077 6792Send the part number, required quantity and delivery destination to request a quotation.
Industrial parts sourcing · Worldwide customer support
Frequently Asked Questions
1. What is the 330730-080-00-00 used for?
It is an extension cable for the Bently Nevada 3300 XL 11 mm proximity transducer system.
2. What length does the 080 option represent?
The 080 length code corresponds to an 8.0 m cable.
3. Is this cable compatible with every Bently Nevada probe?
No universal compatibility should be assumed. The probe family, connector arrangement and complete transducer configuration must match the installation requirements.
4. What can cause an abnormal signal in the cable path?
Possible causes include physical cable damage or a poor connector interface. The probe, Proximitor Sensor and monitor channel may also need inspection.
5. What details should be included in a replacement inquiry?
Provide the part number, quantity, destination, required date and machine/system model. Photos of the installed item can help clarify the requested configuration.
