TK3-2E 14700-02 Proximity System Calibration Instrument A calibration instrument for checking proximity transducer response, static shaft-position readings and simulated mechanical vibration in compatible Bently Nevada monitoring systems. Request a Quote  →

Operating Principle

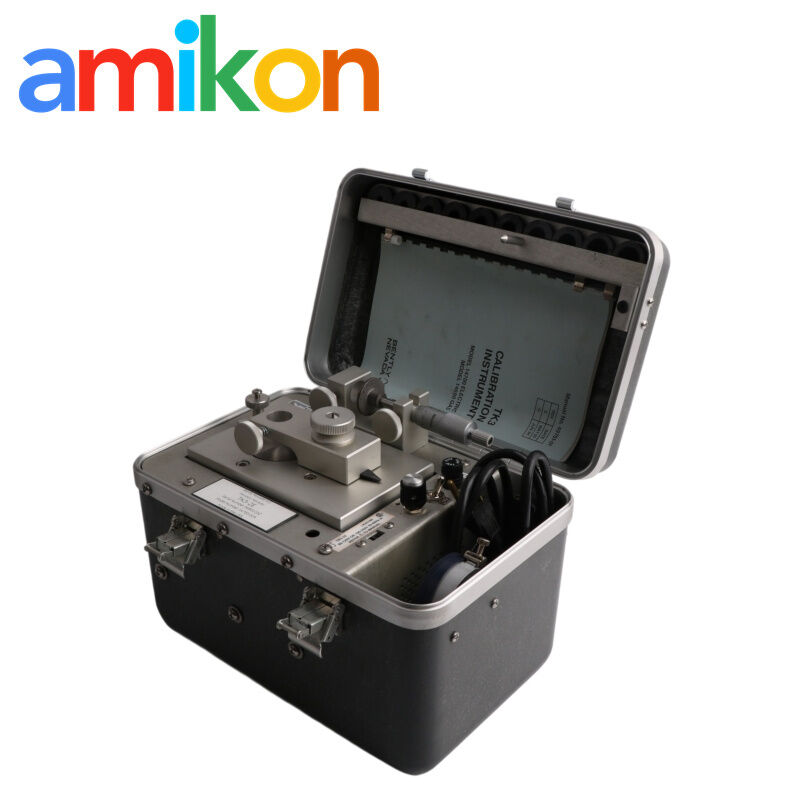

The instrument uses a spindle micrometer assembly to move a target toward or away from a proximity probe in controlled increments. The resulting Proximitor Sensor output can be measured with a voltmeter to assess transducer response and position-monitor calibration.

For vibration checks, a motor-driven wobble plate generates mechanical movement. A swing-arm probe holder positions the probe above the plate, allowing the measured vibration response to be compared with the corresponding monitoring-channel reading.

Technical Specifications

The following operating ranges describe the TK-3 calibration instrument family. Confirm the exact electrical variant and physical configuration against the supplied unit before operation.

Application & Failure Scenarios

Configuration & Safe Operation

Check the full model reference, electrical input, scale units, probe holder and supplied accessories before use. The measured sensor output should be evaluated using the appropriate probe scale factor and the relevant monitor calibration procedure.

Keep clear of rotating parts during wobble-plate operation. Secure mounting screws, use safety guards and safety glasses, and keep loose clothing and objects away from moving components.

Documentation & Identification

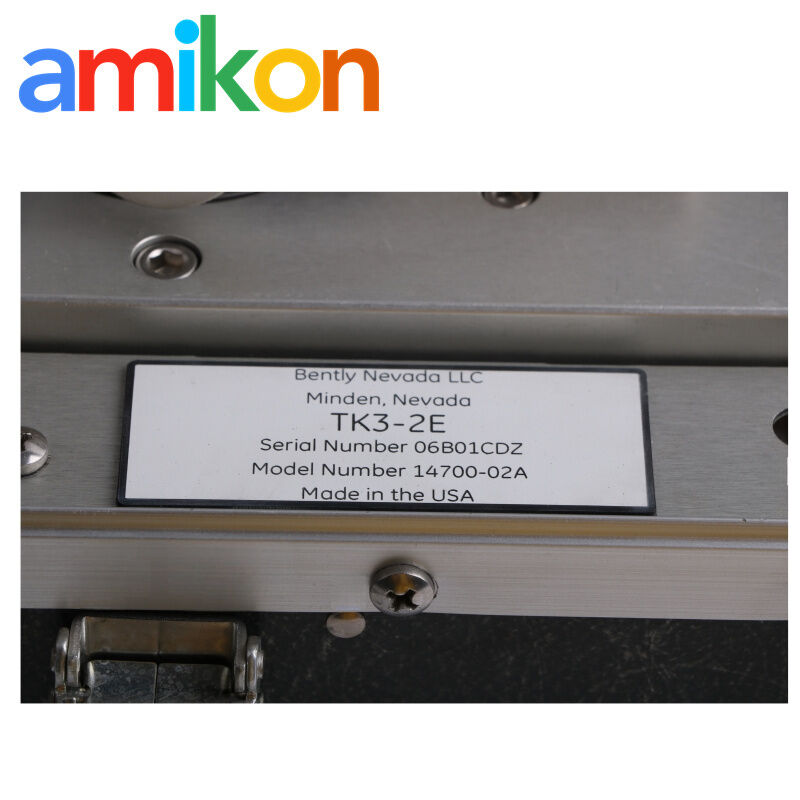

For a TK3-2E 14700-02 datasheet or manual enquiry, provide the complete nameplate reference and a clear photograph of the unit. Confirm the document version and electrical configuration before applying operating limits or maintenance procedures.

Delivery & Warranty

Inspection and functional-test scope, condition, protective packaging, delivery arrangements and warranty period are confirmed in the quotation. Report transit damage or DOA issues promptly with order details and photographs. Returns and warranty claims follow the agreed sales terms.
