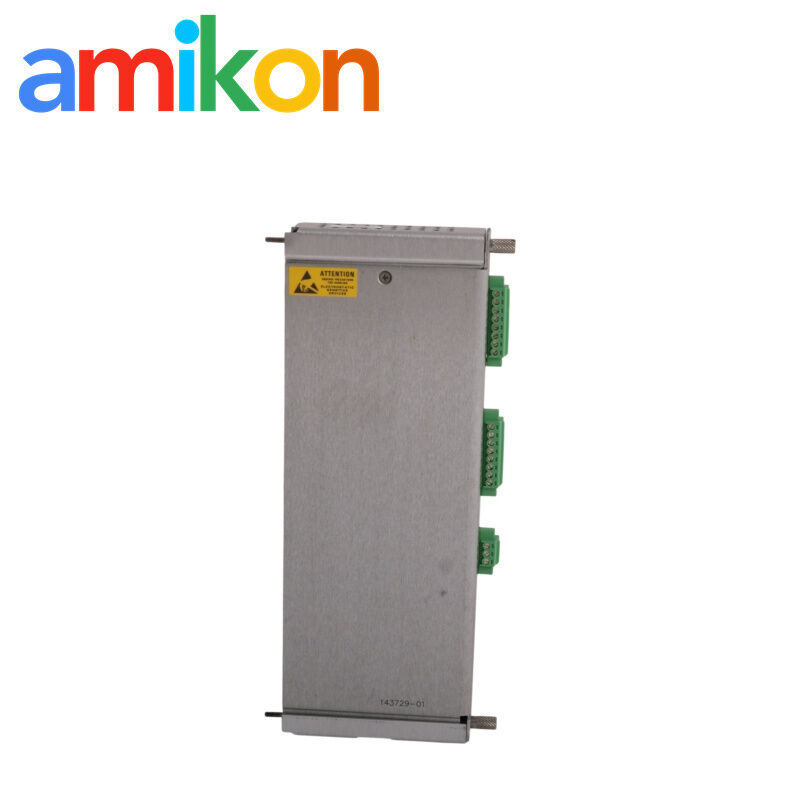

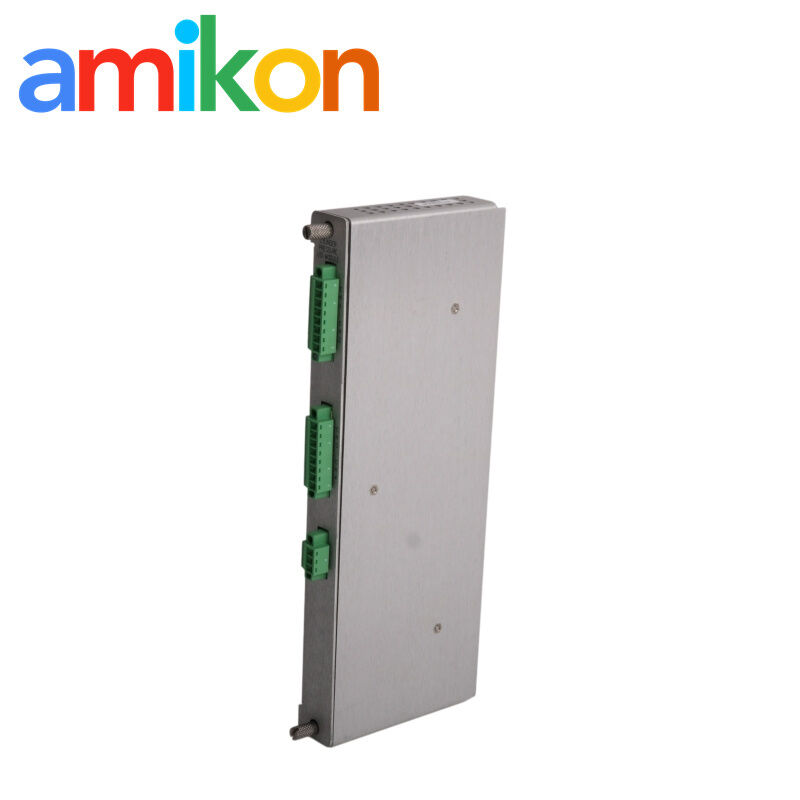

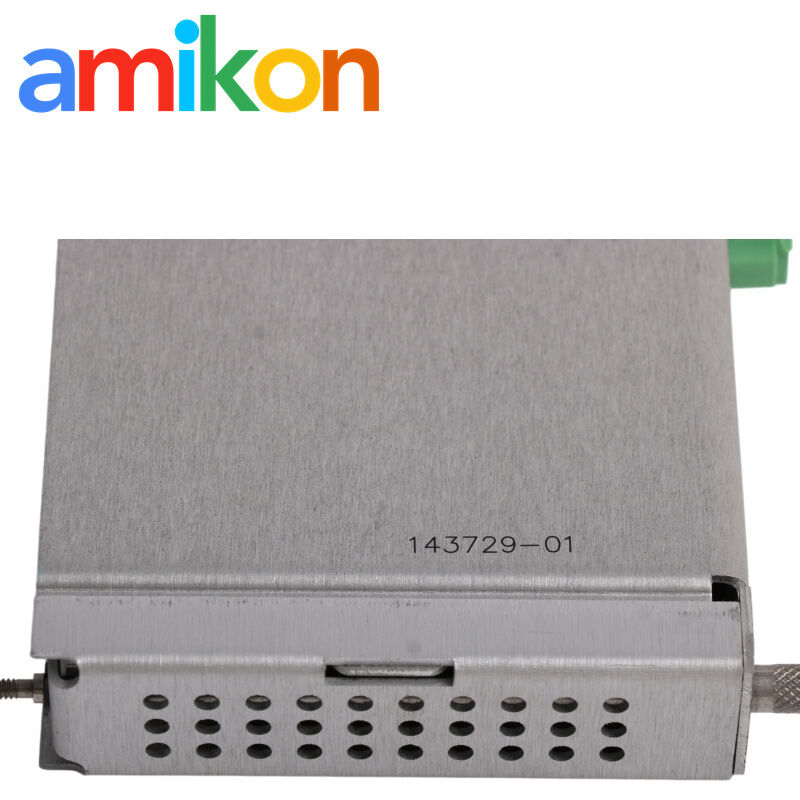

Bently Nevada 143729-01 Cylinder Pressure I/O Module – Internal Termination, 3500/77M System
Bently Nevada 143729-01 Cylinder Pressure I/O Module – Internal Termination, 3500/77M System
Bently Nevada 143729-01 I/O Module
3500/77M Cylinder Pressure Module
Internal Termination Pressure I/O Module
Brand Name:
Bently Nevada
Contact Us
Request A Quote
Product Details
Highlight:
Bently Nevada 143729-01 I/O Module
,3500/77M Cylinder Pressure Module
,Internal Termination Pressure I/O Module
Payment & Shipping Terms
Minimum Order Quantity
1
Delivery Time
2-3 work days
Payment Terms
T/T
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
AMIKON Industrial Supply / Bently Nevada
143729-01 Cylinder Pressure I/O Module
Internal-termination interface for Bently Nevada-approved third-party pressure transducers used in reciprocating compressor monitoring systems.
01 / OVERVIEW
Key Specifications
Module Height
241.3 mm
9.50 in
Module Width
24.4 mm
0.96 in
Module Depth
99.1 mm
3.90 in
Module Weight
0.20 kg
0.44 lb · One full-height rear I/O slot
02 / CONNECTIONS
Connector Configuration
| Connector | Type | Alternative |
|---|---|---|
| 00580434 | Euro Style, 8-pin connector header | 166M2389 — push-in spring type |
| 00580441 | Euro Style, 3-pin connector header | 166M4363 — push-in spring type |
03 / SYSTEM DATA
3500/77M Monitoring System
The associated monitor conditions approved pressure-transducer signals and compares configured measurements with user-programmable alarm setpoints.
View monitoring functions, electrical data and environmental limits
The following values describe the 3500/77M monitoring system and its configured I/O arrangement, rather than standalone performance of the 143729-01 module.
| Pressure inputs | 1–4 channels using Bently Nevada-approved positive-voltage third-party pressure transducers, specified in psia |
| Measured variables | Discharge pressure, suction pressure, maximum pressure, minimum pressure, compression ratio, peak rod compression, peak rod tension and degree of rod reversal |
| Alarm configuration | Alert setpoints can be configured for each active measured variable; Danger setpoints can be configured for any two active measured variables |
| Frequency response | 0–5.5 kHz on configured pressure channels |
| Pressure accuracy | Within ±0.5% of transducer full range at +25°C; within ±1.0% over −30°C to +65°C |
| Input impedance | 50 kΩ |
| Transducer supply | +23.0 ±0.8 VDC, with 24.5 mA current limiting per channel |
| Power consumption | 7.8 W with transducer supplies at full load |
| Buffered outputs | One coaxial buffered transducer output per channel; short-circuit protected |
| Output signal note | For a monitor using Cylinder Pressure I/O, outputs are inverted and offset by −2.265 VDC |
| Operating temperature | −30°C to +65°C with the internal/external termination Cylinder Pressure I/O module |
| Storage temperature | −40°C to +85°C |
| Humidity | 95%, non-condensing |
| Monitor firmware | Revision L or later |
| 3500 software | 3500/01 Version 3.00 or later; 3500/02 Version 2.30 or later; 3500/03 Version 1.30 or later |
| Minimum machine speed | Standard lower limit: 60 RPM. Operation down to 30 RPM requires modification 135M8200-01 |
04 / APPLICATION
Application & Failure Scenarios
Designed for reciprocating compressor installations where cylinder pressure data supports machinery protection and operating-condition assessment.
- Pressure data unavailable: Inspect the signal path, field connections and associated I/O arrangement.
- Unstable or unexpected readings: Check the transducer, wiring and configured channel parameters before concluding that the module needs replacement.
- Maintenance troubleshooting: Loss of pressure measurements can limit condition assessment and extend fault-finding time on critical compressor equipment.
AMIKON Industrial Supply
Industrial Parts Sourcing
Industrial automation and control equipment sourcing, kept practical.
Your sourcing contact
Miya Zheng
Industrial Parts Sourcing
Email for quotations sales@amikon.cn
Direct contact WhatsApp
+86 180 2077 6792
+86 180 2077 6792
Contact AMIKON for quotation requests, availability checks and order coordination.
Order & Part Verification Part number and requested configuration are checked against the quotation requirements.
Inspection & Packaging Product condition and packaging are handled according to the confirmed order.
Warranty & DOA Warranty coverage and return eligibility follow the agreed order terms. Report arrival issues with supporting photos and order details.
05 / ENQUIRY
Request a Quote
Part Number 143729-01
Quantity Required quantity
Destination City and country
Required Date Target delivery date
Machine/System Model Installed monitor or system model
06 / FAQ
Frequently Asked Questions
- 1. What is Bently Nevada 143729-01 used for? It is the Cylinder Pressure I/O Module with internal terminations for Bently Nevada-approved third-party pressure transducers in the 3500/77M application.
- 2. Which connectors are associated with 143729-01? 00580434 is the Euro Style 8-pin connector header, and 00580441 is the Euro Style 3-pin connector header. Their listed push-in spring-type alternatives are 166M2389 and 166M4363, respectively.
- 3. Can an external termination block be used with this module? No. External termination blocks cannot be used with internal-termination I/O modules.
- 4. How can I request the 143729-01 datasheet or manual? Contact AMIKON with the complete part number and installed system details to enquire about the relevant documentation.
- 5. What information should I provide for a quotation? Include the part number, quantity, delivery destination, required date and machine/system model.
