Bently Nevada 330190-085-00-05 3300 XL Extension Cable 8.5 m
Bently Nevada 330190-085-00-05
3300 XL Extension Cable
8.5 m Cable Length
Brand Name:
Bently Nevada
Bently Nevada 330190-085-00-05
,3300 XL Extension Cable
,8.5 m Cable Length

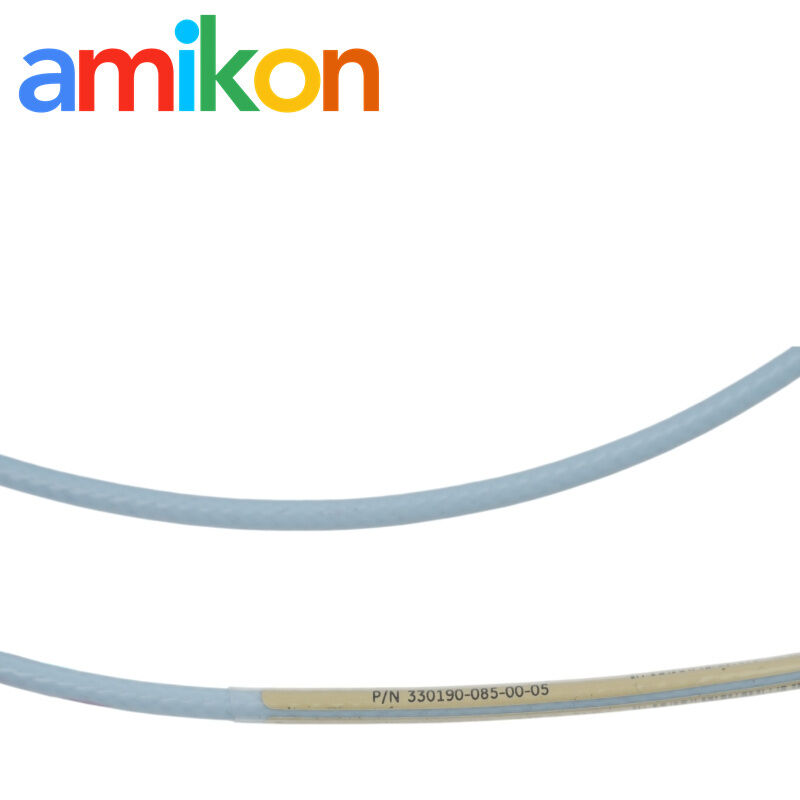

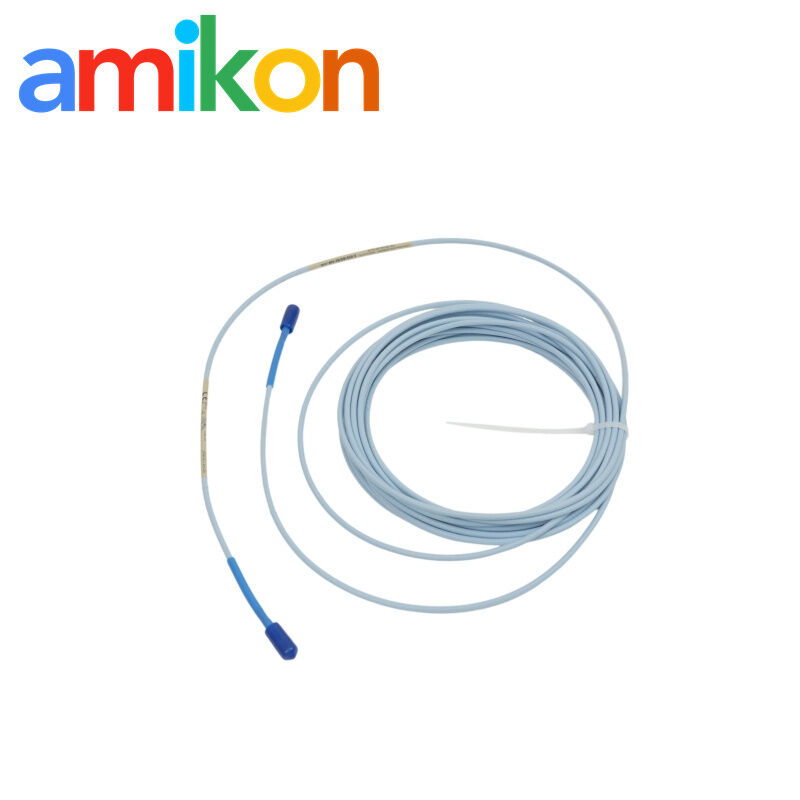

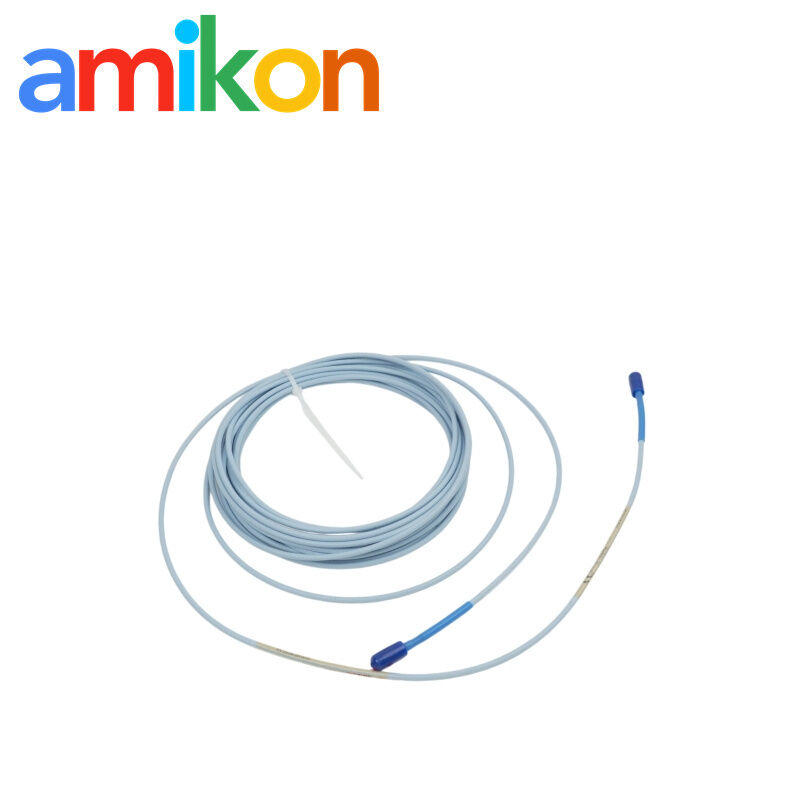

Bently Nevada 330190-085-00-05 ETR Extension Cable
An extended-temperature-range extension cable for the Bently Nevada 3300 XL 8 mm proximity transducer system. The ordering code identifies an 8.5 m ETR cable with the standard cable option and CSA, ATEX and IECEx approvals.
Product Overview
The 3300 XL 8 mm proximity transducer system uses a probe, extension cable and Proximitor Sensor to measure static position and dynamic vibration from the distance between the probe tip and a conductive target.
The ETR cable is designed for applications where cable temperature may exceed the standard 177°C rating. Its PFA-insulated construction supports high-temperature installation conditions within the limits of the configured system.
Technical Specifications
| Manufacturer | Bently Nevada |
|---|---|
| Product Type | 3300 XL Extended Temperature Range (ETR) extension cable |
| Associated System | 3300 XL 8 mm proximity transducer system |
| Cable Length Option | 085 — 8.5 m (27.9 ft) |
| Cable Option | 00 — Standard ETR cable option |
| Agency Approval Option | 05 — CSA, ATEX and IECEx approvals |
| Cable Construction | 75 Ω triaxial cable with PFA insulation |
| ETR Cable Temperature Rating | Up to 260°C (500°F) |
| Cable Capacitance | 69.9 pF/m (21.3 pF/ft), typical |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Connector Type | 3300 XL gold-plated ClickLoc connector system; finger-tight connection |
Additional Cable and System Notes
For an 8.5 m extension cable, the datasheet lists a nominal center-conductor resistance of 1.87 Ω ±0.28 Ω and outer-conductor resistance of 0.56 Ω ±0.11 Ω.
The cable length and probe length must add up to the total system length specified for the Proximitor Sensor. The ETR extension cable is rated up to 260°C; the Proximitor Sensor has its own operating-temperature limits.
Ordering code breakdown: 330190 identifies the 3300 XL ETR extension cable; 085 specifies 8.5 m; 00 specifies the standard cable option; 05 specifies CSA, ATEX and IECEx approvals.
Application & Failure Scenarios
The associated 3300 XL 8 mm system is used for vibration and position monitoring on fluid-film bearing machinery, as well as applicable Keyphasor reference and speed measurements.
A replacement cable may be needed when the cable is physically damaged, a connector is loose, or a monitoring signal becomes intermittent. These symptoms require checking the complete signal path; they do not by themselves prove that the cable has failed.
A disrupted signal path can reduce the reliability of machinery condition data and delay diagnosis of developing equipment problems. Confirm the cable configuration and the source of the fault before replacement.
Installation & Compatibility Checks
- Match the complete ordering code and required cable length to the installed system.
- Ensure the extension cable length plus the probe length equals the Proximitor Sensor's specified total system length.
- Observe the minimum cable bend radius of 25.4 mm.
- The 3300 XL gold ClickLoc connectors are designed for finger-tight connection. Follow the applicable installation instructions.
- After installation, inspect the connections and confirm the monitoring signal according to the site's approved maintenance procedure.
Technical Documentation
For a 330190-085-00-05 pdf/manual/datasheet search, the relevant system-level reference is the Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet, publication 141194. Its extension-cable ordering table identifies the cable-length, cable-option and agency-approval codes.
Document reference: 141194 — 3300 XL 8 mm Proximity Transducer System
Frequently Asked Questions
1. What does the 085 code specify?
It specifies an 8.5 m (27.9 ft) extension cable.
2. What do the 00 and 05 suffixes mean?
00 specifies the standard ETR cable option; 05 specifies CSA, ATEX and IECEx approvals.
3. What is the ETR extension cable's maximum temperature rating?
Up to 260°C (500°F). The Proximitor Sensor has separate temperature limits.
4. How should the cable length be selected?
The probe length plus extension cable length must equal the Proximitor Sensor's specified total system length.
5. What should be checked if the monitoring signal becomes intermittent?
Inspect the cable and connectors, then check the probe, Proximitor Sensor and monitor according to site procedures.
Delivery & Warranty
AMIKON confirms availability, lead time and shipping arrangements with each quotation. Product identification and condition checks are handled as part of order processing, with packaging selected for transit protection.
Warranty coverage, return eligibility and DOA claims follow the written quotation and applicable sales terms. Report transit damage or suspected DOA promptly with the order details and supporting photos.
