ProSoft MVI56-MCM Modbus Master/Slave Communication Module for ControlLogix
Modbus RTU / Modbus ASCII
Master / Slave Operation
Rockwell Automation ControlLogix
Place of Origin:
USA
Brand Name:
PROSOFT
Modbus RTU / Modbus ASCII
,Master / Slave Operation
,Rockwell Automation ControlLogix

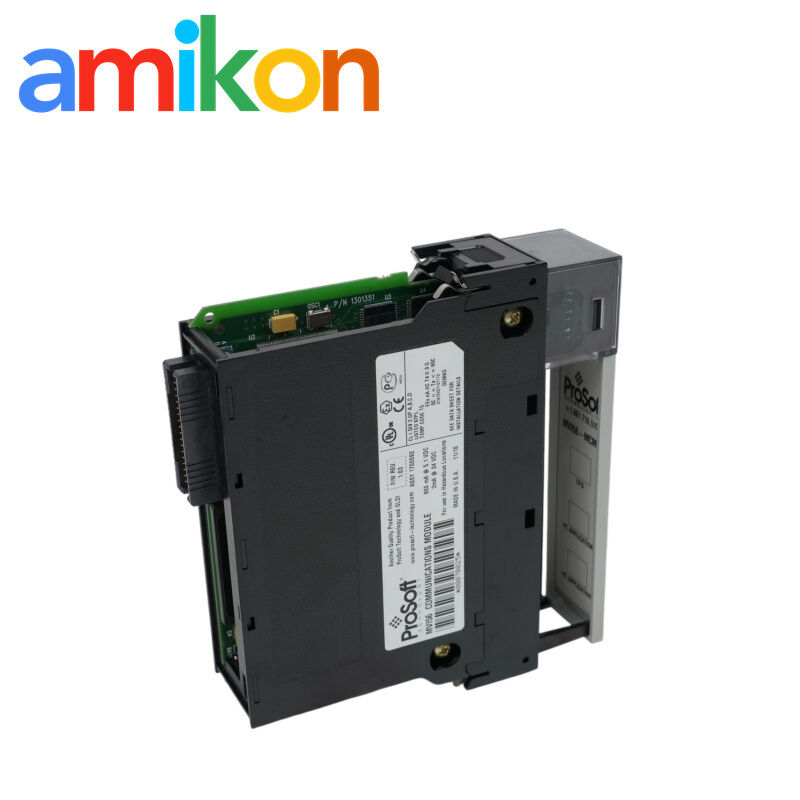

ProSoft MVI56-MCM Modbus Master/Slave Communication Module
ControlLogix Modbus Connectivity
The MVI56-MCM provides the communication path between a ControlLogix processor and Modbus-compatible equipment, with module data exchanged through the ControlLogix backplane and the serial network.
Technical Specifications
Core Module & ControlLogix Specifications
| Model | MVI56-MCM |
| Application Platform | Rockwell Automation ControlLogix |
| Backplane | Single-slot 1756 backplane compatible |
| Rack Location | Local or remote rack |
| Backplane Current Load | 800 mA @ 5 Vdc; 3 mA @ 24 Vdc |
| Data Transfer | Ladder Logic between module and processor |
| Configuration | User-defined ladder logic; sample ladder file supplied |
Modbus Communication
| Modbus Modes | RTU with CRC-16; ASCII with LRC error checking |
| Baud Rate | 110 to 115,200 baud, depending on protocol |
| Data Size | 5, 6, 7, or 8 bits |
| Stop Bits | 1 or 2 |
| Parity | None, Even, Odd |
| RTS Timing | 0 to 65,535 ms |
| Floating-Point Data | Supported, including configurable Enron, Daniel and other implementations |
| Slave Node Address | 1 to 247, software selectable |
Master / Slave Functions
| Master Operation | Each configured Master port actively issues Modbus commands to other nodes. |
| Master Command List | Up to 100 commands per Master port; function, slave address, register addressing and word/bit count are configurable. |
| Polling | Continuous, on-change, dynamically user-enabled or automatically enabled. |
| Slave Operation | A remote Modbus Master can interact with data contained in the module. |
| Status Information | Command errors, slave status information, counters and configured port status. |
Supported Modbus Function Codes
Hardware, Ports & Environmental

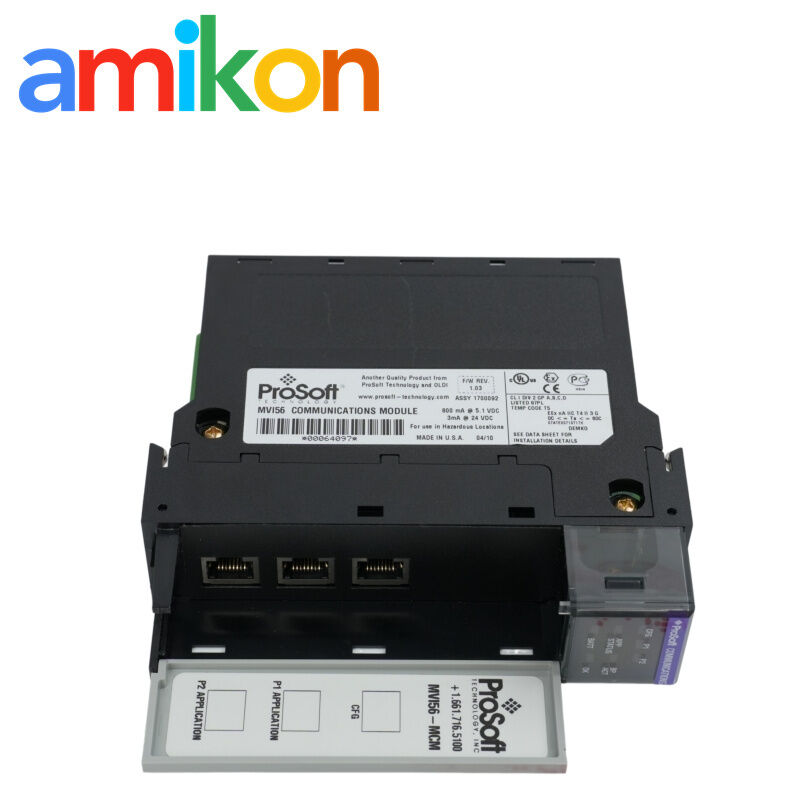

| Application Ports | P1 and P2; RJ45 with supplied DB-9M cable |
| Serial Interfaces | RS-232, RS-422, RS-485; software-configurable communication parameters |
| Hardware Handshaking | Configurable; supports radio, modem and multi-drop applications |
| CFG Port | RJ45 / DB-9M with supplied cable; RS-232 only |
| Backplane Isolation | 500 V optical isolation |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Shock | 30 g operational; 50 g non-operational |
| Vibration / Humidity | 5 g from 10 Hz to 150 Hz; 5% to 95% relative humidity, without condensation |
Installation & Configuration
The module installs as a Generic 1756 module. ProSoft provides a commented sample ladder program with data types, ladder rungs and controller tags to support configuration.
Application-port wiring is selected through the module jumper settings, while the configuration/debug connection uses RS-232.
Application & Fault Scenarios
Typical system: ControlLogix-based automation systems that require serial Modbus communication with compatible PLCs, process devices, control devices or SCADA-connected equipment.
Common search trigger: loss of Modbus data exchange, command errors, serial-port communication problems, unexpected slave status, or missing data between the controller and Modbus network.
Downtime risk: a failed communication interface can interrupt the exchange of monitoring data or control commands between the controller and connected Modbus equipment.
Diagnostics

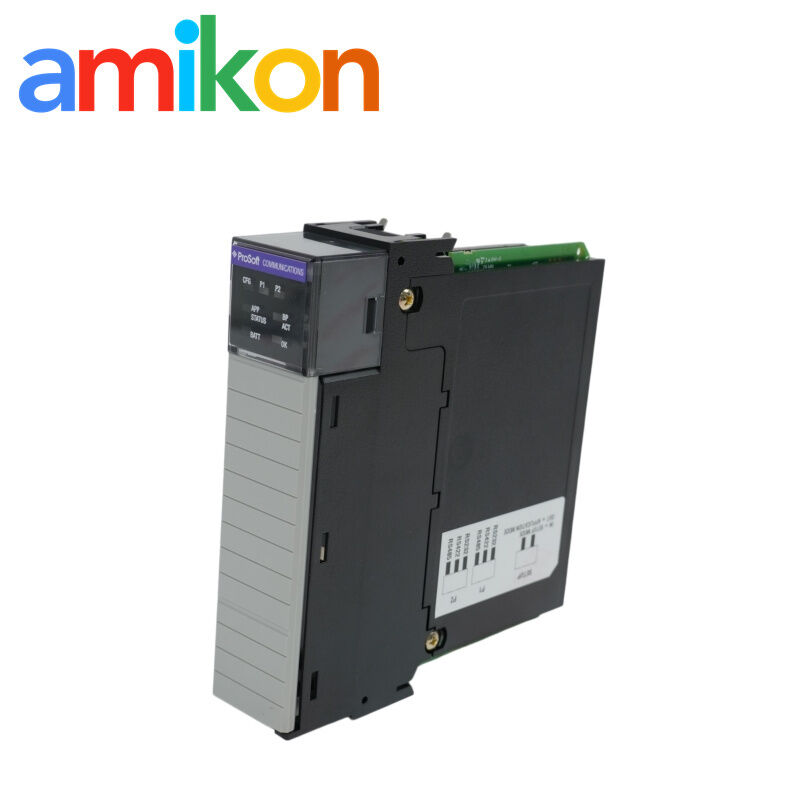

Front-panel LED indicators show module, backplane transfer, application and serial activity. Command-level errors, slave status, counters and port status are also available for troubleshooting.
For the MVI56-MCM, the official PDF manual and datasheet provide installation, configuration, Modbus function, wiring and diagnostic information.
Industrial Parts Supply, Focused on the Details.
AMIKON supports industrial automation spare-part sourcing with model-level identification, supply coordination and pre-shipment handling.
For communication modules and legacy automation hardware, accurate part-number matching helps reduce unnecessary replacement and commissioning delays.
Share the complete model, required quantity and system information so the quotation can be prepared around the actual requirement.
MVI56-MCM Supply Inquiry
Send the complete part number and application details for quotation and availability checking.
Delivery & Warranty
FAQ
1. What platform is the MVI56-MCM designed for?
It is designed to interface with Rockwell Automation ControlLogix processors through the 1756 backplane.
2. Can the MVI56-MCM operate as both Modbus Master and Slave?
Yes. Each application port can be configured for Modbus Master or Modbus Slave operation.
3. Which serial interfaces are available?
The application ports support RS-232, RS-422 and RS-485, with configurable communication parameters.
4. How many Modbus Master commands can each port handle?
The official specification allows up to 100 configurable commands on each Modbus Master port.
5. Is the MVI56-MCM still listed as a current product?
ProSoft Technology currently lists the MVI56-MCM under its Legacy Products section and provides its datasheet, user manual and lifecycle documentation.
