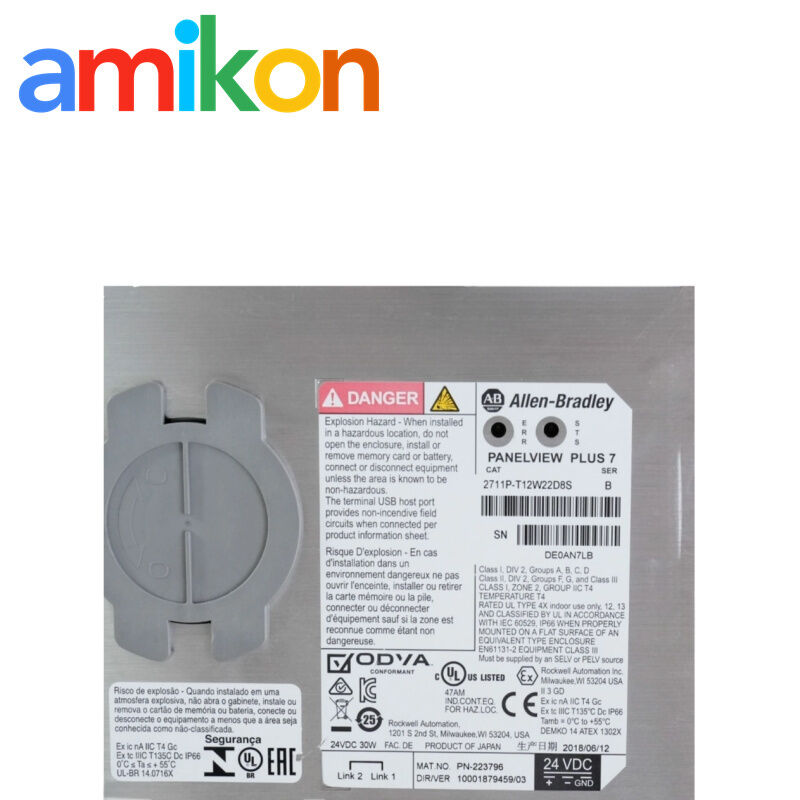

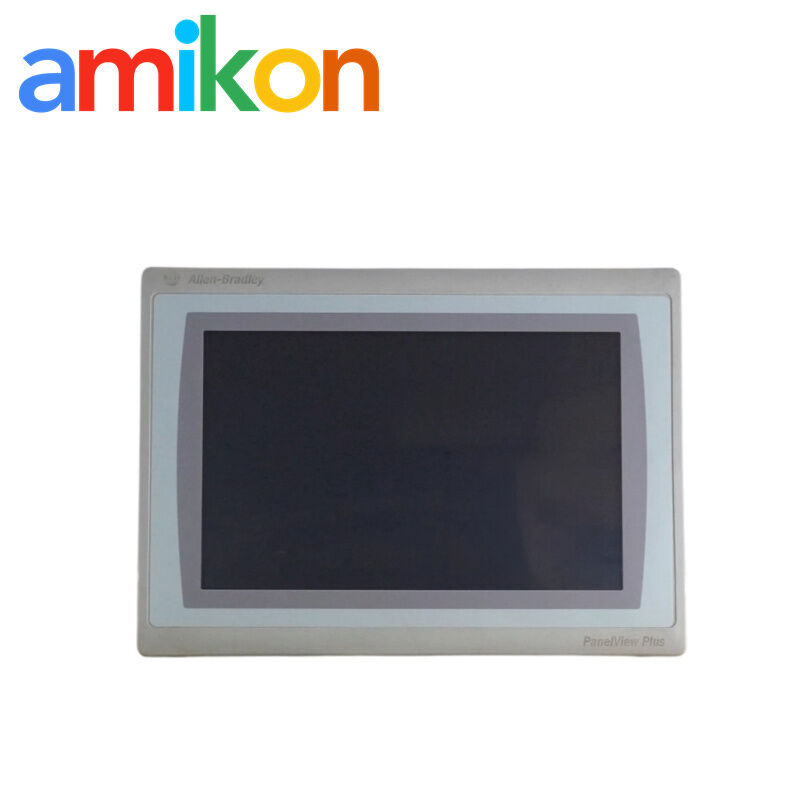

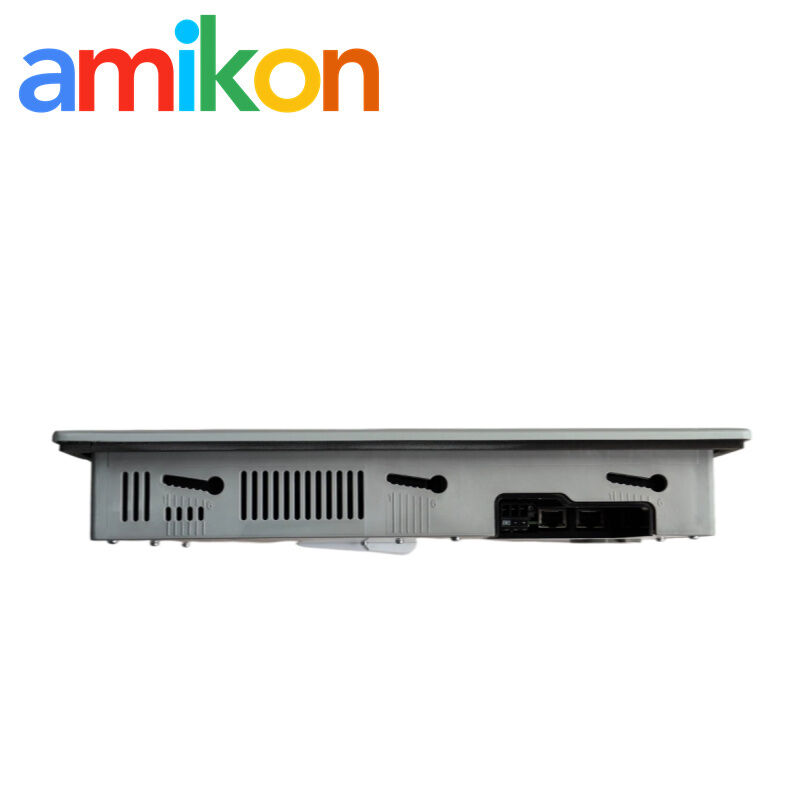

Allen-Bradley 2711P-T12W22D8S PanelView Plus 7 12.1-Inch Touch HMI Terminal

Allen-Bradley PanelView Plus 7 HMI Terminal

12.1-inch touch HMI terminal

Allen-Bradley 2711P-T12W22D8S touch screen

Place of Origin:

USA

Brand Name:

Allen Bradley

Request A Quote

Product Details

Highlight:

Allen-Bradley PanelView Plus 7 HMI Terminal

12.1-inch touch HMI terminal

Allen-Bradley 2711P-T12W22D8S touch screen

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Brand new and original

Delivery Time

2-3 work days

Payment Terms

T/T

Supply Ability

In Stock

Allen-Bradley 2711P-T6C22D8S PanelView Plus 7 Standard Terminal

Get Best Price

20-HIM-A6 Allen-Bradley Human Interface Module

Get Best Price

Allen-Bradley 2711P-T6C21D8S PanelView Plus 7 Standard 6-in. Touch Terminal

Get Best Price

Allen-Bradley 2711R-T4T PanelView 800 HMI Terminal

Get Best Price

Contact Now

Product Description

2711P-T12W22D8S

Product Overview

Operator Interface for EtherNet/IP Control Systems

The 2711P-T12W22D8S is a PanelView Plus 7 Standard operator interface terminal documented for use with ControlLogix 5570 and CompactLogix 5370 controllers in an EtherNet/IP control environment. It provides the operator-facing HMI interface for visualization, monitoring and control interaction.

Application

Machine & Process Operation

The terminal serves as the operator-facing interface in industrial machine and process-control systems, allowing personnel to work with the configured HMI application and interact with the controlled equipment.

Application & Fault Scenarios

When This HMI Becomes a Replacement Search

Typical search trigger

Operators may search for the exact catalog number when the installed terminal develops a display, touch-input, communication, power or HMI application-interface problem and an exact replacement is required.

Downtime consideration

Loss of the operator interface can interrupt normal visualization, alarm acknowledgement and operator interaction with the controlled machine or process, making replacement identification time-sensitive during an HMI failure.

Engineering Data

Technical Specifications

Exact catalog number: 2711P-T12W22D8S

Display & Touch

Operator inputTouch

Display typeColor TFT LCD

Display size12.1 in. widescreen

Viewing area261 × 163 mm

Resolution1280 × 800 WXGA

Graphics18-bit color

Aspect ratio5:3

Brightness, typical300 nits

Backlight50,000 h minimum at 40 °C to half-brightness

Touch technologyAnalog resistive

Memory, Ports & Software

System memory512 MB RAM + 512 MB storage

User storage80 MB nonvolatile storage

SD card1 slot

USB host1 × USB 2.0 Type A

USB device1 × USB Type B

Ethernet2 × 10/100Base-T

Network topologyStar, linear, DLR

Operating systemWindows CE

HMI softwareFactoryTalk View Studio for Machine Edition 8.0+

FactoryTalk ViewPointVersion 2.6+

Electrical & Mechanical

Input voltage24 VDC nominal

Input range18…30 VDC

Power consumption50 W max.

Power supply typeNonisolated DC power supply

Weight, approx.1.95 kg / 4.29 lb

Dimensions H × W × D246 × 340 × 56.5 mm

Panel cutout H × W218 × 312 mm

Heat dissipation30 W / 102 BTU

Environmental & Certifications

Operating temperature0…55 °C

Nonoperating temperature-25…+70 °C

Relative humidity5…95%, noncondensing

Operating altitude2000 m

Operating shock15 g at 11 ms

Nonoperating shock30 g at 11 ms

Enclosure ratingNEMA / UL Type 12, 13, 4X indoor; IP54 or IP66 as classified by UL

CertificationsIECEx, CCC, cULus, ATEX, INMETRO, CE, UKCA, RCM, EAC, RoHS, KCC

System & Configuration

Controller and Replacement Context

The documented system context includes ControlLogix 5570 and CompactLogix 5370 controllers operating on EtherNet/IP. For replacement work, verify the complete catalog number, installed HMI application, firmware generation, network arrangement and panel installation requirements before fitting the replacement unit.

Series D terminals are documented as compatible with firmware version 13.x and later.

Installation Reference

Install the terminal in a panel prepared for the 218 × 312 mm cutout and secure it with the specified mounting clamps. Confirm adequate panel space, wiring access and ventilation before installation.

Setup & Replacement Check

Before replacement, confirm the exact catalog number, 24 VDC power connection, Ethernet arrangement and installed HMI project. After installation, verify communication and operator functions before returning the machine or process to service.

AMIKON Support

Need the Exact 2711P-T12W22D8S?

Send the complete part number and project requirements for a replacement check and quotation.

Miya Zheng

sales@amikon.cn

+86 180 2077 6792 · WhatsApp

Delivery & Warranty

AMIKON checks the unit before shipment and uses protective packaging. DOA, returns and warranty are handled according to the agreed sales terms.

RFQ Information

For a faster quotation, please provide: Part Number, Quantity, Destination, Required Date, Machine/System Model.

Buyer Questions

FAQ

Can 2711P-T12W22D8S be used with ControlLogix and CompactLogix systems?

Yes. Its documented system context includes ControlLogix 5570 and CompactLogix 5370 controllers communicating over EtherNet/IP.

Can the two Ethernet ports be used in a DLR network?

Yes. The two 10/100Base-T Ethernet ports support star, linear and Device Level Ring (DLR) network topology.

What should be checked before replacing an installed 2711P-T12W22D8S?

Confirm the complete catalog number, installed HMI project, firmware generation, Ethernet arrangement and panel installation requirements before replacement.

What panel opening is required for this terminal?

The specified panel cutout is 218 × 312 mm.

Which FactoryTalk versions are documented for this terminal?

FactoryTalk View Studio for Machine Edition 8.0 or later and FactoryTalk ViewPoint 2.6 or later are documented.
