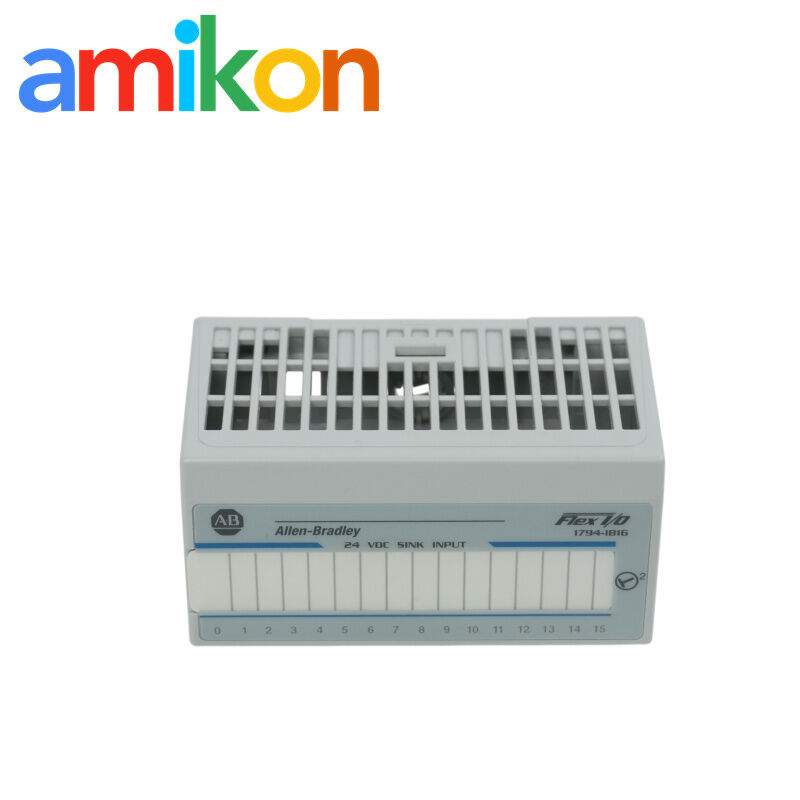

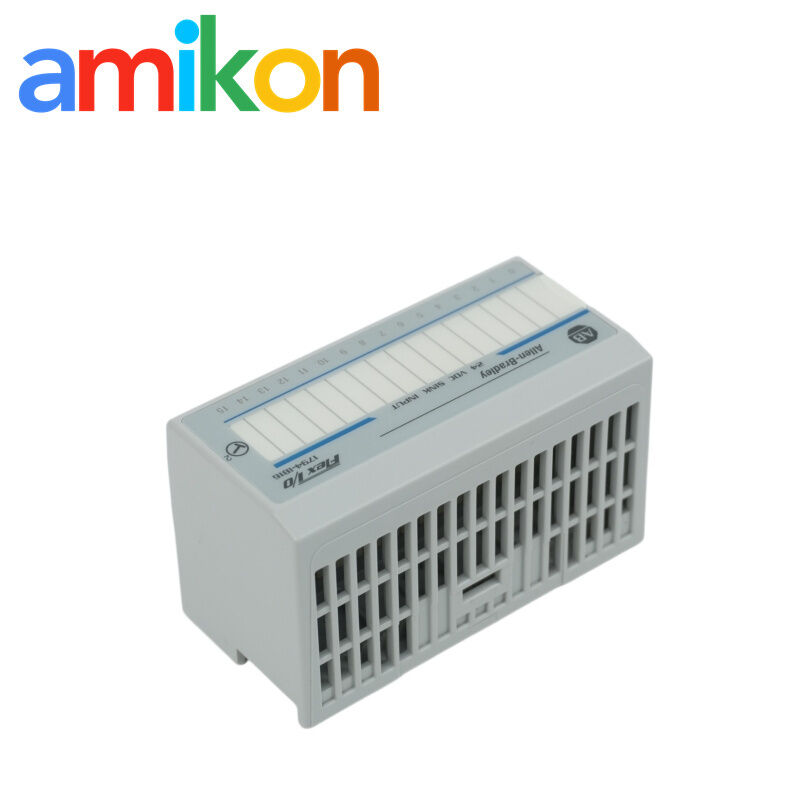

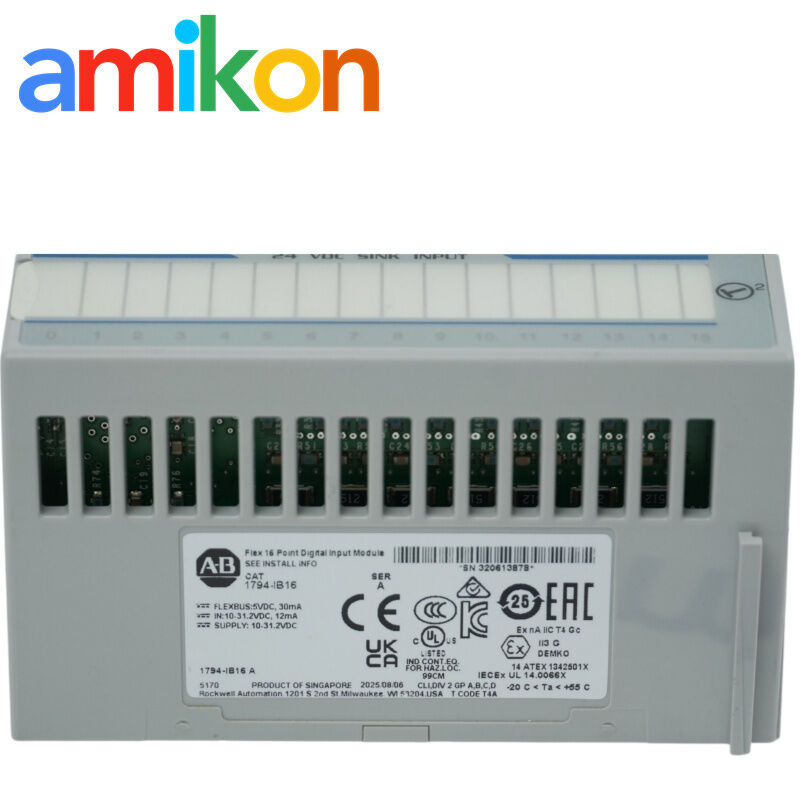

Allen-Bradley 1794-IB16 FLEX I/O 16-Point Digital Input Module, 24V DC
16-Point Digital Input
24V DC Nominal
FLEX I/O System
Place of Origin:
USA
Brand Name:
Allen Bradley
16-Point Digital Input
,24V DC Nominal
,FLEX I/O System
1794-IB16
FLEX I/O 16-point digital input module for 24V DC sinking inputs.
Discrete signal acquisition for FLEX I/O
The module is designed to bring discrete field signals into a FLEX I/O system through 16 current-sinking input channels. It mounts on a 1794 terminal base and provides field-side status indication through individual yellow input indicators.
Technical Specifications
Electrical & module data
| Module type | 16-point digital input module, current sinking |
| On-state voltage | 10V DC min · 24V DC nominal · 31.2V DC max |
| On-state current | 2.0 mA min · 8.0 mA nominal · 12.0 mA max |
| Off-state voltage | 5.0V DC max |
| Off-state current | 1.5 mA max |
| Nominal input impedance | 4.6 kΩ |
| Isolation voltage | 50V continuous, basic insulation; type tested at 707V DC for 60 s between field side and system; no isolation between individual channels |
| Flexbus current | 30 mA @ 5V DC |
| Power dissipation, max. | 6.1 W @ 31.2V DC |
| Thermal dissipation, max. | 20.8 BTU/hr @ 31.2V DC |
Mechanical & environmental data
| External DC supply | 24V DC nominal; 10…31.2V DC range, including 5% AC ripple |
| Recommended terminal base | 1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK, 1794-TBKD, 1794-TB37DS |
| Keyswitch position | 2 |
| Field-side indication | 16 yellow status indicators |
| Wiring category | 2 – on signal ports |
| Wire size | Determined by the installed terminal base |
| Dimensions with module installed | Approx. 94 × 94 × 69 mm (H × W × D) |
| Approx. weight | 74 g (2.61 oz.) |
| Enclosure type rating | None (open-style) |
| Operating temperature | -20…+55 °C (-4…+131 °F) |
| Nonoperating temperature | -40…+85 °C (-40…+185 °F) |
| Relative humidity | 5…95%, noncondensing |
| Vibration | 5 g @ 10…500 Hz |
| Shock, operating | 30 g |
| Shock, nonoperating | 50 g |
Input filtering & configuration
Filter time is configured through the module's output image data. The 1794-IB16 uses separate filter-time settings for inputs 0…11 and inputs 12…15.
| Filter setting | Time |
|---|---|
| 0 · Default | 0.25 ms |
| 1 | 0.5 ms |
| 2 | 1 ms |
| 3 | 2 ms |
| 4 | 4 ms |
| 5 | 8 ms |
| 6 | 16 ms |
| 7 | 32 ms |
Input 15 provides the documented counter function. The configuration image includes counter value, counter-fast selection and counter reset fields; these counter controls are unavailable when the module is used with any series 1794-ASB or 1794-ASB2 remote I/O adapter.
Terminal-base connection
The module mounts on a 1794 terminal base. Rockwell Automation provides wiring instructions for the 1794-TB3 and 1794-TB3S terminal bases, including separate signal, power and common connections.
A-0 through A-15
C-34 through C-51
B-16 through B-33
For installation, the manufacturer specifies positioning the terminal-base keyswitch at 2 and ensuring the Flexbus connector is fully extended before seating the module.
Where it is used
This module is used within FLEX I/O installations to acquire discrete field-device states. The 16-channel arrangement provides a concentrated input point for systems that need multiple discrete signals brought into the I/O architecture.
Typical replacement search triggers
Customers may search for this module during troubleshooting when discrete field status is missing, an input point does not respond as expected, or the module is suspected during a FLEX I/O station fault investigation. If the affected input is required by the control sequence, loss of that signal can interrupt machine or process operation and increase downtime exposure.
Practical fault-check sequence
Check the field-side DC supply.
Check signal, power and common connections.
Compare the field condition with the input status indication.
Review filter and Input 15 counter settings where applicable.
Certifications & Environment
Industrial parts, handled with precision.
AMIKON supports industrial automation spare-part sourcing with a focus on clear part-number identification, practical communication and controlled order handling.
Delivery & Warranty
Order-level inspection and functional checking where applicable.
Protective industrial packaging for shipment.
Report DOA or delivery issues promptly for review and return authorization.
12-month AMIKON warranty for covered product faults under normal use.
FAQ
How many input points are available?
What field supply range is specified?
Which terminal bases are recommended?
What input filter times can be configured?
Does Input 15 have a special configuration function?
