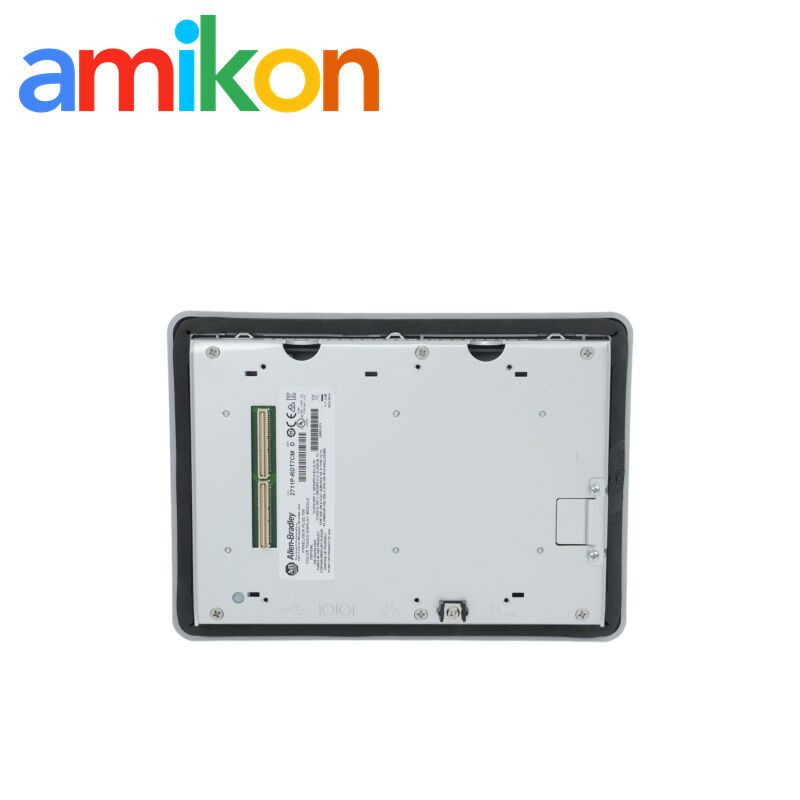

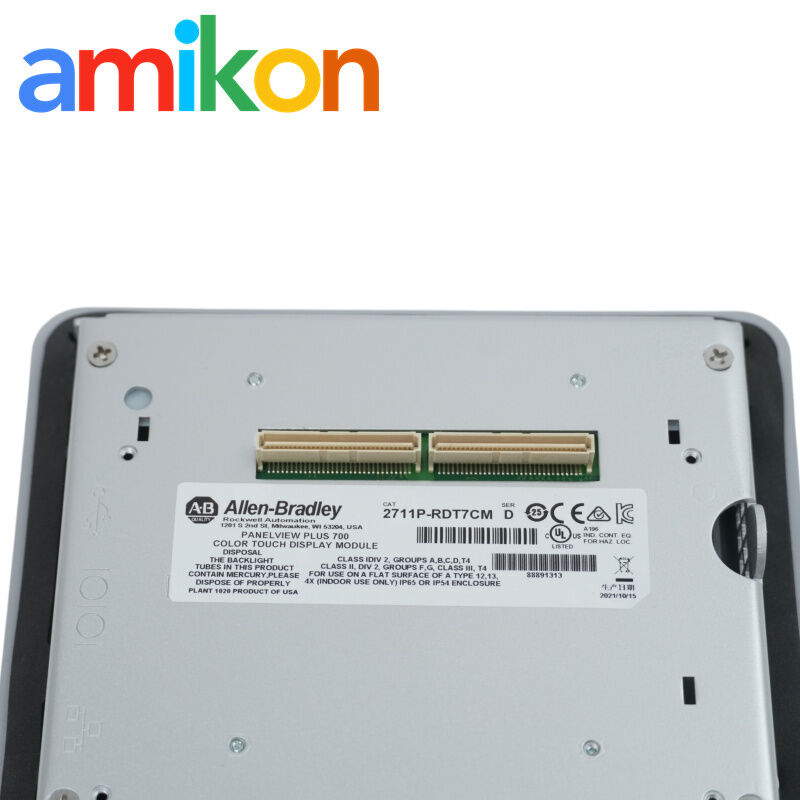

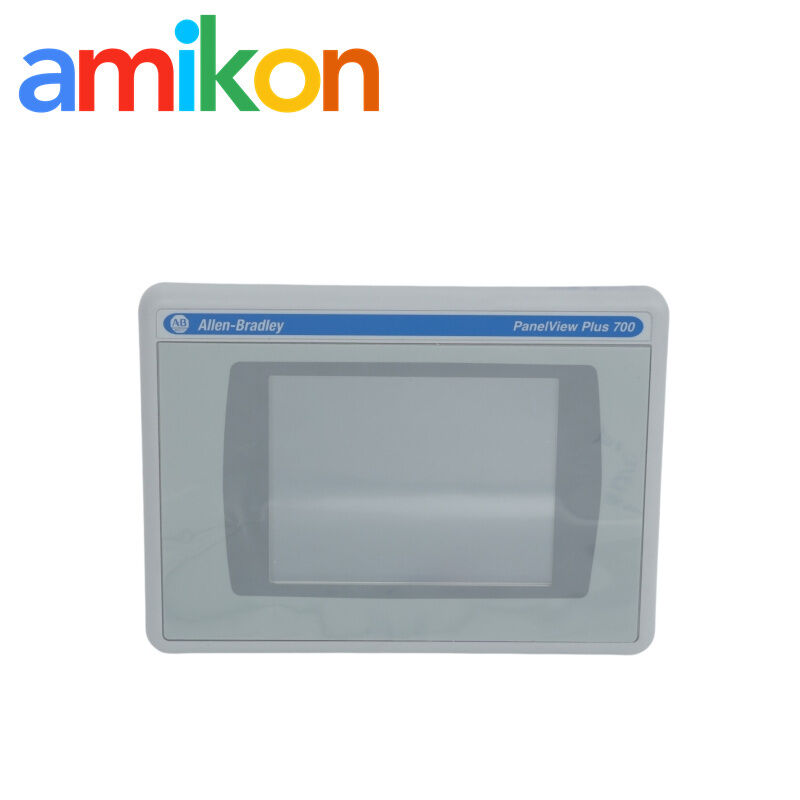

Allen-Bradley 2711P-RDT7CM PanelView Plus 6 6.5-Inch Marine Certified Color Touch Display Module
Allen-Bradley 2711P-RDT7CM
PanelView Plus 6 Display Module
6.5-Inch Color TFT LCD
Place of Origin:
USA
Brand Name:
Allen-Bradley
Allen-Bradley 2711P-RDT7CM
,PanelView Plus 6 Display Module
,6.5-Inch Color TFT LCD
2711P-RDT7CM Marine Certified Display Module
Sourcing support for legacy PanelView Plus operator-interface maintenance. Confirm the installed terminal configuration and project requirements before ordering.
01 / Product Brief
6.5-Inch Color Touch Display for PanelView Plus 6
The Allen-Bradley 2711P-RDT7CM is a 6.5-inch color TFT touch display module for the PanelView Plus 6 platform, identified by Rockwell Automation as a marine-certified configuration. Its 640 × 480 display and analog resistive touch interface support operator interaction on compatible terminal assemblies. Check the existing terminal model and marine installation requirements when sourcing this discontinued part.
02 / Maintenance Context
Application & Failure Scenarios
Marine installations must meet the certification conditions and requirements applicable to the complete system and intended application.
03 / Engineering Data
Technical Specifications
| IDENTIFICATION & DISPLAY | |||
|---|---|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley | Product family | PanelView Plus 6 |
| Catalog number | 2711P-RDT7CM | Component type | 700 touch color display module |
| Configuration | Marine certified | Display technology | Active-matrix TFT LCD, color |
| Display size | 6.5 inches | Resolution | 640 × 480 pixels |
| Display area | 132 × 99 mm | Luminance | 300 cd/m² |
| Touch technology | Analog resistive | Touch actuation | 1 million presses |
| Operating force | 10 g | Backlight | CCFL; minimum 50,000 hours |
| ELECTRICAL & STATUS | |||
| Input voltage | 85–264 V AC | Remote power input | 85–264 V AC |
| Remote power consumption | 120 VA maximum | Power consumption | 70 W maximum; 39 W typical |
| Line frequency | 47 Hz, as listed in manufacturer data | Heat dissipation | 240 BTU/hr |
| PCI slot available power | 11 W DC / 5 W AC maximum | LED indicators | COMM green; fault red |
| MECHANICAL & ENVIRONMENTAL | |||
| Width | 246 mm | Height | 179 mm |
| Depth | 55 mm | Panel cutout | 154 × 220 mm |
| Approx. weight | 1.7 kg | Operating altitude | 2,000 m |
| Enclosure rating | NEMA Type 12, 13 and 4X (indoor use only) | Ingress protection | IP54 / IP65, as listed |
| Relative humidity | 5–95%, noncondensing | Operating temperature | 0 °C, as listed in manufacturer data |
| Nonoperating temperature | −25 °C, as listed in manufacturer data | Operating shock | 15 G at 11 ms |
| Vibration | 10–57 Hz: 0.012 peak-to-peak displacement; 57–500 Hz: 2 G peak acceleration | ||
Additional Technical Data & Lifecycle Information
| Application flash memory | 20 MB for logic modules, Series A to D |
| External CompactFlash storage | 512 MB maximum |
| Battery life | 4 years minimum at 25 °C |
| Real-time clock | Battery-backed; ±2 minutes per month |
| Technical publication | 2711-TD007 |
| Lifecycle status | Discontinued effective December 30, 2021 |
| Direct manufacturer replacement | No planned replacement listed by Rockwell Automation |
04 / Documentation
Manual & Product Reference
For the 2711P-RDT7CM manual and installation reference, consult the manufacturer’s product information and applicable technical publications. Use the documents to check terminal configuration, installation conditions and project-specific requirements.
Supply & Delivery
Inspection and Packaging
Availability and item condition are confirmed during quotation. Inspection details and protective packaging arrangements are confirmed for the order.
Warranty & Returns
Order Support
Warranty coverage and return terms are confirmed with the order. Report DOA issues promptly with order details and supporting photos for review and return authorization.
05 / Procurement
Request a Quote
| Part Number | 2711P-RDT7CM |
| Quantity | Required quantity |
| Destination | Delivery city and country |
| Required Date | Target delivery date |
| Machine/System Model | Installed terminal and system model |
AMIKON Industrial Supply
Your Sourcing Contact
Industrial Parts Sourcing & Customer Support
sales@amikon.cnSend the part number, quantity, destination and required date for sourcing assistance.
STEADY SUPPLY · WORLDWIDE SUPPORT
Frequently Asked Questions
Yes. Rockwell Automation lists it as discontinued effective December 30, 2021.
No planned direct replacement is listed on the manufacturer's product information.
Confirm the catalog number, installed terminal configuration and applicable marine-certification requirements.
Review the manufacturer's product information, the PanelView Plus Terminal User Manual, the marine certification document and applicable technical publications.
Contact AMIKON promptly with order details and supporting photos to request a review and return instructions.
