ABB PP836A 3BSE042237R2 6.5-Inch Panel 800 Operator Panel 640×480 TFT-LCD
ABB PP836A 3BSE042237R2 6.5-Inch Panel 800 Operator Panel 640×480 TFT-LCD
ABB Panel 800
6.5-inch Operator Panel
64K-Color Display
Place of Origin:
SWEDEN
Brand Name:
ABB
Contact Us
Request A Quote
Product Details
Highlight:
ABB Panel 800
,6.5-inch Operator Panel
,64K-Color Display
Payment & Shipping Terms
Minimum Order Quantity
1
Delivery Time
2-3 work days
Payment Terms
T/T
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
ABB · Panel 800
ABB PP836 Operator Panel

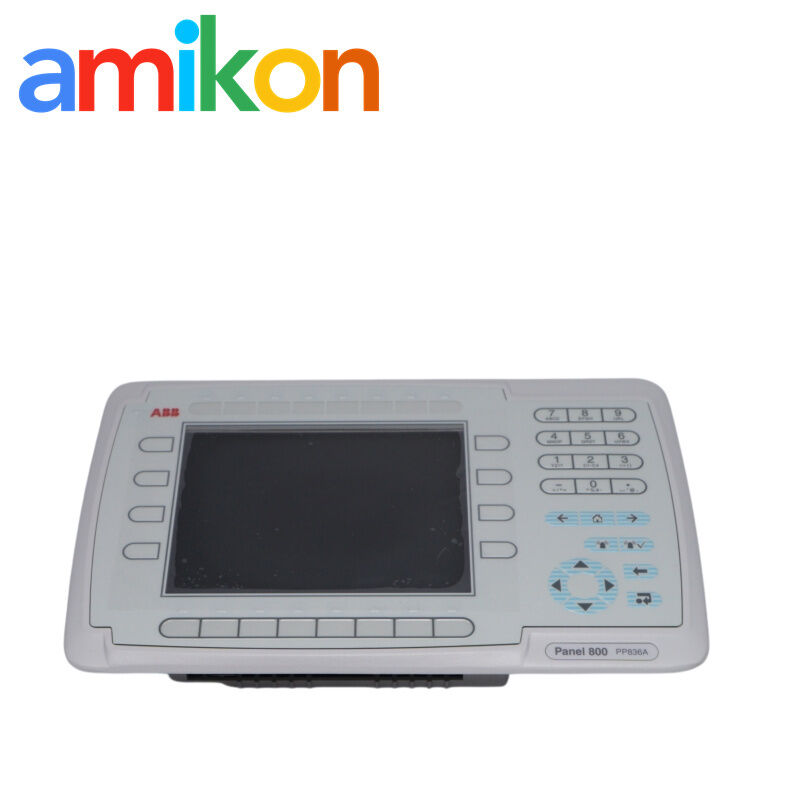

The ABB PP836 is a 6.5-inch Panel 800 operator panel with a 640 × 480 pixel display, function-key operation and 16 two-color LEDs for industrial operator interface applications.
01 · Product Overview
Operator interface for Panel 800 applications

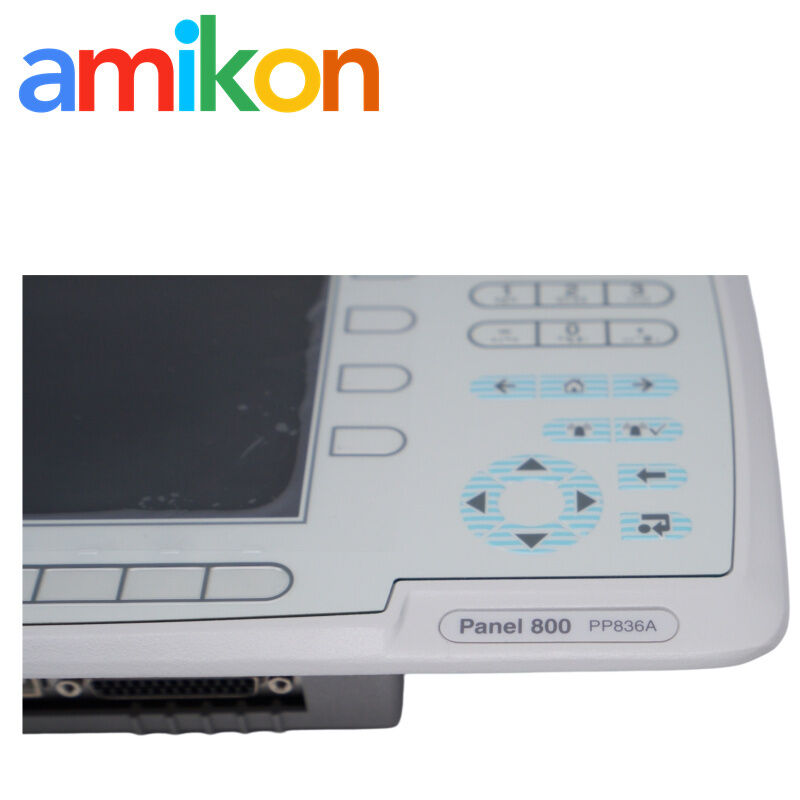

PP836 is a function-key operator panel in the ABB Panel 800 platform, designed for visualization and operator interaction in automation processes and equipment. Its hardware design combines a graphical display, physical function keys and status indication for direct machine-side operation.
Interface style Physical-key operator interface
Engineering environment Panel Builder 800
Engineering environment Panel Builder 800
02 · Application
Built around direct operator interaction
PP836 is suited to HMI tasks where operators need to view process information and interact with equipment through dedicated physical controls. In a replacement project, the important check is not only the panel itself, but also the existing application, controller communication and operator workflow.
03 · Technical Specifications
ABB PP836 specifications
Display & operator interface
| Display size | 6.5 inches |
|---|---|
| Display type | Graphic 64K-color TFT-LCD |
| Resolution | 640 × 480 pixels |
| Backlight | CCFL backlight with dimming and burn-out detection |
| Interaction type | Function key |
| Function-key LEDs | 16, two-color |
Processor, memory & operating functions
| CPU | 416 MHz RISC CPU, Intel Xscale |
|---|---|
| Flash memory | 32 MB Intel StrataFlash |
| RAM | 64 MB |
| Application flash | 4 MB, expandable |
| Real-time clock | Yes |
Power, environment & construction
| Power supply | 20–30 V DC, nominal +24 V DC |
|---|---|
| Power consumption | 0.4 A normal / 0.9 A maximum |
| Ambient temperature | 0 to +50 °C |
| Relative humidity | 5–85%, non-condensing |
| Housing material | Powder-coated aluminium |
| Front-side material | Autotex F250 / F157 for keyboard |
| Front panel seal | IP66 |
| Rear panel seal | IP20 |

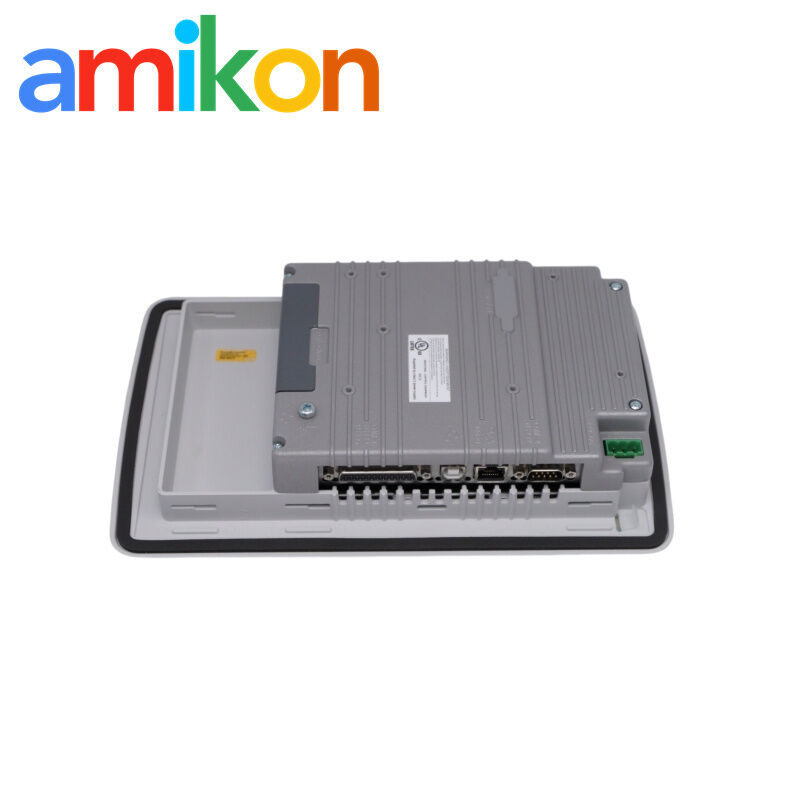

Communication & peripheral interfaces
| RS-422 / RS-485 | Female 25-pin D-Sub |
|---|---|
| RS-232C | Male 9-pin D-Sub |
| Ethernet | Shielded RJ45, 10/100 Mbit/s |
| USB | Host Type A, maximum power consumption 500 mA; Device Type B |
| Compact Flash | Type I and Type II |
Mechanical dimensions
| Front panel dimensions W × H × D | 285 × 177 × 6 mm |
|---|---|
| Cut-out dimensions | 246 × 139 mm |
| Mounting depth | 55 mm |
| Weight | 1.3 kg |
Approvals & conformity
| EMC | EN 61000-2-6; EN 61000-6-4 |
|---|---|
| UL | UL 508; UL 1604, Class I, Div. 2, Groups A, B, C, D, T4 |
| Marine | DNV location classes: Temperature A, Humidity B, Vibration A, EMC B, Enclosure C, panel front only |
| Conformity | CE marking |
04 · Installation & Replacement
What to check before replacement
01 Panel opening Confirm the existing cabinet opening and available mounting space before removing the installed panel.
02 Electrical connection Check the existing power wiring and communication connections against the PP836 installation requirements.
03 Project continuity Verify the existing HMI project and controller communication before commissioning the replacement unit.
05 · Documentation
ABB PP836 Hardware & Installation Documentation
ABB provides the PP836 Version 5.1 Hardware and Installation documentation together with Panel 800 technical data.
Panel 800 · PP836 · Version 5.1
06 · Supply
Order preparation
Testing Part-number and basic condition checks before shipment.
Packaging Protective industrial packaging for spare-part shipment.
Warranty 12-month warranty according to agreed warranty terms.
RFQ Part Number · Quantity · Destination · Required Date
08 · Contact AMIKON
Industrial Automation Spare Parts
AMIKON · Automation Support
Check PP836 availability
Send the exact part number and basic machine information. AMIKON can check the requested item and order details with you.
Miya Zheng · AMIKON
RFQ: Part Number · Quantity · Destination · Required Date · Machine/System Model
08 · FAQ
ABB PP836 buyer questions
Can I use the existing PP836 panel opening for a replacement?
Check the existing cabinet cut-out and mounting space against the PP836 mechanical dimensions before ordering. The panel should be physically verified rather than assumed from the model number alone.
What should I check if a PP836 replacement powers on but does not operate correctly?
Check the loaded HMI project, controller communication and connected interfaces. A matching panel model does not by itself confirm that the machine-specific application has been transferred or configured.
Does replacing the PP836 automatically restore the machine HMI?
Not necessarily. The replacement hardware must work with the existing application and communication configuration used by the machine.
Which PP836 details should I send for a replacement quotation?
Send the part number, quantity, destination, required date and machine/system model. If available, include photos of the installed panel and its connections.
What is the difference between the PP836 display interface and a touch panel?
PP836 uses physical function keys for operator interaction rather than a resistive touchscreen interface. The installed application should be checked before selecting a different panel type as a substitute.
Technical reference: ABB Panel 800 4.1 Data Sheet, document 3BSE043601; ABB Panel 800 PP836 Version 5.1 Hardware and Installation documentation; ABB Panel 800 product information.
