ABB PM5650-2ETH 1SAP141000R0278 Processor Module
Product Snapshot
Processor module for AC500 V3 control systems

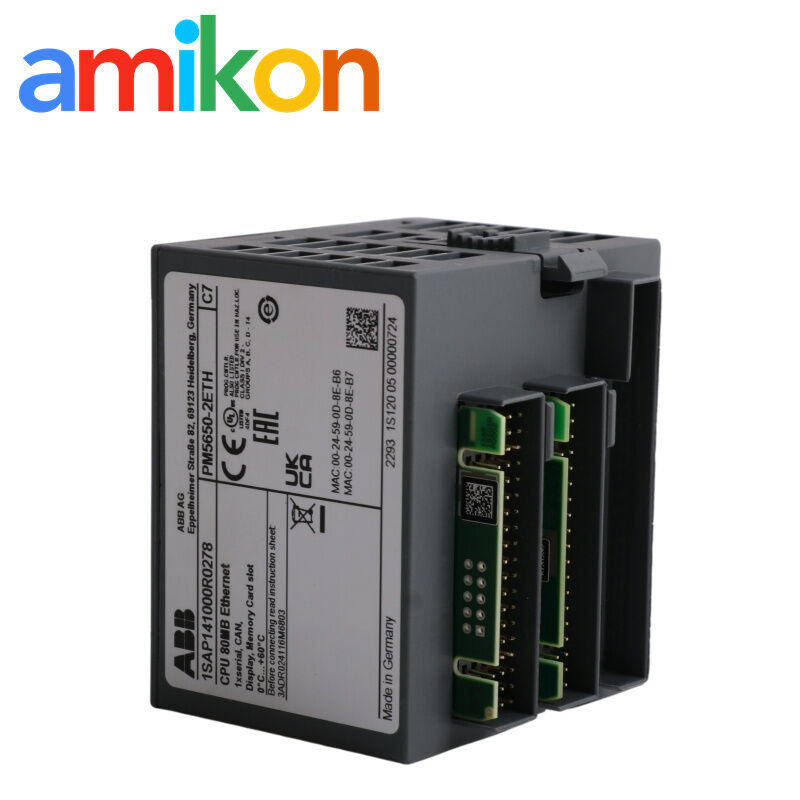

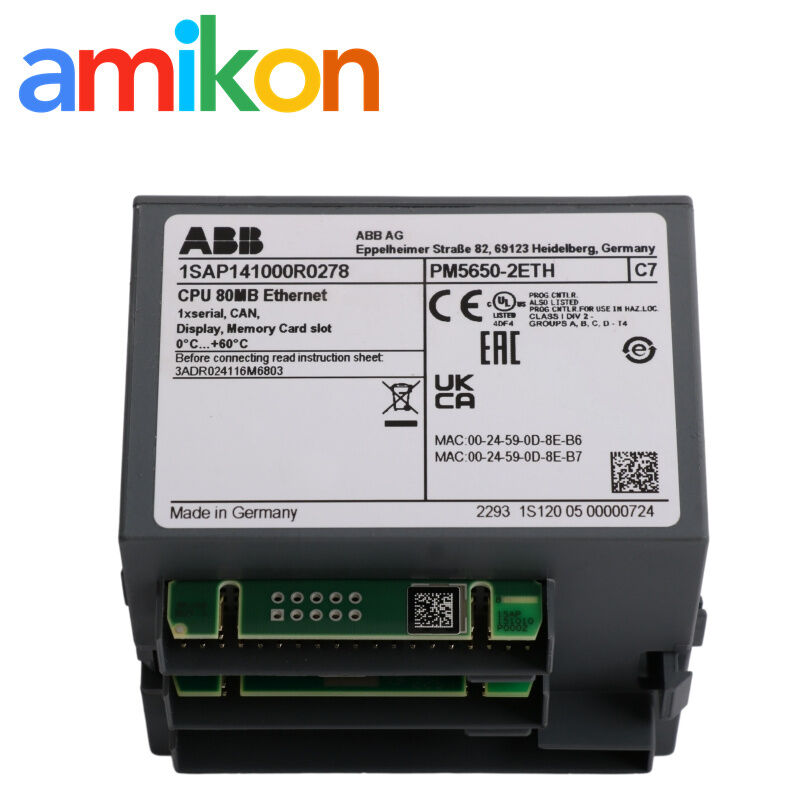

PM5650-2ETH is an ABB AC500 processor module with 80 MB memory and onboard communication interfaces. The module provides two independent RJ45 Ethernet interfaces, CAN and COM1 on the terminal base, together with a front display and memory-card slot.
Memory
80 MBSupply
24 V DCEthernet
2 × RJ45Serial
RS-232/485Technical Specifications
PM5650-2ETH technical data
ABB AC500 · Processor Module
Core specifications
| Product type | Processor module |
| Product family | ABB AC500 |
| Memory | 80 MB |
| Supply voltage | 24 V DC |
| Ethernet interfaces | 2 independent onboard Ethernet TCP/IP interfaces, RJ45 |
| Serial interface | 1 × RS-232/485, COM1 |
| CAN | CAN interface |

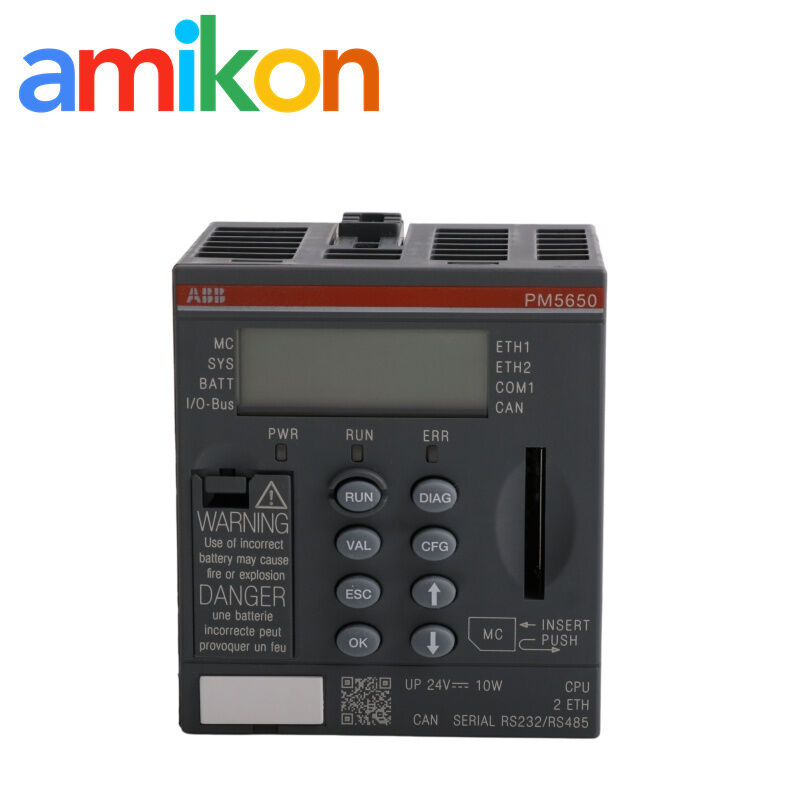

| Display | Front display with status information |
| Memory card | Memory-card slot |
| Typical module current, 24 V DC | 120 mA, module alone |
| Maximum typical current listed for module + communication modules + I/O | 600 mA |
Dimensions & packaging
| Product Net Weight | 0.133 kg |
| Product Net Depth / Length | 62 mm |
| Product Net Height | 76 mm |
| Product Net Width | 67.5 mm |
| Gross Weight | 0.158 kg |
| Package Level 1 Depth / Length | 84 mm |
| Package Level 1 Height | 72 mm |
| Package Level 1 Width | 71 mm |
Interfaces & supported communication functions
ABB documentation lists Modbus TCP, web server, IEC60870-5-104 and selectable Ethernet-based protocols for PM5650-2ETH. The two onboard Ethernet interfaces are independent interfaces rather than a single switched port.
System Fit
Terminal-base requirement
PM5650-2ETH is designed for use with TB56xx-2ETH terminal bases. ABB specifically states that PM56xx-2ETH processor modules can only be used with TB56xx-2ETH terminal bases.
Documented PM5650 combinations
TB5610-2ETH · 1 slot
TB5620-2ETH · 2 slots
TB5640-2ETH · 4 slots
TB5660-2ETH · not listed for PM5650
Installation & configuration notes
- The processor module is mounted on the compatible TB56xx-2ETH terminal base.
- Power connection is provided through the terminal base using the removable 5-pin spring terminal block.
- The memory card can be used for user files, user-program download, firmware updates and program source-code storage.
- For supported firmware versions and configuration procedures, use the ABB AC500 V3 documentation for the exact hardware revision.
Revision note
The current active PM5650-2ETH revision is Revision 3, part number 1SAP141000R0378. Revision 2, 1SAP141000R0278, is listed by ABB as Classic and replaced by Revision 3.
Application & Fault Scenarios
When customers typically search for PM5650-2ETH
CPU / PLC replacement
A PM5650-2ETH is commonly searched when an AC500 controller processor requires replacement and the installed system depends on the same processor module specification.
Ethernet communication loss
Search demand can arise when an AC500 installation loses communication through its onboard Ethernet interface or the processor module does not operate correctly.
Unexpected CPU stop
A processor fault or STOP condition can interrupt the controller's execution and may bring the controlled machine or process to a standstill until the cause is resolved.
Diagnostic point: The PM56xx front display provides state information such as RUN, STOP, initialization and update-related messages. ABB documentation also describes RUN and ERR LED behavior during memory-card firmware or application updates.
For engineering reference, the official ABB PM5650-2ETH pdf/manual/datasheet documentation should be checked against the exact hardware revision before replacement or commissioning.
Contact AMIKON
Need PM5650-2ETH?
sales@amikon.cn
+86 180 2077 6792
Contact: Miya Zheng
Testing & Packaging Part number, visible condition and available functional status are checked before dispatch where applicable. Product is securely packaged for shipment.
Returns & DOA For a DOA or delivery issue, contact AMIKON promptly with the part label, order details and supporting photos/video so the case can be reviewed before return authorization.
Warranty Warranty coverage applies according to the confirmed sales terms for the supplied item. Damage caused by incorrect wiring, improper installation, misuse or unauthorized modification is not treated as a manufacturing defect.
RFQ: Please provide Part Number, Quantity, Destination, Required Date, Machine/System Model when requesting a quotation.
FAQ
PM5650-2ETH buyer questions
What is the memory capacity of PM5650-2ETH?
The ABB PM5650-2ETH processor module has 80 MB memory.
How many Ethernet ports does PM5650-2ETH have?
It has two independent onboard Ethernet interfaces with RJ45 connectors.
Which terminal base is required for PM5650-2ETH?
ABB specifies that PM56xx-2ETH processor modules can only be used with TB56xx-2ETH terminal bases.
What interfaces are available on PM5650-2ETH?
The documented interfaces include two RJ45 Ethernet interfaces, one RS-232/485 serial interface, and CAN; the module also has a front display and memory-card slot.
Which PM5650-2ETH revision is currently active?
ABB lists Revision 3, part number 1SAP141000R0378, as Active. Revision 2, 1SAP141000R0278, is listed as Classic and replaced by Revision 3.
