ABB PM595-4ETH-F 1SAP155500R0279 AC500 Processor Module

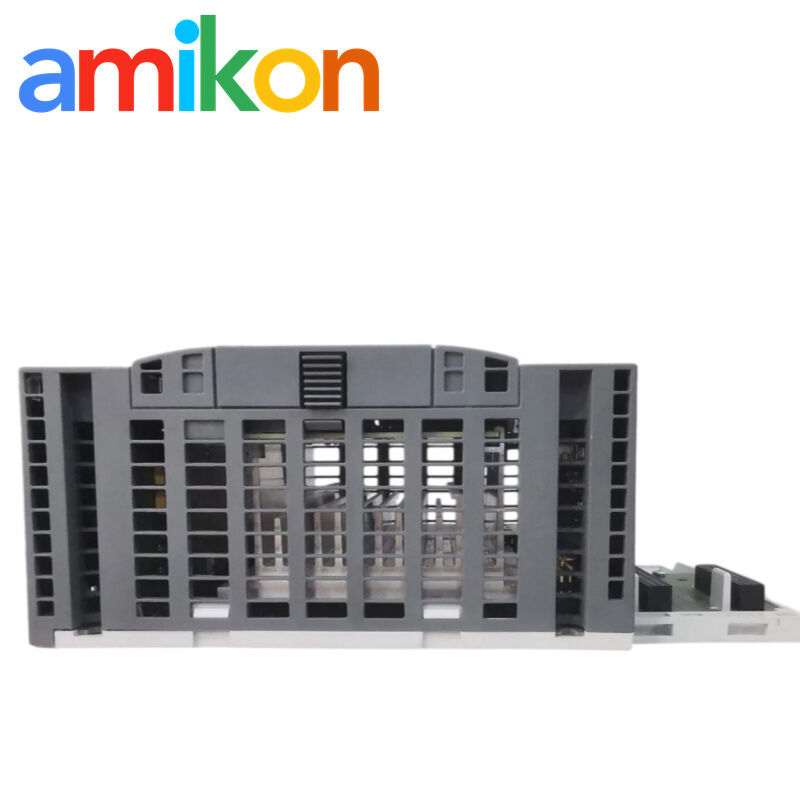

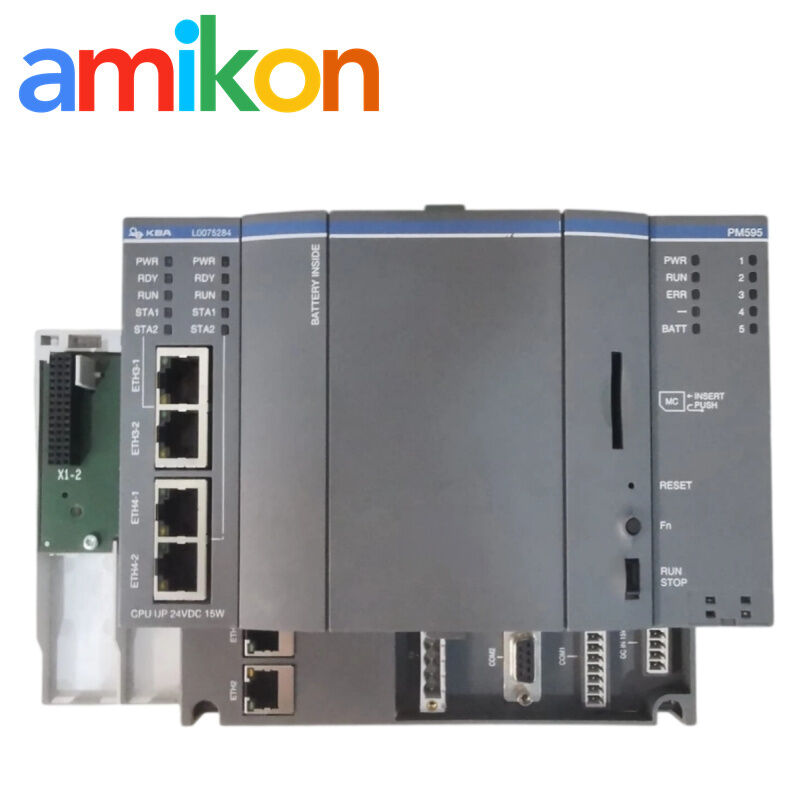

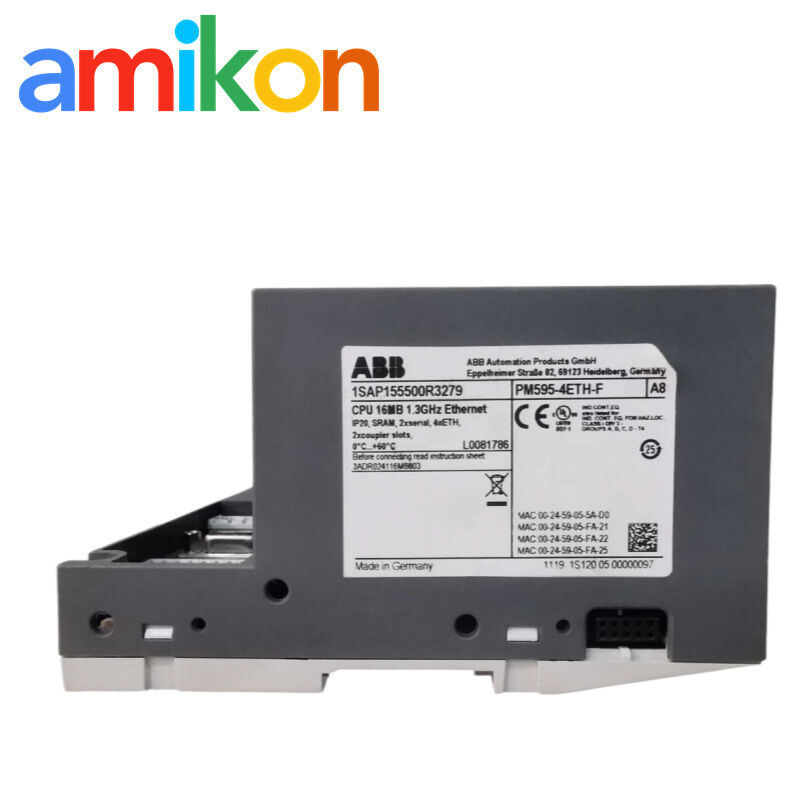

ABB PM595-4ETH-F processor module
AC500 PLC processor module
ABB PM595-4ETH-F with warranty
Place of Origin:
SWEDEN
Brand Name:
ABB
ABB PM595-4ETH-F processor module
,AC500 PLC processor module
,ABB PM595-4ETH-F with warranty
ABB PM595-4ETH-F AC500 Processor Module
A high-performance AC500 processor module combining program/data memory, serial communication, independent Ethernet interfaces and switched Ethernet-based fieldbus interfaces.
Technical Specifications
Core processor, memory, communication and electrical data for the PM595-4ETH-F.
More technical specifications
Communication & System Role
Application
The PM595-4ETH-F is an AC500 processor module for control applications requiring integrated Ethernet communication, serial interfaces and support for Ethernet-based fieldbus protocols. Its communication architecture combines independent Ethernet connections with switched fieldbus interfaces in the same processor module.
Delivery & RFQ
AMIKON can arrange inspection/testing where applicable, protective export packaging and one-year warranty under quotation terms. Returns and DOA cases are handled through the agreed after-sales process; DOA reports should include photos and relevant test details.
Contact AMIKON
Have the part number in front of you? Send it over. We can start from the exact configuration and quotation requirements.
WAREHOUSE · TEAM · SUPPORT
FAQ
What is the order code for PM595-4ETH-F?
The ABB order code is 1SAP 155 500 R0279.
What communication interfaces are integrated in PM595-4ETH-F?
It has two RS232/RS485 interfaces, two independent Ethernet interfaces, and two independent Ethernet-based fieldbus interfaces with 2-port switch functionality.
Which Ethernet-based fieldbus protocols are supported?
The official data specifies PROFINET IO, EtherCAT and Ethernet for the Ethernet-based fieldbus interfaces.
How much program and data memory does the processor module provide?
The module provides 16 MB SDRAM for the user program and 16 MB SDRAM for user data, plus integrated 4 GB non-rotating flash storage.
What mounting options are specified for PM595-4ETH-F?
The module supports horizontal or vertical mounting with the specified derating. It can be mounted on a 35 mm Top Hat rail according to IEC 60715 or with M4 screws.
