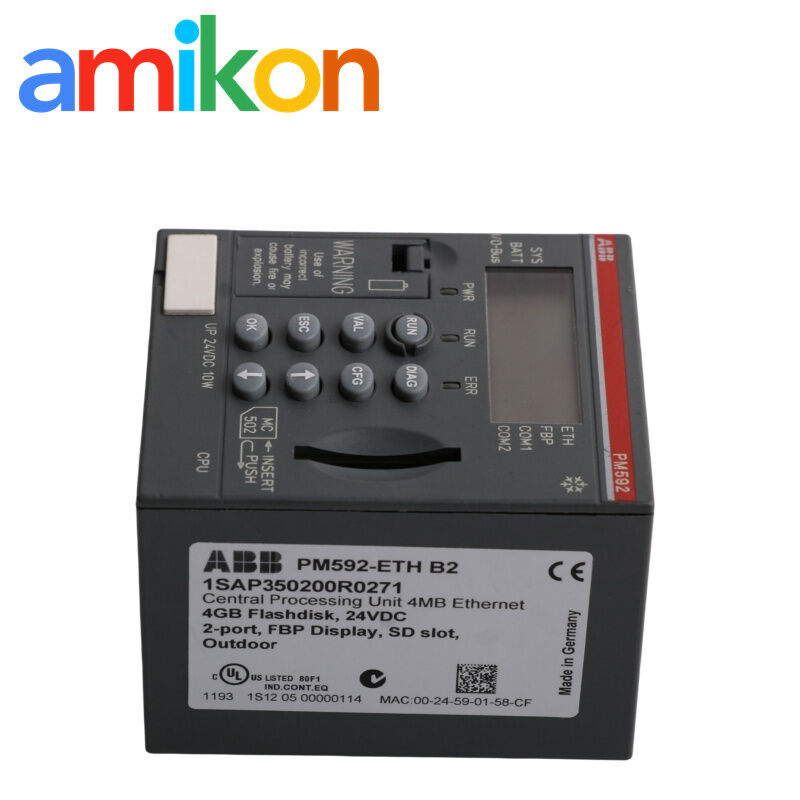

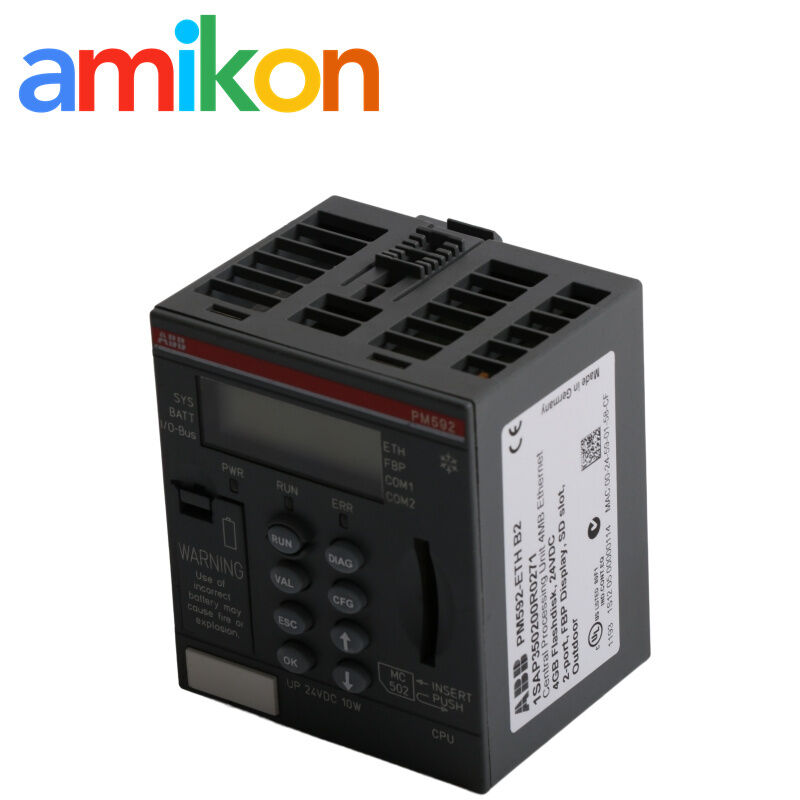

ABB PM592-ETH 1SAP150200R0271 Processor Module · 4 MB AC500 CPU
An AC500 processor module with 4 MB program memory, 4 GB flash disk, Ethernet, two RS-232/485 interfaces, FBP interface and display.
PM592-ETH product data
| Manufacturer | ABB |
| Product | PM592-ETH processor module |
| Ordering number | 1SAP150200R0271 |
| Program memory | 4096 kB |
| Integrated data memory | 5632 kB, including 1536 kB buffered |
| Integrated mass storage | 4 GB flash disk |
| Processor | Freescale ARM 32-bit |
| Processor clock speed | 400 MHz |
| Memory card | Supported for user data, program storage and firmware update |
| Display | LCD |
Show extended technical data +
| Expandable memory | None |
| Cycle time — binary instruction | Minimum 0.002 µs |
| Cycle time — word instruction | Minimum 0.004 µs |
| Cycle time — floating point | Minimum 0.004 µs |
| Maximum central digital inputs | 224 with up to 7 expansion modules |
| Maximum central digital outputs | 224 with up to 7 expansion modules |
| Maximum central analog inputs | 112 with up to 7 expansion modules |
| Maximum central analog outputs | 112 with up to 7 expansion modules |
| Maximum central digital inputs | 320 with 10 expansion modules |
| Maximum central digital outputs | 320 with 10 expansion modules |
| Maximum central analog inputs | 160 with 10 expansion modules |
| Maximum central analog outputs | 160 with 10 expansion modules |
| Data backup | Battery |
| Data buffering time at +25 °C | Typically 3 years without power supply |
| Battery low indication | Warning issued approximately 2 weeks before critical state of charge |
| Real-time clock accuracy | Typically ±2 s/day at +25 °C |
| Ethernet | Onboard Ethernet / TCP-IP |
| Serial interfaces | 2 × RS-232/485 |
| FBP interface | 1 × FBP |
| Digital configurable I/O on processor | 0 |
AC500 processor with integrated communication
PM592-ETH serves as a processor module in the ABB AC500 platform. The Ethernet-equipped version combines controller memory and local storage with serial, FBP and network interfaces in the same processor module.
Terminal-base requirement
PM59x-ETH processor modules use the TB5xx terminal-base family with the corresponding 1SAPxxxxxxR0270 ordering structure.
ABB specifies product index C6 or higher for the TB5xx terminal bases used with PM59x-ETH processor modules.
Existing application software, memory-card data and processor configuration should be checked before exchanging a CPU in an operating installation.
Ethernet plus serial connectivity
The PM592-ETH combines onboard Ethernet with two RS-232/485 interfaces and an FBP interface. ABB documentation also identifies Ethernet-based services and protocols for the AC500 Ethernet processor platform.
When the exact CPU becomes important
Existing AC500 installation
Relevant when the installed controller uses the PM592-ETH ordering number and the replacement must match the existing processor architecture.
CPU-side failure
Search activity commonly becomes part-number specific when the processor will not operate normally or its communication functions are affected.
Production interruption
A processor fault can interrupt the control sequence handled by the affected AC500 system, making exact-part identification important during maintenance.
Local status information

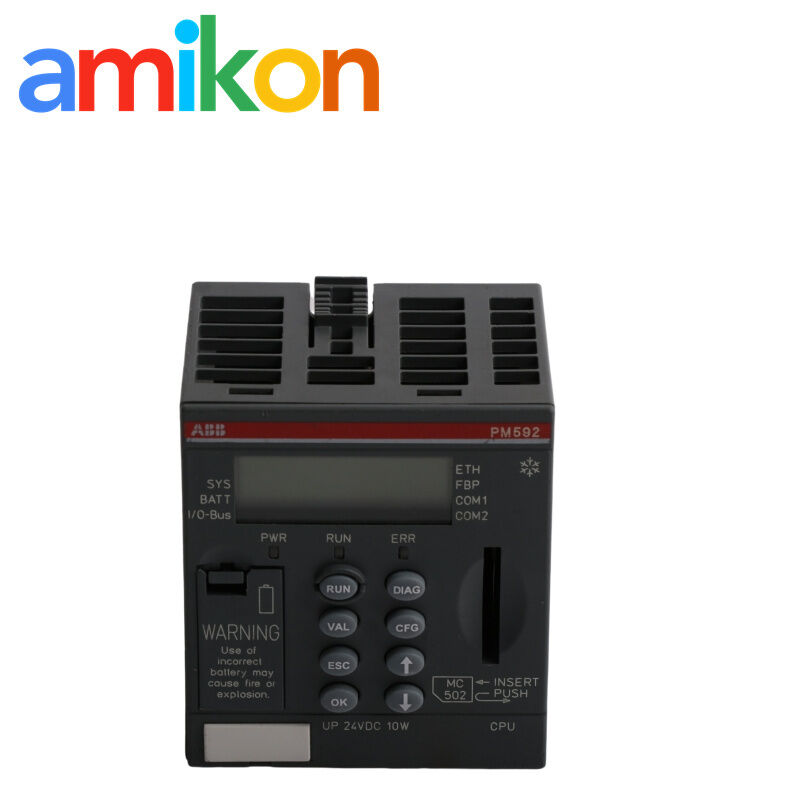

The processor module includes an LCD display and front-panel status information for operating-state and diagnostic functions. These indications should be checked before treating the CPU itself as the source of a system fault.
Straightforward supply support
Units are inspected/tested where applicable and packed for export shipment. One-year warranty applies under the quotation terms.
For DOA cases, send the order details together with clear photos and relevant test information; return or replacement handling follows the applicable after-sales process.
Send the five details we need.
Part Number · Quantity · Destination · Required Date · Machine/System Model
PM592-ETH buyer questions
What is the ABB ordering number for PM592-ETH?
The ordering number is 1SAP150200R0271.
How much memory does PM592-ETH have?
ABB specifies 4096 kB program memory and 5632 kB integrated data memory, including 1536 kB buffered. The module also has a 4 GB flash disk.
Does PM592-ETH include Ethernet?
Yes. PM592-ETH is the Ethernet version of the PM59x processor family and includes onboard Ethernet communication.
Which interfaces are available on PM592-ETH?
The ABB product description specifies Ethernet, two RS-232/485 interfaces and FBP. The module also includes a display.
What should be checked before ordering a replacement PM592-ETH?
Check the complete ordering number, installed AC500 processor family, terminal-base arrangement and machine/system model. Include these details with the quantity, destination and required date when requesting a quotation.
