Product Description
ABB AC500 · Processor Module

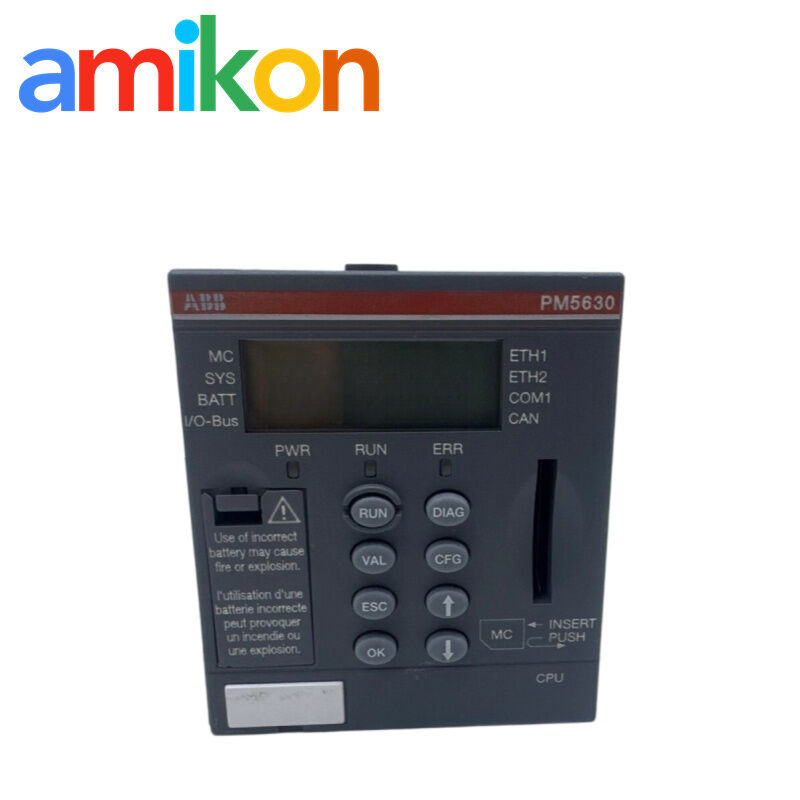

ABB PM5630-2ETH Processor Module
AC500 processor module with 8 MB memory, two independent onboard Ethernet interfaces, RS-232/485, CAN and a memory card slot. The PM5630-2ETH is designed for AC500 controller architectures requiring integrated processing and communication interfaces.
Memory
8 MB
Ethernet
2 × RJ45
Supply
24 V DC
Serial
RS-232/485
Technical Specifications
Core module data
| Manufacturer | ABB |
| Product family | AC500 |
| Module type | Processor module |
| Part number | PM5630-2ETH |
| Memory | 8 MB |
| Supply voltage | 24 V DC |
| Ethernet interfaces | 2 independent onboard RJ45 Ethernet interfaces |
| Ethernet functions | TCP/IP, Modbus TCP, web server, IEC60870-5-104 or selectable Ethernet-based protocols |
| Serial interface | 1 × RS-232/485 interface |
| CAN | CAN interface |
Additional processor, memory & mechanical data
| Memory card | Memory card slot |
| Processor | TI ARM Cortex-A9 32-bit RISC |
| Processor clock speed | 300 MHz |
| Total maximum downloadable application size | 9 MB |
| User program code and data | 2 MB maximum |
| User webserver data | 6 MB maximum |
| Buffered SRAM | 256 kB |
| VAR retain persistent memory | 128 kB |
| %M memory | 128 kB |
| Integrated mass storage memory | None |
| Expandable memory | None |
| Processor module slot | 1 per terminal base |
| Terminal-base interfaces | I/O bus, ETH1, ETH2, CAN, COM1 |
| Current consumption, module alone | 110 mA typical at 24 V DC |
| Weight | 135 g, processor module without terminal base |
| Mounting position | Horizontal or vertical |
Revision & Replacement Reference
Revision 2
1SAP 131 000 R0278
Existing PM5630-2ETH processor module revision identified by ABB as the revision 2 device.
Revision 3
1SAP 131 000 R0378
ABB states that the revision 3 device replaces the revision 2 device and provides the same features or functionality with compatibility between the two revisions.
For revision 3, ABB specifies BootFW / CPUFW V3.6.x or higher; the revision 3 device cannot be downgraded for use with firmware below V3.6.0. Applications built with Automation Builder below 2.6 require upgrading to at least Automation Builder 2.6.0 or higher when moving from revision 2 to revision 3.
Application & Fault Scenarios
Where it is used
The PM5630-2ETH is an AC500 processor module used as the controller processing unit in AC500 automation architectures. Its onboard ETH1 and ETH2 interfaces, CAN and COM1 provide the documented communication interfaces for controller applications.
Why customers search for it
Search demand commonly centers on an existing PM5630-2ETH requiring replacement, processor-module faults, controller startup problems, or loss of the module's documented Ethernet, serial or CAN communication functions. Because the processor module is part of the controller architecture, an unavailable or failed unit can contribute to PLC control interruption and associated production downtime.
Contact AMIKON
Check Part Number & Availability
Miya Zheng
sales@amikon.cn +86 180 2077 6792
For RFQ, please provide: Part Number, Quantity, Destination, Required Date, Machine/System Model.
Testing
Inspection and testing where applicable before shipment.
Packaging
Protective export packaging for international delivery.
Warranty
One-year warranty under the applicable quotation terms.
DOA / Returns
DOA cases are handled through after-sales support with photos and relevant test details.
ABB's PM5630-2ETH datasheet and product documentation identify the module as an AC500 processor module with 8 MB memory, 24 V DC supply and integrated communication interfaces.
PM5630-2ETH FAQ
What type of module is PM5630-2ETH?
It is an ABB AC500 processor module with 8 MB memory and integrated Ethernet, CAN and serial communication interfaces.
How many Ethernet interfaces does PM5630-2ETH have?
It has two independent onboard RJ45 Ethernet interfaces identified as ETH1 and ETH2.
What supply voltage is specified for PM5630-2ETH?
The processor module uses a 24 V DC supply through the terminal base.
What is the difference between R0278 and R0378?
ABB identifies R0278 as revision 2 and R0378 as revision 3. ABB states that R0378 replaces R0278 and remains compatible, while revision 3 requires the applicable V3.6.x-or-higher firmware conditions.
What should I provide when requesting a PM5630-2ETH quotation?
Please provide the part number, quantity, destination, required date and machine/system model so the quotation can be checked accurately.
