Bently Nevada · 3500/15 Power Supply
Bently Nevada 3500-15 · 133292-01

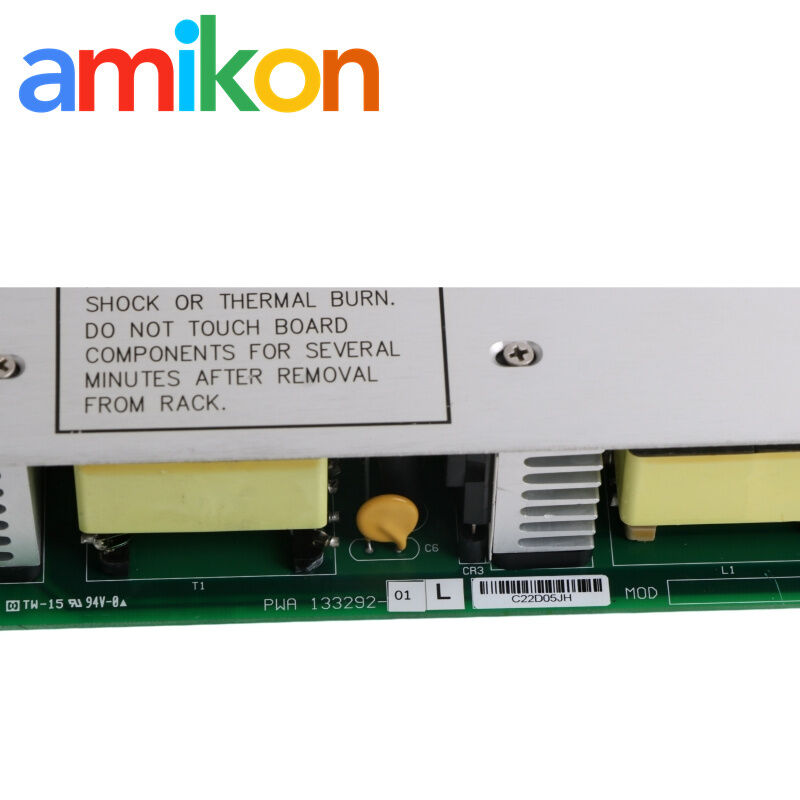

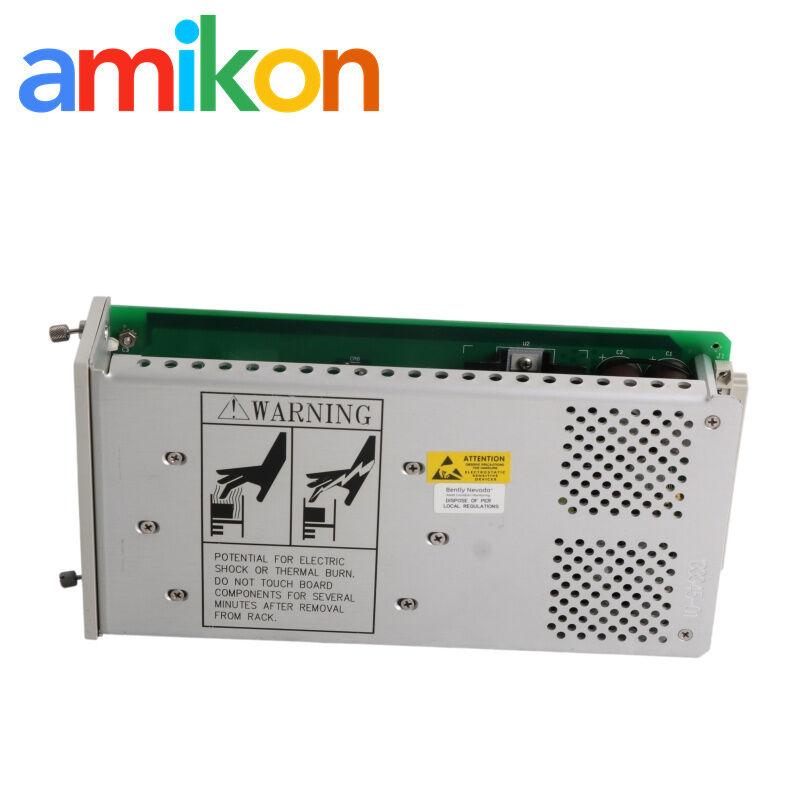

Legacy Low Voltage DC Power Supply Module
The 133292-01 is a Legacy Low Voltage DC Power Supply Module for 20–30 Vdc operation within the Bently Nevada 3500/15 power-supply family.
133292-01 20–30 Vdc · Legacy Low Voltage DC
01
Product Role
3500/15 power-supply module
The 133292-01 belongs to the 3500/15 power-supply architecture, providing the legacy low-voltage DC supply function for the rack.
Associated Power Input Module The Legacy Low Voltage DC Power Input Module is 133300-01.
02
Technical Specifications
Core electrical, physical and environmental data
Part Number 133292-01
Product Family Bently Nevada 3500/15
Product Type Legacy Low Voltage DC Power Supply Module
Input Voltage 20–30 Vdc
Full Rack Current Draw 11.0 A maximum for Low Voltage DC
Minimum Rack Loading No minimum rack load required
Under-voltage Protection Under-voltage does not harm the supply or PIM
Over-voltage Protection Over-voltage causes the PIM fuse to open

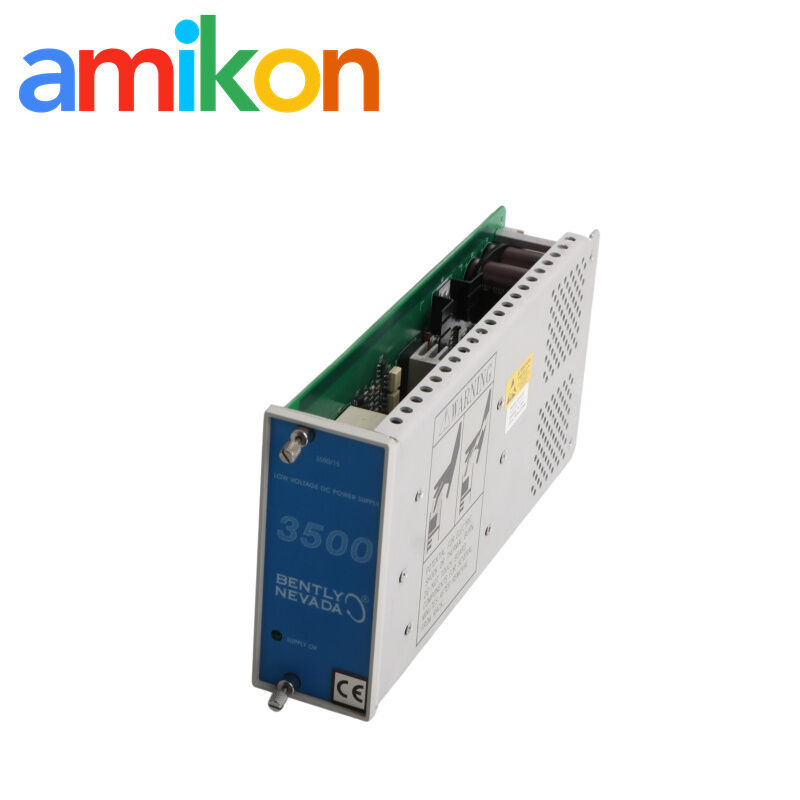

Front Indicator Supply OK LED
Dimensions 120.7 × 50.8 × 251.5 mm
Dimensions, inches 4.75 × 2.0 × 9.9 in
Weight 1.39 kg / 3.06 lb
Operating Temperature −30 °C to +65 °C
Storage Temperature −40 °C to +85 °C
Humidity 95%, non-condensing
Associated PIM 133300-01
3500/15 ordering architecture
Top Slot Option 04 Legacy Low Voltage DC, 20–30 Vdc
Bottom Slot Option 04 Legacy Low Voltage DC, 20–30 Vdc
Agency Option 00 None
Agency Option 01 CSA / NRTL / C, Class 1 Division 2
Agency Option 02 ATEX / IECEx / CSA, Class 1 Zone 2
03
Application & Fault Scenarios
System
Used within the Bently Nevada 3500 Machinery Protection System through the 3500/15 power-supply section.
Replacement Search
Common search triggers include a power-supply problem, loss of supply indication, or investigation of the associated PIM and incoming DC power path.
Shutdown Risk
A power-supply fault can affect rack availability and therefore the monitoring or protection functions supported by that rack.
04
Installation & Compatibility
Rack Arrangement
- 3500/15 power supplies use two dedicated half-height positions on the left side of the rack.
- Each position accepts one power supply.
- With two supplies installed, the lower position is primary and the upper position is backup.
- The PIM is positioned directly behind the corresponding power supply.
Replacement Check
- Verify the installed supply part number before ordering.
- Check the associated PIM as part of the replacement investigation.
- Do not select a replacement from voltage range alone.
- The manufacturer information distinguishes legacy and current DC supply/PIM arrangements.
Replacement should be matched to the installed 3500 rack configuration and power-input arrangement.
05
Diagnostic Point
Supply indication and protection behavior
The front-panel Supply OK LED provides the supply-status indication. For troubleshooting, the manufacturer also specifies that under-voltage does not harm the supply or PIM, while an over-voltage condition causes the PIM fuse to open.
06
Documentation
For technical verification, search 133292-01 PDF/manual/datasheet together with the Bently Nevada 3500/15 documentation and confirm the installed rack and power-input arrangement before replacement.
07
FAQ
What input voltage does 133292-01 use?
The input range is 20–30 Vdc.
Which PIM is associated with 133292-01?
The corresponding Legacy Low Voltage DC Power Input Module is 133300-01.
Where is 133292-01 installed?
It is installed in one of the dedicated half-height power-supply positions on the left side of a 3500 rack.
What information should I provide for a replacement quotation?
Please provide the exact Part Number, Quantity, Destination, Required Date, and Machine/System Model.
