Compact NSv Probe Configuration

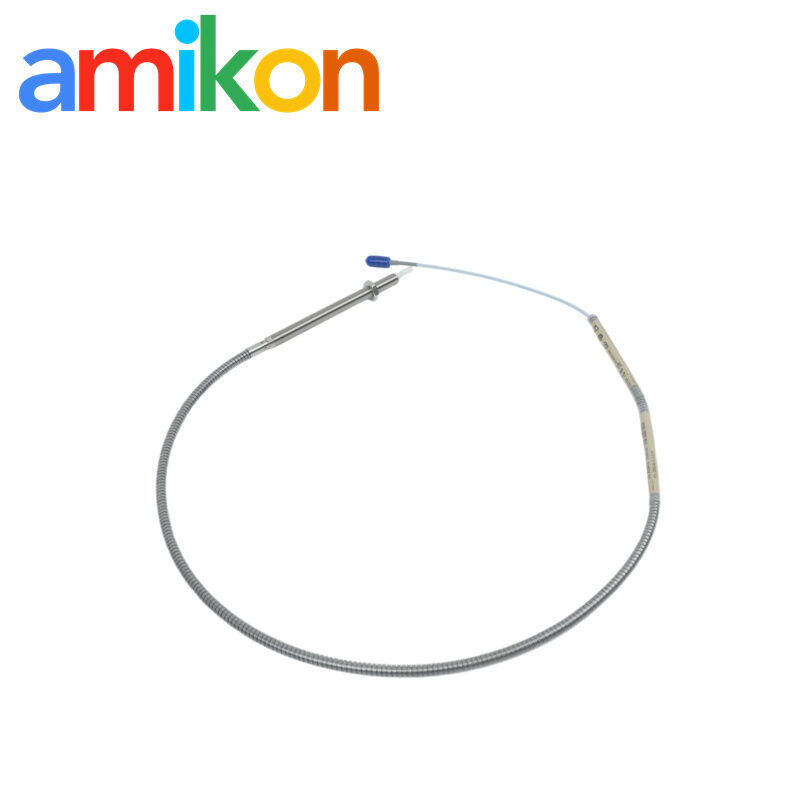

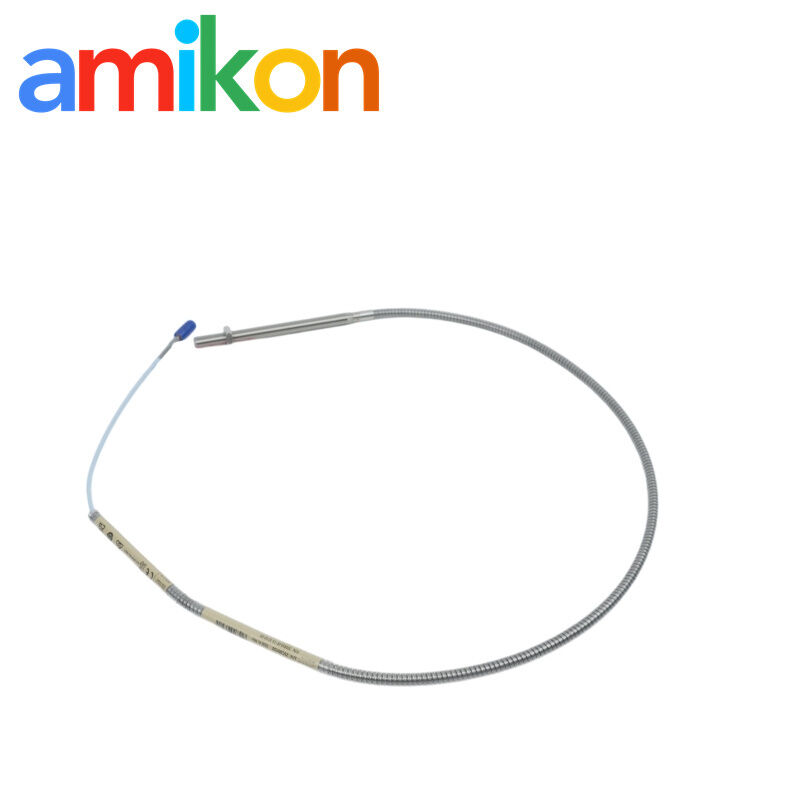

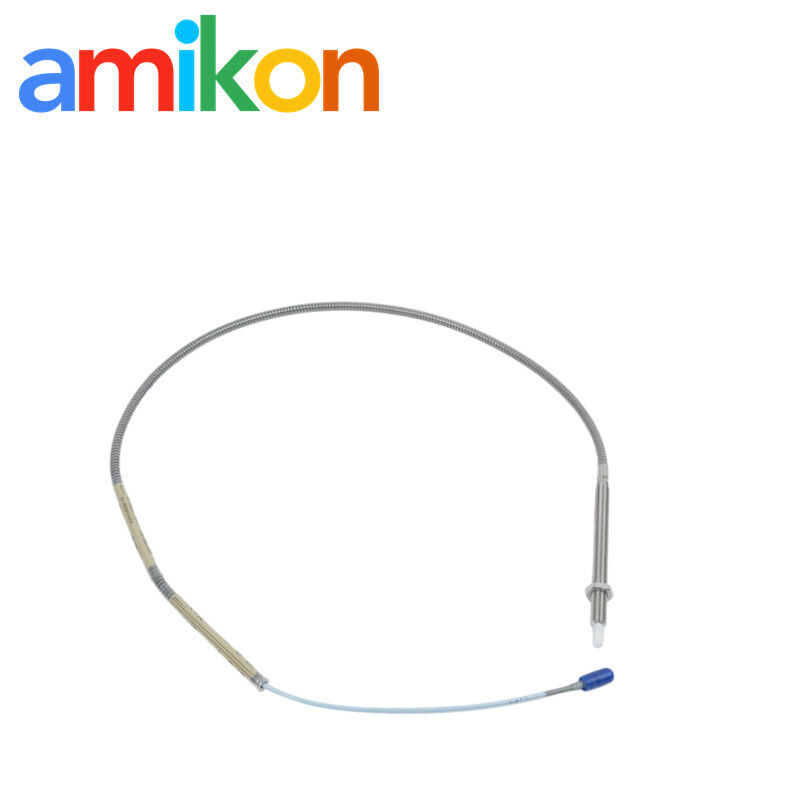

The 3300 NSv probe is part of the 3300 XL NSv Proximity Transducer System, a non-contacting eddy-current measurement system designed for machines where restricted counterbore, side-view, or rear-view clearance limits the use of standard 3300 and 3300 XL 5 mm and 8 mm systems. The NSv system is also intended for small-target measurements.

Application Context

The 3300 XL NSv system is intended for centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements.

Its documented measurement uses include radial vibration, radial position, axial/thrust position, tachometer and zero-speed measurement, and phase-reference / Keyphasor signals on fluid-film bearing machines.

Procurement & Fault Search Context

This exact part number is relevant when an installed 3300 NSv probe needs identification or replacement with the same M10X1 armored, 1.0 m, ClickLoc configuration.

Typical search situations include unstable or missing proximity measurements, probe or cable connection issues, physical probe damage, or maintenance requiring an exact configuration match. On rotating machinery, loss of the required proximity signal can affect vibration, position, speed, or phase-reference monitoring.

Miya Zheng

For exact-part inquiries, please send the complete part number together with your required quantity and destination.
