Bently Nevada 330710-000-060-10-02-00 3300 XL 11 mm armored proximity probe
Bently Nevada 11 mm proximity probe
3300 XL armored proximity sensor
Bently Nevada 330710 proximity probe
Brand Name:
Bently Nevada
Bently Nevada 11 mm proximity probe
,3300 XL armored proximity sensor
,Bently Nevada 330710 proximity probe
330710-000-060-10-02-00

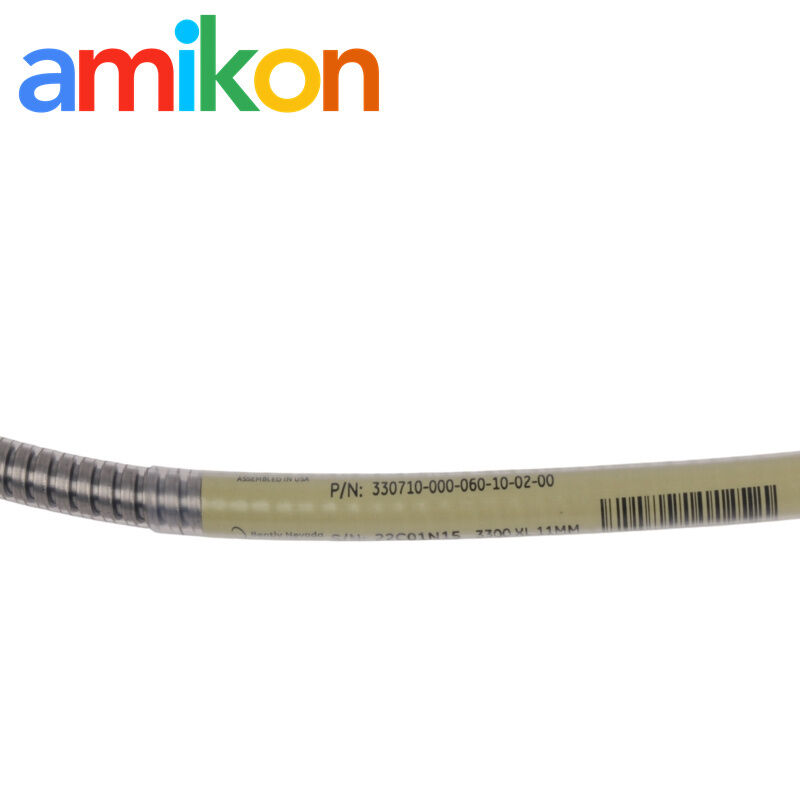

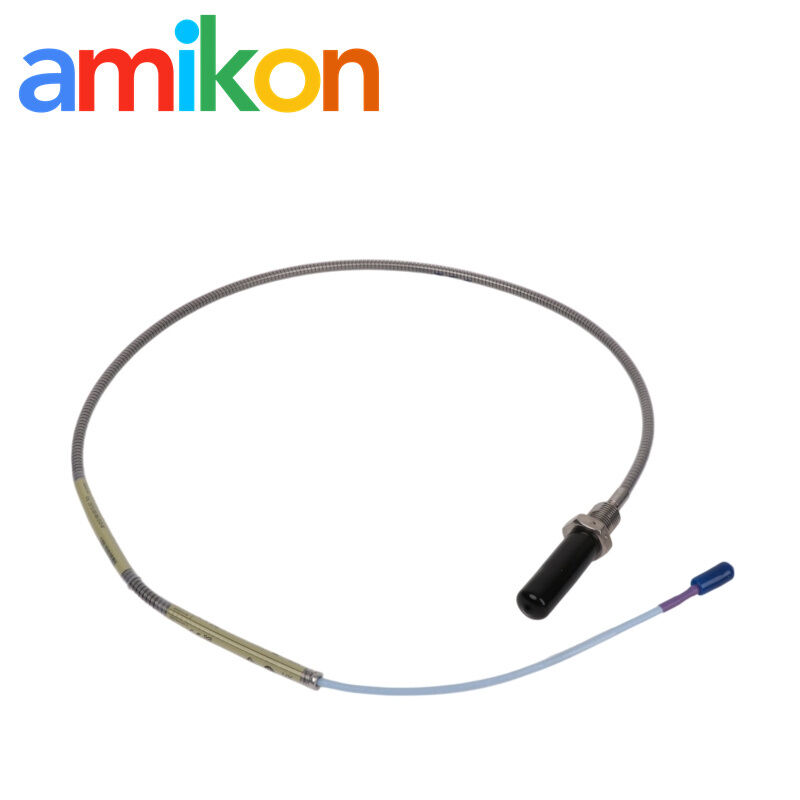

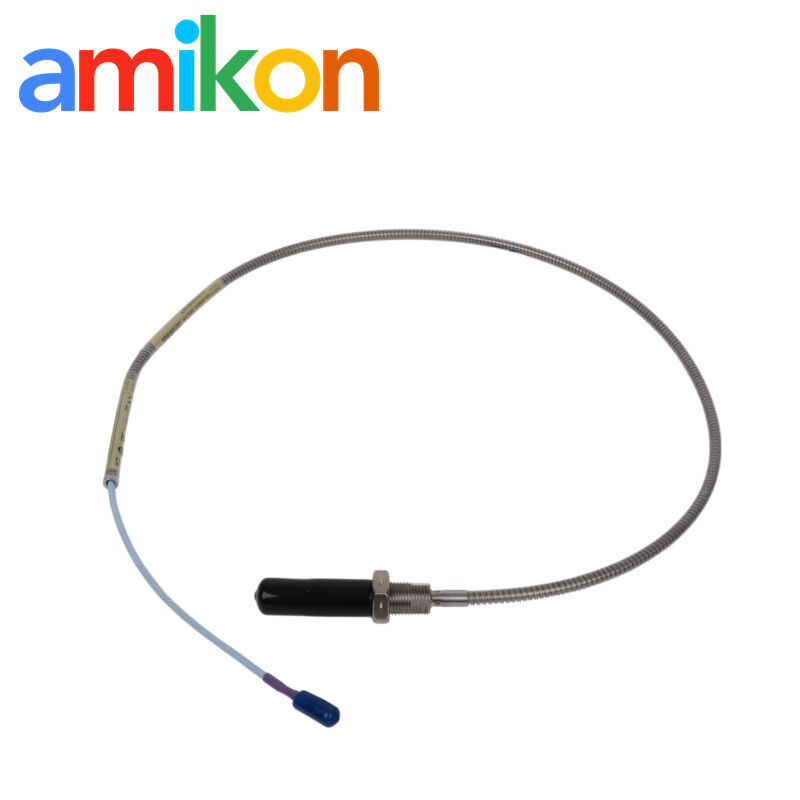

3300 XL 11 mm armored proximity probe with a 60 mm case length, 1.0 m probe length and miniature coaxial ClickLoc connector.
Signal Chain
3300 XL 11 mm Transducer System
The 330710 probe works as part of the 3300 XL 11 mm Proximity Transducer System. The signal chain uses the probe, extension cable and Proximitor Sensor for non-contacting vibration and displacement measurement, with a 4.0 mm linear range.
Where It Is Used
Axial / Thrust Position
Suitable for axial or thrust position measurement within a configured 3300 XL 11 mm monitoring arrangement.
Steam Turbine & Compressor
Used for applications including steam-turbine ramp differential expansion and reciprocating-compressor rod position or rod drop.
Speed & Phase Reference
The 11 mm system also supports tachometer, zero-speed and Keyphasor measurement applications.
Part Configuration
330710-000-060-10-02-00 configuration
Technical Specifications
Core 3300 XL 11 mm technical data
Installation Essentials
When This Part Is Searched
This probe is commonly relevant when a 3300 XL 11 mm measurement channel develops a failed, unstable or unavailable signal, or when the physical probe needs replacement during maintenance. Depending on the configured measurement, loss of the probe signal can reduce the availability of axial-position, displacement, vibration, speed or phase-reference information used by the machine monitoring arrangement.
Our Customers & Warehouse
Supply & Warranty
AMIKON checks the part number and unit condition before shipment and provides protected packaging. DOA cases can be handled with order information and supporting photos. Standard warranty: 12 months for defects attributable to the supplied unit.
FAQ
Is 330710-000-060-10-02-00 a complete proximity transducer system?
No. It is the probe component. The 3300 XL 11 mm system also uses the corresponding extension cable and 3300 XL 11 mm Proximitor Sensor.
What applications use the 3300 XL 11 mm probe?
Applications include axial or thrust position, steam-turbine ramp differential expansion, reciprocating-compressor rod position or rod drop, tachometer, zero-speed and Keyphasor measurements.
What should be checked before ordering this exact probe?
Confirm the complete 330710-000-060-10-02-00 number, including the 060 case-length, 10 probe-length, 02 connector/cable and 00 approval options, and verify the existing extension cable and Proximitor Sensor arrangement.
Where can I find 330710-000-060-10-02-00 pdf or manual information?
The Bently Nevada 3300 XL 11 mm Proximity Transducer System Datasheet 146256 contains the ordering structure, technical specifications and installation information for this probe family.
