Product Description
Bently Nevada · 3500 Machinery Protection

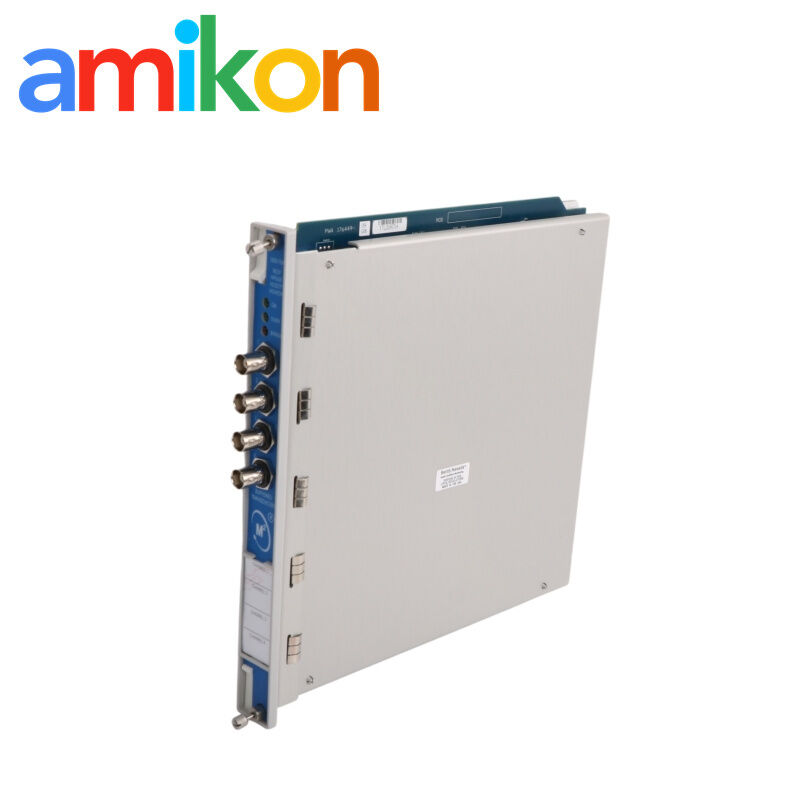

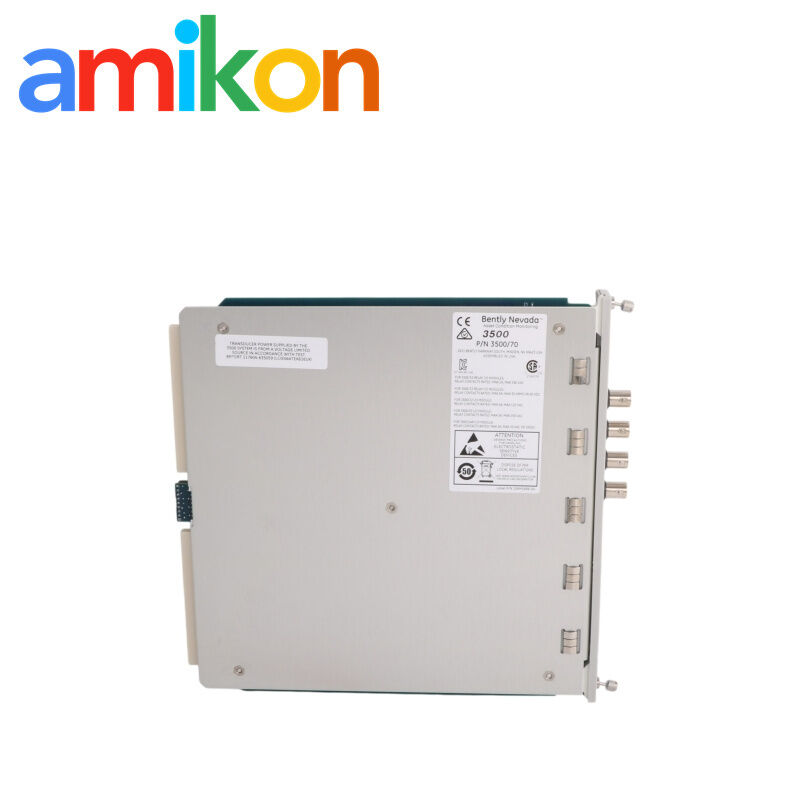

3500/70M 176449-09
Recip Impulse Velocity Monitor
A four-channel monitor used as part of the reciprocating compressor solutions package. The monitor accepts seismic-transducer inputs, conditions the signals into vibration measurements, and compares configured values with user-programmable alarms.
176449-09
CHANNEL 01 Monitor path
CHANNEL 02 Monitor path
CHANNEL 03 Monitor path
CHANNEL 04 Monitor path
Application & Failure Scenarios
Where this spare becomes relevantThe 3500/70M is designed for reciprocating compressor monitoring, including crankcase and crosshead vibration measurement. It uses seismic-transducer inputs to provide vibration measurements for machinery-protection applications.
The 176449-09 is relevant when an installed 3500/70M monitor requires replacement, troubleshooting, or restoration of the configured vibration-monitoring function.
Shutdown risk
Loss of the applicable monitoring function may reduce the availability of vibration information used for machinery protection, operation, and maintenance decisions. The actual impact depends on the machine’s protection architecture and configured alarm strategy.
Loss of the applicable monitoring function may reduce the availability of vibration information used for machinery protection, operation, and maintenance decisions. The actual impact depends on the machine’s protection architecture and configured alarm strategy.
Technical Specifications
Core 3500/70M dataMonitor Type Recip Impulse Velocity
Channel Count 4-channel device
Nominal Power 7.7 W
Core electrical and physical specifications
| Part Number | 176449-09 |
|---|---|
| Model | 3500/70M Recip Impulse Velocity Monitor |
| Channels | 4-channel monitor |
| Inputs | 1 to 4 proximity probe signals |
| Input Impedance | 10 kΩ acceleration input; >1 MΩ velocity input |
| Special Inhibit | Contact closure, 5 Vdc @ 390 μA typical |
| Power Consumption | 7.7 W nominal |
| Monitor Rack Space | 1 full-height front slot |
| I/O Rack Space | 1 full-height rear slot |
| Monitor Dimensions | 241.3 × 24.4 × 241.8 mm (H × W × D) |
| Monitor Weight | 0.91 kg (2.0 lb) |
Outputs, recorder interface and front-panel indication
| Front Panel LEDs | OK, TX/RX and Bypass |
|---|---|
| Buffered Transducer Outputs | One coaxial connector for each channel |
| Buffered Output Impedance | 550 Ω typical |
| Buffered Output Protection | Each connector is short-circuit protected |
| Recorder Output | +4 to +20 mA proportional to monitor full-scale |
| Recorder Load | 600 Ω maximum |
| Recorder Update Rate | <100 ms |
| Recorder Accuracy | Within ±0.05 mA; ±0.14 mA over temperature range |
Measurement and alarm characteristics
| Impulse Acceleration Accuracy | Within ±0.33% of full-scale typical; ±1% maximum, exclusive of filters |
|---|---|
| Acceleration 2 Accuracy | Within ±0.33% of full-scale typical; ±1% maximum, exclusive of filters |
| Recip Velocity Accuracy | Within ±0.33% of full-scale typical; ±1% maximum, exclusive of filters |
| Low Frequency Recip Velocity Accuracy | Within ±0.33% of full-scale typical; ±1% maximum, exclusive of filters |
| Impulse Acceleration Band Start | 0 to 359°, 1° resolution |
| Impulse Acceleration Band Duration | 1 to 360°, 1° resolution |
| Alarm Setpoints | Alert levels for each measured value; danger setpoints for any two measured values |
| Alarm Range | 0 to 100% of full-scale for each measured value, subject to transducer range |
| Alert Delay | 1 to 60 seconds in 1-second intervals |
| Danger Delay | 0.1 seconds nominal, or 1 to 60 seconds in 1-second intervals |
| Alarm Setpoint Accuracy | Within 0.13% of desired value |
Environmental and compliance information
| Operating Temperature | -30°C to +65°C with Internal / External Termination Proximitor / Seismic I/O Module |
|---|---|
| Barrier I/O Operating Temperature | 0°C to +65°C with Proximitor / Seismic Internal Barrier I/O Module with Internal Termination |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95%, non-condensing |
| EMC | EN 61000-6-2 and EN 61000-6-4 |
| Electrical Safety | EN 61010-1 |
| RoHS | RoHS Directive 2011/65/EU |
| Maritime | DNV GL rules and ABS Rules for Condition of Classification as specified in the datasheet |
| Hazardous Area | cNRTLus and ATEX/IECEx configurations are specified according to the applicable I/O module and installation arrangement |
Configuration & Software
Specified version requirements| 3500/01 Configuration Software | Version 5.2 or later |
|---|---|
| 3500/02 Data Acquisition Software | Version 2.50 or later |
| 3500/03 Operator Display Software | Version 1.50 or later |
| System 1 Software | Version 6.90 or later |
| 3500/70M Firmware | Version 4.21 or later |
| 3500/22M TDI Firmware | Version 1.75 or later |
| 3500/22M USB TDI Firmware | Version 4.05 or later |
| Standard Machine-Speed Lower Limit | 60 RPM; operation down to 30 RPM requires modification 135M8137-01 |
I/O Arrangement
Specified 3500/70M I/O options| 140471-01 | Prox/Velom I/O Module with Internal Terminations |
|---|---|
| 140482-01 | Prox/Velom I/O Module with External Terminations |
| 135489-01 | Internal Barrier I/O Module, 4 × Prox/Accel |
| 135489-02 | Internal Barrier I/O Module, 2 × Prox/Accel + 2 × Velomitor |
| 135489-03 | Internal Barrier I/O Module, 4 × Velomitor |
For external-termination I/O modules, the datasheet specifies ordering the external termination blocks and cable separately. External termination blocks cannot be used with internal-termination I/O modules.
Diagnostics

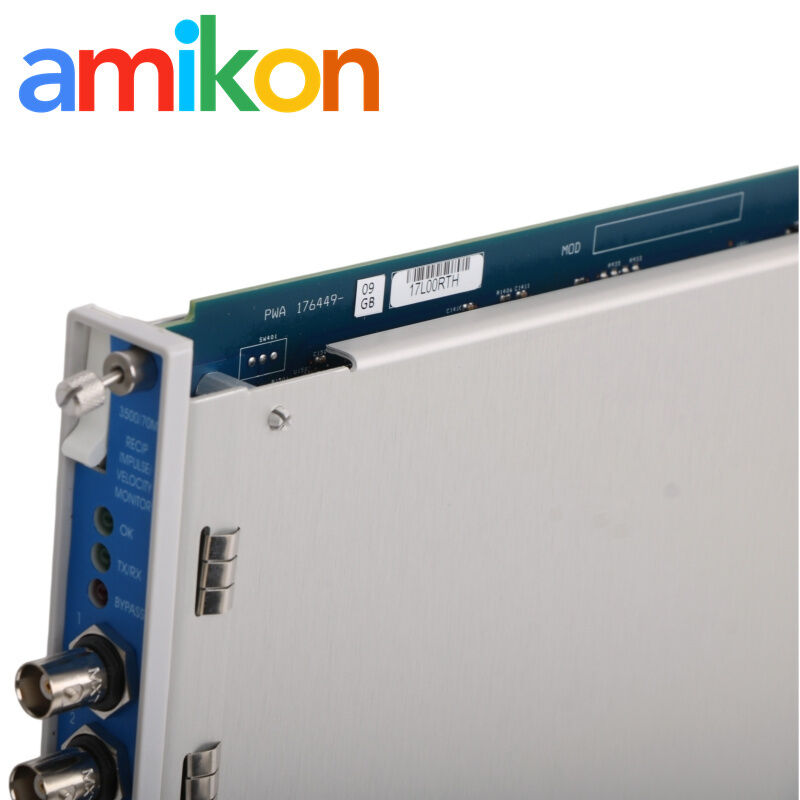

Front-panel status indicationsOK LED Indicates whether the monitor is operating properly.
TX/RX LED Indicates communication with other modules in the 3500 rack.
Bypass LED Indicates that the monitor is in Bypass Mode.
The monitor also provides bias voltage as a system-diagnostic value; the manufacturer notes that bias voltage itself does not provide information about the condition of the monitored machinery.
Delivery & Warranty
AMIKON supply support- Testing: Product identification and functional inspection before shipment.
- Packaging: Protective industrial packaging suitable for spare-part transport.
- Returns: Return requests are reviewed against order and product condition.
- DOA: Report a dead-on-arrival condition promptly with photos/video and order details for review.
- Warranty: 12-month warranty covering confirmed product-related functional defects under normal use.
RFQ information
Please provide: Part Number, Quantity, Destination, Required Date, Machine/System Model. This helps AMIKON confirm the requested configuration and delivery requirements.
Please provide: Part Number, Quantity, Destination, Required Date, Machine/System Model. This helps AMIKON confirm the requested configuration and delivery requirements.
Contact AMIKON
Availability · testing · quotationMiya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
For quotation, please include the exact Part Number, Quantity, Destination, Required Date and Machine/System Model.
FAQ
3500/70M 176449-09What is 3500/70M 176449-09 used for?
It is a Recip Impulse Velocity Monitor used in the Bently Nevada 3500 solution for monitoring reciprocating compressor crankcase and crosshead vibration.
How many channels does the 3500/70M provide?
The monitor is a four-channel device. Its channels are programmed in pairs and can perform up to two of the specified measurement functions at a time.
Which software is used to configure the 3500/70M?
The manufacturer specifies 3500/01 Configuration Software version 5.2 or later for configuration. Other supported software and firmware versions are listed in the configuration section above.
What should be checked when the monitor shows an abnormal status?
Check the OK, TX/RX and Bypass indications, the associated I/O arrangement, configured software/firmware versions and the applicable alarm configuration before replacing the monitor.
Where can I find the 3500/70M 176449-09 PDF or manual information?
The manufacturer datasheet identifies 176449-09 as the 3500/70M Recip Impulse Velocity Monitor and lists 166226-01 as the 3500/70M Recip Impulse Velocity Monitor User Manual. Contact AMIKON if you need documentation or quotation support.
