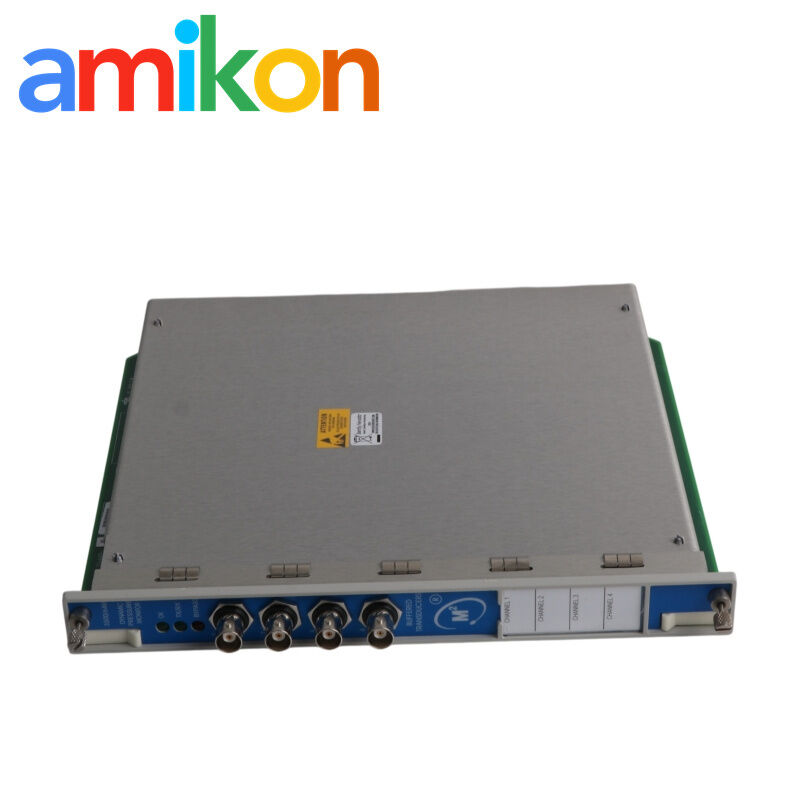

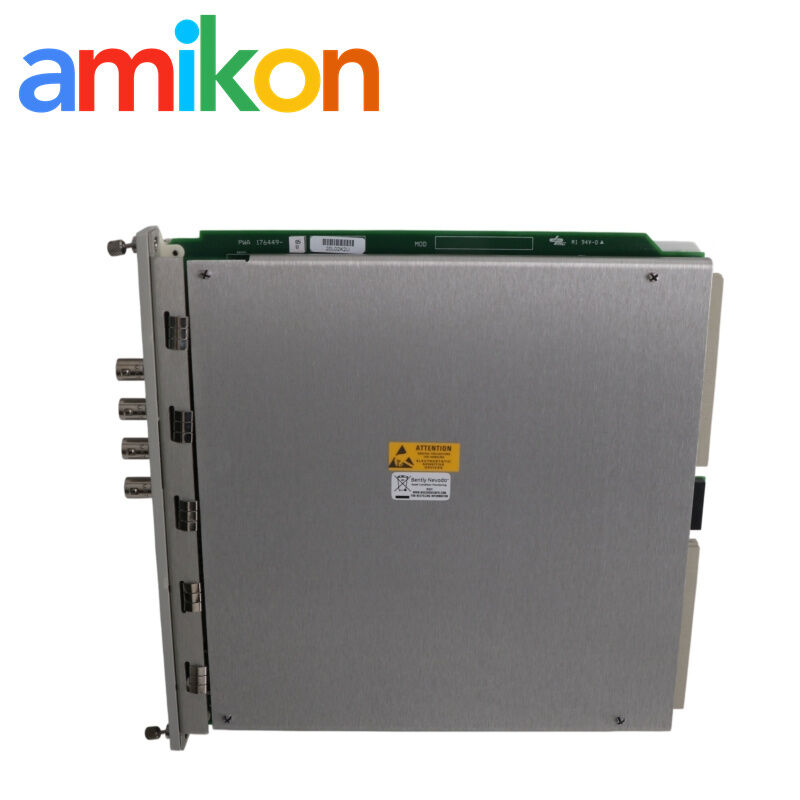

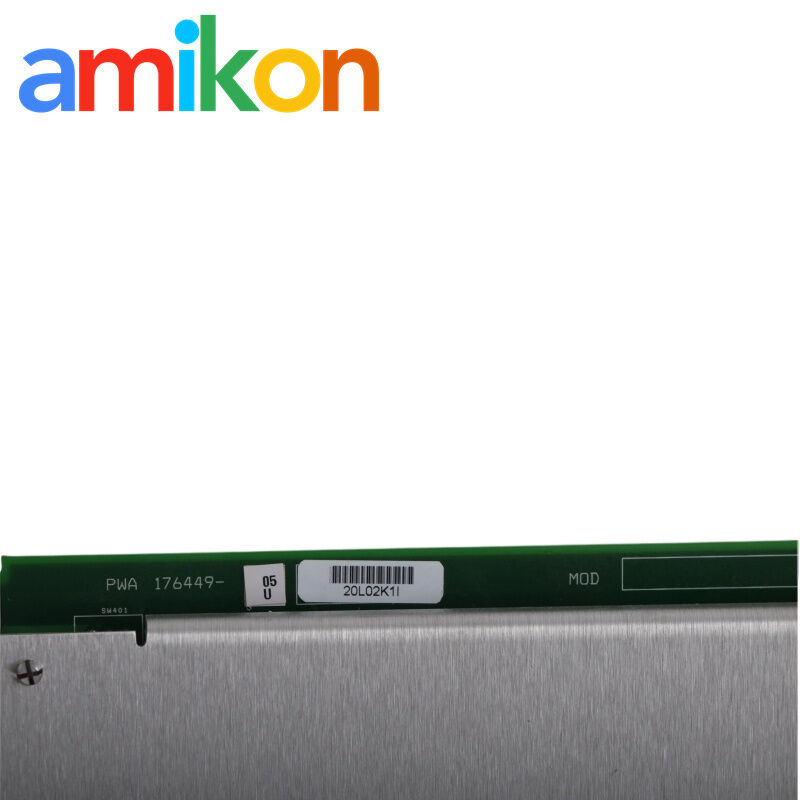

3500/64M Dynamic Pressure Monitor
The Bently Nevada 3500/64M is a single-slot, four-channel Dynamic Pressure Monitor. It accepts signals from high-temperature pressure transducers and produces bandpass dynamic-pressure measurements for machinery protection and operating information.
3500/64M Dynamic Pressure Monitor spare part identified in the Bently Nevada 3500/64M Datasheet.
3500/64M Dynamic Pressure Monitoring
The 3500/64M continuously compares configured dynamic-pressure values with Alert and Danger setpoints to drive alarms. Each active channel has one primary measured variable: dynamic pressure direct. The monitor also provides recorder outputs for control-system applications.
What the module does
Inputs from one to four pressure transducers are conditioned into bandpass dynamic-pressure measurements. The 3500 Rack Configuration Software allows the filtering and alarm parameters to be configured for the installed application.
Technical Specifications
Show Detailed Specifications
Gas Turbine Dynamic Pressure Application
Typical Application
Bently Nevada identifies the 3500/64M for gas-turbine dynamic-pressure, or combustion, transducers. A typical application is identifying and tracking gas-turbine combustor instabilities.
Why This Spare Is Searched
Customers may search for the 176449-05 when the installed dynamic-pressure monitoring channel is unavailable, the monitor reports an abnormal status, or the configured pressure measurement and associated alarm function need to be restored.
Filter Configuration & Cascade Mode
Bandpass & Notch Filtering
The 3500 Rack Configuration Software configures the bandpass corner frequencies and the additional line-rejection filter. Channels 1–2 form one pair and channels 3–4 form the other; channels within a pair share the selected filtering mode.
Cascade Mode
Cascade Mode feeds the Channel 1 input to all four channels. One transducer can therefore provide input to four channels with separate bandpass filter options and full-scale ranges.

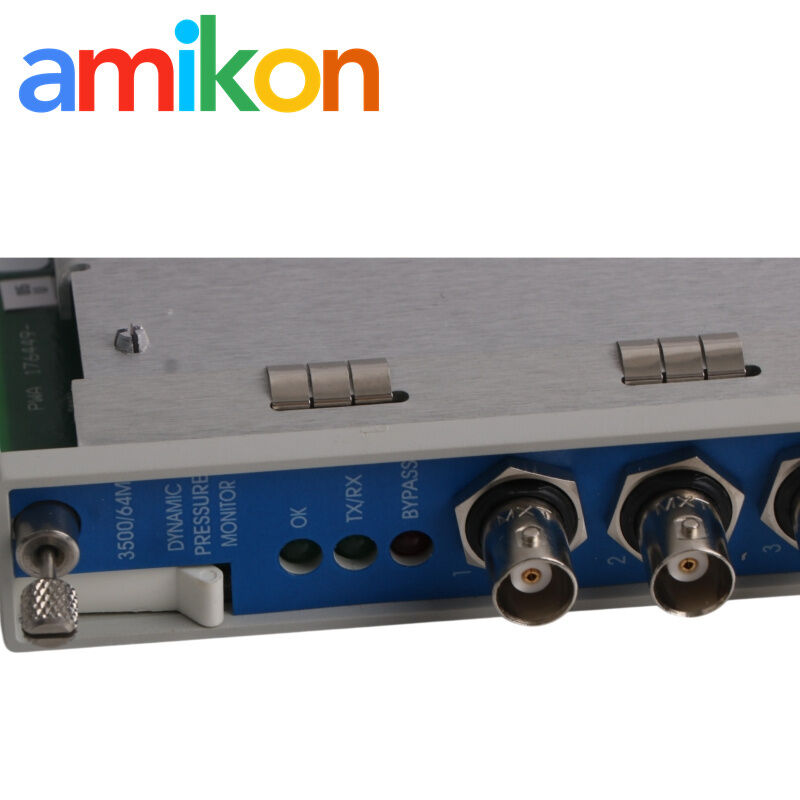

Front-Panel Diagnostics
Indicates that the 3500/64M is operating properly.
Indicates communication between the monitor and other modules in the 3500 rack.
Indicates that the 3500/64M is in Bypass Mode.
I/O & Replacement Check
The official ordering information identifies I/O options with internal or external termination. External termination configurations use dedicated Dynamic Pressure or Recorder Output ET Blocks. The complete installed configuration should therefore be checked before ordering a replacement.
Show Official I/O & Spare References
Delivery, Warranty & RFQ
A compact AMIKON service area designed so your own warehouse, team or shipment image can carry the visual message rather than another generic contact card.
AMIKON supports industrial automation spare-part sourcing with a focus on clear part-number identification, quotation response and shipment coordination.
FAQ
What is Bently Nevada 3500/64M 176449-05 used for?
How many channels does the 3500/64M provide?
Does 176449-05 provide a recorder output?
Can the 3500/64M use Cascade Mode?
What information should I send when requesting a 176449-05 quotation?
