Typical system use
The 21000 housing is used for external mounting of a proximity probe in a machinery monitoring installation, giving maintenance personnel external access to the probe and cable.
Home
>
Products
>
Bently Nevada
>
21000-15-10-00-166-03-02 BENTLY NEVADA Proximity Probe Housing Assembly
21000-15-10-00-166-03-02 BENTLY NEVADA Proximity Probe Housing Assembly
Bently Nevada proximity probe housing
proximity probe assembly Bently Nevada
Bently Nevada probe housing replacement
Brand Name:
Bently Nevada
Contact Us
Request A Quote
Product Details
Highlight:
Bently Nevada proximity probe housing
,proximity probe assembly Bently Nevada
,Bently Nevada probe housing replacement
Payment & Shipping Terms
Minimum Order Quantity
1
Delivery Time
2-3 work days
Payment Terms
T/T
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
BENTLY NEVADA · 21000 SERIES

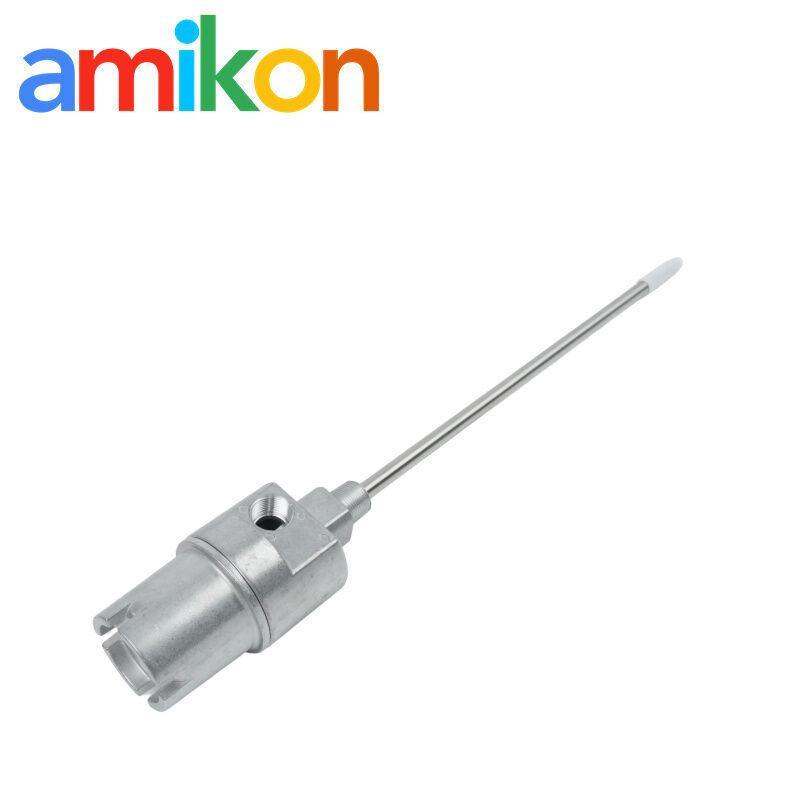

21000-15-10-00-166-03-02 Proximity Probe Housing Assembly
Configured 21000 aluminum proximity probe housing assembly with a 300 nuclear probe configuration, 1.0 m probe cable, no standoff adapter, 16.6 in probe penetration, specified fittings, and a 3/4-14 NPT mounting thread.
System Role
External mounting for a proximity probe
Bently Nevada describes the 21000 as an all-metal proximity probe housing assembly for external mounting of proximity probes. The housing provides external access to the probe and its extension cable, allowing probe gap adjustment or probe replacement without disassembling the machine.
Technical Specifications
| Manufacturer | Bently Nevada |
| Product family | 21000 Proximity Probe Housing Assemblies |
| Housing body | Aluminum |
| Probe sleeve | 304 stainless steel |
| Probe configuration | Option 15 — 300 nuclear |
| Probe cable length | Option 10 — 1.0 m (39 in) |
| Standoff adapter | Option 00 — none |
| Probe penetration | Option 166 — 16.6 in (421.6 mm) |
| Fittings | Option 03 — 3/4-14 NPT plug; 3/4-14 to 1/2-14 NPT reducer; cable seal grip with grommets |
| Mounting thread | Option 02 — 3/4-14 NPT |
| Probe penetration adjustment | 13 mm (±0.5 in) |
| Typical housing mass | 1.1 kg (2.4 lb), without fittings |
| Maximum C + D dimension with 1.0 m cable | 742 mm (29.2 in) |
| Housing dimensions | 83.3 × 161.6 mm |
Technical reference: Bently Nevada / Baker Hughes, 21000, 24701, and 164818 Proximity Probe Housing Assemblies, Datasheet 141600. The exact option-15 configuration is listed in the historical ordering structure.
Installation Consideration
The 16.6 in penetration requires sleeve support
Bently Nevada specifies additional sleeve support near the probe when the selected probe penetration exceeds 300 mm (12 in), to reduce resonance associated with unsupported long sleeve lengths. This configuration is 16.6 in (421.6 mm), so the support requirement applies to this ordered arrangement.
Installation check
Confirm the 3/4-14 NPT mounting interface, sleeve support, fitting arrangement and final probe position against the installation drawing before commissioning.
Application & Maintenance Scenarios
Where this housing matters in a machinery monitoring system
Why buyers search this part
It may be searched when an installed 21000 housing needs replacement, when the housing or its specified fittings are damaged, or when external probe access must be restored for gap adjustment or probe replacement.
Shutdown risk
A damaged or unusable housing can prevent the intended probe installation or maintenance work and may leave the associated proximity measurement channel unavailable until the mechanical installation is restored.
Contact AMIKON
Send the complete part number for quotation
RFQ information
Please provide Part Number, Quantity, Destination, Required Date, and Machine/System Model with your inquiry.
Testing
Inspection and testing where applicable before dispatch.
Packaging
Protective export packaging for shipment.
DOA / Returns
DOA and return cases handled through AMIKON after-sales procedures.
Warranty
One-year warranty under the applicable quotation terms.
Buyer FAQ
Questions specific to this configuration
What does option 15 specify in this 21000 configuration?
In the 21000 ordering structure, option 15 specifies the 300 nuclear probe configuration.
What is the probe cable length?
Option 10 specifies a 1.0 m (39 in) probe cable.
Does this configuration include a standoff adapter?
No. The 00 position specifies no standoff adapter.
Why is sleeve support important for this part?
Its 16.6 in penetration exceeds the manufacturer's 12 in threshold for additional sleeve support near the probe to reduce resonance.
What should be included in an RFQ for this housing?
Send the complete part number, quantity, destination, required date, and machine/system model so AMIKON can prepare the quotation.
