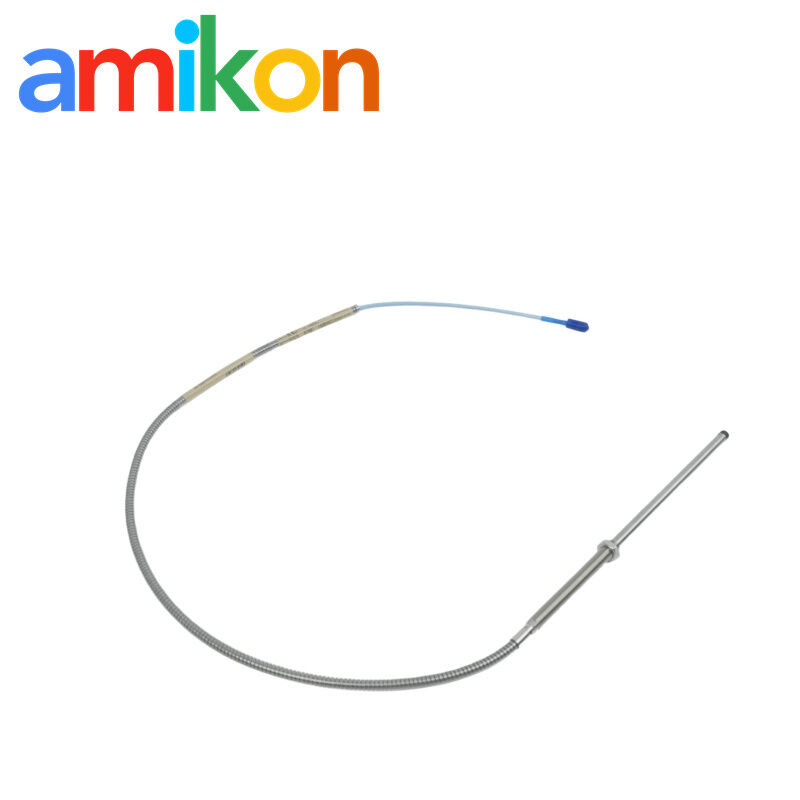

Bently Nevada 330104-11-25-10-02-00 · 3300 XL 8 mm Proximity Probe
Bently Nevada 8mm proximity probe
3300 XL vibration sensor
Bently Nevada 330104 probe
Brand Name:
Bently Nevada
Bently Nevada 8mm proximity probe
,3300 XL vibration sensor
,Bently Nevada 330104 probe
Bently Nevada 330104-11-25-10-02-00 · 3300 XL 8 mm Proximity Probe
Metric armored configuration with M10 × 1 mounting, 1.0 m total probe length and standard ClickLoc cable.
Technical Specifications
View system performance & installation data
| Power Requirement | -17.5 Vdc to -26 Vdc; -23 Vdc to -26 Vdc with barriers; maximum 12 mA. |
|---|---|
| Output Resistance | 50 Ω |
| Linear Range | 2 mm (80 mils); approximately 0.25 to 2.3 mm (10 to 90 mils). |
| Recommended Radial Gap | Approximately 1.27 mm (50 mils), corresponding to approximately -9 Vdc. |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) ±5% for standard 5 m or 1 m systems under specified conditions. |
| Frequency Response | 0 to 10 kHz, +0 / -3 dB, with up to 305 m (1,000 ft) field wiring. |
| Minimum Target Size | 15.2 mm (0.6 in) diameter, flat target. |
| Minimum Shaft Diameter | 50.8 mm (2 in); 76.2 mm (3 in) recommended. |
| Probe Case | AISI 303 or 304 stainless steel. |
| Probe Cable | 75 Ω triaxial, FEP-insulated standard probe cable. |
| Armor | Flexible AISI 302 or 304 stainless steel with FEP outer jacket. |
| Probe Case Torque | 33.9 N·m maximum rated torque; 11.2 N·m recommended torque. |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in). |
| Connector Torque | 0.565 N·m (5 in·lbf) maximum. |
| Field Wiring | 0.2 to 1.5 mm² (16 to 24 AWG); 3-conductor shielded triad cable recommended. |
| Maximum Field Wiring | 305 m (1,000 ft) between Proximitor Sensor and monitor. |
Compatibility & Replacement
3300 XL 8 mm system
Designed for the 3300 XL 8 mm Proximity Transducer System. This 1.0 m configuration does not use an extension cable.
3300-series relationship
Bently Nevada states that XL 8 mm components can be electrically and physically interchangeable with specified non-XL 3300-series 5 mm and 8 mm components, with performance limitations when mixed.
Application & Fault Scenarios
Installation & Commissioning
Confirm mechanical dimensions
Check M10 × 1 thread, 110 mm unthreaded length and 250 mm case length against the installed position.
Maintain the cable path
Use the specified ClickLoc connection and maintain the 25.4 mm minimum cable bend radius.
Establish the gap
For radial vibration measurement, the recommended gap is approximately 1.27 mm (50 mils).
Calibration & Diagnostics
Proximitor Sensors are factory calibrated to AISI 4140 steel; calibration to other target materials is available upon request.
For abnormal signals, check the probe, connector, wiring, power, gap voltage and Proximitor Sensor as one measurement chain.
Delivery & Warranty
Inspection: Testing where applicable before dispatch.
Packaging: Protective export packaging.
Warranty: One year under quotation terms.
Returns: According to agreed order terms.
DOA: Report promptly with photos and test details.
Talk to AMIKON
Have the part number in front of you? Send it over. We will start from the exact configuration.
Frequently Asked Questions
Does 330104-11-25-10-02-00 use an M10 × 1 thread?
What do 11-25-10-02-00 mean in the order code?
Does the 1.0 m configuration need an extension cable?
What gap should be used for radial vibration measurement?
Can this probe be mixed with older 3300 components?
Bently Nevada 330104-11-25-10-02-00 datasheet information is contained within the 3300 XL 8 mm Proximity Transducer System documentation.
