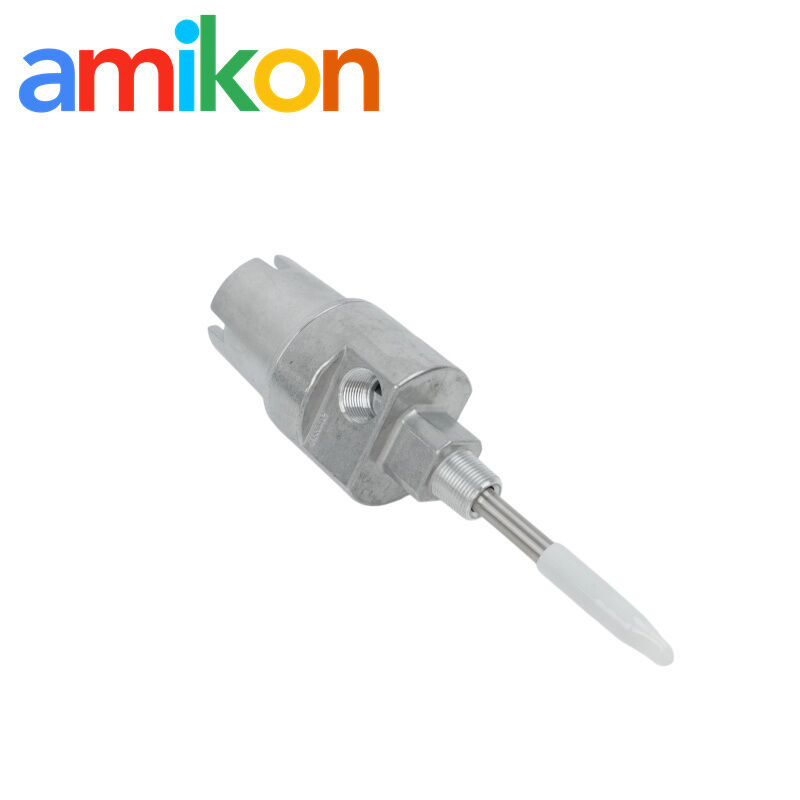

Bently Nevada 21000-28-05-00-070-01-02 Proximity Probe Housing Assembly · 3300 XL 8 mm · 7.0 in Penetration
Bently Nevada 3300 XL proximity probe
8 mm proximity probe housing
7.0 in penetration probe assembly
Brand Name:
Bently Nevada
Bently Nevada 3300 XL proximity probe
,8 mm proximity probe housing
,7.0 in penetration probe assembly
Bently Nevada 21000-28-05-00-070-01-02 Proximity Probe Housing Assembly · 3300 XL 8 mm
Technical Specifications
| Product Type | 21000 Proximity Probe Housing Assembly |
|---|---|
| Probe with Connector — 28 | 3300 XL 8 mm probe, selectable hazardous-area approvals |
| Probe Cable Length — 05 | 0.5 m (20 in) |
| Standoff Adapter — 00 | No standoff adapter |
| Probe Penetration — 070 | 7.0 in |
| Fittings — 01 | One 3/4-14 NPT explosion-proof fitting and one 3/4-14 NPT plug |
| Mounting Thread — 02 | 3/4-14 NPT |
| Housing Material | Aluminum body with 304 stainless-steel sleeve |
| Typical Mass | 1.1 kg (2.4 lb), without fittings |
| Housing Compliance | CSA Type 4 enclosure; 21000 housing family is compliant with API 670 for externally mounted proximity probe housings |
View additional technical and approval information
Application & Fault Scenarios
External proximity-probe mounting
The 21000 housing family is designed to externally mount proximity probes on industrial machinery and provide a protected mechanical arrangement around the probe installation.
Vibration / Position Monitoring
Relevant to machinery monitoring installations where a proximity probe is used for shaft vibration or position measurement.
Replacement Search
Commonly searched when an installed probe housing requires replacement and the complete mechanical configuration must be matched.
Installation Mismatch
Incorrect housing configuration can create mechanical fitment or probe-position problems during maintenance.
Downtime Risk
A missing or unsuitable housing assembly can delay restoration of the associated proximity monitoring channel.
Housing & Installation Notes
External Probe Access
The 21000 design externally mounts the proximity probe and provides access to the probe arrangement through the housing.
Long-Sleeve Support
When the combined sleeve and penetration length exceeds 300 mm (12 in), additional sleeve support is required near the probe to prevent resonance.
Penetration Adjustment
The manufacturer's option D penetration adjustment range is 13 mm (±0.5 in). The selected installation geometry should be checked against the machine before fitting.
View assembly and installation reference
Let's confirm the part before you order.
Send the part number together with your quantity and machine information. We will use the exact configuration as the starting point for the quotation.
Clear Supply. Industrial automation support without unnecessary back-and-forth.
FAQ
What probe is specified by 21000-28-05-00-070-01-02?
What does the 070 option mean on this Bently Nevada housing?
What fittings are included in 21000-28-05-00-070-01-02?
Does 21000-28-05-00-070-01-02 use a standoff adapter?
What mounting thread does this 21000 assembly use?
