Product Description
Bently Nevada · PROXPAC XL

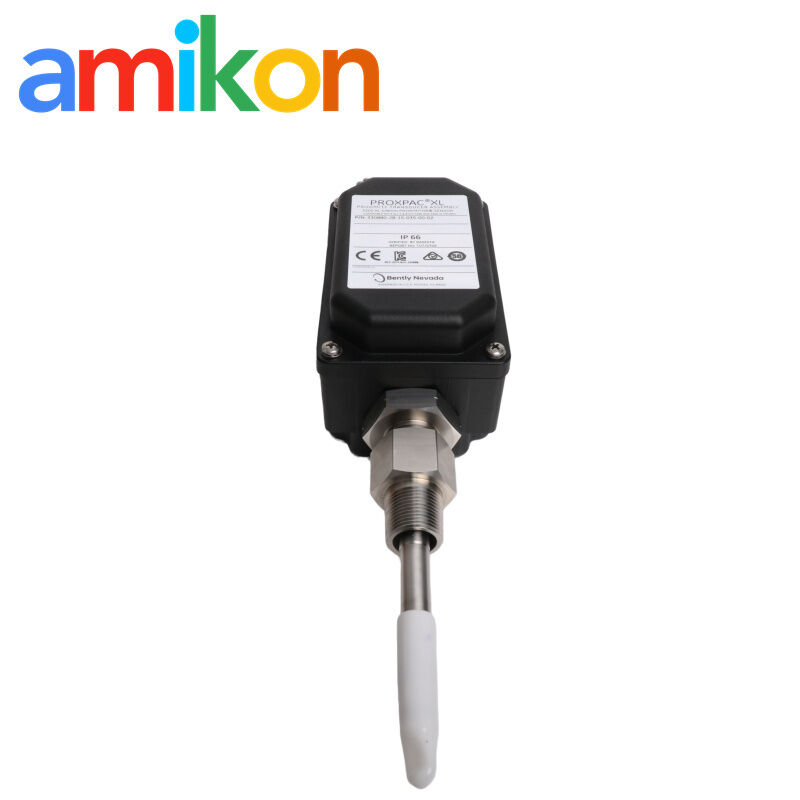

330880-00-00-000-03-02 PROXPAC XL Proximity Transducer Assembly – 3/4-14 NPT
Part Number: 330880-00-00-000-03-02
01
Technical Specifications
| Manufacturer | Bently Nevada |
|---|---|
| Part Number | 330880-00-00-000-03-02 |
| Product Family | PROXPAC XL Proximity Transducer Assembly |
| Assembly | PROXPAC XL Proximity Transducer, English |
| Probe & Approvals Option | 00 — No probe; Proximitor Sensor without approvals |
| Standoff Adapter Option | 00 — No standoff adapter |
| Probe Penetration Option | 000 — No probe sleeve |
| Fittings Option | 03 — One 3/4-14 NPT fitting, one 3/4-14 NPT to 1/2-14 NPT stainless-steel reducer and two plugs |
| Mounting Thread Option | 02 — 3/4-14 NPT |
| Housing Rating | Type 4X / IP66 |
| Housing Material | UV-resistant, glass-reinforced polyphenylene sulfide (PPS) thermoplastic containing conductive fibers |
Ordering code: 330880 / 00 / 00 / 000 / 03 / 02. The suffix determines the probe, standoff, penetration, fittings and mounting-thread configuration.
02
Application & Fault Scenarios
Proximity measurement for rotating machinery
The PROXPAC XL provides a self-contained proximity measurement arrangement with the 3300 XL Proximitor Sensor in the housing. Field wiring connects the monitor directly to the assembly.
Maintenance search
Commonly searched when an installed PROXPAC XL assembly or its proximity measurement channel requires replacement.
Loss of the associated proximity channel can affect machine monitoring; the actual alarm or trip response depends on the connected protection system.
03
Installation & Commissioning
| Mechanical | Confirm the 3/4-14 NPT mounting arrangement and fitting orientation before installation. |
| Field Wiring | Maintain the documented conductor range and maximum wiring distance to the monitor. |
| Moisture Protection | Prevent moisture from travelling through conduit into the housing; protect connectors as specified. |
| Commissioning | Verify supply, wiring, probe gap and monitor response after installation. |
04
Diagnostics
Electrical
Check supply voltage, polarity, field-wire continuity and the monitor connection.
Measurement
Check the probe gap and compare the resulting channel signal with the monitoring system response.
AMIKON Industrial Automation
Miya · Send me the part number and I’ll help check the configuration.
RFQ: Part Number · Quantity · Destination · Required Date · Machine/System Model
06
Delivery & Warranty
Before dispatch
Product identity and visible condition are checked against the confirmed order, with protective export packaging.
Warranty & DOA
One-year warranty under quotation terms. DOA cases require prompt contact with photos and relevant test information.
07
FAQ
Does 330880-00-00-000-03-02 include a proximity probe?
No. The A option is 00, specifying no probe and a Proximitor Sensor without approvals.
What mounting thread does this configuration use?
The E option is 02, corresponding to a 3/4-14 NPT mounting thread.
What fittings are specified by the 03 option?
One 3/4-14 NPT fitting, one 3/4-14 NPT to 1/2-14 NPT stainless-steel reducer and two plugs.
What should be checked before replacing this assembly?
Compare the complete ordering code and verify the mounting interface, field wiring, installed probe arrangement and connected monitor channel.
What is the maximum field-wiring length?
The datasheet specifies a maximum of 305 m (1,000 ft) between the 3300 XL Proximitor Sensor and monitor.
