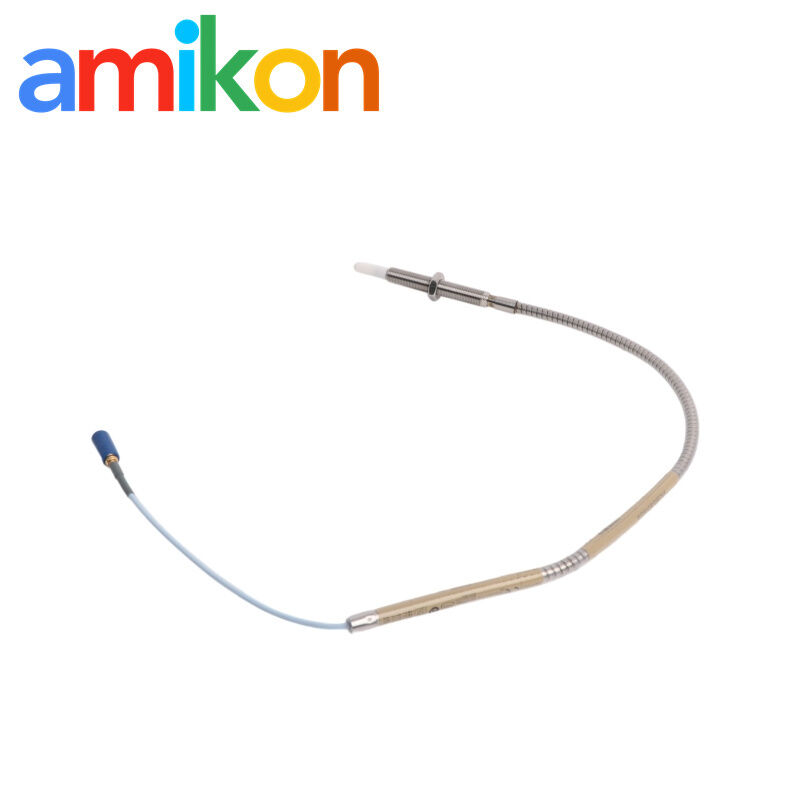

Bently Nevada 330910-00-07-05-02-CN · 3300 XL NSv Probe
M10 × 1 armored proximity probe · 0.5 m total length
CATALOG NUMBER 330910-00-07-05-02-CN 0.5 m · Armored · ClickLoc
01 · TECHNICAL
Technical Specifications
| Probe Family | 3300 NSv / 3300 XL NSv Proximity Transducer System |
| Probe Thread | M10 × 1 |
| Construction | Armored probe |
| Unthreaded Length | 0 mm |
| Overall Case Length | 70 mm |
| Total Probe Length | 0.5 m (20 in) |
| Connector | Miniature coaxial ClickLoc connector |
| Probe Cable | 75 Ω coaxial, FEP insulated |
| Probe DC Resistance | 4.0 ± 0.5 Ω for the 0.5 m probe |
| Recommended Gap | 1.0 mm (40 mils) |
| Linear Range | 1.5 mm (60 mils) |
View additional electrical, mechanical and installation data
| Linear Range Limits | Approximately 0.25 to 1.75 mm (10 to 70 mils) |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0 to 10 kHz, +0 / −3 dB typical |
| Power Without Barriers | −17.5 to −26 Vdc, 12 mA maximum consumption |
| Power With Barriers | −23 to −26 Vdc |
| Supply Sensitivity | Less than 2 mV change in output voltage per volt change in input voltage |
| Output Resistance | 50 Ω |
| Field Wiring | 0.2 to 1.5 mm² (16 to 24 AWG); 0.25 to 0.75 mm² (18 to 23 AWG) with ferrules |
| Maximum Field Wiring Length | 305 m (1,000 ft) between the 3300 XL NSv Proximitor Sensor and monitor |
| Minimum Bend Radius | 25.4 mm (1.0 in), with or without stainless-steel armor |
| Probe Case Material | AISI 304 stainless steel |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Connector Material | Gold-plated brass |
| M10 × 1 Maximum Thread Engagement | 15 mm |
| M10 × 1 Recommended Probe Case Torque | 11.3 N·m (100 in·lb) |
| M10 × 1 Maximum Probe Case Torque | 33.9 N·m (300 in·lb) |
| Probe Operating Temperature | −52°C to +177°C (−62°F to +351°F) |
| Probe Storage Temperature | −52°C to +177°C (−62°F to +351°F) |
| Probe Pressure Seal | Viton O-ring |
| Flat Target Size | Minimum 8.9 mm diameter; recommended minimum 13 mm diameter |
| Shaft Diameter | Minimum 30 mm for standard X-Y probe configuration; 20 mm for X-Y probes offset axially by 23 mm |
| Cross-talk Separation | At least 25 mm for axial-position measurements or 23 mm for radial-vibration measurements |
Source: Bently Nevada / Baker Hughes, 3300 XL NSv Proximity Transducer System Datasheet, 147385 Rev. R. Official datasheet
02 · System connection
Measurement Chain
01 / PROBE
3300 NSv Probe
Sensing element installed at the monitored machine location.
02 / CABLE
NSv Extension Cable
Provides the connection between the probe and Proximitor Sensor where required.
03 / SENSOR
3300 XL NSv Proximitor Sensor
Provides the associated electrical interface and monitoring output.
03 · Compatibility
Compatibility & Replacement
Original compatibility
3300 XL NSv Proximity Transducer System
This probe belongs to the 3300 XL NSv system and is used with its associated extension cable and Proximitor Sensor.
Historical replacement
3300 RAM / 3000 & 7000 Series 190
The manufacturer documents NSv migration from these earlier systems; an upgrade requires the corresponding NSv probe, cable and Proximitor Sensor configuration.
04 · Application
Application & Fault Scenarios
Typical applications
- Centrifugal air and process gas compressors with restricted installation space.
- Refrigeration compressors and small-shaft machinery.
- Radial vibration or radial-position measurement.
- Axial position, tachometer, zero-speed and Keyphasor applications.
Common search scenarios
- No or unstable proximity signal.
- Incorrect probe gap or out-of-range output.
- Damaged probe, armor, cable or ClickLoc connection.
- Replacement required during machinery maintenance.
Shutdown consideration: Loss of the probe channel can remove the affected vibration, position or speed measurement and may affect machinery monitoring or protection functions.
05 · Installation
Installation & Commissioning
Mechanical
- M10 × 1 mounting thread.
- Maximum thread engagement: 15 mm.
- Recommended torque: 11.3 N·m; maximum torque: 33.9 N·m.
- Minimum bend radius: 25.4 mm.
Gap & commissioning
- Recommended gap: 1.0 mm (40 mils).
- Linear range: approximately 0.25–1.75 mm.
- Scale factor: 7.87 V/mm (200 mV/mil).
- After replacement, check the complete measurement channel before return to service.
Talk to AMIKON
Need the exact configuration?
Send the part number. We’ll take it from there.
AMIKON Industrial Automation
Miya Zheng
Miya Zheng
06 · Delivery
Delivery, Warranty & RFQ
Before dispatch
Product identity, visible condition and packaging are checked where applicable, with protective export packaging for shipment.
Warranty & DOA
One-year warranty under quotation terms. DOA or transit-damage cases can be submitted with product photos and relevant test details.
RFQ
Please provide Part Number · Quantity · Destination · Required Date · Machine/System Model.
07 · FAQ
Buyer Questions
What are the thread and total probe length of 330910-00-07-05-02-CN?
The configuration uses an M10 × 1 mounting thread and has a total probe length of 0.5 m (20 in), with a 70 mm overall case length.
What probe gap is specified for the 3300 XL NSv system?
The recommended gap is 1.0 mm (40 mils), with an approximately 0.25 to 1.75 mm linear measurement range.
Is 330910-00-07-05-02-CN part of the 3300 XL NSv system?
Yes. It is a 3300 NSv probe configuration used with the 3300 XL NSv Proximity Transducer System.
Can the NSv system be used when replacing an earlier 3300 RAM arrangement?
The manufacturer documents NSv compatibility and migration from earlier 3300 RAM and 3000/7000 Series 190 arrangements. The complete probe, extension cable and Proximitor Sensor configuration should be considered during migration.
What should be checked after installing a replacement probe?
Confirm the mechanical installation, probe gap, cable and ClickLoc connection, then check the resulting measurement channel before returning the machinery to normal operation.
