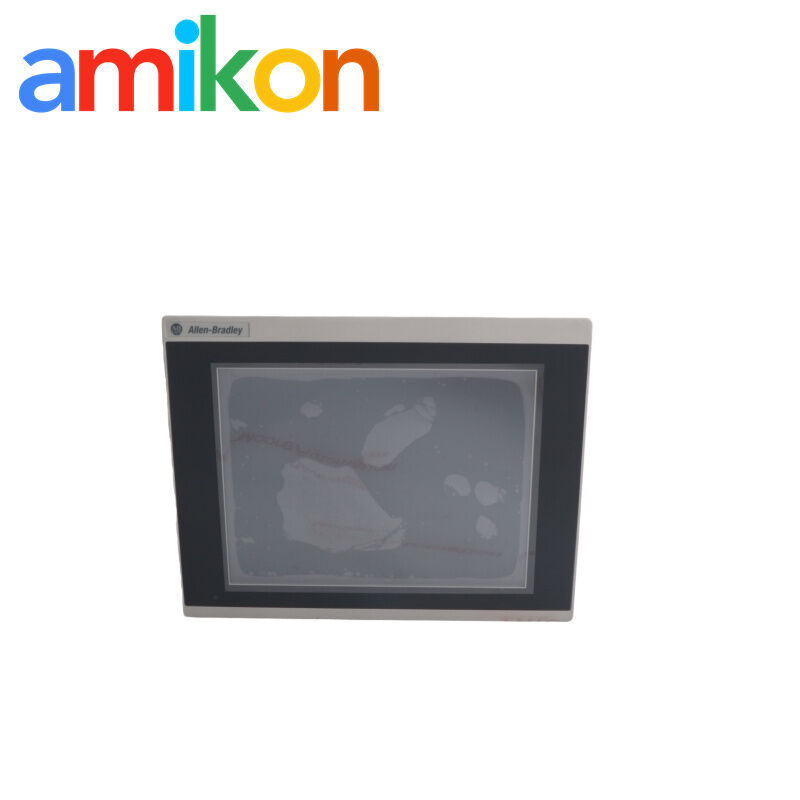

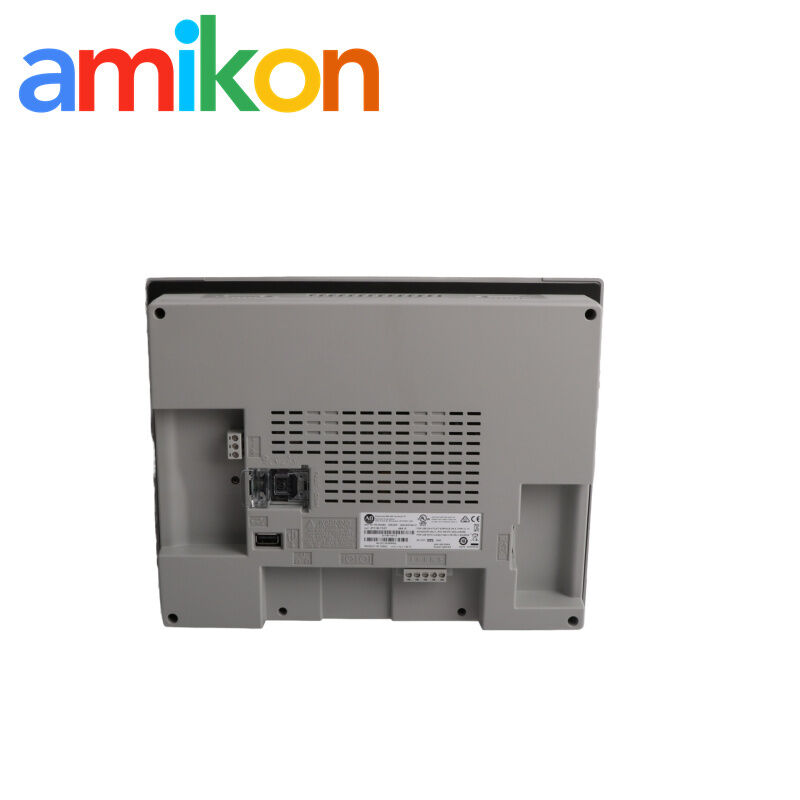

Allen-Bradley 2711R-T10T PanelView 800 HMI Terminal · 10.4-in Color TFT
Allen-Bradley 2711R-T10T PanelView 800 HMI Terminal · 10.4-in Color TFT
Allen-Bradley 2711R-T10T HMI terminal
PanelView 800 10.4-inch TFT display
Allen-Bradley industrial HMI with warranty
Place of Origin:
USA
Brand Name:
Allen Bradley
Contact Us
Request A Quote
Product Details
Highlight:
Allen-Bradley 2711R-T10T HMI terminal
,PanelView 800 10.4-inch TFT display
,Allen-Bradley industrial HMI with warranty
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
In Stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
ALLEN-BRADLEY · PANELVIEW 800 · HMI
Allen-Bradley 2711R-T10T PanelView 800 HMI Terminal · 10-in Color TFT
2711R-T10T 10 in. PanelView 800
PanelView 800 HMI terminal with a color TFT display, analog touch input, Ethernet and serial communications, plus USB and microSD external memory support.
01 · Technical Data
Technical Specifications
CORE SPECIFICATIONS
PanelView 800 · 2711R-T10T
Rockwell Automation · 2711R-IN001
| Catalog number | 2711R-T10T |
|---|---|
| Product family | PanelView 800 HMI terminal |
| Display | Color transmissive TFT active matrix LCD, widescreen format |
| Display size | 10 in. |
| Display area | 211.2 × 158.4 mm (8.31 × 6.24 in.) |
| Resolution | 800 × 600 pixels |
| Backlight lifespan, minimum | 40,000 hours |
| Operator input | Analog touch |
| External memory | USB port and microSD card; SDSC and Class 6/Class 10 SDHC microSD cards, FAT32/16, up to 32 GB |
Show additional electrical, mechanical, communication & environmental data
| Programming port | Ethernet port |
|---|---|
| Real-time clock | Yes |
| Battery lifespan, minimum | 5 years at 25 °C (77 °F) |
| Input voltage | 18…32 V DC (24 V DC nominal) |
| Maximum power consumption | 14 W |
| Weight, approximate | 1.64 kg (3.62 lb) |
| Dimensions, H × W × D | 225 × 287 × 55 mm (8.86 × 11.3 × 2.16 in.) |
| Enclosure ratings | NEMA/UL Type 4X (indoor), 12, 13 and IP65 |
| North American temperature code | T4A |
| Operating temperature | 0…50 °C (32…122 °F) |
| Nonoperating temperature | -25…+70 °C (-13…+158 °F) |
| Relative humidity | 5…95% noncondensing |
| Vibration, operating | 2 g @ 10…500 Hz |
| Shock, operating | 15 g |
| Shock, nonoperating | 30 g |
| Ethernet | 10/100 Mbit Ethernet port |
| RS-232 | RS-232 port |
| RS-422 / RS-485 | Isolated port; RS-422 supports full-duplex and half-duplex; RS-485 supports half-duplex |
| RS-422 / RS-485 termination | Integrated 120 Ω termination between R and R−; additional termination at the PanelView terminal end is not required |

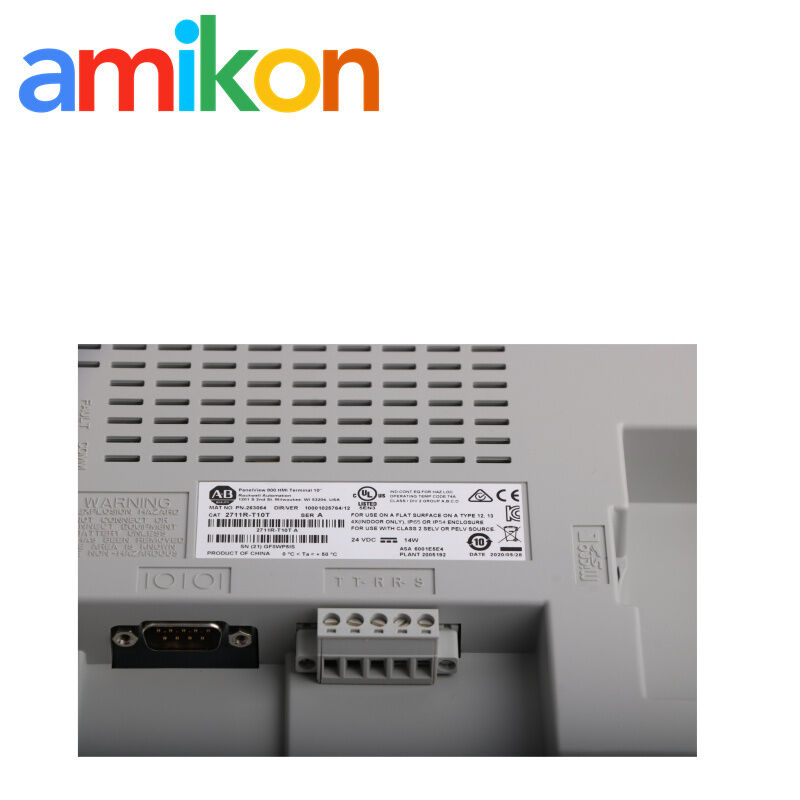

| RS-422 / RS-485 connector | 5-pin: 1 T, 2 T−, 3 R, 4 R−, 5 S (Shield) |
| USB device port | Present; not intended for customer use |
| USB host port | Present; USB host cable not to exceed 3.0 m (9.84 ft) |
| microSD | Industrial-grade microSD recommended; SDSC and Class 6/Class 10 SDHC supported; FAT32/16; maximum 32 GB |
| Power supply | Dedicated 24 V DC Class 2, SELV or PELV supply |
| Power supply type | Dedicated, isolated and ungrounded SELV source when connected to equipment with nonisolated communication ports |
| Input power terminal wiring | Stranded or solid Cu, 90 °C; single-wire 0.33…2.08 mm² (22…14 AWG); dual-wire 0.33…1.31 mm² (22…16 AWG) |
| Power terminal screw torque | 0.45…0.56 N·m (4…5 lb·in) |
| Functional earth | Connection to a low-impedance earth ground is required |
| Functional earth wire | Stranded or solid Cu, 90 °C; 2.08…3.31 mm² (14…12 AWG) |
| Functional earth screw torque | 0.45…0.56 N·m (4…5 lb·in) |
| Wiring category | Category 3 on power ports; Category 2 on communication ports |
| Heat dissipation | 61 BTU/hr |
| ESD immunity | 6 kV contact; 8 kV air |
| Radiated RF immunity | 10 V/m with 1 kHz sine-wave, 80% AM, 80…6000 MHz |
| EFT/B immunity | ±2 kV @ 5 kHz on power ports; ±1 kV @ 5 kHz on communication ports |
| Surge transient immunity | ±500 V line-line and line-earth on DC power ports; ±1 kV line-earth on communication ports |
| Conducted RF immunity | 10 V rms with 1 kHz sine-wave, 80% AM, 150 kHz…80 MHz |
| Emissions | IEC 61000-6-4 |
Source: Rockwell Automation, 2711R-IN001E-EN-P, PanelView 800 HMI Terminals Installation Instructions; Rockwell Automation product page for 2711R-T10T.
02 · Installation & Configuration
Panel Mounting & Application Setup
Panel installation
The terminal is installed through a panel cutout using the supplied gasket and eight mounting levers. The supporting panel should be at least 16 gauge and sufficiently flat to maintain the specified seal.
MOUNTING CLEARANCE
Top 51 mm · Bottom 25 mm · Sides 25 mm · Back 51 mm
MOUNTING ANGLE
Vertical or tilted forward/backward up to 60°. Above 60°, operating temperature is restricted to 40 °C.
Application configuration
PanelView 800 HMI applications are created using Connected Components Workbench software and downloaded to the terminal.
03 · Connection Architecture
Ports, Power & Supporting Hardware
COMMUNICATION
Ethernet + Serial
10/100 Mbit Ethernet, RS-232 and isolated RS-422/RS-485 interfaces.
POWER
24 V DC Input
18…32 V DC input with 24 V DC nominal and a dedicated SELV/PELV supply.
MEMORY
USB + microSD
External memory through USB and microSD, with industrial-grade microSD recommended.
DOCUMENTED SUPPORTING HARDWARE
| 2711P-CBL-EX04 | Ethernet crossover CAT5 cable, 4.3 m (14 ft) |
|---|---|
| 1747-CP3 | Serial 9-pin D-shell to 9-pin D-shell null modem cable |
| 1761-CBL-PM02 | Serial 9-pin D-shell to 8-pin mini DIN cable, 2 m (6.56 ft) |
| 2711C-CBL-AB03 | RS-485 5-pin to RJ45 cable |
Wiring, grounding, mounting and troubleshooting details are covered in Rockwell Automation publications 2711R-UM001 / 2711R-IN001.
04 · Diagnostics & Field Use
Typical System Role & Diagnostic Points
TYPICAL SYSTEM ROLE
Operator interface for controller-connected equipment
The PanelView 800 terminal provides operator interaction with devices attached to a controller through an HMI application.
01
Terminal does not start
Check the 24 V DC supply and startup indicator states.
02
Communication fault
Check the Comm indicator and the applicable Ethernet or serial connection.
03
Hardware fault during startup
A steady Fault indicator with the documented startup state can indicate a fatal hardware error.
05 · Talk to AMIKON
Need this exact terminal?
AMIKON Industrial Automation
Contact: Miya Zheng
Email
sales@amikon.cnWhatsApp
+86 180 2077 6792Send the exact part number and quantity when requesting a quotation.
RFQ
Part Number
Quantity
Destination
Required Date
Machine/System Model
06 · Delivery & Warranty
Supply Support
TESTING
Functional inspection and testing where applicable before shipment.
PACKAGING
Protective export packaging for industrial-part shipment.
WARRANTY
One-year warranty under applicable quotation and service terms.
DOA / RETURNS
Report DOA with photos, test details and order information for after-sales review.
07 · Buyer FAQ
Questions Around 2711R-T10T
What is the resolution of the 2711R-T10T display?
The 2711R-T10T uses an 800 × 600 pixel color transmissive TFT active matrix LCD with a 10-inch display size and 211.2 × 158.4 mm display area.
What power supply does the PanelView 800 2711R-T10T require?
The terminal operates from 18…32 V DC, with 24 V DC nominal, and has a maximum power consumption of 14 W. Rockwell Automation specifies a Class 2, SELV or PELV supply.
Does the 2711R-T10T support RS-485 communication?
Yes. Its isolated RS-422/RS-485 port supports RS-422 full-duplex and half-duplex communication and RS-485 half-duplex communication.
What should be checked if a 2711R-T10T stops during startup?
Check the power supply and the Fault/Comm indicator states. Rockwell Automation documents firmware-related startup states and identifies a steady Fault indicator with Comm off as a potential fatal hardware error.
What microSD card capacity is supported by the 2711R-T10T?
The installation documentation specifies SDSC and Class 6/Class 10 SDHC microSD support in FAT32/16 formats, with a maximum size of 32 GB.
