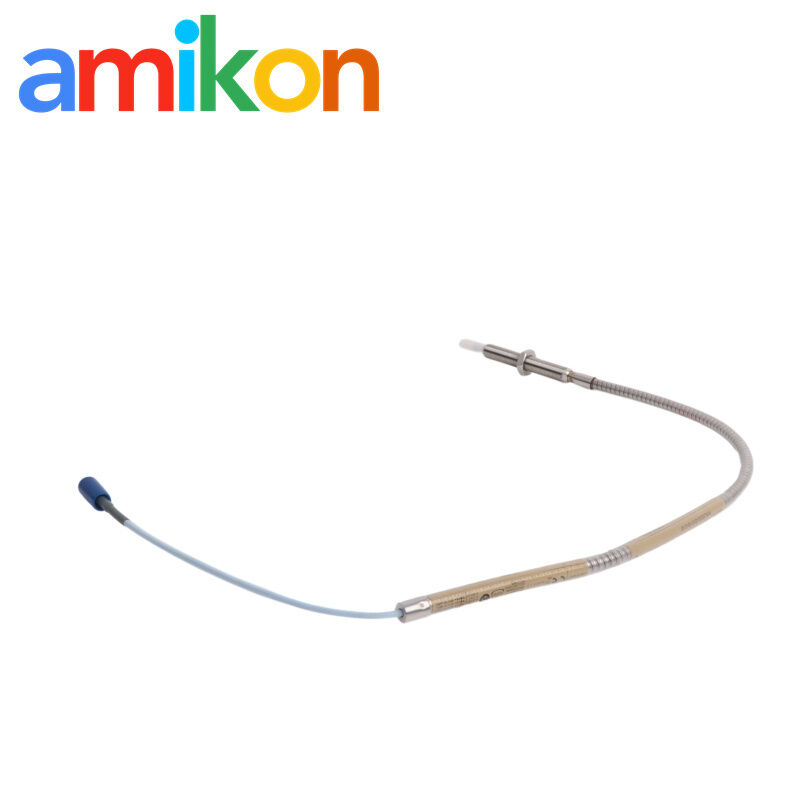

Bently Nevada 330910-00-07-05-02-05 3300 NSv Proximity Probe · M10X1 Armored
Compact proximity sensing for 3300 XL NSv transducer applications.
Technical Overview
Source: Bently Nevada 3300 XL NSv Proximity Transducer System Datasheet 147385 Rev. R.
Technical Specifications
| Product Type | 3300 NSv Proximity Probe |
|---|---|
| Manufacturer Series | 3300 XL NSv Proximity Transducer System |
| Probe Code | 330910 — M10X1 thread, with armor |
| Unthreaded Length | 00 — 0 mm |
| Overall Case Length | 07 — 70 mm |
| Total Probe Length | 05 — 0.5 meter / 20 inches |
| Connector / Cable | 02 — miniature coaxial ClickLoc connector, standard cable |
| Agency Approval | 05 — Multiple Approvals |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 304 stainless steel |
| Probe Cable | 75 Ω coaxial, FEP insulated |
| Operating Temperature | -52°C to +177°C (-62°F to +351°F) |
| Storage Temperature | -52°C to +177°C (-62°F to +351°F) |
More technical parameters
| Maximum M10X1 Thread Engagement | 15 mm |
|---|---|
| Recommended M10X1 Probe Case Torque | 11.3 N·m (100 in·lb) |
| Maximum M10X1 Probe Case Torque | 33.9 N·m (300 in·lb) |
| Recommended Gap Setting | 1.0 mm (40 mils) |
| Linear Range | 1.5 mm (60 mils), approximately 0.25 to 1.75 mm (10 to 70 mils) |
| Average / Incremental Scale Factor | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0 to 10 kHz, +0 / -3 dB typical, with up to 305 m (1,000 ft) field wiring |
| Target Size — Flat Target | Minimum 8.9 mm (0.35 in) diameter; recommended minimum 13 mm (0.5 in) diameter |
| Minimum Bend Radius | 25.4 mm (1.0 in), with or without stainless steel armor |
Source: Bently Nevada 3300 XL NSv Proximity Transducer System Datasheet 147385 Rev. R.
Signal Path
Installation & Connection
- M10X1 mounting configuration.
- ClickLoc connector connection.
- Three-conductor shielded triad recommended for field wiring.
- Use the specified probe gap during installation.
- Maintain the specified cable bend radius.
- Maximum field wiring length to the monitor: 305 m (1,000 ft).
Source: Bently Nevada 3300 XL NSv Proximity Transducer System Datasheet 147385 Rev. R.
Compatibility & Replacement
Original compatibility
The 3300 NSv probe and extension cable are mechanically and electrically compatible and interchangeable with the previous 3300 RAM proximity probe and extension cable.
Historical replacement
The 3300 XL NSv system was designed to replace 3300 RAM and 3000-series / 7000-series 190 transducer systems.
Application & Fault Search
Used in compact proximity measurement applications, including machinery with smaller shafts or restricted installation space.
Documentation
For installation, configuration, wiring and system-performance reference, use the applicable 330910-00-07-05-02-05 datasheet together with the 3300 XL NSv system documentation.
Manufacturer document: 3300 XL NSv Proximity Transducer System Datasheet 147385 Rev. R.
