Allen-Bradley 2711P-T10C21D8S PanelView Plus 7 10.4-inch Touch Terminal

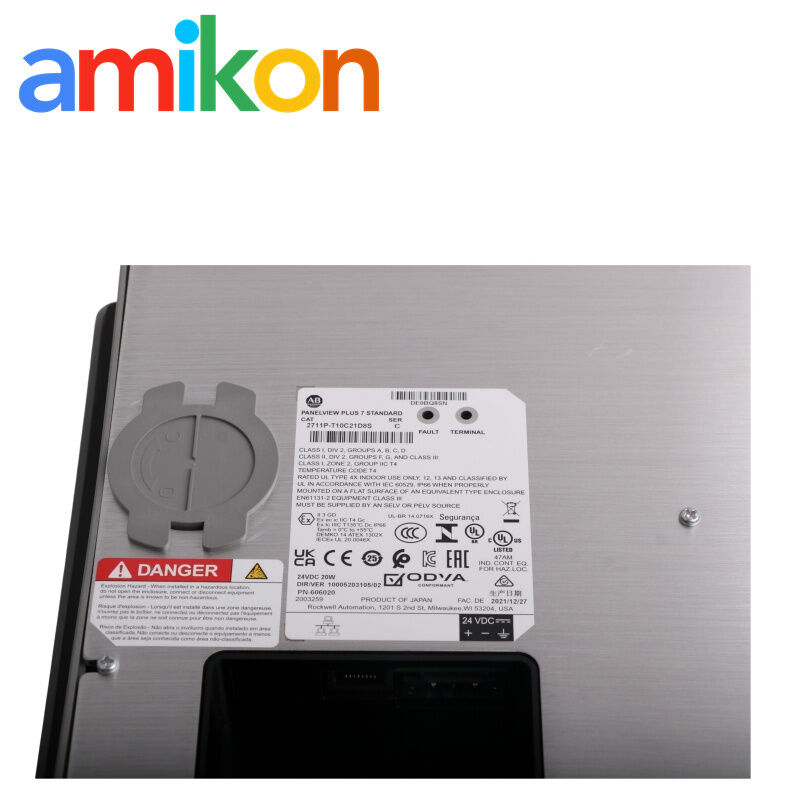

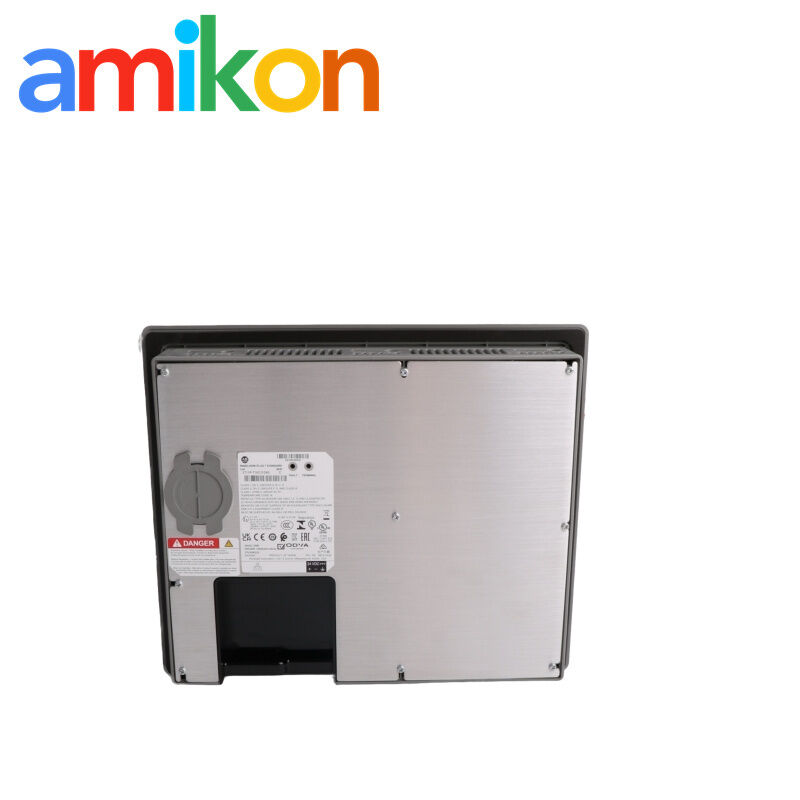

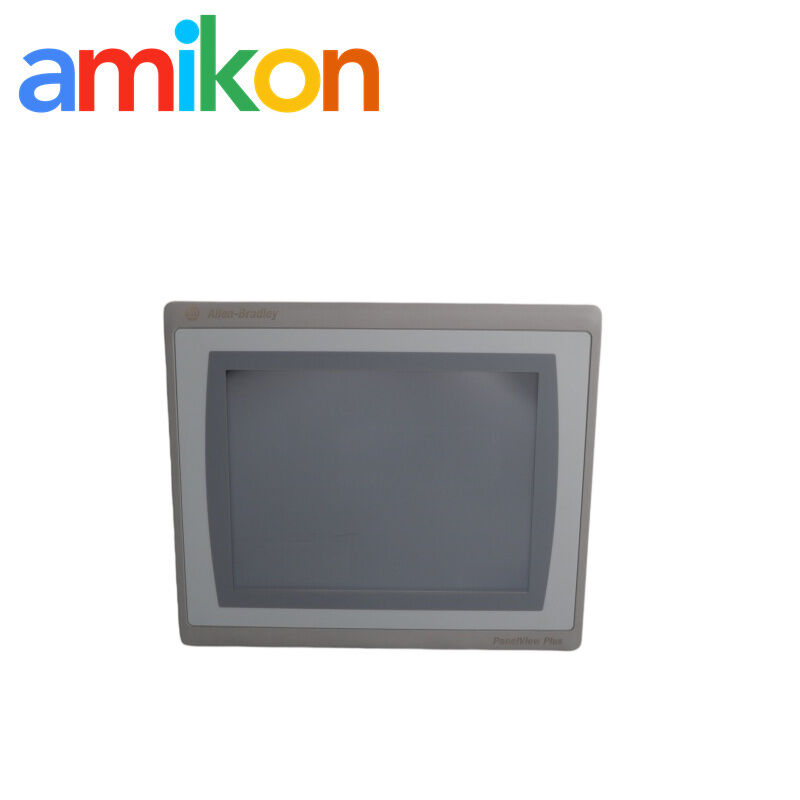

Allen-Bradley 2711P-T10C21D8S PanelView Plus 7 10.4-inch Touch Terminal
Allen-Bradley PanelView Plus 7 touch terminal
10.4-inch industrial touch screen
Allen-Bradley 2711P-T10C21D8S HMI
Place of Origin:
USA
Brand Name:
Allen Bradley
Contact Us
Request A Quote
Product Details
Highlight:
Allen-Bradley PanelView Plus 7 touch terminal
,10.4-inch industrial touch screen
,Allen-Bradley 2711P-T10C21D8S HMI
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
In Stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
01 Allen-Bradley PanelView Plus 7
2711P-T10C21D8S · 10.4-in. Touch Terminal
PanelView Plus 7 Standard
10.4-inch color touch terminal with 800 × 600 SVGA display, 24V DC input and single 10/100Base-T Ethernet communication.
02 / Technical Specifications
Technical Specifications
Exact catalog-specific technical data for this PanelView Plus 7 Standard terminal.
Display, Touch and Memory
| Operator input | Touch |
|---|---|
| Display type | Color TFT LCD |
| Display size, diagonal | 10.4 in. |
| Viewing area | 211 × 158 mm |
| Display resolution | 800 × 600 SVGA, 18-bit color graphics |
| Aspect ratio | 4:3 |
| Brightness, typical | 300 nits |
| Backlight life | 50,000 hr minimum at 40 °C to half-brightness; backlight is not replaceable |
| Touch screen | Analog resistive |
| Touch actuation rating | 1 million presses |
| Touch operating force | 100 grams |
| System memory | 512 MB RAM and 512 MB storage |
| User storage | 80 MB nonvolatile storage for applications |
Source: Rockwell Automation Publication 2711P-TD008J-EN-P.
Communications, Ports and Operating Environment
| Ethernet | One 10/100Base-T, Auto MDI/MDI-X Ethernet port with IEEE 1588 support |
|---|---|
| USB host | One USB 2.0 high-speed host port, Type A |
| USB device | One high-speed USB 1.0 device port, Type B |
| SD card slot | One SD card slot for storing application files |
| Operating system | Windows CE, including FTP, VNC client/server, ActiveX controls, PDF reader and third-party device support |
| Software | FactoryTalk View Studio for Machine Edition version 8.0 or later; FactoryTalk ViewPoint version 2.6 or later |
| Operating temperature | 0…55 °C (32…131 °F) |
| Nonoperating temperature | -25…+70 °C (-13…+158 °F) |
| Relative humidity | 5…95% without condensation |
| Operating altitude | 2000 m |
| Operating shock | 15 g at 11 ms |
| Nonoperating shock | 30 g at 11 ms |
| Enclosure ratings | NEMA and UL Type 12, 13, 4X (indoor use only); also classified IP54 or IP66 by UL |
Source: Rockwell Automation Publication 2711P-TD008J-EN-P.
Power, Dimensions and Mounting Envelope
| Input voltage | 24V DC nominal, 18…30V DC |
|---|---|
| Power supply type | Nonisolated DC power supply |
| Maximum DC power consumption | 50 W maximum, 2.1 A at 24V DC |
| DIN-rail AC-to-DC supply | 85…265V AC, 47…63 Hz |
| Recommended DIN-rail power supply | Allen-Bradley 2711P-RSACDIN |
| Approx. weight | 1.82 kg (4.0 lb) |
| Overall dimensions, H × W × D | 252 × 297 × 56.5 mm (9.92 × 11.69 × 2.22 in.) |
| Cutout dimensions, H × W | 224 × 269 mm (8.82 × 10.59 in.) |
| Mounted depth | 50.14 mm (1.97 in.) |
Source: Rockwell Automation Publication 2711P-TD008J-EN-P; mounting instructions: Publication 2711P-UM007.
RTC Battery, SD Storage and Firmware
| Real-time clock accuracy | ±2 minutes per month |
|---|---|
| RTC battery life | 4 years minimum at 25 °C (77 °F) |
| RTC battery replacement | CR2032 lithium coin cell, Allen-Bradley 2711P-RY2032 |
| SD card options | 1784-SD1 (1 GB), 1784-SD2 (2 GB), 1784-SDHC8 (8 GB), 1784-SDHC32 (32 GB) |
| Series D firmware | Series D terminals are compatible with firmware version 13.x and later |
Source: Rockwell Automation Publication 2711P-TD008J-EN-P.
03 / Compatibility
Compatibility & Replacement
Supports EtherNet/IP with applicable ControlLogix and CompactLogix systems. This model has one 10/100Base-T Ethernet port. For replacement, match the catalog number, Series, firmware and network configuration.
04 / Installation
Installation & Signal Path
Panel mounting
Panel cutout: 224 × 269 mm. Overall dimensions: 252 × 297 × 56.5 mm.
Configuration
FactoryTalk View Studio for Machine Edition is the listed development environment; FactoryTalk ViewPoint is supported.
Signal Path: Touch input → PanelView Plus 7 runtime → 10/100Base-T Ethernet → EtherNet/IP → Logix controller.
For the current 2711P-T10C21D8S datasheet, match the exact catalog number and Series before selecting firmware or accessories.
05 / Application & Fault Search
Application & Fault Scenarios
System
Machine / Process HMI
Local operator monitoring and control for supported Logix-based systems.
Search reason
Communication / HMI Fault
Typical searches include Ethernet communication loss, failed display or exact-part replacement.
Downtime
Operator Access Loss
A failed terminal can remove local access to process screens, alarms and status.
Diagnostic sequence: check 24V DC → Ethernet link → Series / firmware → FactoryTalk View ME application → controller/network.
06 / Delivery & Service
Service that supports the whole delivery.
Inspection, export packaging and after-sales support for industrial automation equipment.
Team
OUR TOUR
Professional inspection
07 / FAQ
Frequently Asked Questions
What controller families can the 2711P-T10C21D8S communicate with?
ControlLogix 5570 and CompactLogix 5370 controllers are identified for PanelView Plus 7 Standard applications over EtherNet/IP.
Does the 2711P-T10C21D8S support DLR?
This exact 21 configuration has one Ethernet port. DLR support is associated with applicable two-port configurations.
What is the panel cutout size?
The specified cutout is 224 × 269 mm.
What should be checked before replacing this terminal?
Match the catalog number, Series, firmware, FactoryTalk View ME application and Ethernet arrangement.
What information should I send for a quotation?
Send Part Number, Quantity, Destination, Required Date and Machine/System Model.
