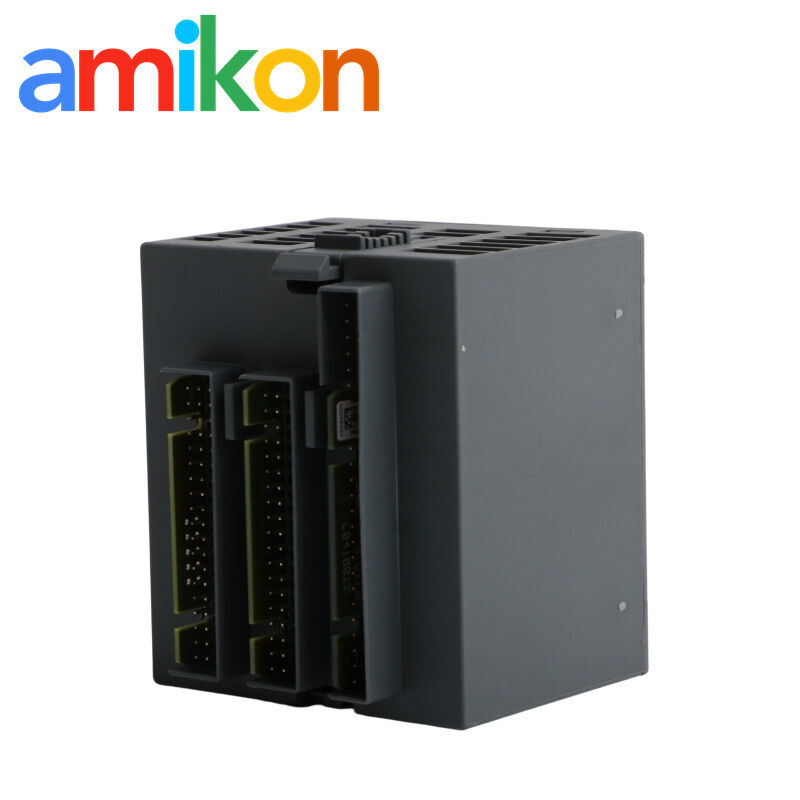

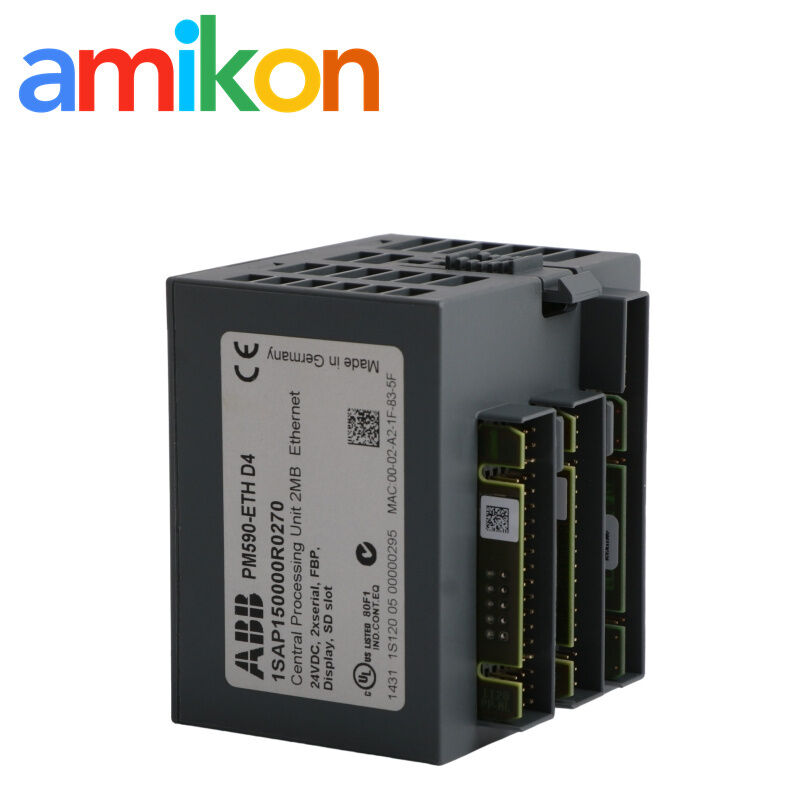

PM590-ETH 1SAP150000R0271 ABB Processor Module – 2 MB Ethernet AC500
ABB PLC processor module
PM590-ETH Ethernet module
AC500 processor with warranty
Place of Origin:
SWEDEN
Brand Name:
ABB
Document:
ABB PLC processor module
,PM590-ETH Ethernet module
,AC500 processor with warranty

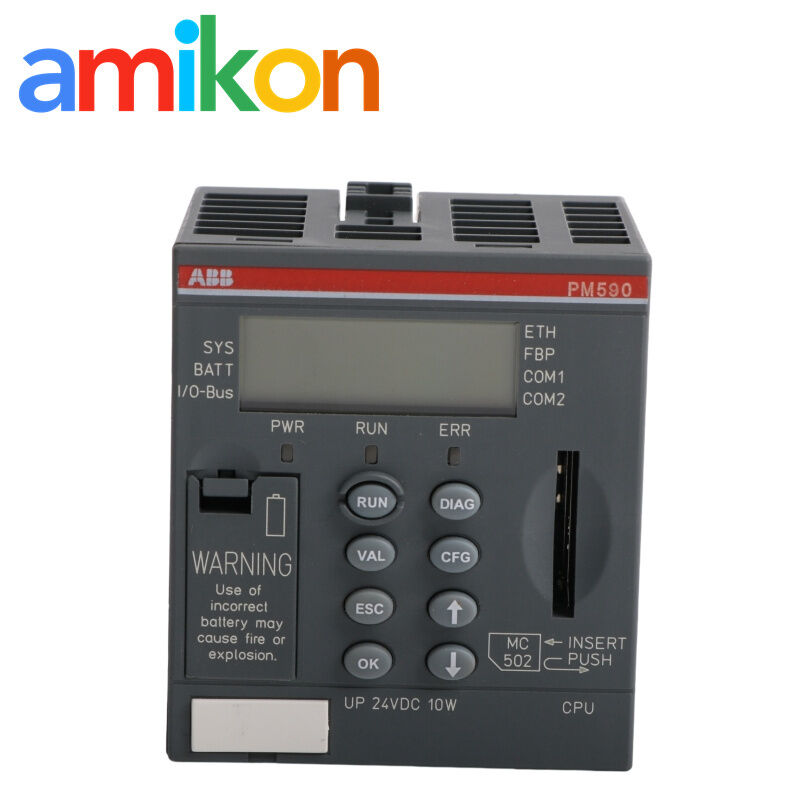

Processor module for the ABB AC500 system with integrated Ethernet, two configurable serial interfaces, one FieldBusPlug interface and an LCD display.
Technical Parameters
Memory & processing
| Program memory | 2048 kB |
|---|---|
| Integrated user data memory | 3072 kB |
| Saved data memory | 536 kB |
| Minimum instruction time | Bit: 0.002 µs · Word: 0.004 µs · Floating point: 0.004 µs |
| Memory card | Plug-in memory card supported |
Communication interfaces
| Ethernet | 1 integrated Ethernet interface |
|---|---|
| Ethernet functions | TCP/IP, UDP/IP, Modbus TCP, web server, IEC 60870-5-104, SNTP, DHCP, FTP server, HTTP, SMTP and PING |
| COM1 | RS-232 / RS-485 configurable; programming, Modbus RTU, ASCII and CS31 master |
| COM2 | RS-232 / RS-485 configurable; programming, Modbus RTU and ASCII |
| FieldBusPlug | 1 interface |
Electrical & physical data
| Supply voltage | 24 V DC |
|---|---|
| Supply range | 20.4 … 28.8 V DC |
| Current consumption | 0.150 A typical, module alone |
| Display | LCD display with 8 function keys |
| Mounting | TH35-15 mounting rail according to IEC 60715 |
| Protection rating | IP20 |
| Dimensions | 67.5 mm W × 76 mm H × 62 mm D |
| Product net weight | 0.137 kg |
Installation & Configuration
Mounting
Install the module on the specified TH35-15 mounting rail within the AC500 assembly.
Terminal base
Use the corresponding AC500 terminal-base arrangement for the installed controller configuration.
Engineering
Use Automation Builder for AC500 hardware configuration, programming and commissioning.
Documentation
Check the PM590-ETH datasheet when matching the module to an existing project or spare-parts requirement.
Application & Fault Search
Controller replacement
Suitable for AC500 controller applications requiring the PM590-ETH processor configuration.
Ethernet communication
For communication or remote-access problems, first check power, network connection and controller status.
RS-232 / RS-485 fault search
Check the selected interface mode, communication settings, cabling and connected device.
Unexpected controller stop
Check the processor status and project condition before removing or replacing the module.
Request a Quote
Delivery & Warranty
FAQ
What is the ABB PM590-ETH order code?
How much program memory does PM590-ETH have?
Does ABB PM590-ETH have Ethernet?
What serial interfaces are available on PM590-ETH?
What should I check before ordering a PM590-ETH replacement?
