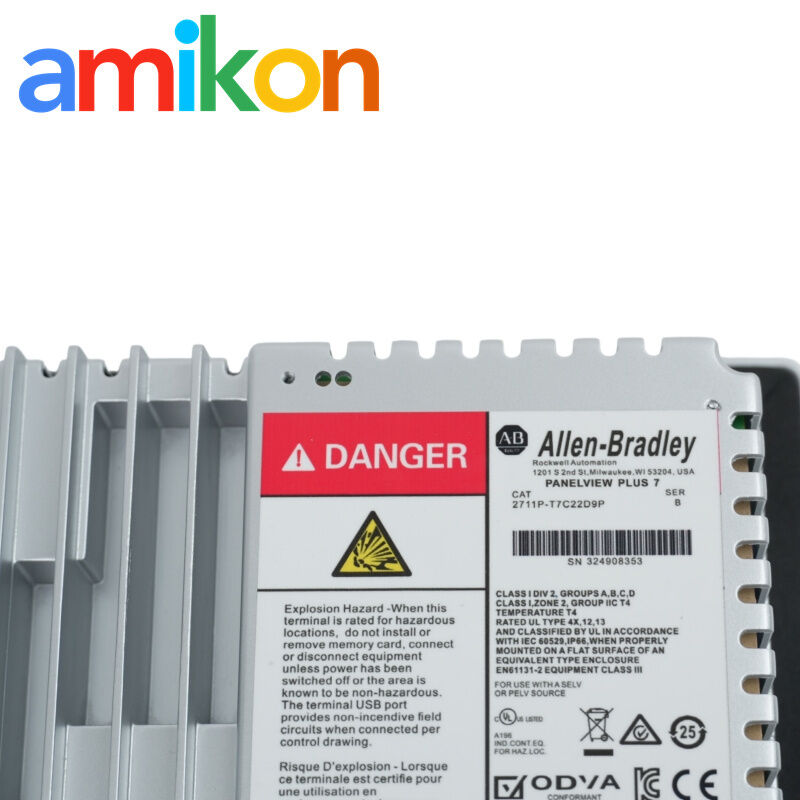

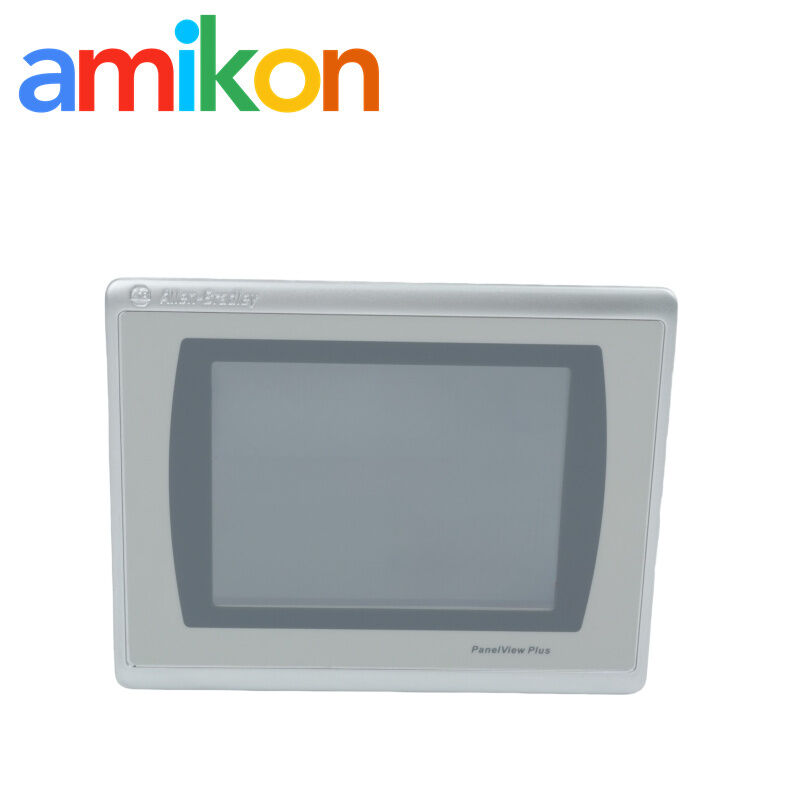

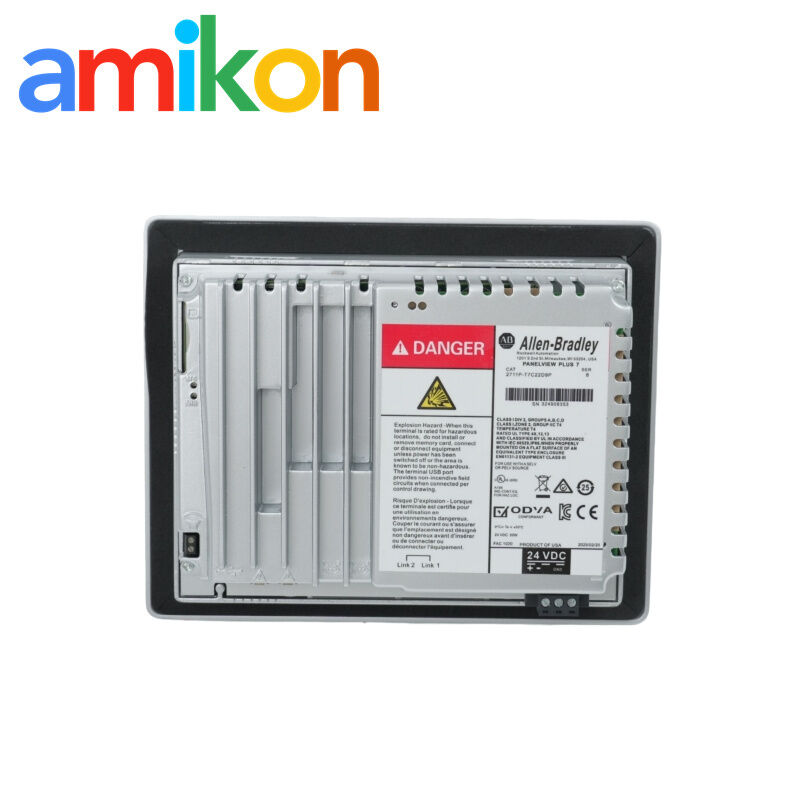

Allen-Bradley 2711P-T7C22D9P — 6.5-in. VGA Touch Terminal with EtherNet/IP DLR
Allen-Bradley 6.5-inch VGA touch terminal
EtherNet/IP DLR touch terminal
2711P-T7C22D9P industrial touch screen
Place of Origin:
USA
Brand Name:
Allen Bradley
Allen-Bradley 6.5-inch VGA touch terminal
,EtherNet/IP DLR touch terminal
,2711P-T7C22D9P industrial touch screen
01 / Technical Specifications
Technical data
| Parameter | Specification |
|---|---|
| Product family | PanelView Plus 7 Performance |
| Catalog number | 2711P-T7C22D9P |
| Display | 6.5-in. VGA TFT color |
| Resolution | 640 × 480 |
| Input | Touch |
| Ethernet | Dual Ethernet ports with Device Level Ring (DLR) |
| Power input | 24V DC |
| Memory | Series A: 512 MB RAM / 80 MB user memory; Series B: 4 GB RAM / 2 GB user memory |
| Power dissipation | 40.8 W at full load |
| Lifecycle | Active |
Expand environmental and mechanical specifications
| Parameter | Specification |
|---|---|
| Display brightness | 300 nits |
| Input voltage | 18…30V DC |
| Viewing area | 132 × 99 mm |
| Panel cutout | 184 × 142 mm |
| Overall dimensions | Approx. 212 × 170 × 69.6 mm (W × H × D) |
| Operating temperature | 0…55 °C |
| Relative humidity | 5…95%, noncondensing |
| Enclosure rating | NEMA Type 12, 13, 4X; UL Type 4X; IP66 |
| Storage | SD card slot provided |
| USB | Two USB 2.0 host ports |
Operator interface to control network
The terminal provides the operator interface between the HMI application and the control network.
Installation essentials
Panel installation
Panel-mounted terminal installation using the specified mounting hardware and installation procedure.
Power & network
Connect the terminal power connection and establish Ethernet communication for the application.
Setup & calibration
Complete startup configuration and use touch calibration when input response requires adjustment.
Compatibility and replacement
Original compatibility
PanelView Plus 7 Performance terminals are designed for EtherNet/IP-based HMI applications. This catalog number uses dual Ethernet ports with DLR capability.
Historical replacement
Rockwell Automation lists 2711P-T7C22D9P as a primary replacement option for PanelView Plus 6 700-series DC touch models including 2711P-T7C4D8 and 2711P-T7C4D9.
Maintenance search points
Machine / process HMI
Used as an operator terminal in EtherNet/IP automation applications.
Terminal replacement
Common search situations include failed display, touch input, power or network communication.
Operator access lost
A failed HMI can interrupt normal access to machine status, alarms and operator commands.
Supply support
Support when the right part matters.
Our service team can help with inherited-model stock, hard-to-source parts, urgent shutdown replacements and discontinued equipment sourcing — from part identification to shipment coordination.
Buyer questions
Is 2711P-T7C22D9P an active Rockwell Automation model?
Yes. Rockwell Automation currently lists 2711P-T7C22D9P with an Active lifecycle status.
What power supply does 2711P-T7C22D9P use?
It uses 24V DC input. The technical data specifies an 18…30V DC input range.
Does 2711P-T7C22D9P support DLR?
Yes. The terminal has dual Ethernet ports and supports Device Level Ring (DLR) network topology.
Can it replace a PanelView Plus 6 700 DC touch terminal?
Rockwell Automation lists it as a primary replacement option for selected PanelView Plus 6 700-series DC touch terminals. Panel cutout differences mean an adapter plate may be required.
What should I provide for a replacement quotation?
Send the exact part number, quantity, destination, required date, machine and system model.
